ZEN-PA

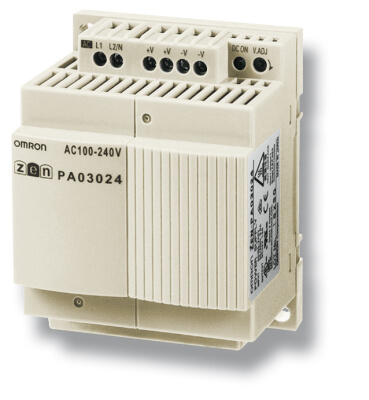

ZEN Power Supply

The ZEN Power Supply has the same compact housing as our 10 I/O CPU units. With a current/wattage output of 1.3A/30W it covers enough power to supply the DC ZEN itself and the eventually used sensors. If needed parallel operation is possible.

Output voltage 24VDC
Output current 1.3A
Capacity 30W
Allows parallel operation
H 90 x W 70 x D 56mm

Specifications & ordering info

Ordering information

Power rating	Inputs voltage	Output current		Order code
30 W	100 to 240 VAC	1.3 A		ZEN-PA03024

Specifications

Item	Specifications
Power rating	30 W
Efficiency	80% min. (24 V)
Input voltage	100 to 240 VAC (85 to 264 VAC), single-phase
Output voltage	Voltage adjustment	±10% to ±15% (with V. ADJ) min. of rate output voltage
	Ripple	2% (p-p) max. (-25°C to -10°C: 4% max.)
	Input variation	0.5% max.
	Temperature	0.05% / °C max.
Overload protection	105% to 135% of rated load current, inverted L drop, intermittent
Overvoltage protection	yes
Input Current	100 V	0.8 A max.
Input Current	200 V	0.45 A max.
Output indicator	yes (green)
Weight	240 g max.
Operating temperature	-10°C to 60°C
Parallel operation	yes (2 units max.)
