E5CSV

The easy way to perfect
temperature control

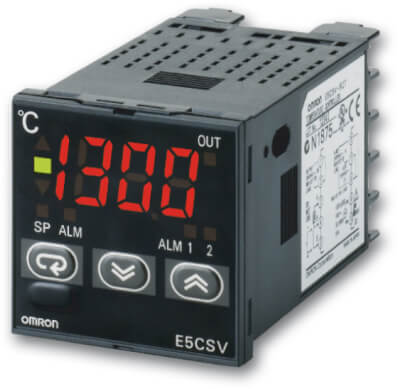

This multi-range 1/16 DIN controller with alarm function offers field-selectable PID control or ON/OFF control. The large, single display shows process value, direction of deviation from set point, output and alarm status.

  • All setting field configurable with switches
  • Multi-input (Thermocouple/Pt100)
  • Clearly visible 3.5-digit display with character height of 13.5mm
  • Control output: relay, voltage (for driving SSR)
  • ON/OFF or 2-PID control with auto-tuning and self-tuning



E5CSV Temperature Controllers Datasheet

Specifications & ordering info

Ordering information



Size in mm

Supply voltage

Number of alarm points

Control output

Order code

1/16 DIN
48H×48W×78D

100 to 240 VAC

1

Relay

E5CSV-R1T-500

Voltage (for driving SSR)

E5CSV-Q1T-500

24 VAC/VDC

1

Relay

E5CSV-R1TD-500

Voltage (for driving SSR)

E5CSV-Q1TD-500

Note: Other models are available on request.

Accessories

Type

Order code

Hard protective cover

Y92A-48B

Specifications



Item

E5CSV

Supply voltage

100 to 240 VAC, 50/60 Hz or 24 VAC/VDC (depending on model)

Operating voltage range

85 to 110% of rated supply voltage

Power consumption

5 VA

Sensor input

Multi-input (thermocouple/platinum resistance thermometer): K, J, L, T, U, N, R, Pt100, JPt100

Control output

Relay output

SPST-NO, 250 VAC, 3 A (resistive load)

Voltage output (for driving SSR)

12 VDC, 21 mA (with short-circuit protection circuit)

Control method

ON/OFF or 2-PID (with auto-tune and self-tune)

Alarm output

SPST-NO, 250 VAC, 1 A (resistive load)

Setting method

Digital setting using front panel keys (functionality set-up with DIP switch)

Indication

7-segment digital display (character height: 13.5 mm) and deviation indicators

Ambient temperature

-10 to 55°C (with no condensation or icing)

Setting/indication accuracy

±0.5% of indication value or ±1 °C, whichever is greater ±1 digit max.

Hysteresis (for ON/OFF control)

0.2% FS (0.1% FS for multi-input (thermocouple/platinum resistance thermometer) models)

Proportional band (P)

1 to 999°C (automatic adjustment using AT/ST)

Integral time (I)

0 to 1,999 s (automatic adjustment using AT/ST)

Derivative time (D)

0 to 1,999 s (automatic adjustment using AT/ST)

Control period

2/20 s

Sampling period

500 ms

Electrical life expectancy

100,000 operations min. (relay output models)

Weight

Approx. 120 g (controller only)

Degree of protection

Front panel: Equivalent to IP66; rear case: IP20; terminals: IP00

Memory protection

EEPROM (non-volatile memory) (number of writes: 1,000,000)

Size in mm (H×W×D)

48×48×78

Features

Harsh environment



Control products can be subjected to harsh environments where they can be splashed during the process or covered in dust or get warm through their location. The E5CN, E5CSV, H7CX, H5CX and K3HB all feature a NEMA4X (IP66 equivalent) front panels so are suitable for the use in these applications, also the low profile fascia means that they are less prominent in the front of the panel and so less likely to become dirty.

Expertise

Applications

Intuitive operator guidance

Clear indication that the correct temperature has been reached thanks to the deviation indicator.

Speed-up your line

Excellent control, especially in this disturbance-sensitive application.

Usage in harsch environment

The flat front makes the use of the E5CSV hygienic and it’s easy and safe to clean thanks to its IP66 rating.
