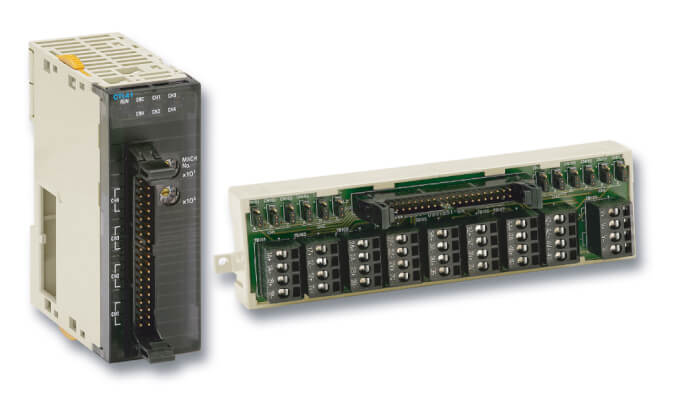

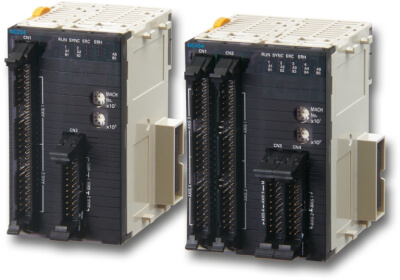

CJ1W-NC_4

2 or 4-axis point-to-point positioning
controller with pulse train output
and motion control unit functionality

The NC motion controllers support positioning control via pulse-train outputs. Positioning is performed using trapezoidal or S-curve acceleration and deceleration. Ideal for controlling simple positioning in stepper motors and servos with pulse-train input. When the CJ1W-NC__4 unit is used in a CJ2 CPU, it can perform also synchronous operation by use of electronic CAMs and other function blocks.

• Position and speed control
• Linear interpolation and feeder control function
• Electronic CAM profiles and axes synchronisation
• Positioning of 500 points done from memory
• Programming languages: ladder, function blocks
