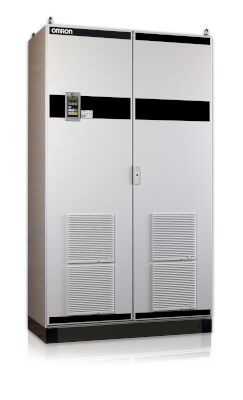

SX-AFE

Cost-efficient and
trouble-free operation

SX Active Front End drives solution

400V and 690V power supply from 55 kW up to 1,100 kW
Low harmonic or regenerative drive
IP54 full range
Compact and robust design
Built-in filter (according to C3 class)
Built-in fuses (from 200 kW)
Safety according EN 13849-1 and EN 62061 standards
Flexibility options: I/O‘s, Fieldbus, PTC/PT100
Communication options: EtherCAT, PROFINET, Modbus, DeviceNet, PROFIBUS, Modbus TCP
CE, UL, RoHS

Ordering information

Inverter with Regenerative Active Front End

Specifications					IP54 model
Specifications					Low harmonic drive		Regenerative + low harmonic drive
Voltage	Heavy duty		Normal duty		Direct torque control	V/F control	Direct torque control
400 V	45 kW	87 A	55 kW	109 A	SX-D4055-E1FL	SX-D4055-E1VL	SX-D4055-E1FR
	55 kW	117 A	75 kW	146 A	SX-D4075-E1FL	SX-D4075-E1VL	SX-D4075-E1FR
	75 kW	140 A	90 kW	175 A	SX-D4090-E1FL	SX-D4090-E1VL	SX-D4090-E1FR
	90 kW	168 A	110 kW	210 A	SX-D4110-E1FL	SX-D4110-E1VL	SX-D4110-E1FR
	110 kW	200 A	132 kW	250 A	SX-D4132-E1FL	SX-D4132-E1VL	SX-D4132-E1FR
	132 kW	240 A	160 kW	300 A	SX-D4160-E1FL	SX-D4160-E1VL	SX-D4160-E1FR
	160 kW	300 A	200 kW	375 A	SX-D4200-E1FL	SX-D4200-E1VL	SX-D4200-E1FR
	200 kW	344 A	220 kW	430 A	SX-D4220-E1FL	SX-D4220-E1VL	SX-D4220-E1FR
	220 kW	400 A	250 kW	500 A	SX-D4250-E1FL	SX-D4250-E1VL	SX-D4250-E1FR
	250 kW	480 A	315 kW	600 A	SX-D4315-E1FL	SX-D4315-E1VL	SX-D4315-E1FR
	315 kW	520 A	355 kW	650 A	SX-D4355-E1FL	SX-D4355-E1VL	SX-D4355-E1FR
	355 kW	600 A	400 kW	750 A	SX-D4400-E1FL	SX-D4400-E1VL	SX-D4400-E1FR
	400 kW	688 A	450 kW	860 A	SX-D4450-E1FL	SX-D4450-E1VL	SX-D4450-E1FR
	450 kW	800 A	560 kW	1,000 A	SX-D4560-E1FL	SX-D4560-E1VL	SX-D4560-E1FR
	500 kW	960 A	630 kW	1,200 A	SX-D4630-E1FL	SX-D4630-E1VL	SX-D4630-E1FR
	630 kW	1,200 A	800 kW	1,500 A	SX-D4800-E1FL	SX-D4800-E1VL	SX-D4800-E1FR
	800 kW	1,400 A	900 kW	1,750 A	SX-D4900-E1FL	SX-D4900-E1VL	SX-D4900-E1FR
690 V	90 kW	87 A	110 kW	109 A	SX-D6110-E1FL	SX-D6110-E1VL	SX-D6110-E1FR
	110 kW	117 A	132 kW	146 A	SX-D6132-E1FL	SX-D6132-E1VL	SX-D6132-E1FR
	132 kW	148 A	160 kW	185 A	SX-D6160-E1FL	SX-D6160-E1VL	SX-D6160-E1FR
	200 kW	200 A	250 kW	250 A	SX-D6250-E1FL	SX-D6250-E1VL	SX-D6250-E1FR
	250 kW	240 A	315 kW	300 A	SX-D6315-E1FL	SX-D6315-E1VL	SX-D6315-E1FR
	315 kW	300 A	355 kW	375 A	SX-D6355-E1FL	SX-D6355-E1VL	SX-D6355-E1FR
	355 kW	344 A	450 kW	430 A	SX-D6450-E1FL	SX-D6450-E1VL	SX-D6450-E1FR
	450 kW	448 A	560 kW	560 A	SX-D6560-E1FL	SX-D6560-E1VL	SX-D6560-E1FR
	600 kW	600 A	710 kW	750 A	SX-D6710-E1FL	SX-D6710-E1VL	SX-D6710-E1FR
	800 kW	800 A	1,000 kW	1,000 A	SX-D61K0-E1FL	SX-D61K0-E1VL	SX-D61K0-E1FR
	900 kW	896 A	1,100 kW	1,120 A	SX-D61K1-E1FL	SX-D61K1-E1VL	SX-D61K1-E1FR

DC Supply with Regenerative Active Front End

Specifications			Order code
Voltage	Normal duty		Order code
400 V	115 kW	175 A	SX-D4115-E1AR
	165 kW	250 A	SX-D4165-E1AR
	250 kW	375 A	SX-D4250-E1AR
	330 kW	500 A	SX-D4330-E1AR
	500 kW	750 A	SX-D4500-E1AR
	660 kW	1,000 A	SX-D4660-E1AR
	1,000 kW	1,500 A	SX-D41K0-E1AR
690 V	200 kW	175 A	SX-D6200-E1AR
	400 kW	350 A	SX-D6400-E1AR
	600 kW	525 A	SX-D6600-E1AR
	800 kW	700 A	SX-D6800-E1AR
	1,200 kW	1,050 A	SX-D61K2-E1AR

①
Panel kit

Description		Function	Order code
Panel kit	Panel kit	Complete panel kit including operator	SX-OP02-00-E
Panel kit	Blank panel kit	Complete panel kit including a blank operator	SX-OP02-01-E
Operator	Handheld control panel	Complete handheld control panel	SX-OPHH-00-E
	Digital operator	Inverter digital operator	SX-OP01-00-E
	Blank operator	Inverter blank operator	SX-OP01-11-E

②
I/O option board

Description	Function	Order code
Additional I/O option	Provides 3 extra relay outputs and 3 additional digital inputs	01-3876-01
Crane option	Dedicated option board for crane application, including additional I/O and functions	01-3876-07

③
Communication option board

Description	Function	Order code
RS232/485	MODBUS RTU serial communication by RS232 or RS485 interface with galvanic isolation	01-3876-04
PROFIBUS-DP	Used for operating the inverter through PROFIBUS-DP communication with the host controller	01-3876-05
DeviceNet	Used for operating the inverter through DeviceNet communication with the host controller	01-3876-06
Modbus/TCP, Ethernet	Used for operating the inverter through Modbus/TCP communication with the host controller	01-3876-09
EtherCAT	Used for operating the inverter through EtherCAT communication with the host controller	01-3876-10
PROFINET (1-port)	Used for operating the inverter through PROFINET communication with the host controller	01-3876-11
PROFINET (2-ports)		01-3876-12

④
Encoder feedback option board

Description	Function	Order code
Encoder option	Used for connection of the actual motor speed via encoder Up to 100 kHz with TTL and HTL incremental encoders with 5/24 V power supply	01-3876-03

Description

Function

Order code

Encoder option

Used for connection of the actual motor speed via encoder

Up to 100 kHz with TTL and HTL incremental encoders with 5/24 V power supply

01-3876-03

⑤
PTC/PT100 option board

Description	Function	Order code
Thermal protection	Allows to connect a motor thermistor to the inverter	01-3876-08

Specifications

Common specifications

Model number: SX_			Specifications
General specifications	Mains voltage	400 V models	380 to 460 V, +10%/−15%
	Mains voltage	690 V models	480 to 690 V, +10%/−15%
	Frequency		48 to 52 Hz and 58 to 62 Hz
	Input total power factor		1.0
	Output AC voltage	Inverter	(0-1.2) * mains supply voltage
	Output DC voltage	DC Supply	(1.0-1.2) √2 mains supply voltage
	Output frequency	Inverter	0 to 400 Hz
	Switching frequency	Inverter	3 kHz (adjustable 1.5 to 6 kHz, SX-VL only)
	Switching frequency	DC Supply	3 kHz (adjustable 3 to 6 kHz)
	Efficiency at nominal load	Inverter	97%
	Efficiency at nominal load	DC Supply	98%
	Harmonics to supply, THDI		< 5%
Ambient conditions	Ambient temperature		0 to 40ºC, up to 45ºC with derating
	Ambient humidity		90% RH or less (without condensation)
	Storage temperature		−20 to 60ºC
	Altitude		Up to 1,000 meters
	Vibration / shock		According to IEC 600068-2-6, sinusoidal vibrations: 10<f<57 Hz, 0.075 mm, 57<f<150 Hz, 1 g
	Contamination, according to IEC 60721-3-3		No electrically conductive dust allowed. Cooling air must be clean and free from corrosive materials. Chemical gases, class 3C2 (coated boards 3C3). Solid particles, class 3S2
	Protection design		IP54 enclosure according to the EN 60529

Inverter with Regenerative Active Front End 400 V class

Three-phase: SX-D4_			055	075	090	110	132	160	200	220	250	315	355	400	450	560	630	800	900
Output power	For HD setting	kW	45	55	75	90	110	132	160	200	220	250	315	355	400	450	500	630	800
Output power	For ND setting	kW	55	75	90	110	132	160	200	220	250	315	355	400	450	560	630	800	900
Output characteristics	Max. output current	A	131	175	210	252	300	360	450	516	600	720	780	900	1,032	1,200	1,440	1,800	2,100
	Rated output current at HD	A	87	117	140	168	200	240	300	344	400	480	520	600	688	800	960	1,200	1,400
	Rated output current at ND	A	109	146	175	210	250	300	375	430	500	600	650	750	860	1,000	1,200	1,500	1,750
	Output voltage	V	0 to Mains supply voltage
	Max. output frequency	Hz	400 Hz
Power supply	Rated input voltage and frequency		3-phase 380 to 460 V, 50/60 Hz
Power supply	Allowable voltage fluctuation		10% to −15%
Weight		kg	380	400	480	500	500	700	750	830	880	1,040	1,210	1,210	1,370	1,600	1,700	2,250	On request

Note: Assembled in IP54 cabinet including main switch, main contactor and output choke.

Inverter with Regenerative Active Front End 690 V class

Three-phase: SX-D6_			110	132	160	250	315	355	450	560	710	1K0	1K1
Output power	For HD setting	kW	90	110	132	200	250	315	355	450	600	800	900
Output power	For ND setting	kW	110	132	160	250	315	355	450	560	710	1,000	1,100
Output characteristics	Max. output current	A	131	175	222	300	360	450	516	672	900	1,200	1,344
	Rated output current at HD	A	87	117	148	200	240	300	344	448	600	800	896
	Rated output current at ND	A	109	146	185	250	300	375	430	560	750	1,000	1,120
	Output voltage	V	0 to Mains supply voltage
	Max. output frequency	Hz	400 Hz
Power supply	Rated input voltage and frequency		3-phase 480 to 690 V, 50/60 Hz
Power supply	Allowable voltage fluctuation		10% to −15%
Weight		kg	410	430	540	870	870	910	1,350	1,390	On request

Note: Assembled in IP54 cabinet including main switch, main contactor or motor driven circuit breaker and output choke.

DC Supply with Regenerative Active Front End 400 V class

Three-phase: SX-D4_-E1AR			115	165	250	330	500	660	1K0
DC power	For ND setting	kW	115	165	250	330	500	660	1,000
In/Out characteristics	Max. input current	A	210	300	450	600	900	1,200	1,800
	Rated input current at ND	A	175	250	375	500	750	1,000	1,500
	Output voltage	V	0 to Mains supply voltage
	Max. output frequency	Hz	400 Hz
Power supply	Rated input voltage and frequency		3-phase 380 to 460 V, 50/60 Hz
Power supply	Allowable voltage fluctuation		10% to −15%
Weight		kg	290	400	560	660	830	1,100	1,600

Note: Assembled in IP54 cabinet including main switch and main contactor.

DC Supply with Regenerative Active Front End 690 V class

Three-phase: SX-D6_-E1AR			200	400	600	800	1K2
DC power	For ND setting	kW	200	400	600	800	1,200
In/Out characteristics	Max. input current	A	210	420	630	840	1,260
	Rated input current at ND	A	175	350	525	700	1,050
	Output voltage	V	0 to Mains supply voltage
	Max. output frequency	Hz	400 Hz
Power supply	Rated input voltage and frequency		3-phase 480 to 690 V, 50/60 Hz
Power supply	Allowable voltage fluctuation		10% to −15%
Weight		kg	320	590	860	On request

Note: Assembled in IP54 cabinet including main switch and main contactor or motor driven circuit breaker.

Dimensions

Inverter with Regenerative Active Front End

Voltage class	Inverter model	Dimensions in mm
Voltage class	Inverter model	H	W	D	Weight (kg)
400 V	SX-D4055-E1_	2,250	800	600	380
	SX-D4075-E1_		800		400
	SX-D4090-E1_		900		480
	SX-D4110-E1_				500
	SX-D4132-E1_				500
	SX-D4160-E1_		1,300		700
	SX-D4200-E1_		1,500		750
	SX-D4220-E1_				830
	SX-D4250-E1_				880
	SX-D4315-E1_		1,900		1,040
	SX-D4355-E1_		2,200		1,210
	SX-D4400-E1_		2,200		1,210
	SX-D4450-E1_		2,500		1,370
	SX-D4560-E1_		3,000		1,600
	SX-D4630-E1_		3,300		1,700
	SX-D4800-E1_		4,500		2,250
	SX-D4900-E1_	On request
690 V	SX-D6110-E1_	2,250	800	600	410
	SX-D6132-E1_		800		430
	SX-D6160-E1_		900		540
	SX-D6250-E1_		1,800		870
	SX-D6315-E1_				870
	SX-D6355-E1_				910
	SX-D6450-E1_		2,800		1,350
	SX-D6560-E1_		2,800		1,390
	SX-D6710-E1_	On request
	SX-D61K0-E1_
	SX-D61K1-E1_

DC Supply with Regenerative Active Front End

Voltage class	AFR model	Dimensions in mm
Voltage class	AFR model	H	W	D	Weight (kg)
400 V	SX-D4115-E1AR	2,250	600	600	290
	SX-D4165-E1AR		800		400
	SX-D4250-E1AR		1,000		560
	SX-D4330-E1AR		1,200		660
	SX-D4500-E1AR		1,500		830
	SX-D4660-E1AR		1,800		1,100
	SX-D41K0-E1AR		2,700		1,600
690 V	SX-D6200-E1AR	2,250	800	600	320
	SX-D6400-E1AR		1,200		590
	SX-D6600-E1AR		1,700		860
	SX-D6800-E1AR	On request
	SX-D61K2-E1AR	On request

SX-AFE

Cost-efficient and
trouble-free operation

Ordering information

Inverter with Regenerative Active Front End

DC Supply with Regenerative Active Front End

①
Panel kit

②
I/O option board

③
Communication option board

④
Encoder feedback option board

⑤
PTC/PT100 option board

Specifications

Common specifications

Inverter with Regenerative Active Front End 400 V class

Inverter with Regenerative Active Front End 690 V class

DC Supply with Regenerative Active Front End 400 V class

330

DC Supply with Regenerative Active Front End 690 V class

800

Dimensions

Inverter with Regenerative Active Front End

DC Supply with Regenerative Active Front End

Type configuration

CX-Drive

CX-One

SX AFE

SX AFE Design Guide

SX-series (Active Front End) Variable Frequency Drives

Copyright © 2024 FACTORY HELP

SX-AFE

Cost-efficient andtrouble-free operation

Ordering information

Inverter with Regenerative Active Front End

DC Supply with Regenerative Active Front End

① Panel kit

② I/O option board

③ Communication option board

④ Encoder feedback option board

⑤ PTC/PT100 option board

Specifications

Common specifications

Inverter with Regenerative Active Front End 400 V class

Inverter with Regenerative Active Front End 690 V class

DC Supply with Regenerative Active Front End 400 V class

330

DC Supply with Regenerative Active Front End 690 V class

800

Dimensions

Inverter with Regenerative Active Front End

DC Supply with Regenerative Active Front End

Type configuration

CX-Drive

CX-One

SX AFE

SX AFE Design Guide

SX-series (Active Front End) Variable Frequency Drives

Cost-efficient and
trouble-free operation

①
Panel kit

②
I/O option board

③
Communication option board

④
Encoder feedback option board

⑤
PTC/PT100 option board
