HS-360X

HS-360X “Ultra-Rugged”
Direct Part Mark Handheld

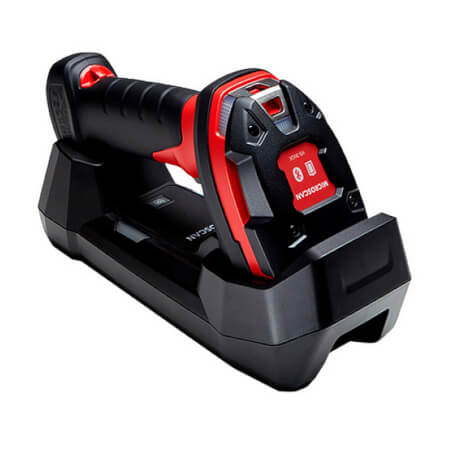

The HS-360X Ultra-Rugged Handheld Scanner is an industrial direct part mark (DPM) reader, purpose built from the ground up to set new standards for durability and performance.

The HS-360X includes X-Mode decoding algorithms to consistently read damaged, distorted or otherwise challenging directly marked codes at high decode rates.
With best-in-class out-of-box performance most applications require no setup.
The WebLinkPC user interface makes setup for more difficult applications intuitive and easy.
The IP65-sealed charging station transmits and receives data over Bluetooth up to 100 m, and the cordless scanner achieves more than 50,000 scans per full charge and includes an on board battery gauge.
In addition to 2.45 m drops, the housing of the scanner tolerates many industrial fluids and chemicals, such as motor oil and brake fluid.

Ordering information

Scanner

Description	Order code
Handheld DPM Scanner, corded, HDS-3608	HDS-3608-0001
Handheld DPM Scanner, cordless, HDS-3678	HDS-3678-0001

Accessories

Wired Cordsets

Description	Order code
Cable, USB, shielded, 2 m, HDS-3600 family	12-9000946-01
Cable, USB, shielded, 4.6 m, HDS-3600 family	12-9000947-01
Cablee, RS-232, DB9 Socket, 2 m, Straight, HS-360X *98-9000181-01 and A/C Power Cord Required *	12-9000953-01

Wireless Accessories and Cordsets

Description	Order code
Cradle/Charger, HDS-3678	12-9000937-01
Cable, USB, shielded, 2 m, HDS-3600 family	12-9000946-01
Cable, USB, shielded, 4.6 m, HDS-3600 family	12-9000947-01
Cable, USB, shielded, 2 m, EXT 12 V, HDS-3600 family	12-9000942-01
Cable, USB, shielded, 4.6 m, EXT 12 V, HDS-3600 family	12-9000943-01
Cable, RS-232, DB9 Socket, 2 m, Straight, HS-360X *98-9000181-01 and A/C Power Cord Required *	12-9000953-01
Kit, Power Supply for Cradle/Charger, HDS-3678	98-9000181-01
4 slot, Battery Charger, HDS-3678	98-9000185-01
Kit, Power Supply for Battery Charger, 4 slot, HDS-3678	98-9000182-01
Battery, Spare, HDS-3678	12-9000939-01

Power Cord by Region

Description	Order code
AC Power Cord, 2.5 m, EU, C13 Connector	12-9000960-01
AC Power Cord, 2.5 m, UK, C13 Connector	12-9000961-01

HS-360X Stand

Description	Order code
HS-360X Stand	98-9000186-01

Specifications

Item		Wired (HDS-3608-0001)	Wireless (HDS-3678-0001)
Mechanical	Dimensions (H×W×D)	185 × 77 × 132 mm (7.3 × 3 × 5.2 in.)	185 × 77 × 143 mm (7.3 × 3 × 5.6 in.)
Mechanical	Weight	304 g (10.72 oz.)	402 g (14.18 oz.)
Symbologies	1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
Symbologies	2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, Dotcode
Communication protocols	Imager	USB 2.0 (HID keyboard, USB Virtual COM), RS-232	Bluetooth® (Class 1, 4.0)
Communication protocols	Charging Station	–	USB 2.0 (HID keyboard, USB Virtual COM), RS-232
Light Collection options	Sensor	SXGA 1.2MP
Light Collection options	Sensor Array	1280 × 960 pixels
Battery	Capacity	–	3100 mAH Li-ion
Battery	Scans	–	Up to 50,000 per charge
