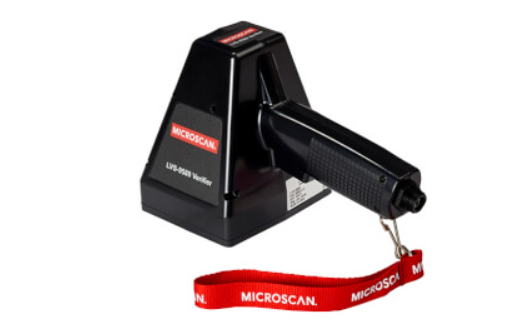

LVS-9580 Handheld Barcode Verifier

The LVS-9580 is a high-performance handheld solution for off-line barcode verification to ISO/IEC and MIL-STD-130N standards. Featuring a high-resolution 5.0 megapixel camera, the LVS-9580 reads and analyzes linear (1D) and two-dimensional (2D) barcodes up to 76.19 mm wide and up to 57.15 mm tall. The LVS-9580 verifies multiple barcode types, including any combination of linear, 2D (Data Matrix, QR Code, and Aztec Code), and stacked linear (PDF 417, Micro PDF and Composite Codes). Contact us for a detailed list of supported standards and symbologies. Powered by a 3.0 m USB 2.0 cable, the LVS-9580 verifies barcode labels and direct part marks (DPM) located on a wide range of surfaces including corrugated cardboard boxes, shipping containers, plastics, composites, and metal surfaces.

Validates printed barcodes to ISO/IEC, ANSI, GS1, and UDI print quality standards

Validates direct part marks (DPM) to ISO, MIL-STD-130, and GS1 standards

Stitching feature to grade barcodes larger than the field of view

Ideal for multiple line production and warehouse environments

Software upgrade options include multi-sector for verification of multiple barcodes on a label

21 CFR Part 11 compliant-ready

Supports 15 languages with the ability to add more

Quality data reporting for auditing purposes

Manage operator permissions using LVS-95XX software or using Microsoft Active Directory

Includes NIST-Traceable Calibrated Conformance Standard Test Card for calibrating the system

Ordering information

Barcode Verifier

Description	Order code
LVS-9585 Handheld, 1D, 2D & DPM Dome and 30 degree lighting	9585-DPM
LVS-9585 Handheld, 1D, 2D & DPM Dome and 30 degree lighting, high density	9585-DPM-HD

License upgrade

Licensed features on the LVS-9585 are field upgradable by purchasing a license upgrade:

License upgrade	Order code
LVS-95xx Software Upgrade Option: Automatic Login Feature	98-SOF0056
Software Upgrade Option: EAIV (Enhanced Application Identifier Verification)	98-SOF0088

Accessories

Test cards

Description	Order code
LVS Conformance Test Card, Datamatrix undated	98-CAL010-01
LVS Calibration Conformance Test Card, 9570/9580/9510 EAN/UPC undated	98-CAL020-01

IQ/OQ

Description	Order code
Validation IQ-OQ Guidelines for v.4.3 and later software (with 25 test cards)	98-LVS0077
LVS-95XX Validation Test Cards (IQ-OQ Challenge Labels) for use with 98-LVS0077	98-LVS-VTC

Specifications

Depth	139.7 mm (5.5 inches)
Width	120.6 mm (4.75 inches)
Height	215.9 mm (8.5 inches)
Unpackaged Weight	0.68 kg (1lb. 8 oz.)
Shipping weight	Approx. 1.51 kg (3 lbs. 5oz)
Field of View	76mm (3.0inches) horizontal 57.15mm (2.2inches) vertical
Video Camera	5.0 megapixel Object distance: contact
Light Source	Red Dome (660 nm); White Dome, 30° Angle
Electrical	USB powered 5 VDC @ 180 mA
Operating Temperature	4° C (40° F) to 46° C (115° F)
Relative Humidity	20% to 80% (operating)
Storage	20% to 95% (non-condensing)
Calibration	EAN/UPC Calibrated Conformance Test Card (included with system)
ISO Conformance Standards	ISO/IEC 15415, 15416, 15418 ISO/IEC 15426-1, 15426-2 ISO/IEC TR 29158 (DPM Cat 0, 1, 2) All supported ISO/IEC Symbology Specifications
Minimum PC Requirements	Windows® 7, Windows® 8.1 or Windows® 10 Intel® Core™ i3 or higher 4 GB RAM 800 × 600 screen resolution
