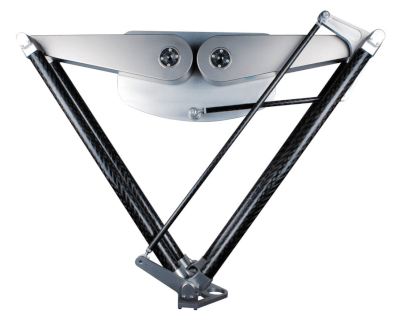

The design concept with a
minimum of mechanical components
results in a high quality robot

Robot control integrated in the NJ robotics controller

Control of up to 8 robots by one controller

Degrees of freedom: 2 + 1 (rotational axis optional)

Up to 200 cycle per minute

Models from 800 to 1,500 mm working range

Payload range: 3 to 35 kg

TWIN model for applications that a long gripper is required

IP65 protection class

ISO mount gripper interface

Low maintenance, easy access to components

Specifications & ordering info

Ordering information

Note: Servo motors included in the Delta robot.

Delta robot 2 axes + 1 rot series

Standard models

Max. payload	Working range	Description	Axis	Applicable servo drive ②	Order code
35 kg	1,500 × 347 mm (Max. 800)	2 + 1 axes	Arm 1	R88D-KN30F-ECT	CR_UGD21500_R
			Arm 2	R88D-KN30F-ECT
			Rotational 3	R88D-KN04H-ECT
		2 axes	Arm 1	R88D-KN30F-ECT	CR_UGD21500_NR
		2 axes	Arm 2	R88D-KN30F-ECT	CR_UGD21500_NR
30 kg	1,000 × 342 mm (Max. 597)	2 + 1 axes	Arm 1	R88D-KN20F-ECT	CR_UGD21000_R
			Arm 2	R88D-KN20F-ECT
			Rotational 3	R88D-KN04H-ECT
		2 axes	Arm 1	R88D-KN20F-ECT	CR_UGD21000_NR
		2 axes	Arm 2	R88D-KN20F-ECT	CR_UGD21000_NR
3 kg	800 × 209 mm (Max. 320)	2 + 1 axes	Arm 1	R88D-KN15H-ECT	CR_UGD2800_R
			Arm 2	R88D-KN15H-ECT
			Rotational 3	R88D-KN04H-ECT
	800 × 265 mm (Max. 477)	2 axes	Arm 1	R88D-KN15H-ECT	CR_UGD2800_NR
	800 × 265 mm (Max. 477)	2 axes	Arm 2	R88D-KN15H-ECT	CR_UGD2800_NR

TWIN model

① Symbol	Max. payload	Working range	Description	Axis	Applicable servo drive ②	Order code
	30 kg	1,000 × 342 mm (Max. 597)	2 axes	Arm 1	R88D-KN20F-ECT	CR_UGD21000T_NR
Arm 2	R88D-KN20F-ECT

① Symbol

Max. payload

Working range

Description

Axis

Applicable servo drive ②

Order code

30 kg

1,000 × 342 mm

(Max. 597)

2 axes

Arm 1

R88D-KN20F-ECT

CR_UGD21000T_NR

Arm 2

R88D-KN20F-ECT

Encoder cables

Symbol	Applicable Delta robots		Order code
③	CR_UGD21500 (Arm 1, 2) CR_UGD21000 (Arm 1, 2) CR_UGD2800 (Arm 1, 2) CR_UGD21000T	1.5 m	R88A-CRKC001-5NR-E
		3 m	R88A-CRKC003NR-E
		5 m	R88A-CRKC005NR-E
		10 m	R88A-CRKC010NR-E
		15 m	R88A-CRKC015NR-E
		20 m	R88A-CRKC020NR-E
	CR_UGD21500 (Rotational axis 3) CR_UGD21000 (Rotational axis 3) CR_UGD2800 (Rotational axis 3)	1.5 m	R88A-CRKA001-5CR-E
		3 m	R88A-CRKA003CR-E
		5 m	R88A-CRKA005CR-E
		10 m	R88A-CRKA010CR-E
		15 m	R88A-CRKA015CR-E
		20 m	R88A-CRKA020CR-E

Absolute encoder battery cable (encoder extension cable only)

Symbol	Specifications			Order code
④	Absolute encoder battery cable	Battery not included	0.3 m	R88A-CRGD0R3C-E
	Absolute encoder battery cable	Battery included	0.3 m	R88A-CRGD0R3C-BS-E
	Absolute encoder backup battery	2.000 mA.h, 3.6 V	−	R88A-BAT01G

Power and brake cables

Symbol	Applicable Delta robots				Order code
⑤	CR_UGD21500	Arm 1, 2	Power cable with brake	1.5 m	R88A-CAGD001-5BR-E
				3 m	R88A-CAGD003BR-E
				5 m	R88A-CAGD005BR-E
				10 m	R88A-CAGD010BR-E
				15 m	R88A-CAGD015BR-E
				20 m	R88A-CAGD020BR-E
		Rotational axis 3	Power cable without brake	1.5 m	R88A-CAKA001-5SR-E
				3 m	R88A-CAKA003SR-E
				5 m	R88A-CAKA005SR-E
				10 m	R88A-CAKA010SR-E
				15 m	R88A-CAKA015SR-E
				20 m	R88A-CAKA020SR-E
			Brake cable	1.5 m	R88A-CAKA001-5BR-E
				3 m	R88A-CAKA003BR-E
				5 m	R88A-CAKA005BR-E
				10 m	R88A-CAKA010BR-E
				15 m	R88A-CAKA015BR-E
				20 m	R88A-CAKA020BR-E
	CR_UGD21000	Arm 1, 2	Power cable with brake	1.5 m	R88A-CAKF001-5BR-E
				3 m	R88A-CAKF003BR-E
				5 m	R88A-CAKF005BR-E
				10 m	R88A-CAKF010BR-E
				15 m	R88A-CAKF015BR-E
				20 m	R88A-CAKF020BR-E
		Rotational axis 3	Power cable without brake	1.5 m	R88A-CAKA001-5SR-E
				3 m	R88A-CAKA003SR-E
				5 m	R88A-CAKA005SR-E
				10 m	R88A-CAKA010SR-E
				15 m	R88A-CAKA015SR-E
				20 m	R88A-CAKA020SR-E
			Brake cable	1.5 m	R88A-CAKA001-5BR-E
				3 m	R88A-CAKA003BR-E
				5 m	R88A-CAKA005BR-E
				10 m	R88A-CAKA010BR-E
				15 m	R88A-CAKA015BR-E
				20 m	R88A-CAKA020BR-E
	CR_UGD2800	Arm 1, 2	Power cable with brake	1.5 m	R88A-CAGB001-5BR-E
				3 m	R88A-CAGB003BR-E
				5 m	R88A-CAGB005BR-E
				10 m	R88A-CAGB010BR-E
				15 m	R88A-CAGB015BR-E
				20 m	R88A-CAGB020BR-E
		Rotational axis 3	Power cable without brake	1.5 m	R88A-CAKA001-5SR-E
				3 m	R88A-CAKA003SR-E
				5 m	R88A-CAKA005SR-E
				10 m	R88A-CAKA010SR-E
				15 m	R88A-CAKA015SR-E
				20 m	R88A-CAKA020SR-E
			Brake cable	1.5 m	R88A-CAKA001-5BR-E
				3 m	R88A-CAKA003BR-E
				5 m	R88A-CAKA005BR-E
				10 m	R88A-CAKA010BR-E
				15 m	R88A-CAKA015BR-E
				20 m	R88A-CAKA020BR-E
	CR_UGD21000T	Arm 1, 2	Power cable with brake	1.5 m	R88A-CAKF001-5BR-E
				3 m	R88A-CAKF003BR-E
				5 m	R88A-CAKF005BR-E
				10 m	R88A-CAKF010BR-E
				15 m	R88A-CAKF015BR-E
				20 m	R88A-CAKF020BR-E

Vision

Name	Type		Order code
⑥ FQ-M series	Color	NPN	FQ-MS120-ECT
	Color	PNP	FQ-MS125-ECT
	Monochrome	NPN	FQ-MS120-M-ECT
	Monochrome	PNP	FQ-MS125-M-ECT

Machine controller

Name		Functions	Delta robot control	Axes	Order code
⑦ NJ Robotics	CPU unit	Logic sequence, motion, robotics and database connection	Control of up to 8 Delta robot depending on the number of axes supported by the CPU	16	NJ501-4320
		Logic sequence, motion and robotics		64	NJ501-4500
				32	NJ501-4400
				16	NJ501-4300
			Control of one Delta robot	16	NJ501-4310
	Power supply unit				NJ-PA3001 (220 VAC)
	Power supply unit				NJ-PD3001 (24 VDC)

Computer software

Specifications	Order code
Sysmac Studio version 1.03 or higher	SYSMAC-SE2 ⬜⬜⬜

Dimensions

Standard models

CR_UGD21500_ ⬜ R

CR_UGD21000_ ⬜ R

CR_UGD2800_ ⬜ R

TWIN model

CR_UGD21000T_NR
