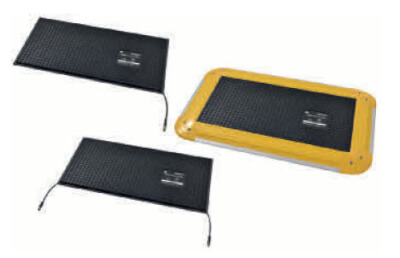

300

300

UMMA-0300-0300-1

UMMYA-0300-0300-1

400

400

UMMA-0400-0400-1

UMMYA-0400-0400-1

500

250

UMMA-0500-0250-1

UMMYA-0500-0250-1

500

400

UMMA-0500-0400-1

UMMYA-0500-0400-1

500

500

UMMA-0500-0500-1

UMMYA-0500-0500-1

500

1500

UMMA-0500-1500-1

UMMYA-0500-1500-1

600

400

UMMA-0600-0400-1

UMMYA-0600-0400-1

750

250

UMMA-0750-0250-1

UMMYA-0750-0250-1

750

500

UMMA-0750-0500-1

UMMYA-0750-0500-1

750

750

UMMA-0750-0750-1

UMMYA-0750-0750-1

750

1500

UMMA-0750-1500-1

UMMYA-0750-1500-1

1000

500

UMMA-1000-0500-1

UMMYA-1000-0500-1

1000

750

UMMA-1000-0750-1

UMMYA-1000-0750-1

1000

1000

UMMA-1000-1000-1

UMMYA-1000-1000-1

1000

1250

UMMA-1000-1250-1

UMMYA-1000-1250-1

1000

1500

UMMA-1000-1500-1

UMMYA-1000-1500-1

300

300

UMMA-0300-0300-2

UMMYA-0300-0300-2

400

400

UMMA-0400-0400-2

UMMYA-0400-0400-2

500

250

UMMA-0500-0250-2

UMMYA-0500-0250-2

500

400

UMMA-0500-0400-2

UMMYA-0500-0400-2

500

500

UMMA-0500-0500-2

UMMYA-0500-0500-2

500

1500

UMMA-0500-1500-2

UMMYA-0500-1500-2

600

400

UMMA-0600-0400-2

UMMYA-0600-0400-2

750

250

UMMA-0750-0250-2

UMMYA-0750-0250-2

750

500

UMMA-0750-0500-2

UMMYA-0750-0500-2

750

750

UMMA-0750-0750-2

UMMYA-0750-0750-2

750

1500

UMMA-0750-1500-2

UMMYA-0750-1500-2

1000

500

UMMA-1000-0500-2

UMMYA-1000-0500-2

1000

750

UMMA-1000-0750-2

UMMYA-1000-0750-2

1000

1000

UMMA-1000-1000-2

UMMYA-1000-1000-2

1000

1250

UMMA-1000-1250-2

UMMYA-1000-1250-2

1000

1500

UMMA-1000-1500-2

UMMYA-1000-1500-2

Ramp Trim with Yellow PVC Cover (1.22 m)

Installed on the perimeter of the Safety Mat. Each Trim is composed of two parts, an aluminum base and a PVC Cover. Possible to install cables inside.

UMRT4

Ramp Trim with Yellow PVC Cover (2.44 m)

UMRT8

Joining Trim (1.22 m)

The Joining Trims join the Safety Mats when two or more Safety Mats are being combined. In addition to joining the Safety Mats, the Joining Trims preserve the Safety Mat’s sensitivity at the joints.

UMJS4

Joining Trim (2.44 m)

UMJS8

Aluminum Ramp Trim (2.44 m)

Installed on the perimeter of the Safety Mat.

UMAL

Molded Outside Corner

Installed at the outside corners of the Safety Mat combining with Ramp Trims with Yellow PVC Cover.

UMOC

Molded Inside Corner

Installed at the inside corners when two or more Safety Mats combining with Ramp Trims with Yellow PVC Cover are being combined.

UMIC

UMMA-0300-0300- ⬜

UMMYA-0300-0300- ⬜

A set of Molded Outside Corners and Trims

4 UMOC Molded Outside Corners

4 Ramp Trims with Yellow PVC Corners that fit the mat dimensions A and B

MTKCA-0300-0300

UMMA-0400-0400- ⬜

UMMYA-0400-0400- ⬜

MTKCA-0400-0400

UMMA-0500-0250- ⬜

UMMYA-0500-0250- ⬜

MTKCA-0500-0250

UMMA-0500-0400- ⬜

UMMYA-0500-0400- ⬜

MTKCA-0500-0400

UMMA-0500-0500- ⬜

UMMYA-0500-0500- ⬜

MTKCA-0500-0500

UMMA-0500-1500- ⬜

UMMYA-0500-1500- ⬜

MTKCA-0500-1500

UMMA-0600-0400- ⬜

UMMYA-0600-0400- ⬜

MTKCA-0600-0400

UMMA-0750-0250- ⬜

UMMYA-0750-0250- ⬜

MTKCA-0750-0250

UMMA-0750-0500- ⬜

UMMYA-0750-0500- ⬜

MTKCA-0750-0500

UMMA-0750-0750- ⬜

UMMYA-0750-0750- ⬜

MTKCA-0750-0750

UMMA-0750-1500- ⬜

UMMYA-0750-1500- ⬜

MTKCA-0750-1500

UMMA-1000-0500- ⬜

UMMYA-1000-0500- ⬜

MTKCA-1000-0500

UMMA-1000-0750- ⬜

UMMYA-1000-0750- ⬜

MTKCA-1000-0750

UMMA-1000-1000- ⬜

UMMYA-1000-1000- ⬜

MTKCA-1000-1000

UMMA-1000-1250- ⬜

UMMYA-1000-1250- ⬜

MTKCA-1000-1250

UMMA-1000-1500- ⬜

UMMYA-1000-1500- ⬜

MTKCA-1000-1500

SPDT-NO

SPDT-NC

24 VDC

Screw terminals

MC3

Single Connector Cable

2 m

Single connector cable to connect a 1-cable Mat (UM ⬜⬜ A- ⬜ – ⬜ -1) to a Controller. M8, 4-socket

UMA-CBL-4PCF-M8-02M

5 m

UMA-CBL-4PCF-M8-05M

10 m

UMA-CBL-4PCF-M8-10M

Male-Female Extension Cable

2 m

Extension cable to connect a 1-cable Mat (UM ⬜⬜ A- ⬜ – ⬜ -1) to a Controller. M8, 4-pin

UMA-CBL-4PMF-M8-02M

5 m

UMA-CBL-4PMF-M8-05M

10 m

UMA-CBL-4PMF-M8-10M

Single Connector Cable

2 m

Single connector cable to connect a 2-cable Mat (UM ⬜⬜ A- ⬜ – ⬜ -2) to a Controller. M8, 3-socket

UMA-CBL-3PCF-M8-02M

5 m

UMA-CBL-3PCF-M8-05M

10 m

UMA-CBL-3PCF-M8-10M

Male-Female Extension Cable

2 m

Extension cable to connect a 2-cable Mat (UM ⬜⬜ A- ⬜ – ⬜ -2) to a Controller. M8, 3-pin

UMA-CBL-3PMF-M8-02M

5 m

UMA-CBL-3PMF-M8-05M

10 m

UMA-CBL-3PMF-M8-10M

M8, 3-pin Male to Male Extension Cable

0.15 m

To be used to connect the connector sockets of 2-cable UMA Safety Mat together.

UMA-CBL-3PMM-M8-0.15M

M8, 3-pin Female to Female Extension Cable

0.15 m

To be used to connect the connector plugs of 2-cable UMA Safety Mat together.

UMA-CBL-3PFF-M8-0.15M

Detection Method

Pressure sensitive

Mat Type

Normally open SPST, four-wire (1-cable type) or two-wire (2-cable type) available

Mat Electrical Rating

20.4 V to 28.8 V

Activation Force

300 N min. to 80 mm dia. test piece

Maximum Load

2,000 N to 80 mm dia. test piece

1,862 kPa (270 lbs/in.²) (rolling load (stationary))

Response Time

50 ms max.

Mechanical Durability

1 x 10 ⁶ operations min.

Mat Exit Cable

Model No. ending ‘-1’: 1 exit cable, M8 4-pin cable, 4 conductors, 22 AWG, male

Model No. ending ‘-2’: 2 exit cables, M8 3-pin cable, 2 conductors, 22 AWG, 1 male and 1 female

Ambient operating temperature

−10 to 55°C (14 to 131°F) (with no icing or condensation)

Ambient storage temperature

−10 to 55°C (14 to 131°F) (with no icing or condensation)

Ambient operating humidity

0 to 95% RH

Degree of protection

IP65

Material (Mat cover)

Polyurethane

Weight

Approx. 25 kg/m²

Power voltage

24 VDC

Operating voltage range

−15% to +15% of rated supply voltage

Power consumption

3 W max.

Rated load

6 A at 230 VAC/6 A at 24 VDC (resistive load)

5 A at 230 VAC (AC15)/2 A at 24 VDC (DC13) (inductive load)

Maximum rated voltage

250 VAC/24 VDC

Rated carry current

6 A

Maximum switching capacity

1,500 VA

Response time

30 ms max.

Safety input

Mat can be connected in series (Connectable number: 12 max.)

The external impedance must be 8 Ω or less between M11 and M21 and between M12 and M22.

Safety output

SPDT-NO

Auxiliary output

SPDT-NC

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

Between different poles of outputs

1,800 VAC, 50/60 Hz for 1 sec.

Between power supply and output

Vibration resistance

Malfunction: 10 to 55 Hz, 0.15 mm single amplitude

Mechanical shock resistance

Malfunction: 98 m/s²

Durability

Mechanical

10,000,000 cycles min.

Electrical

100,000 cycles min. (rated load, switching frequency: 360 cycles/hour)

Ambient operating temperature

0 to 55°C (with no icing or condensation)

Ambient operating humidity

0% to 90% RH

Degree of protection

IP20

Terminal tightening torque

0.5 N·m

Weight

Approx. 360 g

Conforming to Standards

EN ISO13856-1:2013, EN ISO13849-1:2015, ANSI/UL 508, CSA C22.2 No. 14

Performance level (PL)/

safety category

PL d/safety category 3 (EN ISO 13849-1:2015)

PFHd

4.8×10 ^-8
