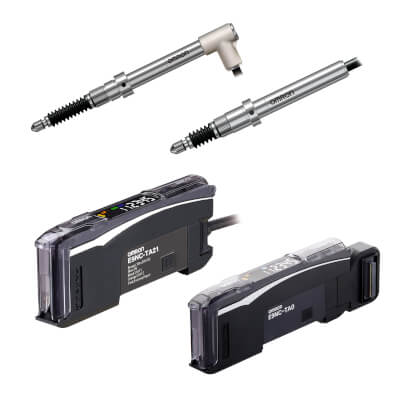

Advanced, Durable, Space-saving Contact Sensors.
*1. Robot cable specifications apply to the Sensor Head cable and the connection Cable between the Preamplifier and the Amplifier Unit
(Connection Cable between Preamplifier and Amplifier Unit is not provided with the Sensor Head. Be sure to have the Connection Cable ready when using the Sensor.)
| Type | Appearance | Measuring range (Moving range) | Resolution | Order code |
|---|---|---|---|---|
| Straight type |  | 5 mm | 0.1 μm | E9NC-TH5S 2M |
| Right-angle air type |  | E9NC-TH5L 2M | ||
| Flanged type/Straight type |  | E9NC-TH5SF 2M | ||
| Flanged type/Right-angle air type |  | E9NC-TH5LF 2M | ||
| Straight type |  | 12 mm | E9NC-TH12S 2M | |
| Right-angle air type |  | E9NC-TH12L 2M | ||
| Flanged type/Straight type |  | E9NC-TH12SF 2M | ||
| Flanged type/Right-angle air type |  | E9NC-TH12LF 2M |
| Type | Appearance | Order code |
|---|---|---|
Communications |  | E9NC-TA0 |
| Type | Appearance | Order code | |
|---|---|---|---|
| NPN output | PNP output | ||
| ON/OFF output |  | E9NC-TA21 2M | E9NC-TA51 2M |
| Cable length | Quantity | Order code |
|---|---|---|
| 0.5 m | 1 | E9NC-TXC05 |
| 5 m | 1 | E9NC-TXC5 |
| 10 m | 1 | E9NC-TXC10 |
| 20 m | 1 | E9NC-TXC20 |
The E9NC-TB1 is provided with the Sensor Head. Order replacements as required.
| Type | Appearance | Quantity | Order code |
|---|---|---|---|
| 3-dia. probe |  | 1 | E9NC-TB1 |
| Nylon probe |  | 1 | E9NC-TB2 |
| Probe for flat surfaces |  | 1 | E9NC-TB3 |
A rubber boot is provided with the Sensor Head. Order replacements as required.
| Applicable Sensor Head | Quantity | Order code |
|---|---|---|
E9NC-TH5 | 1 | E9NC-G5 |
| E9NC-TH12 | 1 | E9NC-G12 |
A Mounting Bracket is not provided with the Amplifier Unit. It must be ordered separately as required.
| Appearance | Quantity | Order code |
|---|---|---|
 | 1 | E39-L143 |
A DIN Track is not provided with the Amplifier Unit. It must be ordered separately as required.
| Appearance | Type | Quantity | Order code |
|---|---|---|---|
 | Shallow type, total length: 1 m | 1 | PFP-100N |
| Shallow type, total length: 0.5 m | 1 | PFP-50N | |
| Deep type, total length: 1 m | 1 | PFP-100N2 |
An End Plate is not provided with the Amplifier Unit. It must be ordered separately as required.
| Appearance | Quantity | Order code |
|---|---|---|
 | 1 | PFP-M |
Attach these Covers to Amplifier Units. Order a Cover when required, e.g., if you lose the covers.
| Appearance | Quantity | Order code |
|---|---|---|
 | 1 | E39-G22 FOR E9NC-TA |
| Type | Appearance | Order code |
|---|---|---|
| Sensor Communications Unit for EtherCAT |  | E3NW-ECT |
| Sensor Communications Unit for CC-Link |  | E3NW-CCL |
Distributed Sensor Unit |  | E3NW-DS |
Refer to your OMRON website for details.
The E9NC-TA0 is supported for firmware version 1.03 or higher (Sensor Communications Units manufactured in July 2014 or later).
EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
CC-Link is a registered trademark of Mitsubishi Electric Corporation. The trademark is managed by the CC-Link Partner Association.
Handles measurement applications in harsh environments. Tough under vibration and shock (due to ball spline mechanism), water resistant (Magnetic Sensing Method) and withstands bending of robot cables.
Handles measurement applications with limited space with the help of slim, short sensor heads (8mm outside diameter) and slim amplifier units (only 10mm wide).
Handles advances measurement applications. Data communications & high precision data transmission carried out via field networks (0.1-μm resolution). Can connect up to 30 sensors with reduced wiring, and holds eight calculation functions including maximum value, minimum value, flatness, average, step, twist, warp and thickness.
