Z

Limit switch with basic plastic housing

The Z series of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. But with the basic plastic housing the basic switches are an ideal solution with best value for money for uncritical environments or when separately encased in subassemblies.

  • Cost efficient basic plastic housing for subassemblies
  • Same electrical and mechanical switching ratings as standard limit switches
Z-series General-purpose Basic Switch Datasheet


Ordering information



Actuator type



Order code



Solder terminal

Screw terminal



Pin plunger

Z-15G

Z-15G-B



Short spring plunger

Z-15GD

Z-15GD-B



Leaf spring

Z-15GL

Z-15GL-B



Reverse hinge lever

Z-15GM

Z-15GM-B



Reverse hinge roller lever

Z-15GM2

Z-15GM2-B



Plunger with M12 mounting

Z-15GQ

Z-15GQ-B

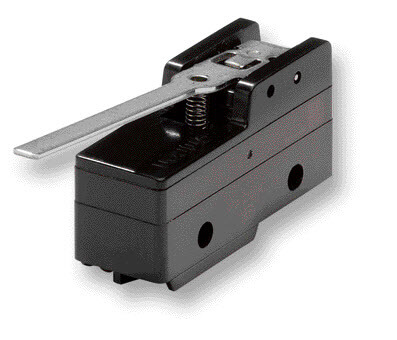

Hinge lever

Z-15GW

Z-15GW-B



Hinge roller lever

Z-15GW2

Z-15GW2-B

Specifications



Rated voltage

Non-inductive load

Inductive load

Resistive load

Lamp load

Inductive load

Motor load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

250 VAC

15 A

2.5 A

1.25 A

15 A

3 A

1.5 A

8 VDC

15 A

3 A

1.5 A

15 A

5 A

2.5 A

14 VDC

15 A

3 A

1.5 A

10 A

5 A

2.5 A

30 VDC

6 A

3 A

1.5 A

5 A

5 A

2.5 A

125 VDC

0.5 A



0.5 A

0.5 A

0.05 A

0.05 A

0.05 A

Durability

Mechanical

10,000,000 operations min.

Electrical

500,000 operations min.

Operating speed

Plunger

0.01 mm to 1 m/s

Operating frequency

Mechanical

240 operations/min

Electrical

20 operations/min

Ambient temperature

Operating

-25 to 80°C (with no icing)

Degree of protection

IP00

Accessories



Terminal covers (protection of electrical contacts against accidental contact of e. g. fingers)

Type

Material

Order code

for soldering terminal models

for screw terminal models







Cover with 5 thinner parts (plastic type) or holes (metal type) as cable exit positions. Protective cover is fixed to basic switch with mounting screws of basic switch.

plastic

AP-A

AP-B

metal

AP1-A

AP1-B





Cover with bottom cable exit

AP-Z
