Spacial VDM

Versions available :

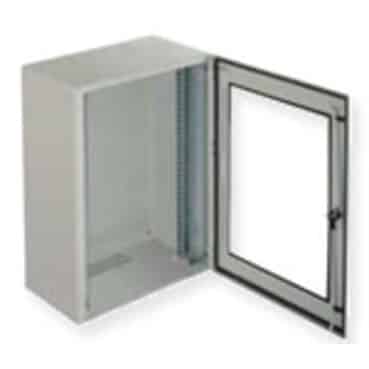

• 19″ wall-mounting enclosure: 1 monobloc body, 19″ fixed chassis, depth 400mm.

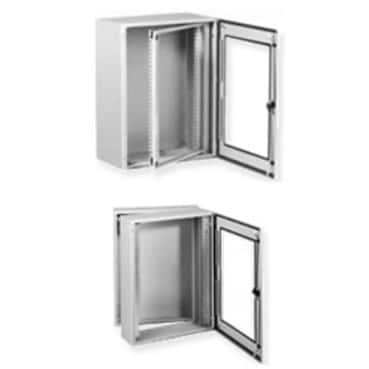

• 19″ wall-mounting enclosure: 1 monobloc body, 19″ swing chassis, depth 400mm.
• 19″ wall-mounting enclosure: 2 bodies, depth 380mm and 480mm depth.
• Possibility to define the claddings, mounting accessories and the colours with specific requests and to mix the 19″ chassis with the universal wall-mounting enclosures IP66.

Technical description :

Monobloc wall-mounting enclosures :

• Steel monobloc body bended and welded equipped with top and bottom cable gland plate.
• Transparent door, Securit® glass, easily removable and reversible, opening to 120°, 3 point locking system with 3-mm double-bar lock as standard equipped with 2 or 3 invisible hinges. Three closure points for heights of more than 600 mm.
• Polyurethane gasket.
• 6 mm² earth connection placed between the door and the body of the enclosure.
• 2 19″ fixed uprights, heights 5U, 8U, 10U, 14U or 17U; or 1 19″ swing chassis heights 4U, 7U, 9U, 13U, 16U depends dimension.
• 19″ swing chassis equipped with 2 separated locking systems.

2 bodies wall-mounting enclosures :

• Rear monobloc body height  150mm bended and welded equipped with top and bottom cable gland plate.
• Polyurethane gasket.
• Intermediate body depth 183 or 283mm equipped with 2 fixed 19’’ uprights height 5U, 8U, 10U, 14U or 17U.
• Transparent door, Securit® glass, easily removable and reversible, opening to 120°, 3 point locking system with 3-mm double-bar lock as standard equipped with 2 or 3 invisible hinges. Three closure points for heights of more than 600 mm.
• Static load 50kg.
• Protection level IP66 according to standard IEC60529.
• Resistance to external mechanical impact IK08 according to standard IEC62262.
• Certifications: In compliance with the directive RoHs, 19″ racks according to standard IEC60297-1-4.
• Paint : Textured epoxi-polyester powder paint finish, in colour grey RAL7035 textured.
