A wide variety of PHD pneumatic grippers are available for internal and external gripping uses and have various jaw styles to adapt to any application. They range from high-precision miniature sizes to heavy-duty models capable of more than 1600 pounds of grip force. PHD offers angular grippers that open at an angle and parallel grippers that open directly apart. Pneumatic and electric grippers with a wide assortment of options and accessories. The wide variety of options provides flexibility to utilize the best end effector for pick and place, industrial assembly, and end of arm tooling for robotic automation systems.
Tom Thumb® brand cylinders that feature a tie rod construction and are field repairable. Optional Port Controls® regulate speed through the entire stroke and the Rodlok option holds the rod in place wherever desired. Series A, AV, HV are designed to NFPA standards with a wide array of options and mounting styles for easy installation.
The PHD Optimax® Series OGZ Pneumatic Miniature Parallel Grippers feature an integral linear guide for high rigidity and precision. They are available in four sizes and are designed to be versatile and economical to fulfill a variety of applications for use in any industry.
Built on the field proven Series GRR chassis, the electric version offers many of the same benefits as the pneumatic with the design and flexibility of Your Motor, Your Way. This heavy-duty end effector’s rugged design and jaw construction can withstand high impact and shock loads. Series EGRR Grippers are designed for gripping large objects in demanding industrial applications.
Low profile and available in four sizes that support large moment capacities and long tooling lengths. Their design incorporates wide jaws and a guide system, minimizing tooling deflection and providing side load stability. Dual bore and low breakaway pressure allow for gripping of a wide variety of part sizes as well as delicate parts.
Provide a high grip force to weight ratio in a low profile package. An internal rack and pinion mechanism ensures smooth operation and long actuator life. The SHURGRIP or spring assist options enable part retention in case of lost air pressure. Series GRC Grippers are available in several sizes for versatile use in many industries.
PARALLEL GRIPPER Features large diameter jaw guides for jaw stability and high moment capacity. These heavy duty end effectors are also capable of non-synchronous jaw motion and long stroke lengths. Series GRW Grippers provide a robust gripping package for applications with high load demands
Feature a low profile design and an angled cam drive mechanism for higher grip forces and long life. An optional spring assist offers higher gripping force and provides part retention upon loss of air pressure. The new design now offers eight sizes, up to two jaw travels, internal switch targets with convenient switch bundles, and improved ingress protection providing adaptability to meet a wide variety of applications.
A higher performing MRO drop-in replacement. High grip forces and a low profile design are perfect for limited space applications. Units feature an enclosed self-lubricating cam driver and jaw covers to prevent contamination. Series GRF Grippers provide superior performance as a compact MRO drop-in replacement.
Provides self-centering and maximum contact between part and jaw tooling. Large bore size enables a high grip force to weight ratio. Units are fully field repairable, providing an extra long actuator life. Series GRT 3-Jaw Grippers are designed to be rugged and extremely versatile with eight sizes available.
Now available in 8 sizes, the GRK delivers the highest grip force in its class, and provides superior moment capacities and precision in a low profile design. A wear-compensating jaw guidance system enables precision jaw movement throughout the life of the unit. This heavy duty end effector is perfect when longer tooling lengths are necessary and heavier objects are present. Series GRK Pneumatic Grippers combine precision and exceptional performance for the most demanding applications.

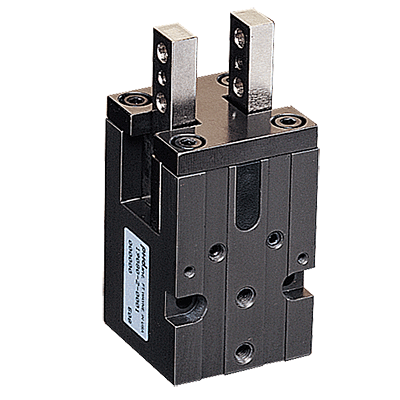

Feature long actuator life and spring assist for higher grip force and part retention upon loss of air pressure. Two jaw styles are available for precise location of tooling. Series 190/191 Parallel Grippers are ideal for handling small parts in confined areas.
Feature high grip force to weight ratio in a compact package. Spring assist is available for increased grip force and part retention upon loss of air pressure. Series GRD Parallel Grippers provide long actuator life in a miniature size, perfect for handling small parts in confined areas.
Provides a slim actuator body and long jaw travel lengths. Units can be ordered with a steel synchronizer or without for off-center gripping. Series GRL Grippers are rated to six million cycles and manufactured from hard coated aluminum for a long durable life.
Provide high precision, moment capacity, and grip force in a small rugged package. A factory set jaw guide system minimizes free-play and reduces deflection. These miniature grippers are designed to provide a high level of performance and long life as end effectors for a wide range of small pick and place applications.
Feature an oval piston for a high grip force to weight ratio. Spring assist provides extra grip force and retention of parts upon loss of air pressure. The hard coated aluminum body is tough and durable. Series 5300 Grippers are designed for heavy duty applications where high force and ruggedness are a necessity.
