Constructed of high quality, corrosion-resistant material and available in the widest selection of sizes, strokes and diameters available, Parker pneumatic cylinders, parts and kits offer unrivaled reliability and performance. The range of styles include standard and compact air cylinders, aluminum cylinders, guide cylinders, ISO pneumatic cylinders, low profile pneumatic cylinders, tie rod pneumatic cylinders and stainless steel air cylinders.

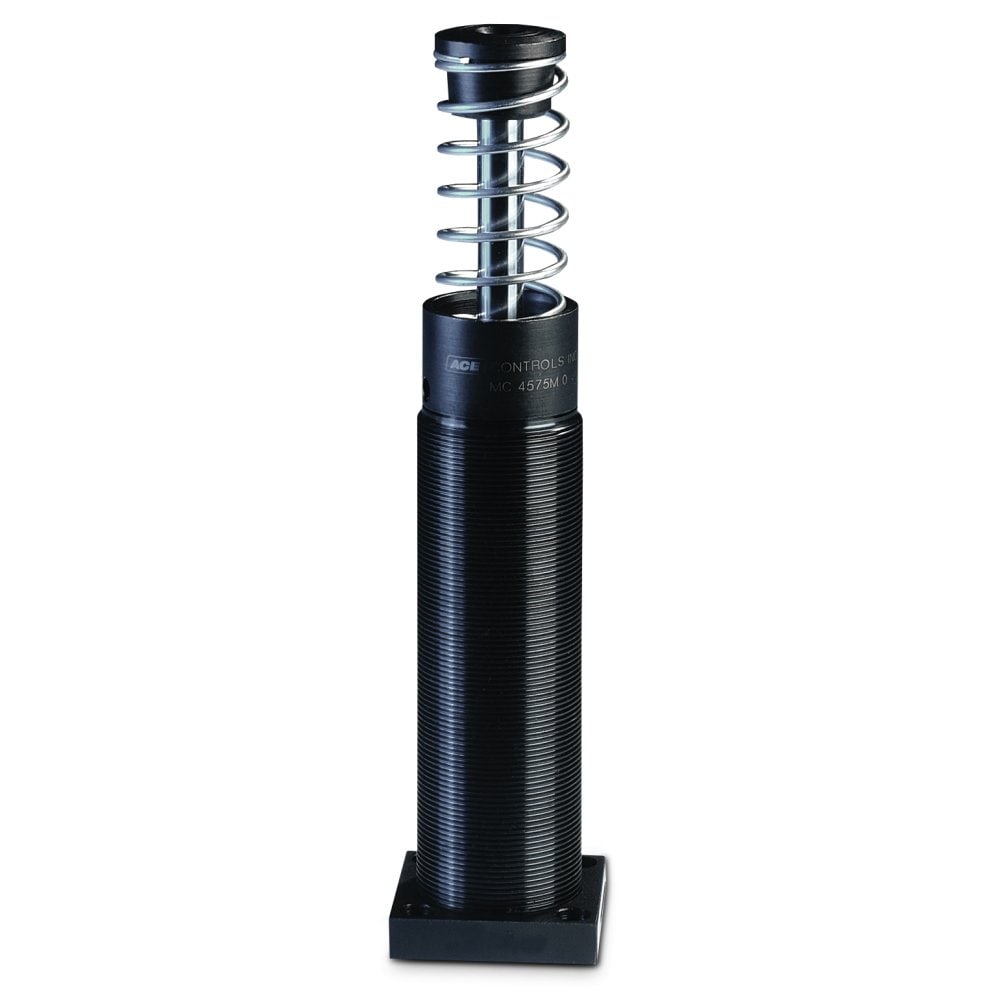

Parker's MC non-adjustable shock absorbers satisfy a wide range of applications. The SC series offers a self compensating mechanism for flexible installations. Shock absorbers can help increase production, extend machine life and reduce energy costs.

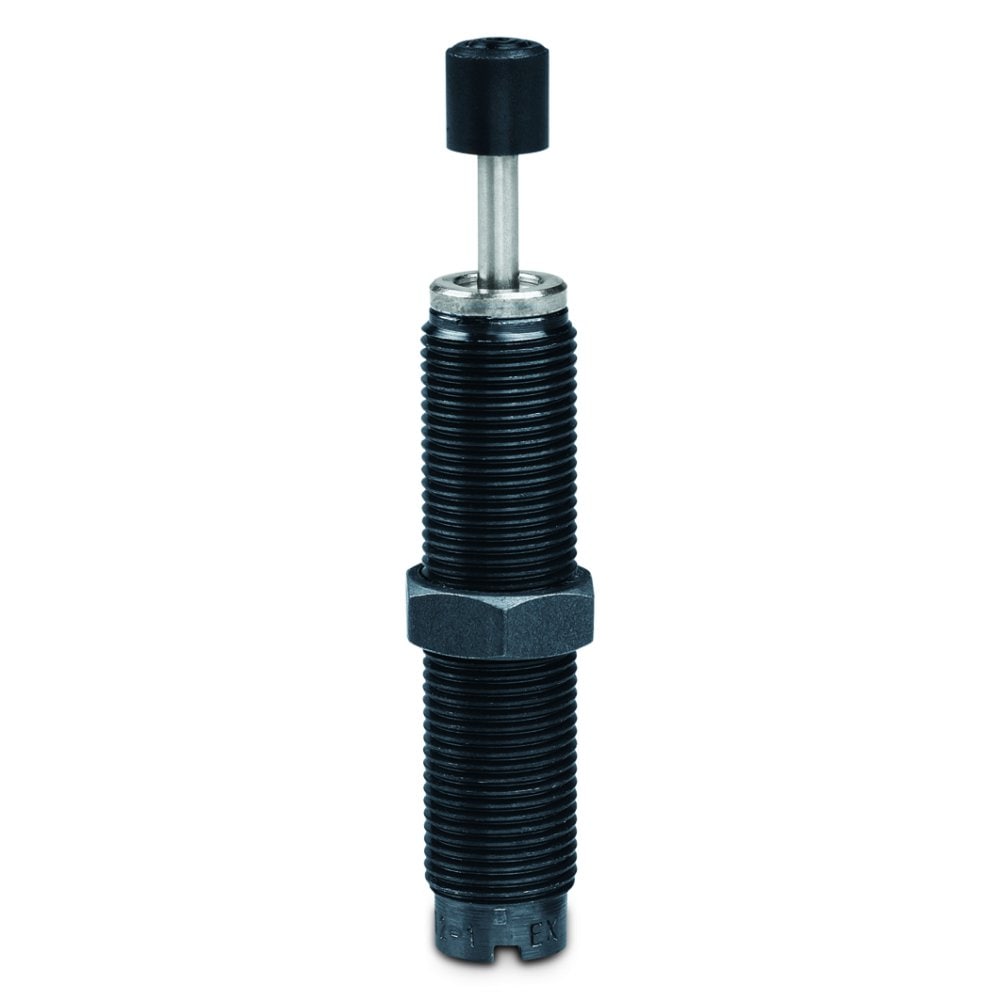

Parker's SA adjustable & non-adjustable shock absorbers provide a solution for a wide range of applications. Shock absorbers can help increase production, extend machine life and reduce energy costs.
Clevis for articulated movement of ISO 15552, ISO 6431 and ISO 6432 cylinders, bores Ø10mm to Ø320mm. Available in surface treated steel or stainless steel. Fitted to the actuator piston rod using the mounting nut supplied with the cylinder.
Flexo coupling in zinc plated steel for articulated mounting of ISO 15552 and ISO 21287 cylinders bores Ø20mm to Ø320mm. Fitted to the actuator piston rod using the mounting nut supplied with the cylinder.
Mounting nut type MR3 in stainless steel for ISO 6431 and ISO 6432 cylinders bores Ø10mm to Ø125mm. Used for neck mounting of the actuator. One nut is supplied with the cylinder on delivery.
Swivel rod eye for articulated movement of ISO 15552, ISO 21287, ISO 6431 and ISO 6432 cylinders bores Ø10-320mm. Available in surface treated steel or stainless steel. Fitted to the actuator piston rod using the mounting nut supplied with the cylinder.

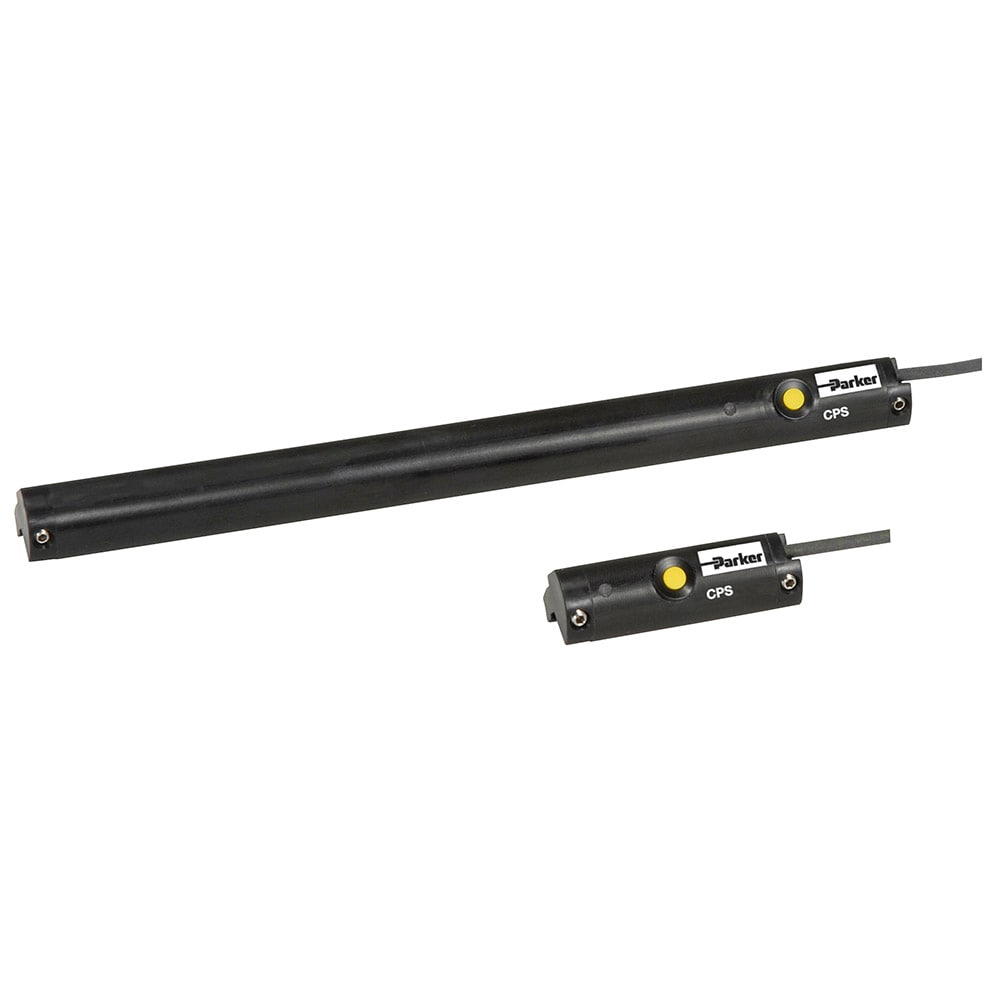

P8S Continuous Position Sensors enable contactless monitoring of cylinder strokes from 32mm to 256mm. Continuous supplied data via analog output or IO-Link is ideally suited for quality and process control functions.

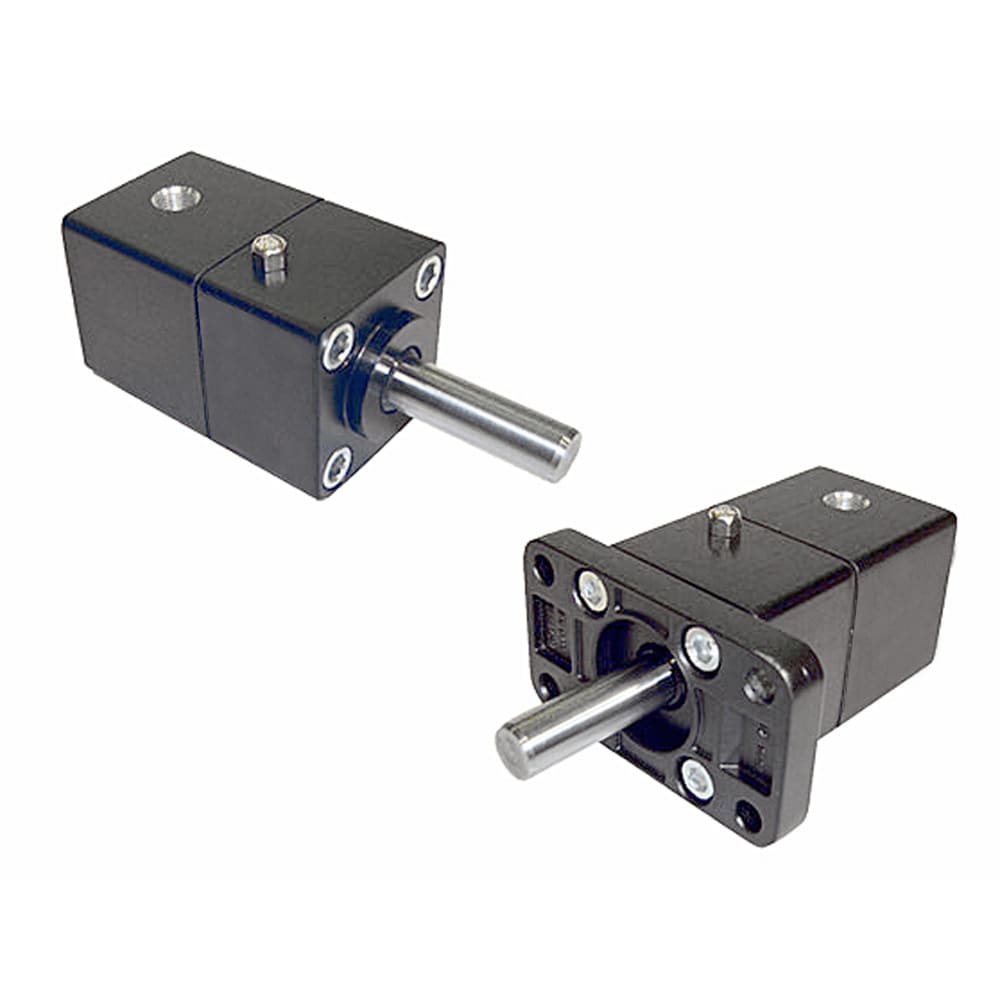

PRL Series rod locks are used in applications where the locking of linear travel is required. They are commonly used in workholding applications and for locking tools and fixtures in the event of air pressure or electrical control failure.

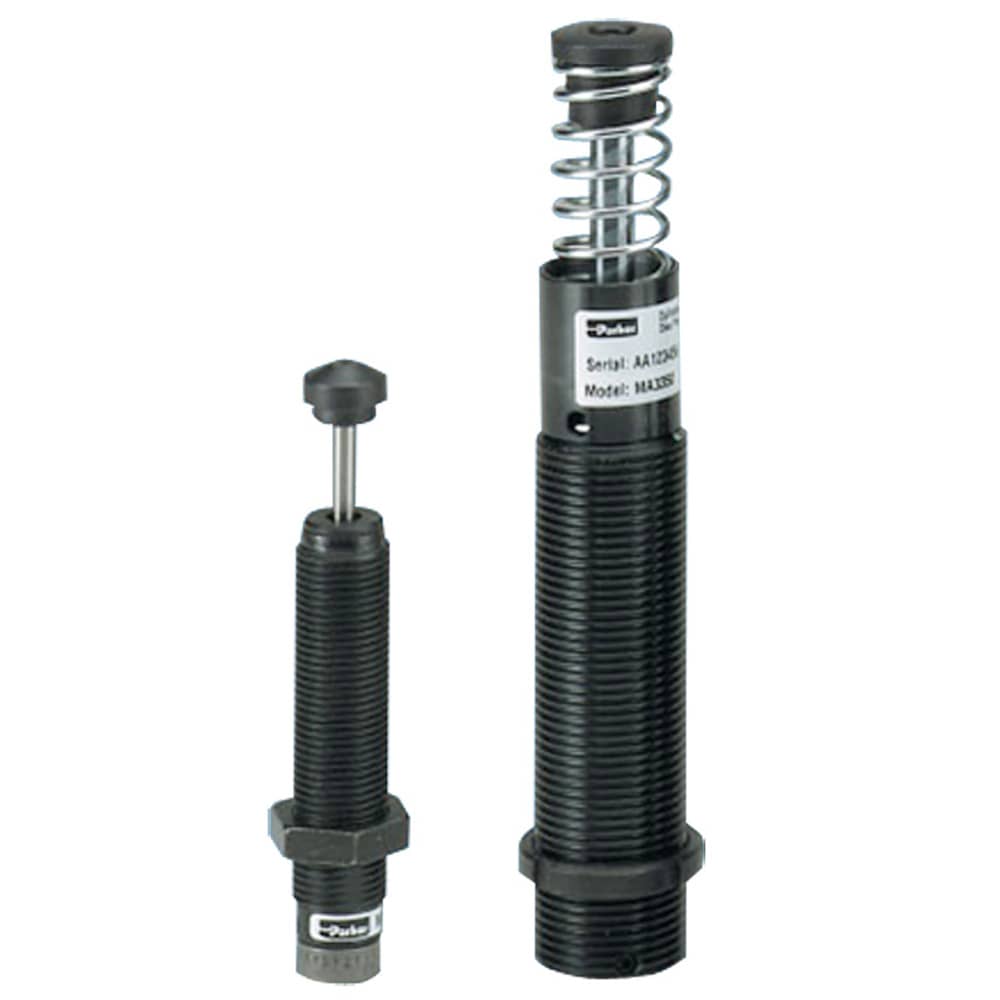

Parker's self-compensating and adjustable shock absorbers offer extensive effective weight ranges for handling a wide range of applications. Using shock absorbers can help increase production, extend machine life, and reduce energy costs.
Adaptor profile mounting plate for OSP-P and OSP-L rodless actuators bores Ø16mm to Ø80mm. Provides universal attachment for mounting of valves and logic elements etc. Fitted to the cylinder using the mounting screws supplied.
Mid section support type E1 for OSP-P and OSP-L rodless actuators bores Ø10mm to Ø80mm. Used for supporting long cylinders or mounting the cylinder by its dovetail rails.
Connection profile mounting plate for OSP-P and OSP-L rodless actuators bores Ø16mm to Ø50mm. For combining OSP cylinders with system profiles or with other OSP cylinders. Fitted to the cylinder using the mounting screws supplied.

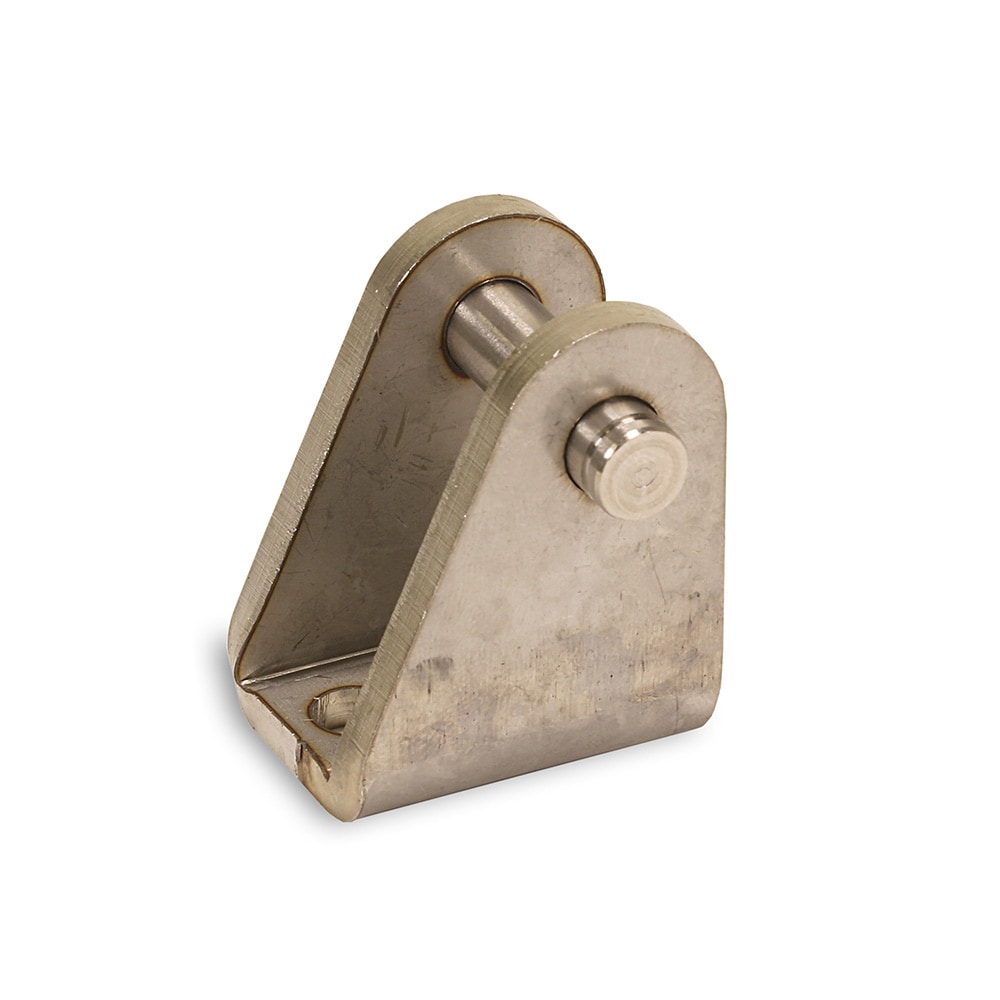

Clevis bracket for articulated mounting of ISO 6432 cylinders bores Ø10mm to Ø25mm. Available in surface treated steel or stainless steel. Fitted to the actuator with the pin and locking ring supplied.
End cap mounting for OSP-P, OSP-L and Basic Guide BG rodless actuators bores Ø10mm to Ø80mm. Attaches to the end plate of the cylinder to provide foot mounting.
Clevis mounting for OSP-P and OSP-L rodless actuators bores Ø10-80mm. Provide external guidance and compensation reducing mechanical strain on the piston. Available in aluminium or optional stainless steel for bores Ø16mm to Ø80mm.
Foot mounting type MS3 for ISO 6432 actuators bores Ø10mm to Ø25mm. Available as surface treated steel or stainless steel versions. Fitted to the front or rear of the actuator using the mounting nut supplied with the cylinder.
Mid section support type D1 for OSP-P and OSP-L rodless actuators bores Ø16mm to Ø80mm. Used for supporting long cylinders or mounting the cylinder by its dovetail rails. Fitted to the cylinder using the mounting screws supplied.
Foot bracket mountings type MS1 in surface treated steel for ISO 15552 / VDMA and ISO 21287 cylinders bores Ø20mm to Ø320mm. Supplied in pairs and fitted to the front and rear of the actuator with the included zinc plated screws.
Inversion mounting for OSP-P and OSP-L rodless actuators bores Ø16mm to Ø80mm. For dirty or space restricted environments the inversion bracket transfers the driving force to the opposite side of the cylinder.
Flange mounting type MF8 for ISO 6432 cylinders bores Ø10mm to Ø25mm. Available as surface treated steel or stainless steel versions. Fitted to the front or rear of the actuator using the mounting nut supplied with the cylinder.
Three and four position flange mounting type JP1 in aluminium for ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø125mm. Used to mount actuators back to back with the included zinc plated screws giving a 3 or 4 position movement.
T-Slot profile for OSP-P and OSP-L rodless actuators bores Ø16mm to Ø50mm. Provides universal attachment for mounting with standard T-Nuts. Fitted to the cylinder using the mounting screws supplied.
Flange mounting type MF1 / MF2 in surface treated steel for ISO 15552 and ISO 21287 cylinders bores Ø20mm to Ø320mm. Also available in stainless steel for ISO 6431 actuators bores Ø80mm to Ø125mm. For front or rear mounting.
Cover trunnion for articulated movement of ISO 6431 and ISO 6432 cylinders bores Ø10mm to Ø25mm. Available in surface treated steel or stainless steel. Fitted to the actuator using the mounting nut supplied with the cylinder.
Flange trunnion MT5 / MT6 for articulated movement of ISO 15552 cylinders bores Ø32mm to Ø100mm. Available in zinc plated steel. Fitted to the actuator using the mounting screws supplied.

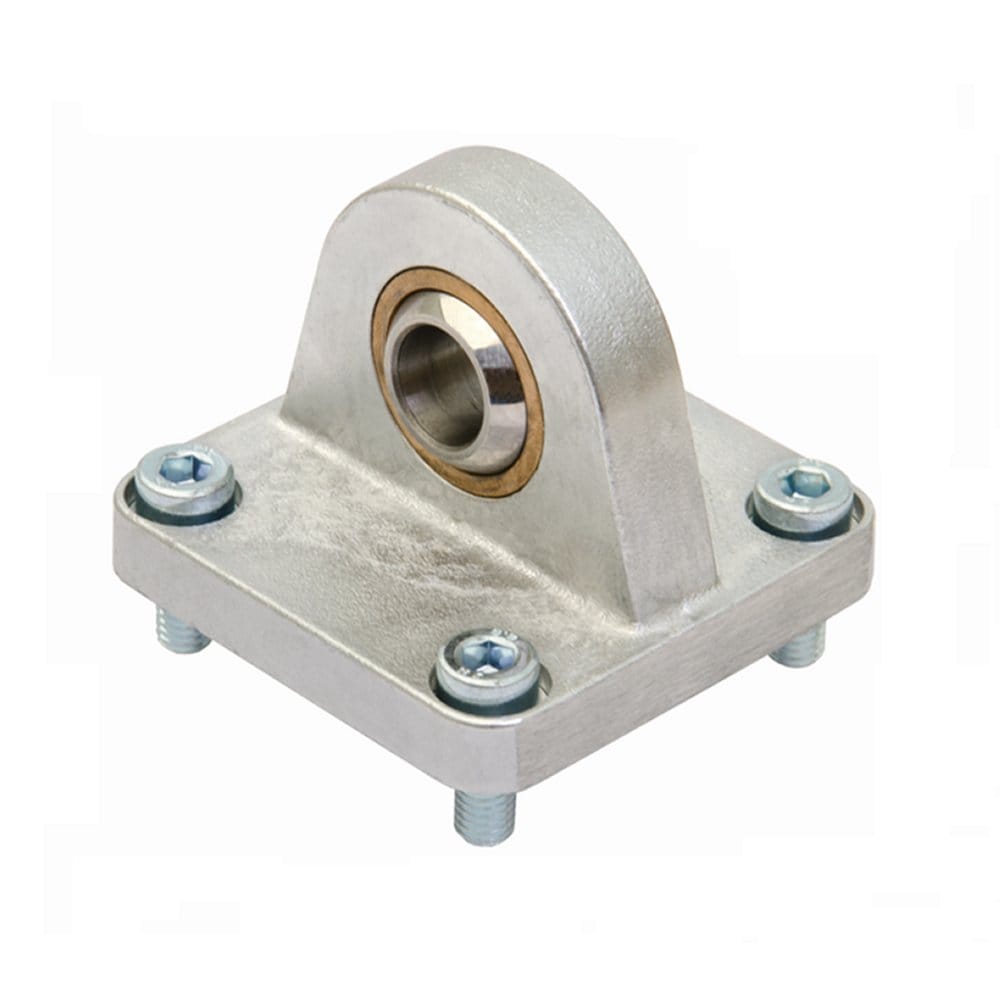

Swivel eye bracket MP6 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø320mm. Fitted to the actuator using the mounting screws supplied

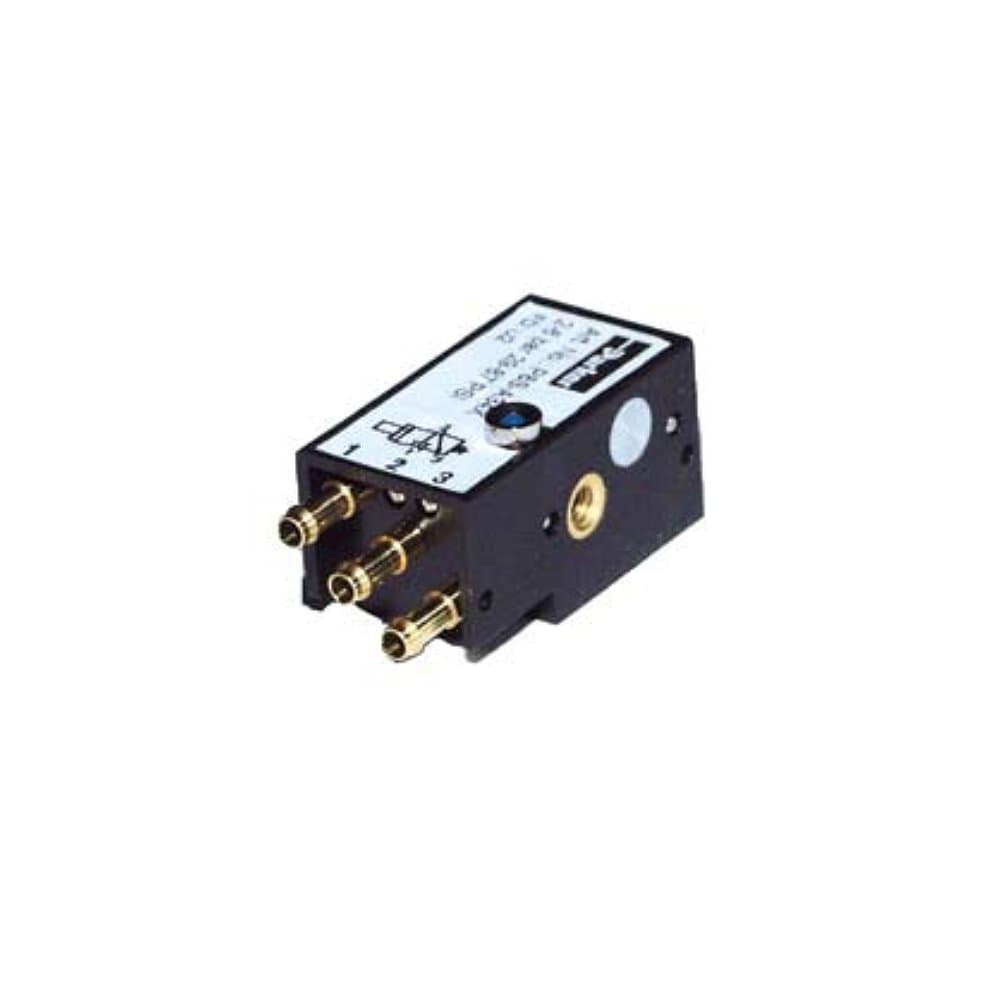

P8S-A34X pneumatic sensor provides non contact sensing of pneumatic cylinders triggering an output signal from an intergrated 3/2 valve. Suitable for round bodied cylinders bores 10 to 100mm.

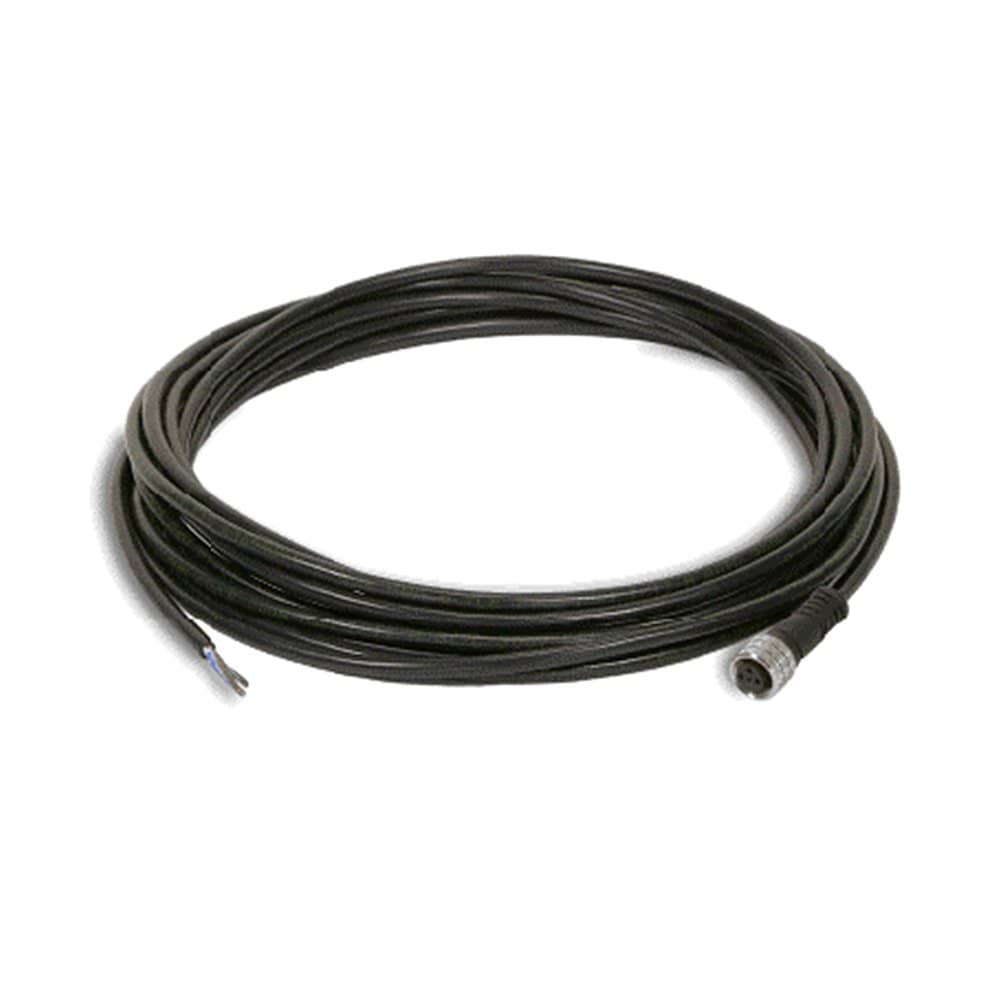

M8 3-pin female sensor extension connector leads with either PUR or PVC outer sheath. Available in 2.5, 3.0, 5.0 or 10m lengths for use with P8S sensors.
P8S-TMA proximity mounting kit for accurate and reliable location of P8S reed or electronic sensor position detecting switches on tie rod bodied pneumatic cylinders. Suitable for bores Ø32mm to Ø320mm.

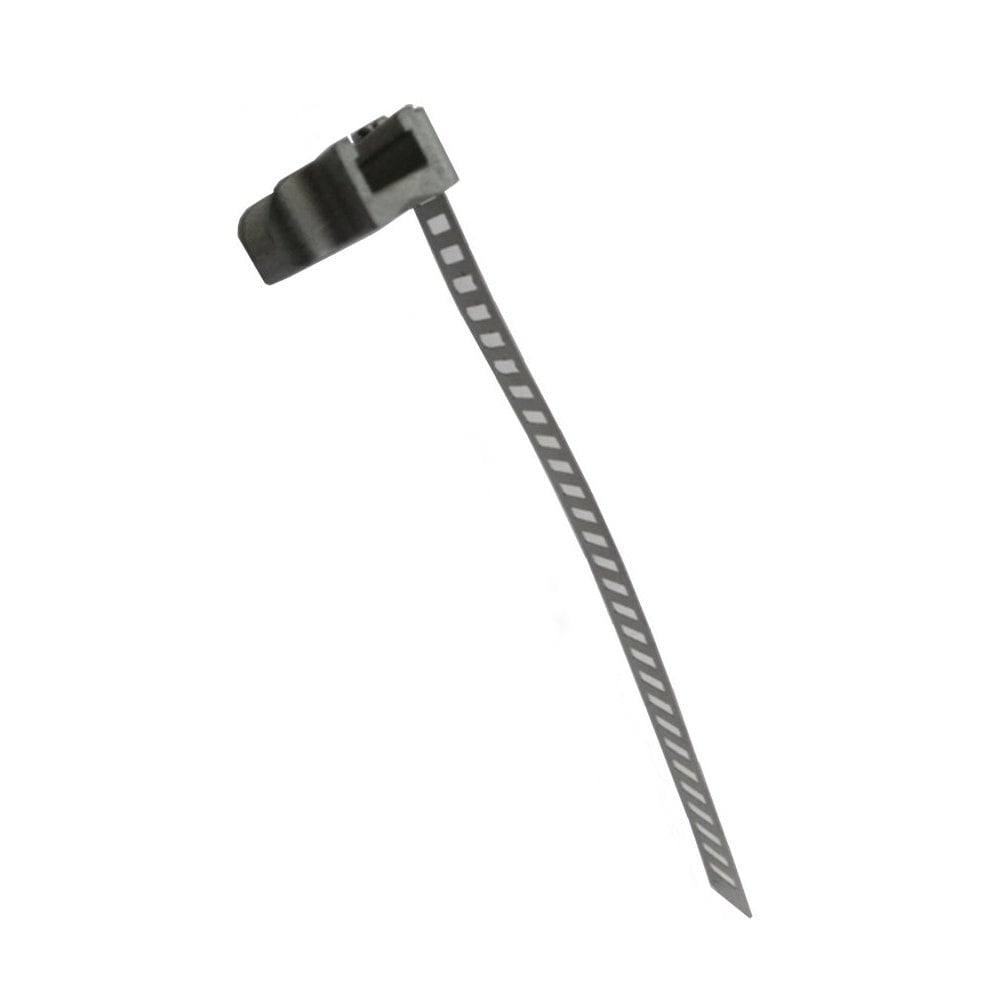

P8S-TMC proximity mounting kit for accurate and reliable location of P8S reed or electronic sensor position detecting switches on round bodied pneumatic cylinders. Suitable for P1A, P1S and R Series cylinders bores Ø10mm to Ø125mm.

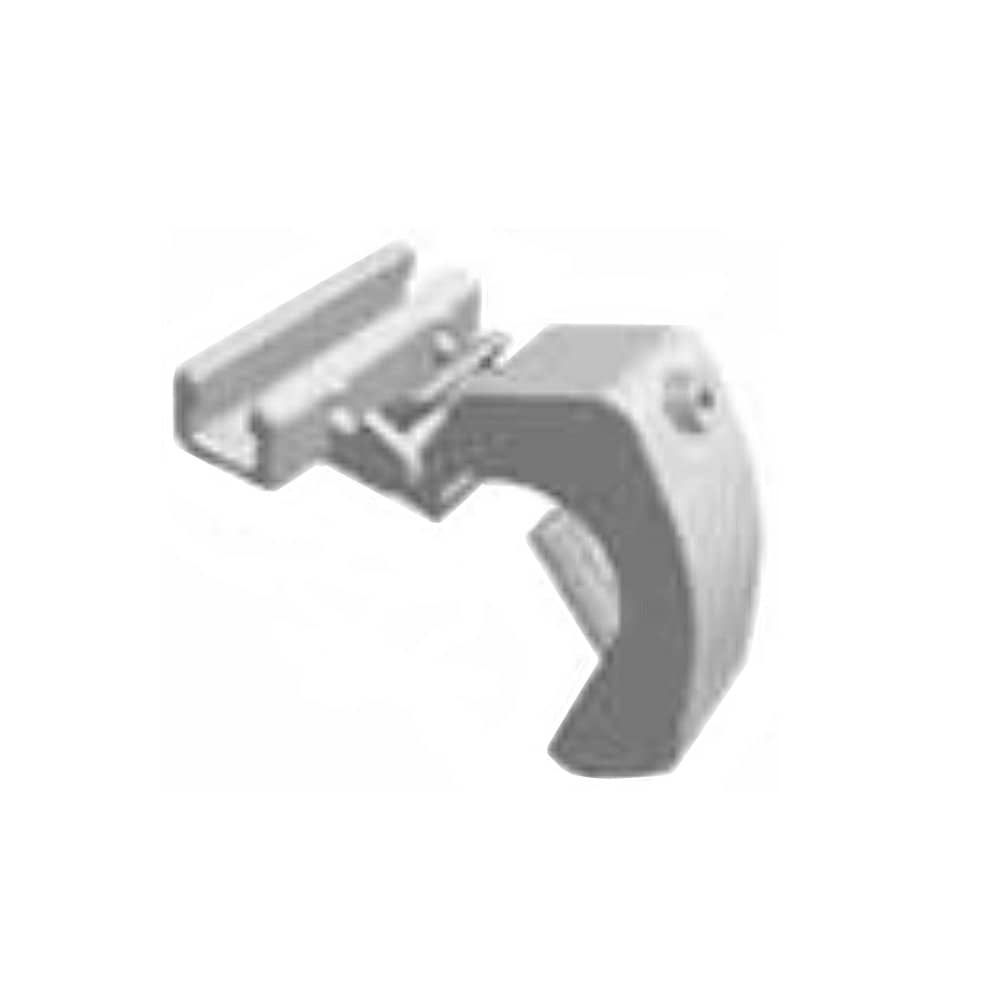

P8S-TMA0X proximity mounting kit for accurate and reliable location of P8S reed or electronic sensor position detecting switches on profile or tie rod bodied pneumatic cylinders. Suitable for linear and rotary actuators bores Ø32mm to Ø125mm.
P8S-AMA1 sensor bracket can be used to attach the pneumatic sensor P8S-A34X to round bodied cylinders bores 10 to 100mm. The adjustable retaining strap fits over the sensor and around the cylinder body for secure positional mounting.

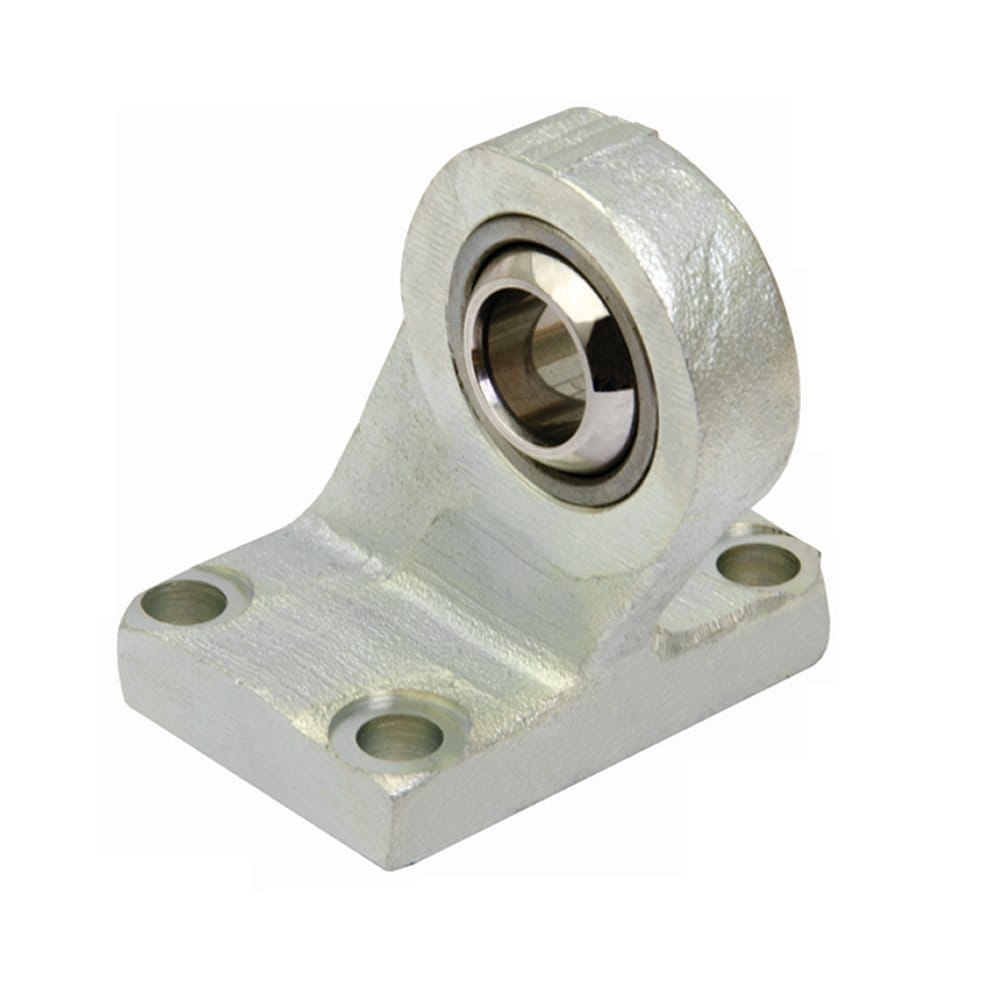

Pivot bracket with swivel bearing CS7 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø125mm. Available in surface treated steel.

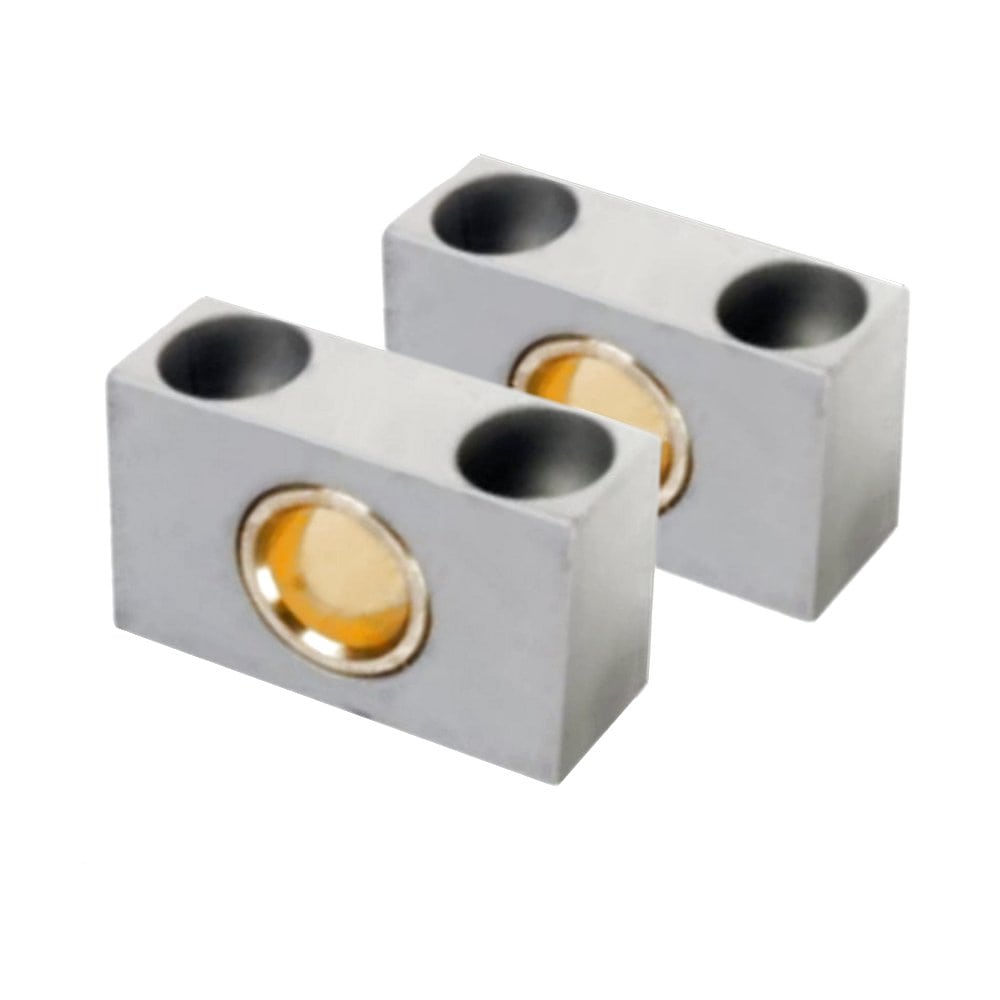

Pivot bracket AT4 in surface treated aluminium for intended use with MT4 trunnion for articulated mounting of ISO 15552 P1D and P1F cylinders bores Ø32mm to Ø320mm. Supplied in pairs.

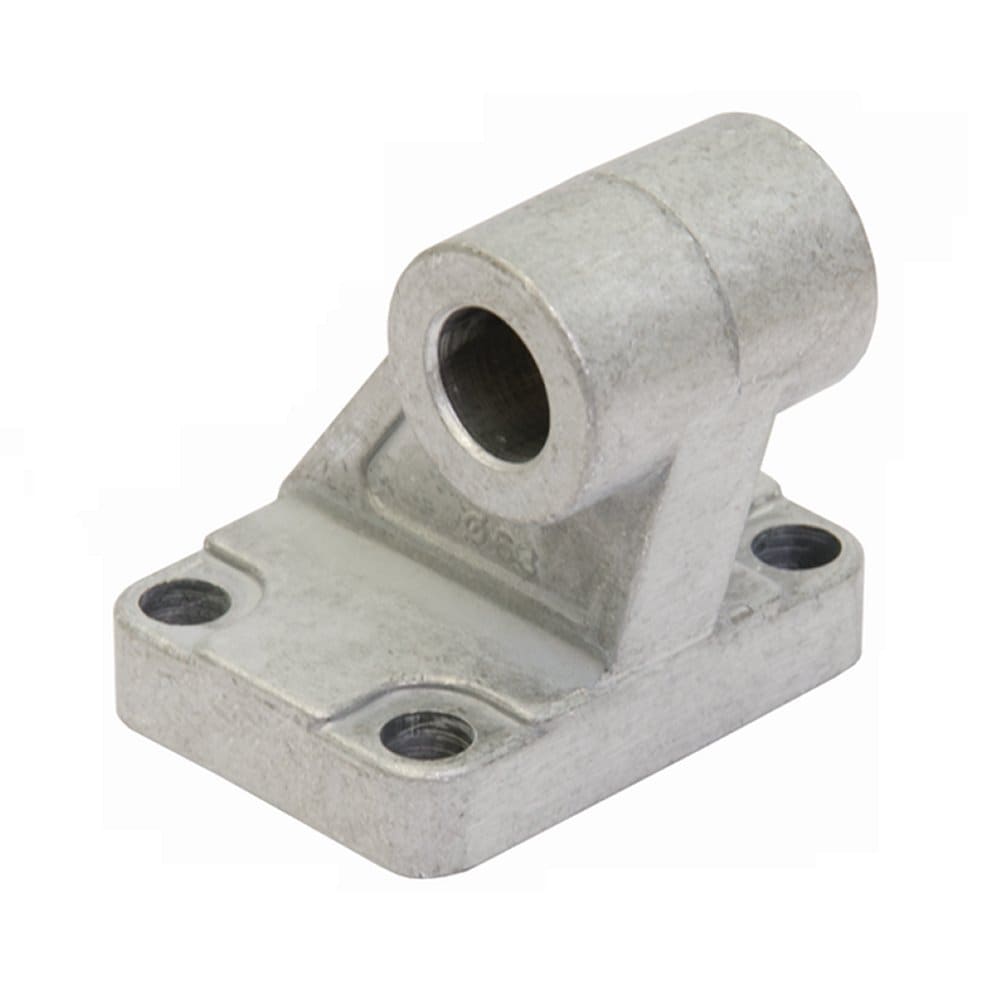

Pivot bracket with rigid bearing AB7 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø320mm.

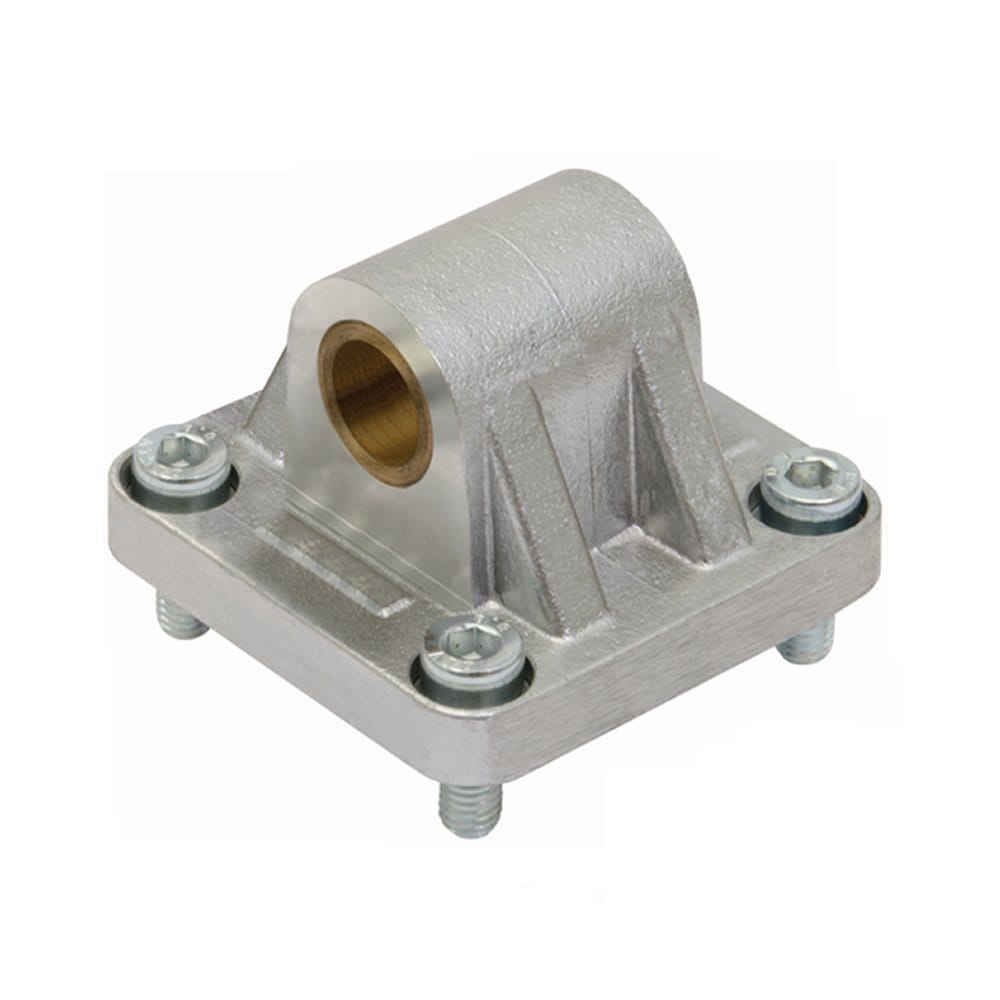

Clevis bracket MP4 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø20mm to Ø320mm. Fitted to the actuator using the mounting screws supplied.

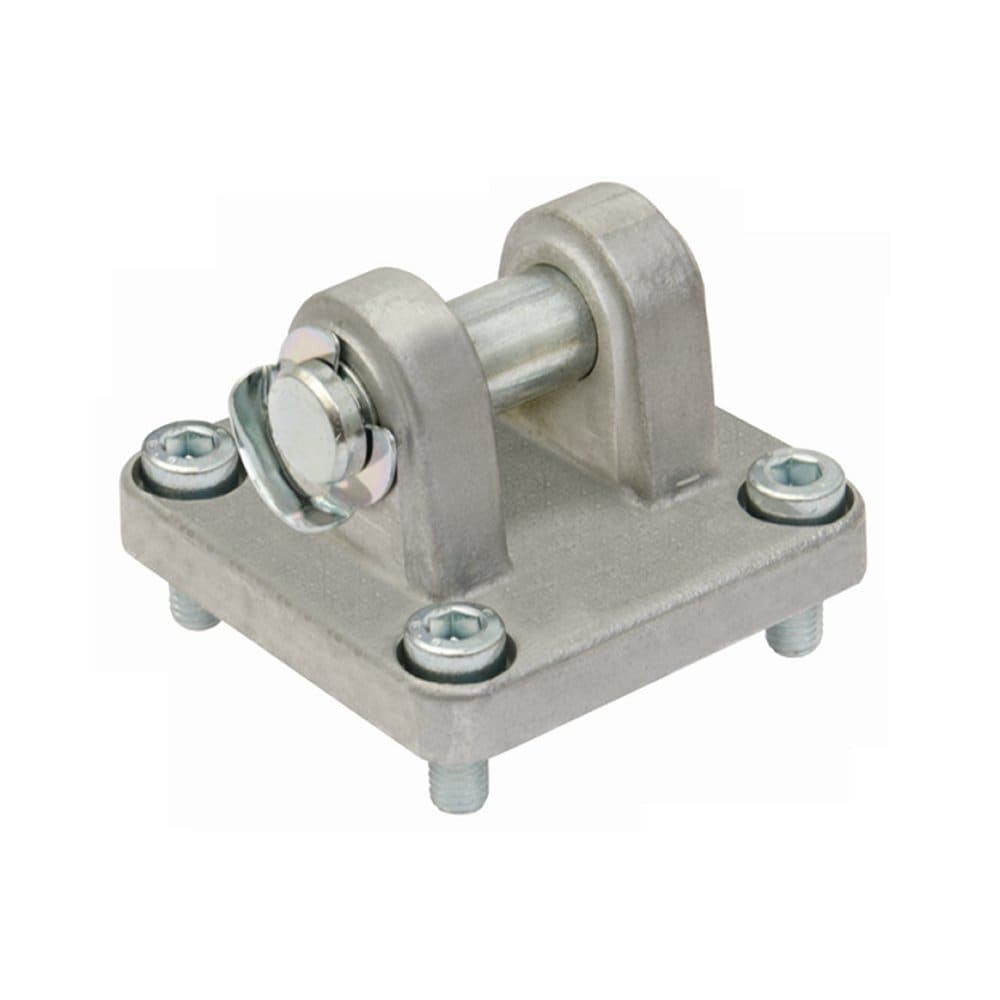

Clevis bracket AB6 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø125mm. Fitted to the actuator using the mounting screws supplied.

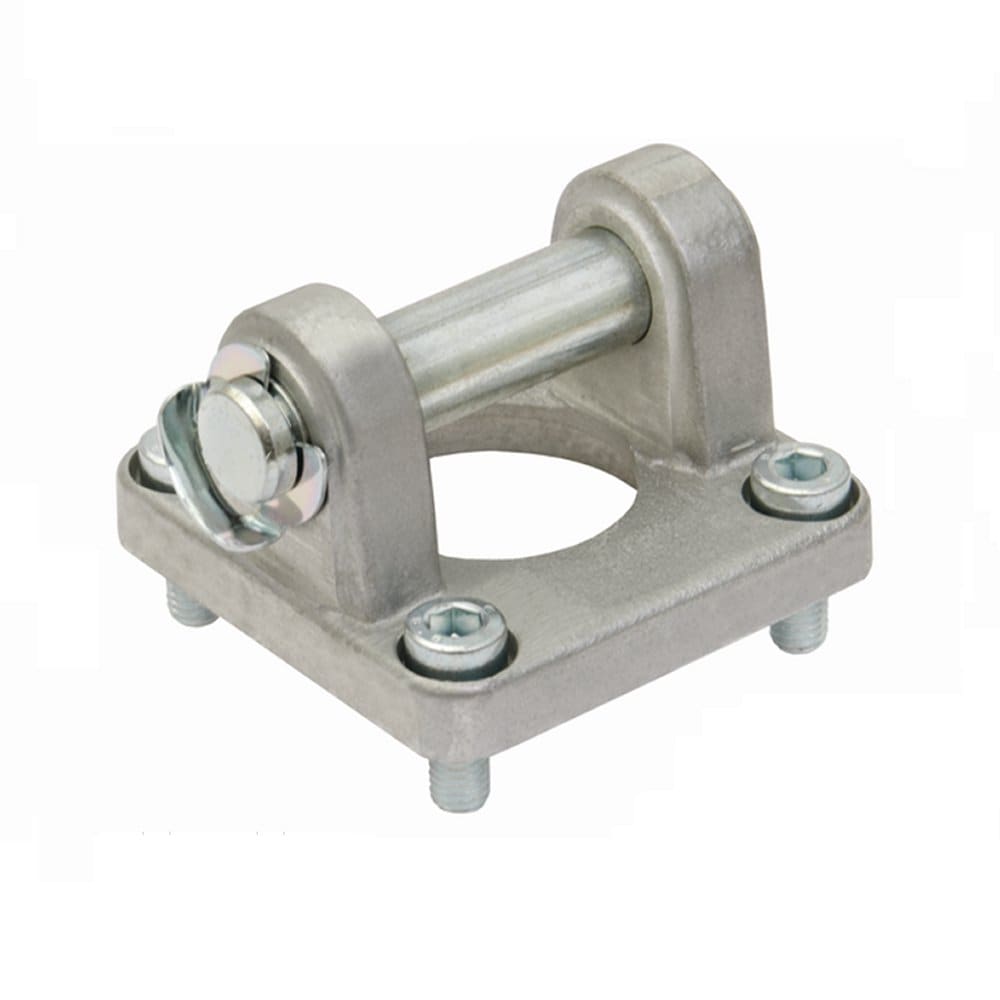

Clevis bracket MP2 for articulated movement of ISO 15552 and ISO 21287 cylinders bores Ø32mm to Ø320mm. Fitted to the actuator using the mounting screws supplied.

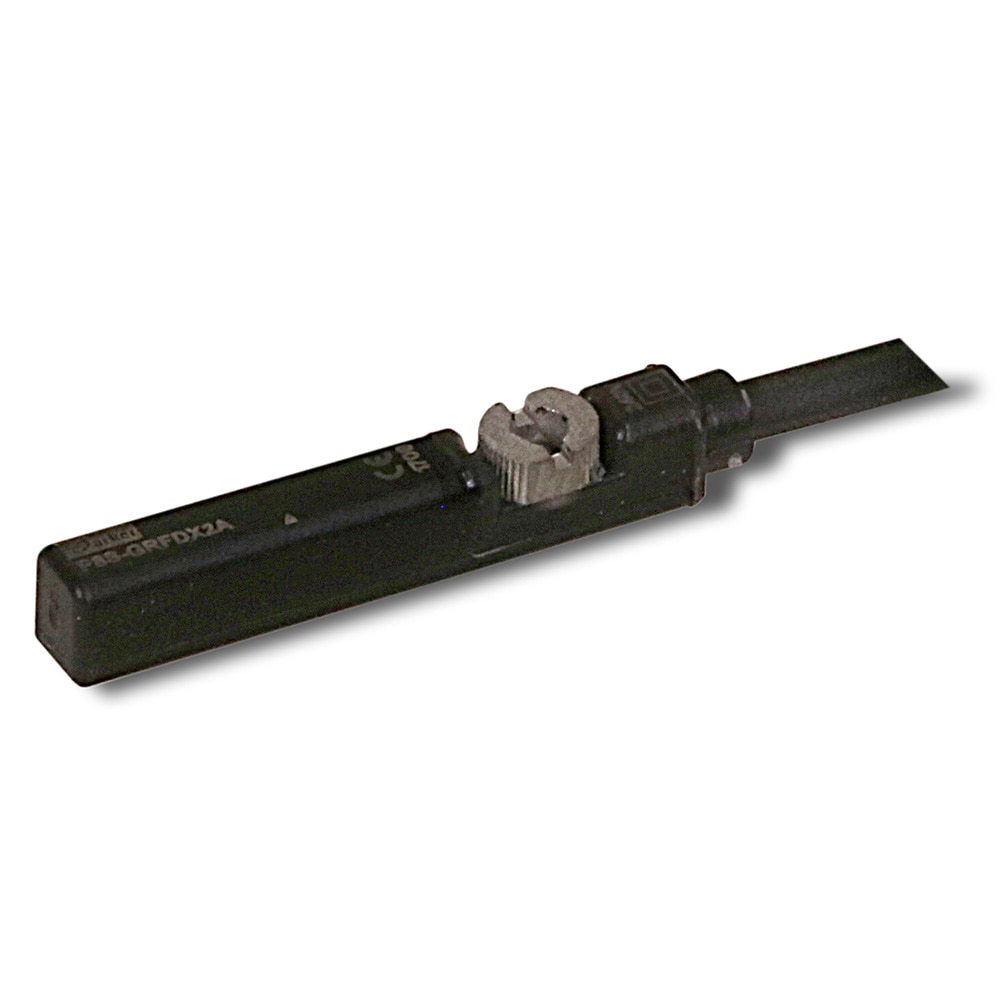

P8S Series magnetic cylinder sensor enables quick, precise and contactless sensing of the piston's position in cylinders. It is easy to mount, can be used in numerous applications and offers an outstanding price-performance ratio.
Shock absorbers Dyna-softer adjustable type AS-06 series that absorbs energy softly, such as smooth stopping of heavy high-speed running, falling, rotating objects, etc.
