Column-Mounted Jib Cranes

Jib cranes from Schmalz are very versatile in their use and can be combined with many lifting devices such as chain hoists, rope hoists, rope balancers or vacuum lifting devices. In combination with one of our lifting aids, Schmalz pillar-mounted slewing cranes form complete systems ready for connection. In this way, our cranes support a large number of manual handling tasks. Their high degree of flexibility makes them the ideal helper for a wide variety of applications. When installing the crane on a column, the pivoting angle is 270°. The crane can be installed freestanding in the room. For a weight of up to 1,000 kg, the Column Slewing Cranes use aluminium crane rails. This guarantees extreme responsiveness.

Slide Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Click Here

Application

Ergonomic and health-friendly transport of all types of load at the workplace

Use in combination with lifting equipment such as chain hoist, rope hoist, rope balancer or vacuum lifter

Easy integration due to crane column ready to dowel or alternatively with mobile base plate

Lift capacity up to 1,000 kg

Modular system

Modular elements

Technical Data

Modular system

(1) Chain hoist

(2) Energy supply

Trailing cable or conductor line

(3) Motor protection switch

(4) Anchor-Ready base plate

Dimensions: 400 x 400 mm to 950 x 950 mm

(5) Coated steel crane column

Overall height: 5,250 mm

Lower edge of jib: max. 4,000 mm

Alternatively with console for wall mounting

(6) Aluminum pivot bearing

Column mounted jib crane swivel angle: 270°

Wall mounted jib crane swivel angle: 180°

Can be limited

(7) Aluminum jib

Length: 2,000 mm to 8,000 mm

Modular elements

Aluminum jib minimizes the force required

Optimal low friction operation thanks to extruded section with hollow chamber geometry
Material: Aluminum natural anodized (EN AW 60 63 T66)
Easy swiveling thanks to low mass (weight from 3 kg/m)
Easy jib alignment for exact positioning of the load
In each case, two fixed and variable end stops for adjusting the travel path are included

Easy to move pivot bearing

Effortless swiveling even close to the pivot bearing
Easy mounting even when the ceiling height is low thanks to two separate bearing bolts
Maintenance free spherical bearing

Low friction transport trolley

Sturdy pressure cast aluminum design
Secure connection of all types of hoists
Optimal running performance thanks to large rollers made from high performance plastic

Trailing cable

Standard energy supply via cable trolley in the aluminum section
Suitable for power cables (flat cables) and hoses (vacuum and compressed air)

Conductor line

Wireless power supply via insulated plastic rails
There are no cable storage devices or cable loops to cause interference
Travel path between pivot bearing and transport trolley up to 400 mm larger

Crane column

High quality welded steel construction, RAL 7035 light gray coating (special coating upon request)
Fitted with anchors
Space-saving dimensions of the base plate (400 x 400 mm to 950 x 950 mm)

Technical Data

Basis for calculation: DIN EN 13001
Hoisting class: HC3
Stress group: S1

Jib cranes especially for vacuum lifting device VacuMaster

Column mounted jib crane SK with aluminium crane rails for vacuum lifting device VacuMaster

Type	Max. lift capacity [kg]	L [mm]	*H [mm]**	H1 [mm]	H2 [mm]**	L1 [mm]	L2 [mm]	L5 [mm]	L6 [mm]
SK-KZG-80	80	3,000 – 6.000	3,130	500	2,600	182	600 – 800	140 – 180	400
SK-KZG-125	125	3,000 – 6,000	3,130 – 3,380	500 – 750	2,600	210	600 – 800	180	400 – 550
SK-KZG-200	200	3,000 – 8,000	3,380	750	2,600	210 – 260	650 – 850	180 – 250	550 – 700
SK-KZG-350	350	3,000 – 6,000	3,385	750	2,600	260 – 290	650 – 850	250 – 300	700 – 860
SK-KZG-650	650	3,000 – 6,000	3,635	1,000	2,600	280 – 350	700 – 900	300 – 350	860
SK-KZG-1000	1,000	3,000 – 6,000	3,950	1,300	2,600	400 – 420	750 – 950	400 – 420	950

*H max. = 5,000 mm **H2 = 4,000 mm

Jib cranes especially for vacuum tube lifter Jumbo

Column mounted jib crane SK with aluminium crane rails for vacuum tube lifter Jumbo

Type	Max. lift capacity [kg]	L [mm]	*H [mm]**	H1 [mm]	H2 [mm]**	L1 [mm]	L2 [mm]	L5 [mm]	L6 [mm]
SK-JU-45	45	2,000 – 6,000	3,525	500 – 505	3,000	182	450 – 750	140	400
SK-JU-65	65	2,000 – 6,000	3,525 – 3,530	500	3,000	182 – 210	450 – 750	140 – 180	400
SK-JU-85	85	3,000 – 6,000	3,525 – 3,530	500	3,000	182 – 210	550 – 750	140 – 180	400
SK-JU-110	110	3,000 – 6,000	3,530	500	3,000	182 – 210	550 – 750	140 – 180	400 – 550
SK-JU-140	140	3,000 – 6,000	3,730 – 3,980	500 – 750	3,200	210	550 – 750	180	400 – 550
SK-JU-200	200	3,000 – 8,000	3,980	750	3,200	210	550 – 750	180	550 – 700
SK-JU-300	300	3,000 – 6,000	3,980 – 3,985	750	3,200	210 – 260	550 – 750	250	700 – 860

*H max. for type SK…45-140 = 4,500 mm (4,750 mm for type SK…200/300) **H2 max. for type SK = 4,000 mm

Accessories

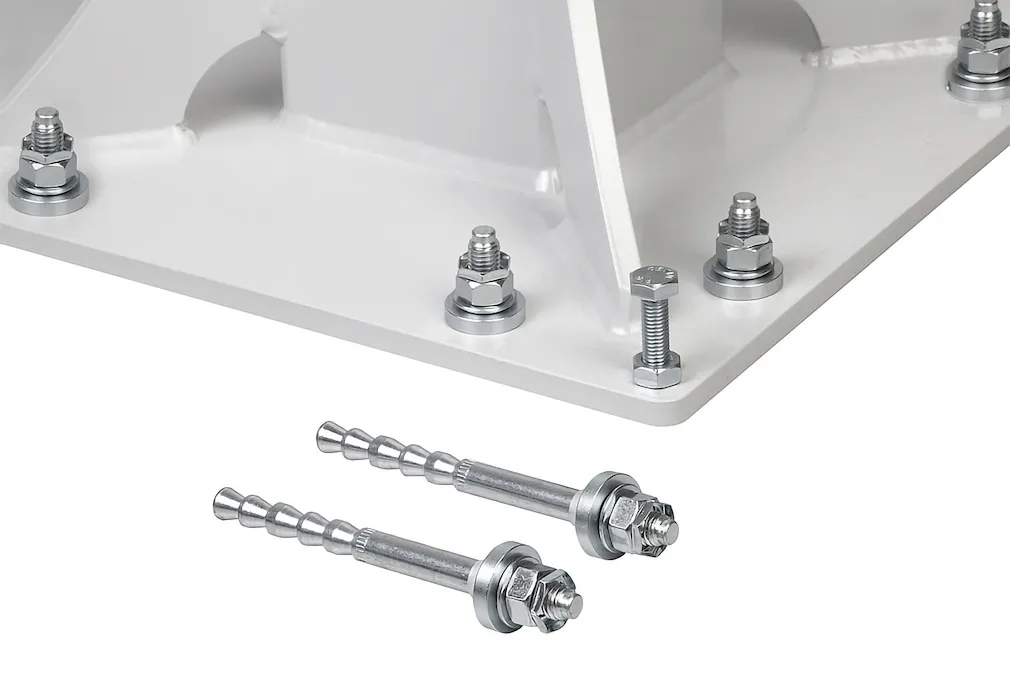

Anchor set

High quality injection mortar anchor Required cement thickness: min. 200 mm; required concrete quality: min. B25 or C25/235 No additional foundation necessary For loads weighing up to 1,000 kg

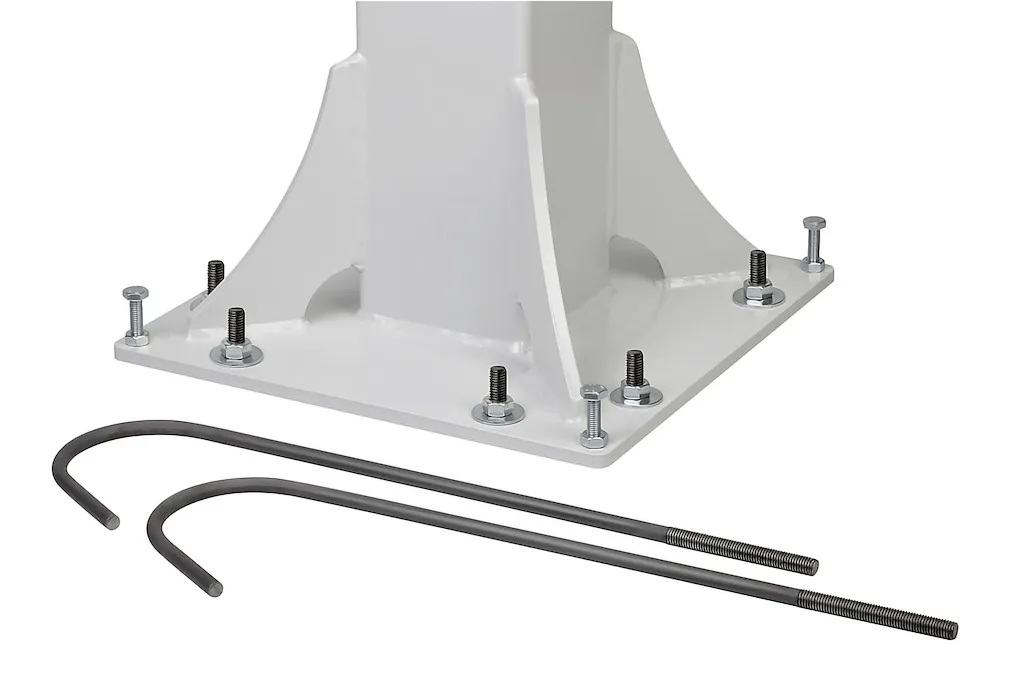

Anchor bolts

Use when concrete quality is low Dimensions of the foundations from 1,300 x 1,300 mm to 2,300 x 2,300 mm For loads weighing up to 1,000 kg

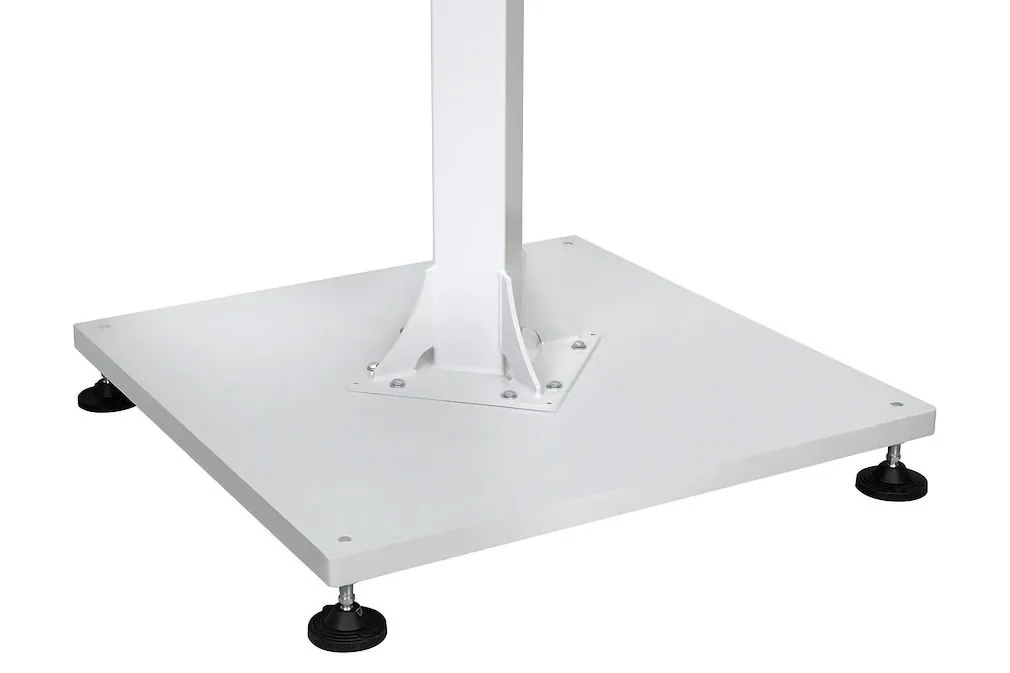

Mobile base plate

No need to attach to the floor Can be easily transported by means of a forklift or pallet truck Dimensions from 1,200 x 1,200 mm to 1,470 x 1,470 mm For loads weighing up to 200 kg (depending on the jib length)

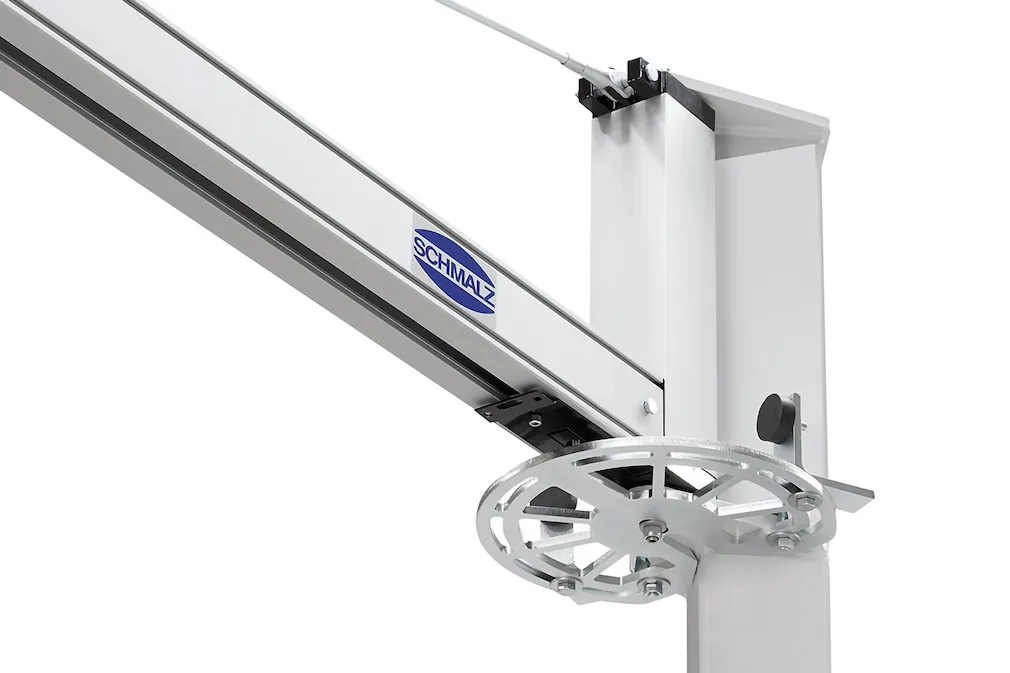

Slewing angle limiter

Limit stop for individual adjustment of the swiveling range The limit for each swivel side is 0° to 100°

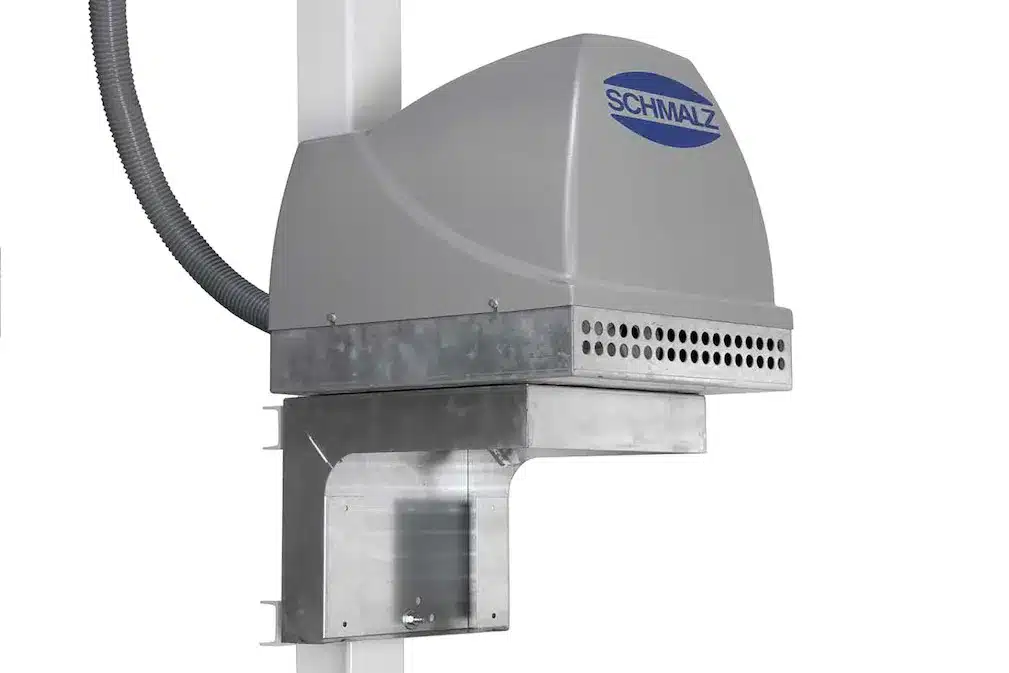

Blower console

For attaching vacuum generators directly to the crane column Easy mounting by means of a clasp

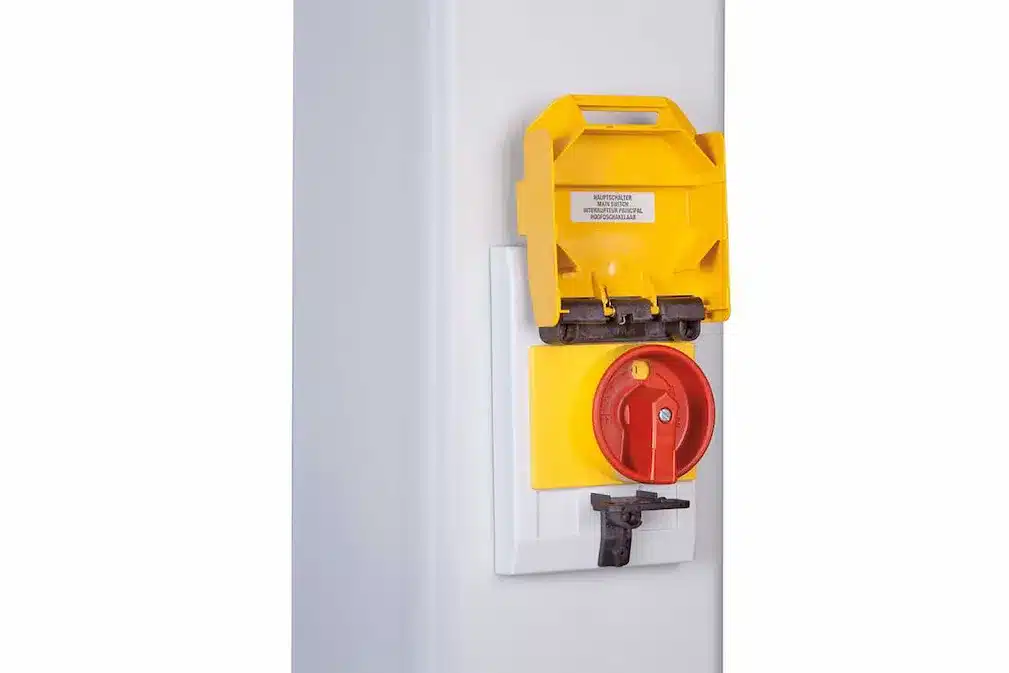

Integrated motor protection switch

To protect electrical devices against overvoltage Can be locked, optional and therefore suitable as main switch

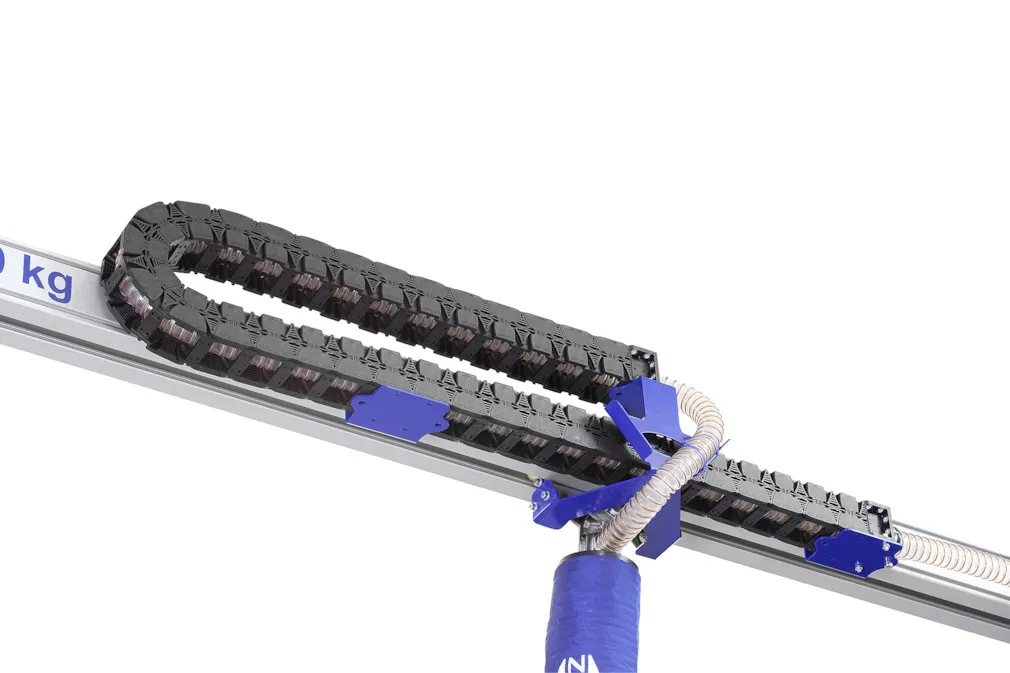

Drag chain V-Chain

Packs the vacuum supply hose package Saves additional space with low room heights

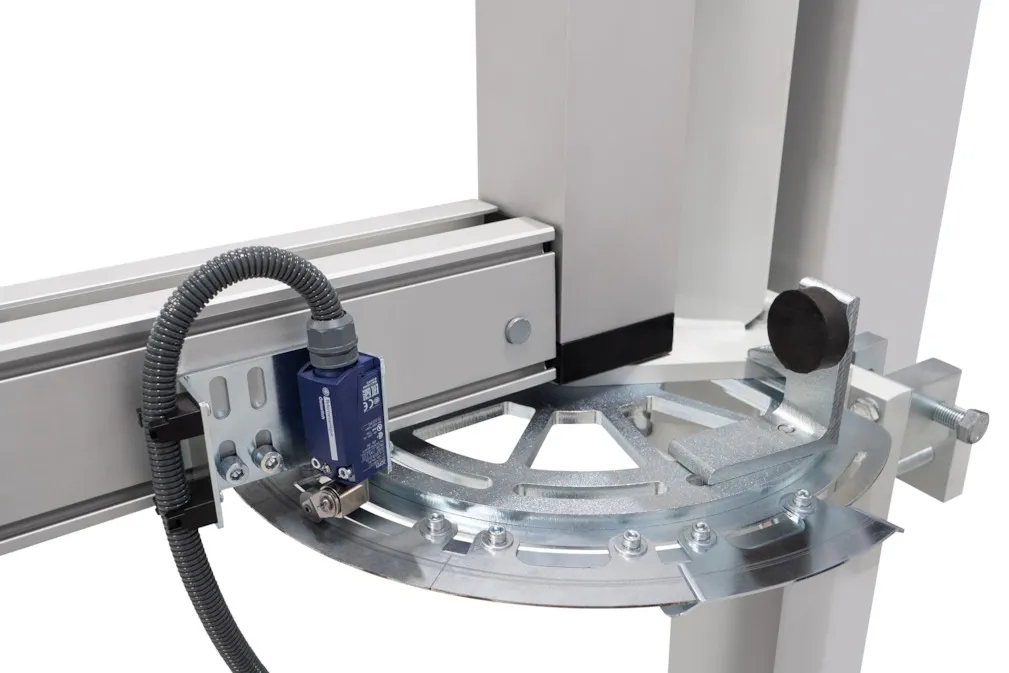

Slewing angle limiter with process monitoring

Integration of a position-dependent machine and process release Limitation per swivel side from 0° to 100
