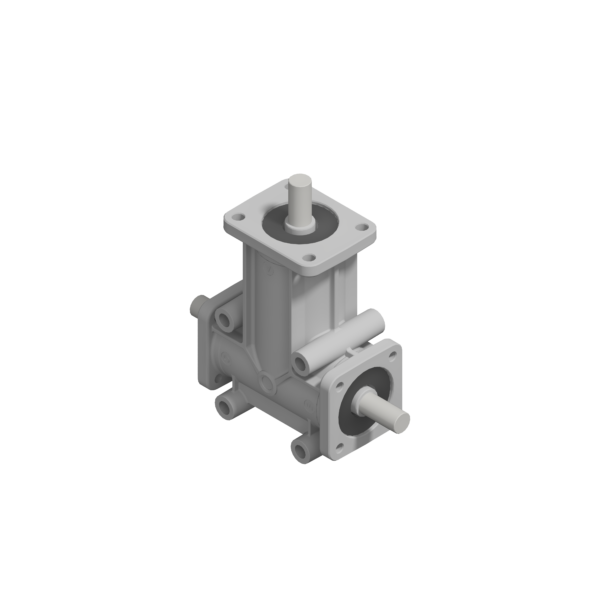

The role of a bevel gear is to transmit power through orthogonal shafts. This device is used in many industrial applications, one of the most common is to be used as a connection in a loading system of 2 or more screwjakcs

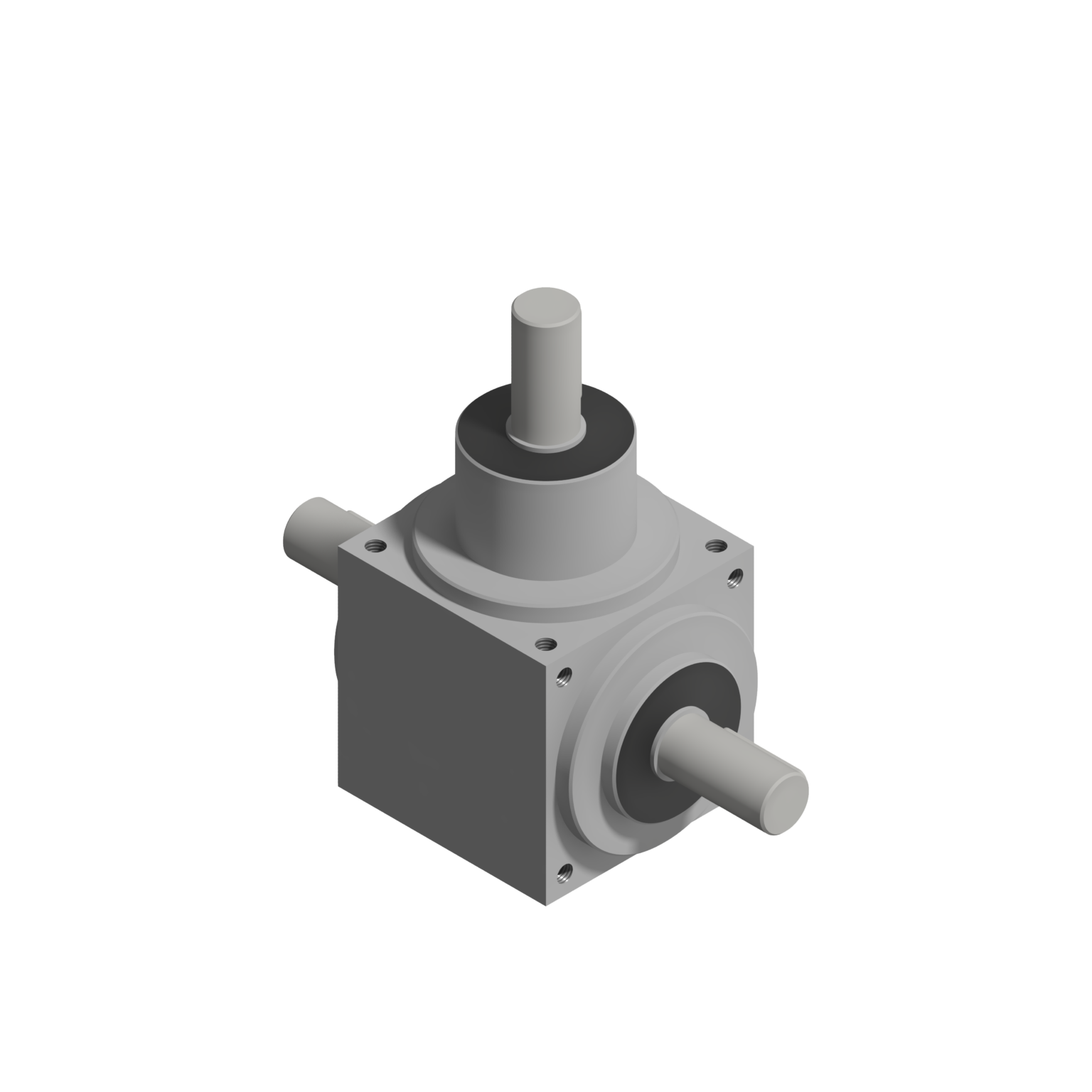

The housing of the bevel gear can also have a cubic shape (BC line), and all six faces completely machined. The bevel gear shafts are made of carbon steel.
Max. torque 4 Nm
Gear ratios 1:1 – 1:2
Max. torque 15 Nm
Gear ratio 1:1 – 1:2 – 1:3
Max. torque 38 Nm
Gear ratio 1:1 – 1:2 – 1:3
Max. torque 38 Nm
Gear ratio 1:1 – 1:2 – 1:3
Max. torque 12 Nm
Gear ratio 1:1
Max. torque 65,3 Nm
Gear ratio 1:1
