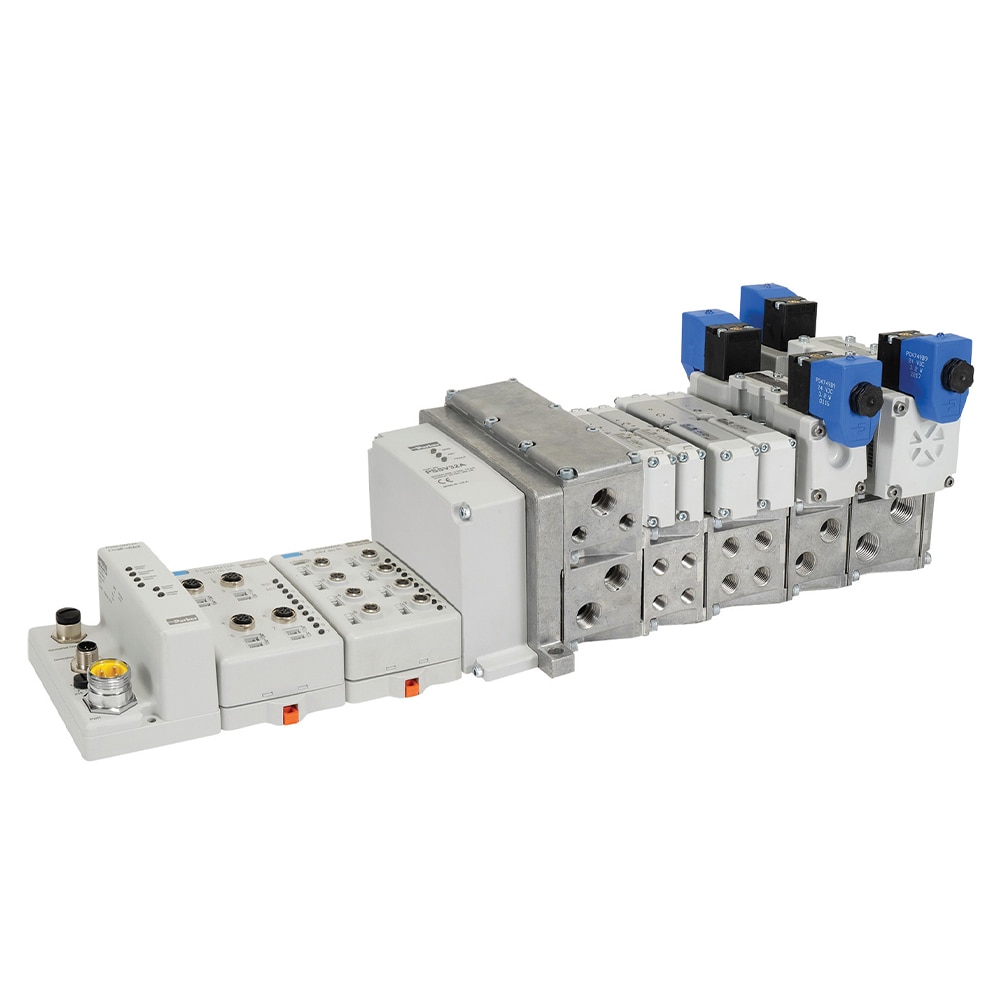

The H Series Network Portal offers modular digital or analog inputs and outputs directly on the valve manifold thereby reducing the cost of I/O on machine and allows for easy centralized machine design.

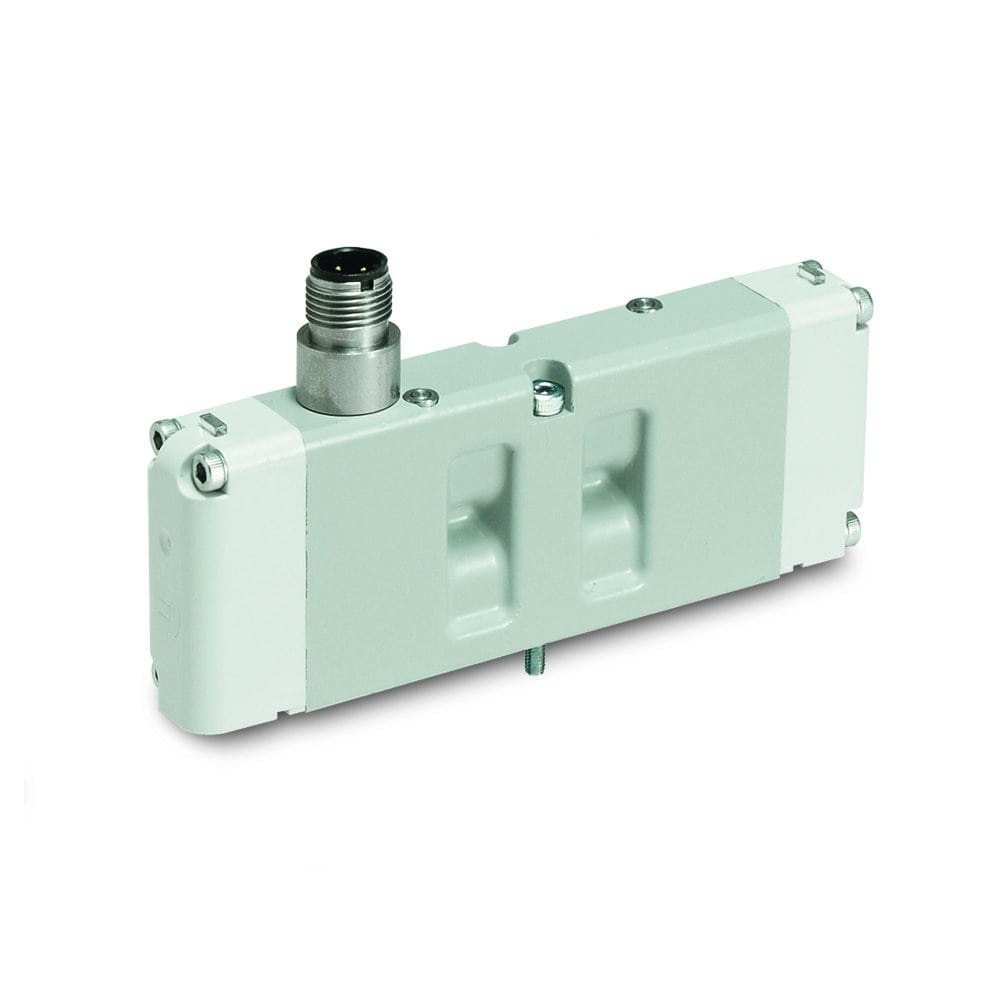

The ISO H-series, size 01 and 02, is a dual 3/2, 5/2, or 5/3 subbase valve. It can be plugin or non-plugin, and is mounted on a subbase or manifold. Electrical connection options are terminal block, 6" lead wires, and collective wiring / fieldbus.

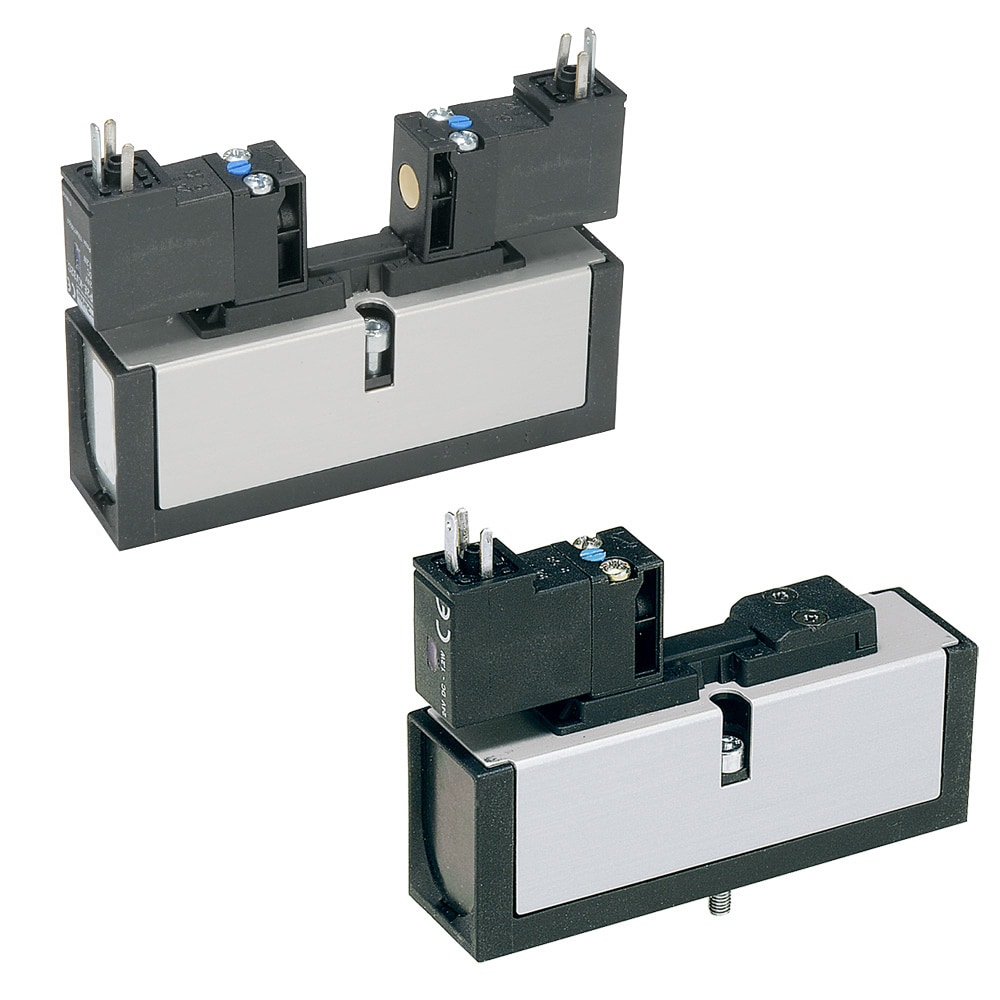

The DX ISOMAX series, size 01 and 02, is a 5/2 or 5/3 subbase valve. They are non-plugin only, have a ceramic seat for resistance to contamination, and can be mounted on a subbase or manifold. Each coil is wired with a 15 mm 3 pin DIN connector.
H series ISO, Micro, and Moduflex valves use protocols DeviceNet, Profibus-DP, AS-i, CANopen, and Interbus-S. Control up to 16 solenoids when using an industrial network. AS-i modules are available with up to 8 inputs, and up to 8 solenoid outputs.
The DX ISOMAX series, size 1, 2, and 3, is a 5/2 or 5/3 subbase valve. They are non-plugin only, have a ceramic seat for resistance to contamination, and can be mounted on a subbase or manifold. Each coil is wired with a 30 mm 3 pin DIN connector.
The P2M IO-Link Node allows for simple, cost efficient connection to any IO-Link master. It can connect to any Safe Power Supply and connect IO-Link to three of our valve products: Moduflex, H Micro and all 5 sizes of H ISO valves (15407 & 5599)

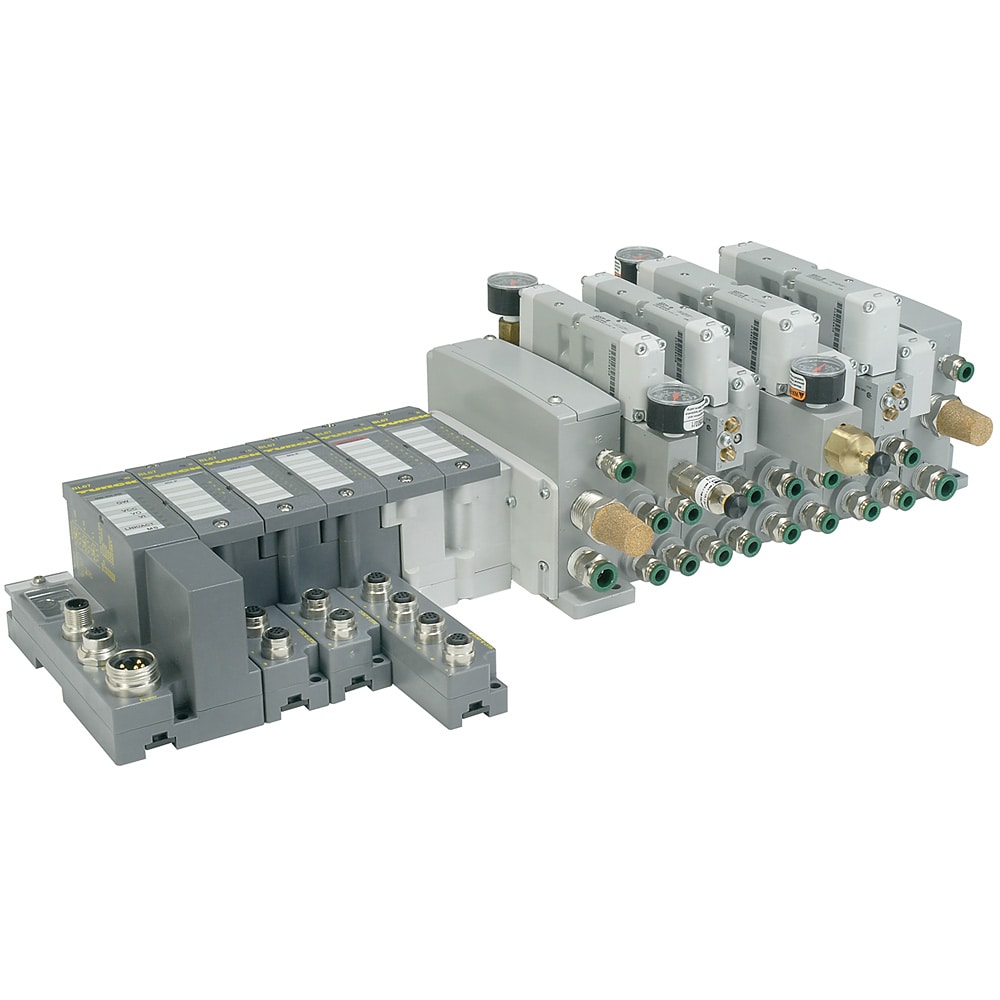

The Turck BL67 Network Portal is a complete network communication offering and is widely adopted for its broad range of connectivity options, vast array of network protocols and high density I/O modules saving space in machine design.
The H Micro series is an air piloted subbase valve. It is plugin only and is mounted on a manifold base which holds 4 valves. Functions are 4/2, 4/3, and dual 3/2. The manifold bases contain circuit boards for collective wiring / fieldbus.

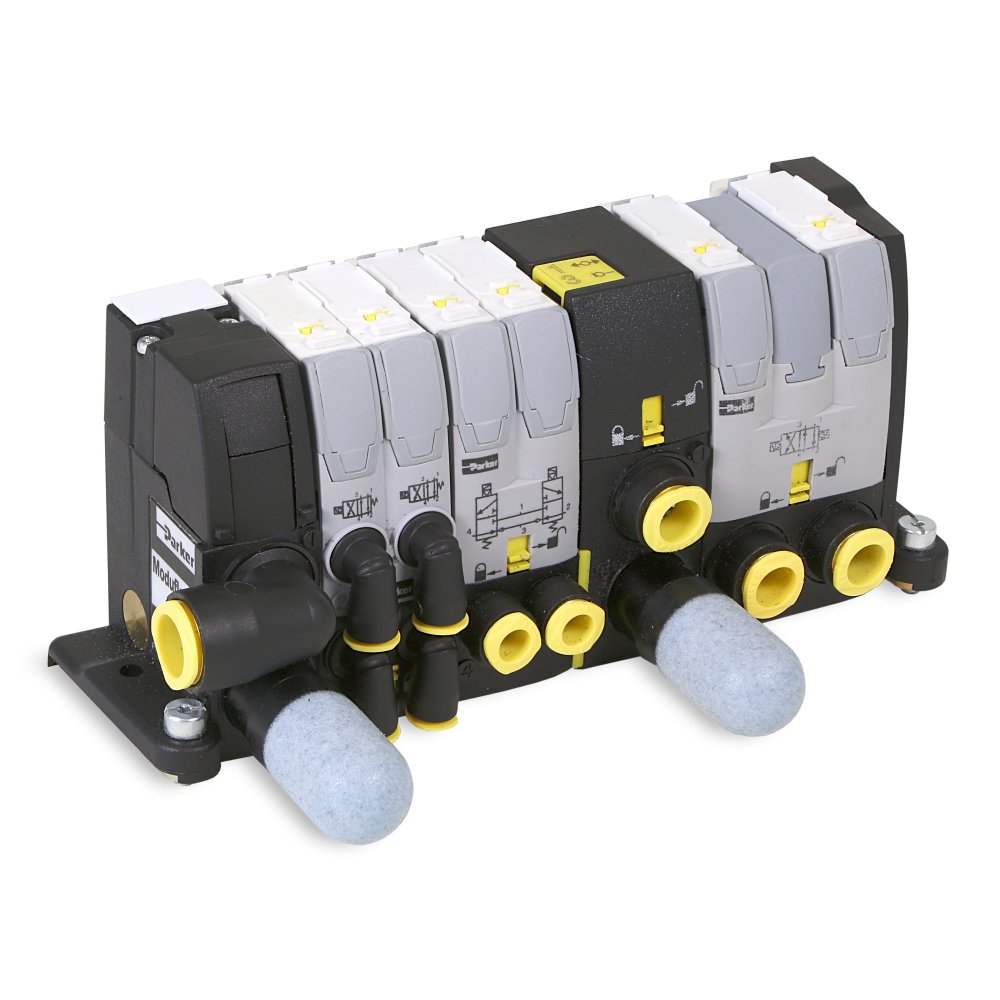

The Moduflex series is an air piloted stacking valve. Functions are 4/2, 3/2, and dual 3/2. S series, T series, and V series wiring configurations. V series collective wiring- 20 and 25 pin Dsub, Devicenet, Profibus DP, CANopen, Interbus-S, and ASi.
The Moduflex series is an air piloted stacking valve. Functions are 4/2, 3/2, and dual 3/2. S series, T series, and V series wiring configurations. V series collective wiring- 20 and 25 pin Dsub, IO-Link and Industrial Ethernet protocols.
The H Micro series is an air piloted subbase valve. It is plugin only and is mounted on a manifold base which holds 4 valves. Functions are 4/2, 4/3, and dual 3/2. The manifold bases contain circuit boards for collective wiring / fieldbus.
P2M IO-Link Node allows for simple and cost efficient connection to any IO-Link master and can connect to any Safe Power Supply. P2M IO Link can connect to: Moduflex, H Micro, and all 5 sizes of H ISO valves (15407-2 & 5599-2)
The Turck BL67 Network Portal is a complete network communication offering and is widely adopted for its broad range of connectivity options, vast array of network protocols and high density I/O modules saving space in machine design.
AP Manifold have been engineered for use at pressure up to 6,000psi(414 bar) and temperature as high as 1,000°F (538 ℃). Perform various tasks and functions while reduce installation costs and improve safety performance.
The H Series Network Portal offers modular digital or analog inputs and outputs directly on the valve manifold thereby reducing the cost of I/O on machine and allows for easy centralized machine design.
The PVL series is an air piloted stacking valve. The PVL valves can be configured as plugin or non-plugin. Functions are 5/2, 5/3. and dual 3/2. Electrical connections are 15 mm 3 pin DIN connector, or 25 pin Dsub. The air pilot port is 5/32" tube.
The Parker Bestobell’s cryogenic manifold fill assemblies are specifically designed for cryogenic static storage tanks to replace the traditional gang of valves linked together with piping and a large amount of welding and brazing.
The PVL series is an air piloted stacking valve. The PVL valves can be configured as plugin or non-plugin. Functions are 5/2, 5/3. and dual 3/2. Electrical connections are 15 mm 3 pin DIN connector, or 25 pin Dsub. The air pilot port is 5/32" tube.

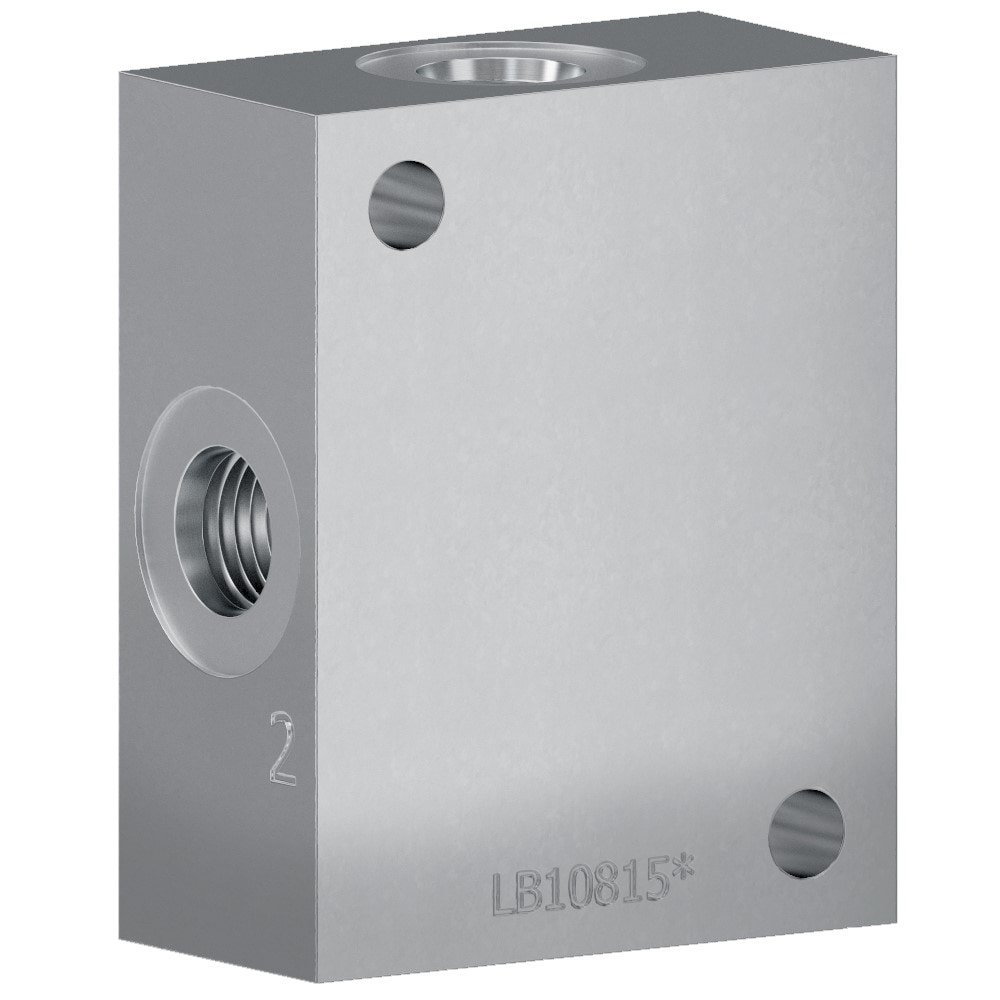

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.
The Valvair II Valve is a robust, versatile valve suited for harsh industrial applications such as concrete aggregate plants & steel mills. The valve is a single inline or plugin type valve which is field converted to external pilot operated service.
The DX ISOMAX series, size 01 and 02, is a 5/2 or 5/3 subbase valve. They are non-plugin only, have a ceramic seat for resistance to contamination, and can be mounted on a subbase or manifold. Each coil is wired with a 15 mm 3 pin DIN connector.
The DX ISOMAX series, size 1, 2, and 3, is a 5/2 or 5/3 subbase valve. They are non-plugin only, have a ceramic seat for resistance to contamination, and can be mounted on a subbase or manifold. Each coil is wired with a 30 mm 3 pin DIN connector.
The PVL series is an air piloted stacking valve. The PVL valves can be configured as plugin or non-plugin. Functions are 5/2, 5/3. and dual 3/2. Electrical connections are 15 mm 3 pin DIN connector, or 25 pin Dsub. The air pilot port is 5/32" tube.
The Sprint Valve is a robust, versatile valve for harsh industrial applications such as concrete aggregate and rubber plants. The valve is a single inline or plug in type valve, which is field converted to external pilot operated service.

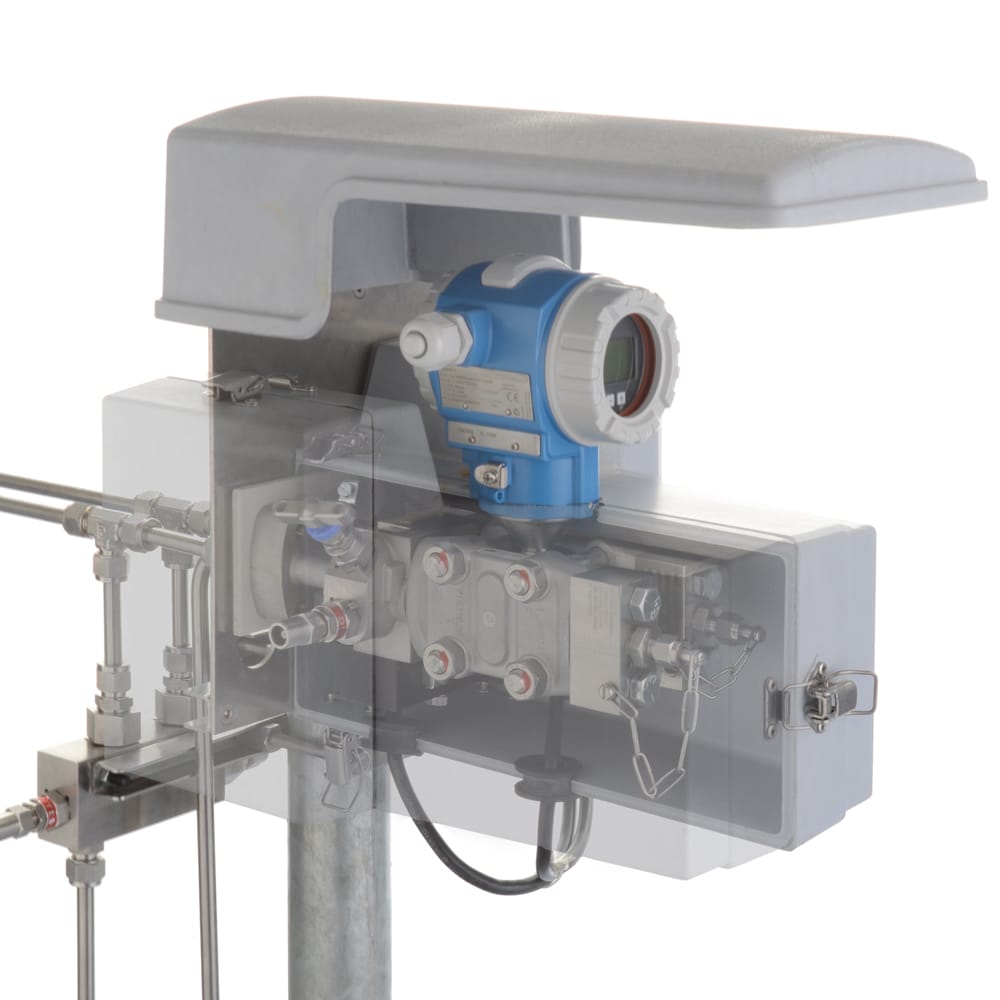

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.
This series of manifolds combines isolate in the form of a ball valve and bleed/vent in a choice of ball or needle into one block for interface with pressure measurement transmitters, gauges and switches for applications up to 10,000 psi (689 bar)

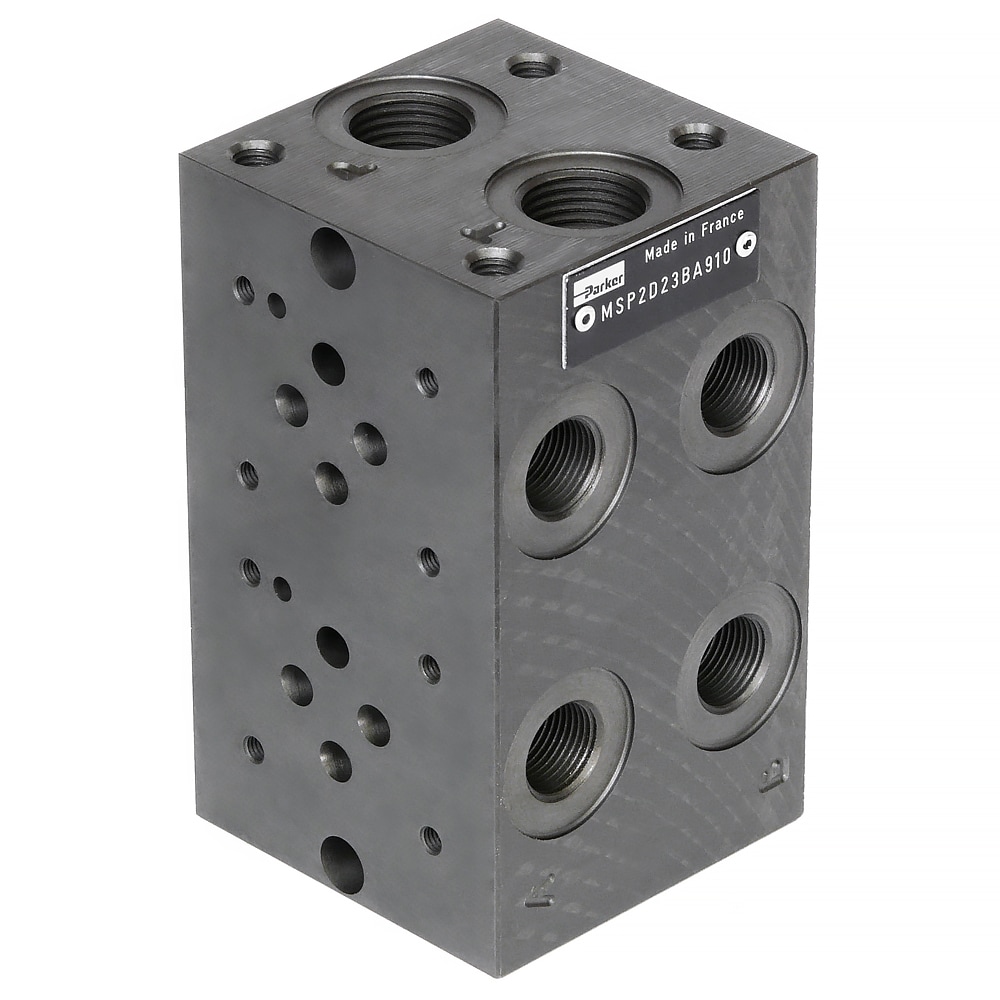

Multi-station manifolds series MSP are used to save space when connecting several directional control valves to a common pressure and return line.

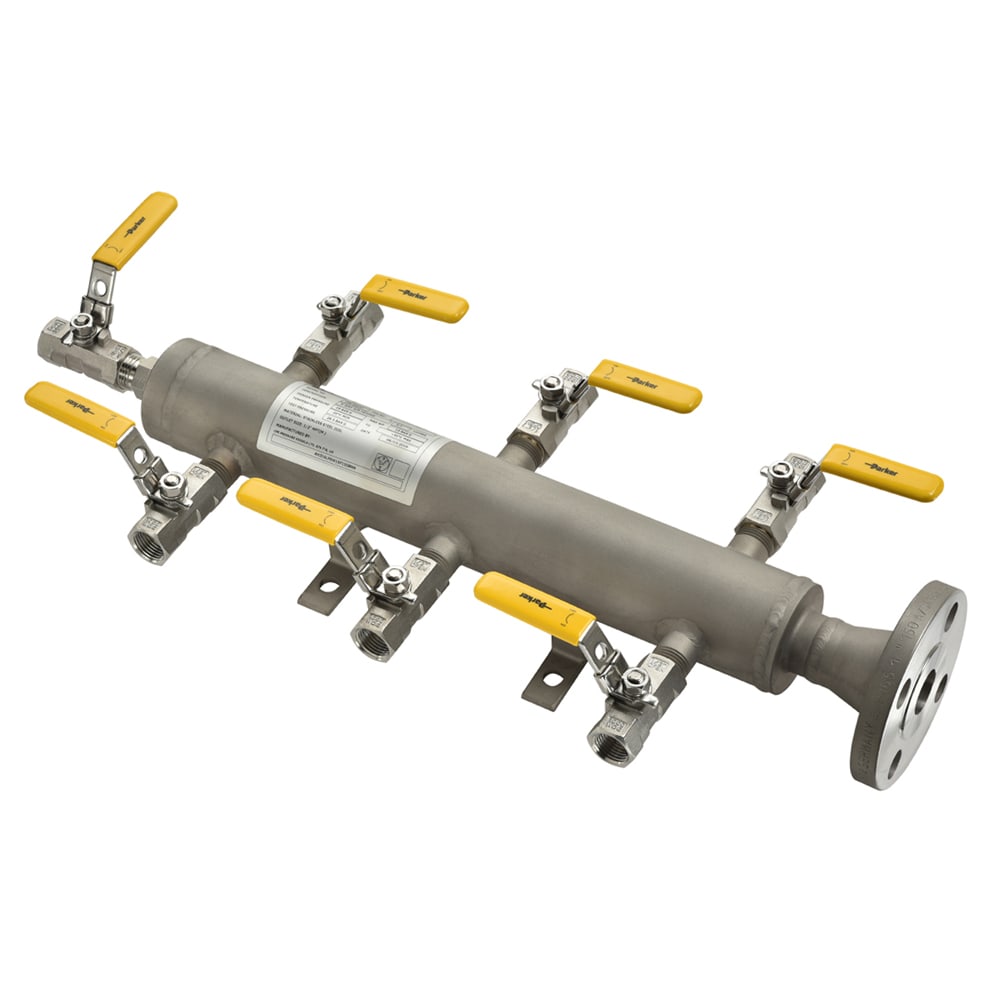

Parker’s air header distribution manifolds LPAHM Series are designed to distribute air from the compressor to the actuators on pneumatic instruments, such as steam flow meters, pressure controllers and valve positioners.
Parker’s Hi-Pro series air distribution manifolds are supplied as an interconnected assembly utilising Hi-Pro ball valves with two shut-off funcions in one body, mounted on a base plate.
Parker's air header manifold with up to 20 Parker Hi-Pro ball valve outlets, assembled to the body using welded nipple to taper threaded valve connection.

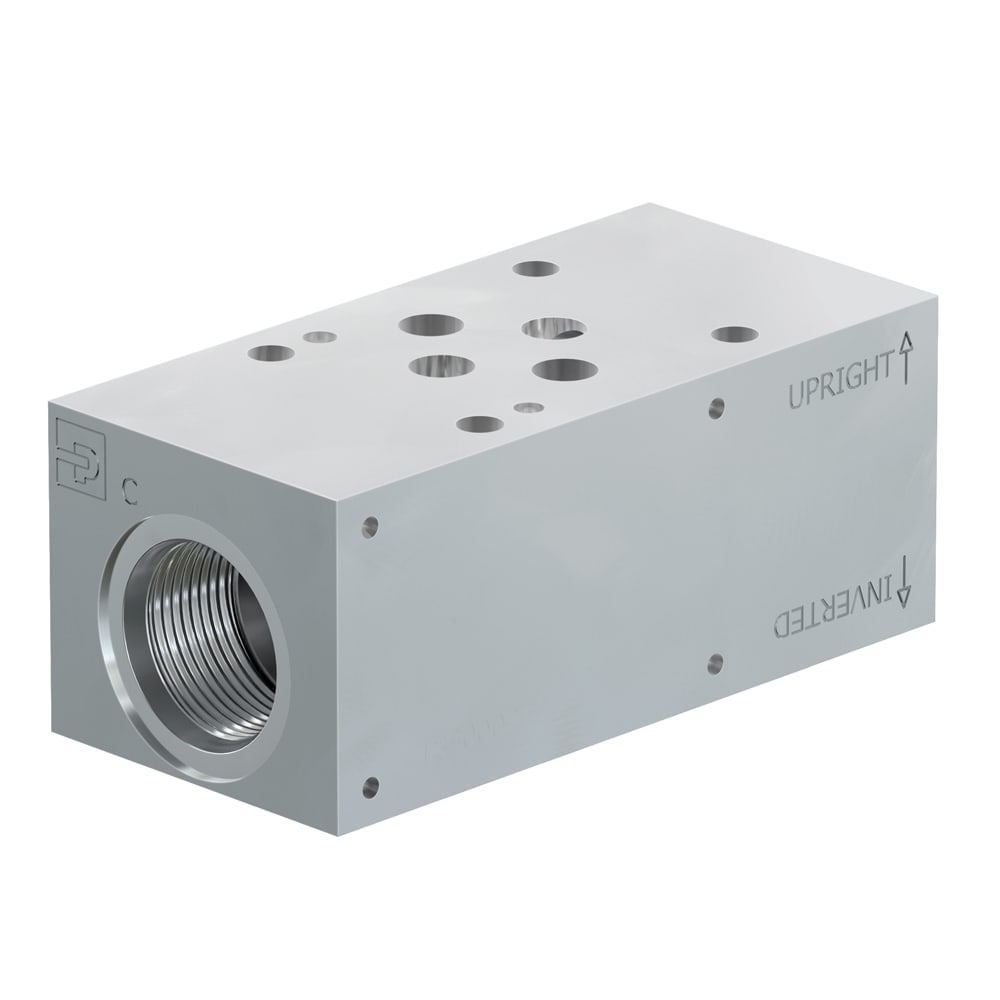

Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.
Parker’s offering of special bodies and cavities for legacy valves to fit a variety of port options and applications.

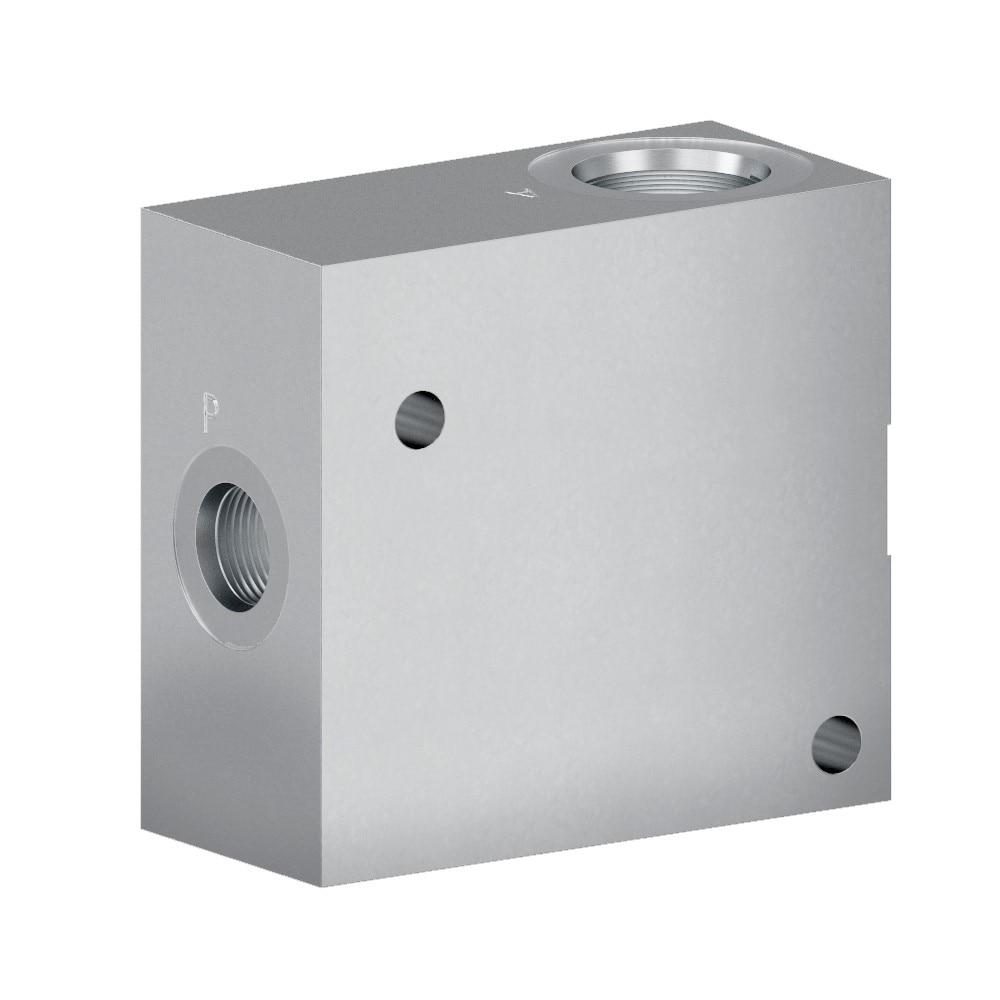

Parker’s custom bodies to be used specifically with Parker’s MHC-010 and MHC-022 counterbalance cartridge valves.
Parker PGI offers an extensive variety of connection with their close coupling manifold systems. Direct-Mount Systems can minimize or eliminate Gauge Line Error (GLE), resulting in more accurate measurement.
Parker PGI offers an extensive variety of 2, 3 and 5-Valve Manifolds to be used in all types of Instrumentation or Power applications and service conditions up to 10,000 PSI @ 200°F in Carbon Steel and 316 Stainless Steel.
Parker's close coupled valve supports the direct or close coupled connection of one of the most common types of process instruments – differential pressure (DP) transmitters to process pipework
Parker PGI's Purge Adapters are used in flow, level and pressure applications where the sensing lines need a constant purge to prevent plugging, and where the process needs to be isolated from manifolds, measuring instruments and connecting tubing.
Parker PGI’s Rod-Out Device is a cutter and rod made of 17-4PH-H900 Stainless Steel. This simple tool maintains clean process signal ports with a customized user-friendly tool that cleans out bores of large manifolds in a safe and easy manner.
Parker cartridge manifold blocks series CB are bodies for 2/2-way slip-in cartridge valves. They are used in systems with only one cartridge valve without the need to design a specific manifold block.

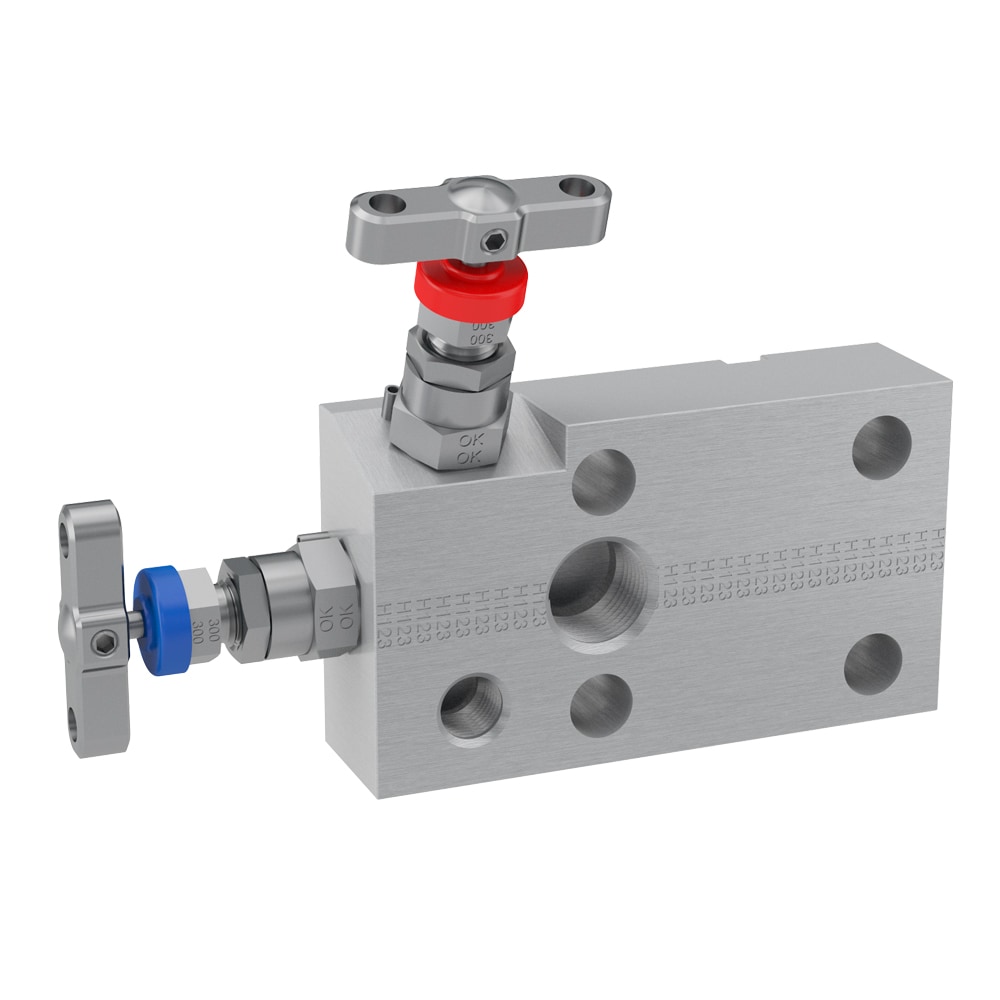

Compact and lightweight multiple block instrument manifold valves for direct mounting to Rosemount 2051/3051 Coplanar™ pressure and flow measurement devices. Available in pressure ratings up to 6000 psi (414 bar).
Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)
Compact and lightweight multiple block instrument manifold valves for direct installation to pressure or differential pressure (flow) measurement devices. DIN/IEC 61518 compliant. Pressure ratings up to 6,000 psi (414 bar).
Multiple block instrument manifold valves of extended dimensions for installation within instrument protection enclosures. Available in pressure ratings up to 6,000 psi (414 bar) and in a wide range of materials for most service applications.
