Servo Valves

Parker’s range of industrial hydraulic servo valves include directional and flow control valves in manifold-mounted and slip-in cartridge design. Offering a wide choice of functionality, our classic servo valves and DFplus® valves with Voice Coil Drive (VCD®) meet the highest industry demands when it comes to performance and precision. They are suitable for a wide selection of applications. Our valves have the capability of handling high and low pressure and temperature, making them suitable for applications that work under extreme conditions.

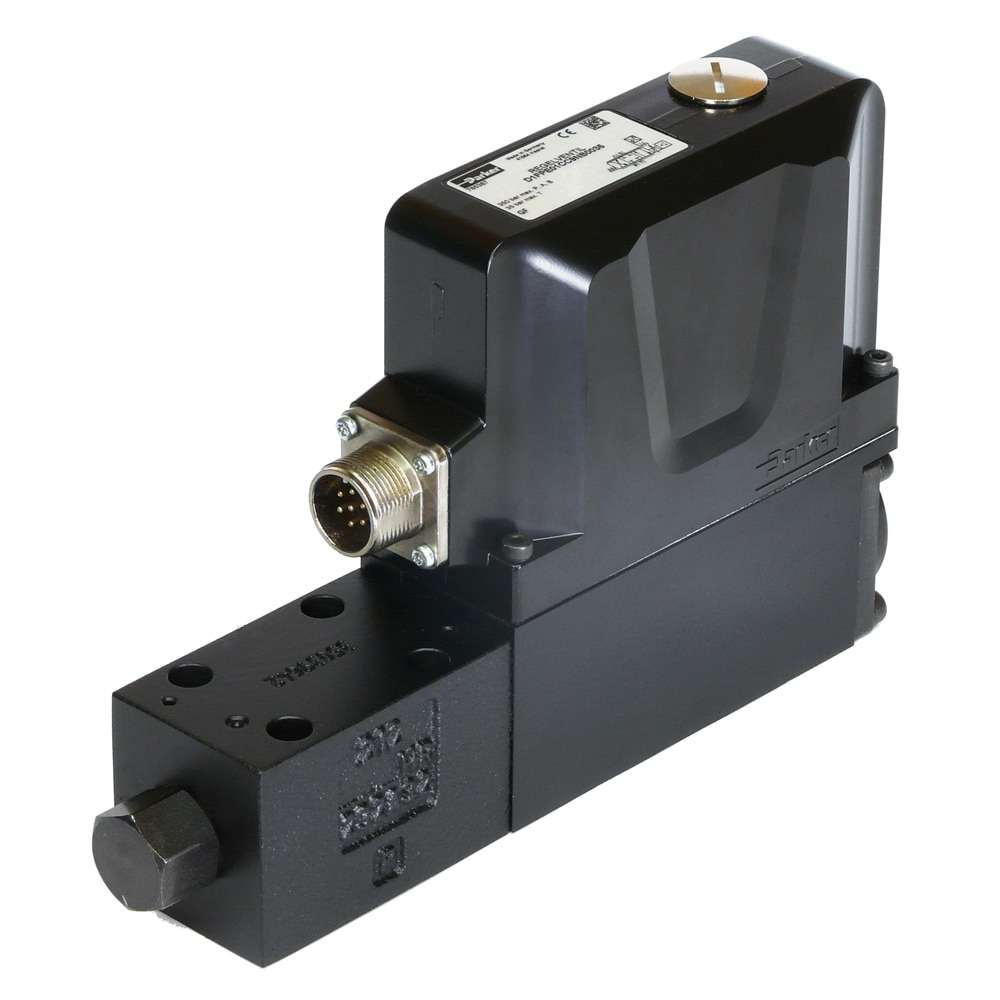

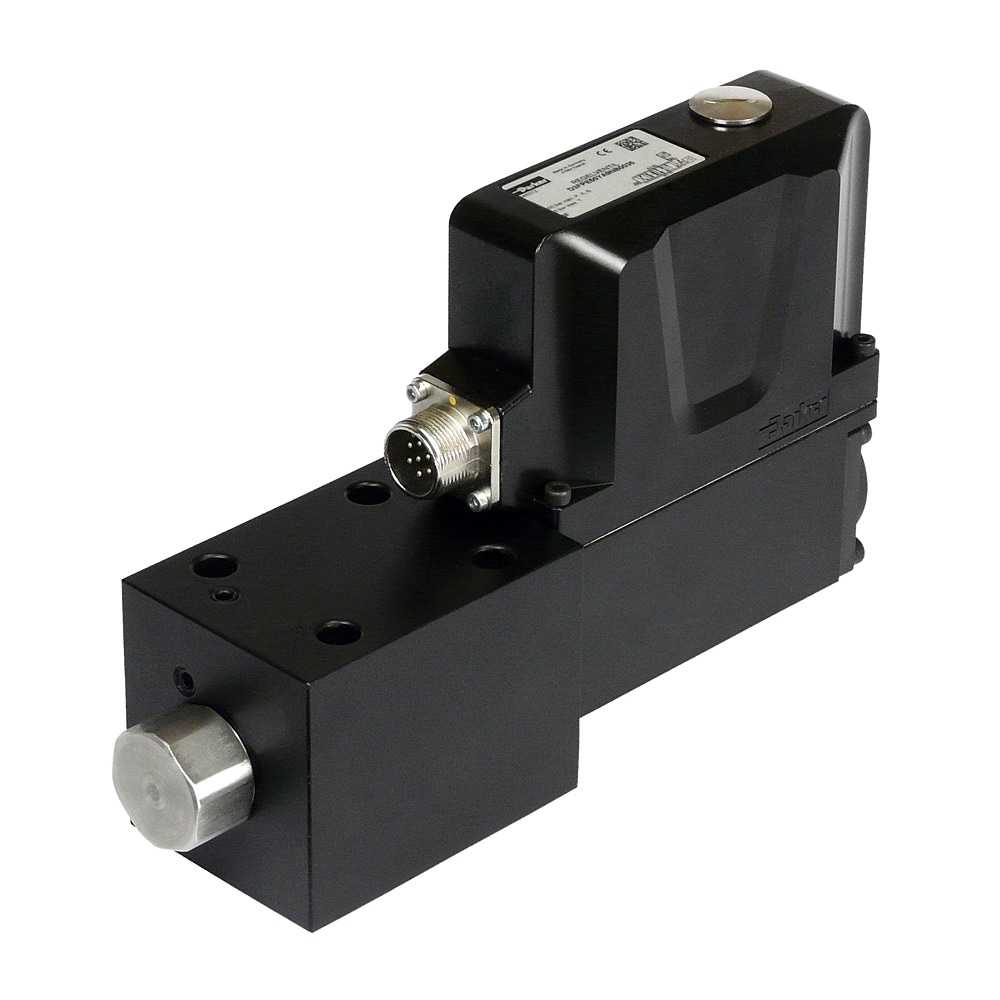

Direct Operated Proportional Directional Control Valve - Series D1FP / D3FP

Direct operated DFplus control valves D1FP in NG06 (CETOP 03) and D3FP in NG10 (CETOP 05) meet highest requirements in terms of dynamics combined with high flow, optionally with EtherCAT interface. The preferred choice for demanding hydraulic controls!

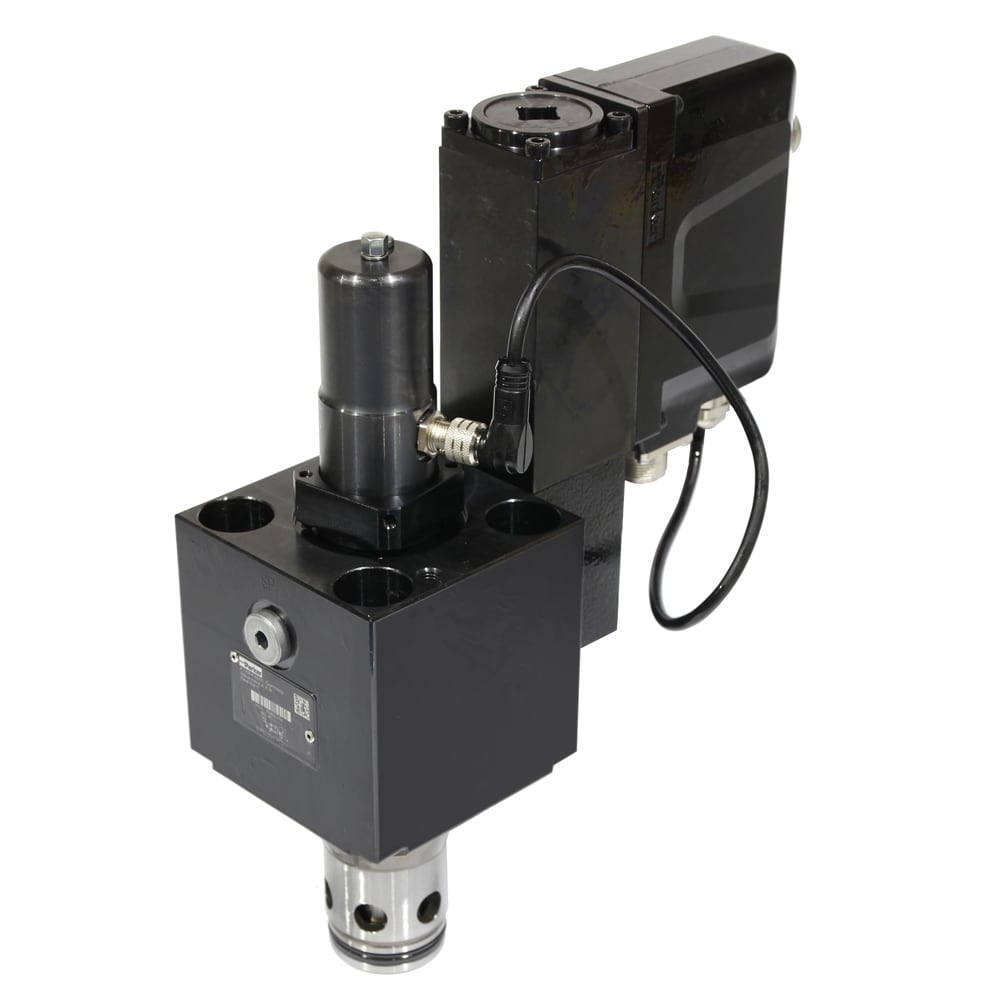

2-Way High-Response Valve - Series TDP

The pilot operated 2-way high response valves series TDP provide a precise control of high flows at maximum dynamics. Typical applications for these slip-in cartridge proportional throttle valves are die cast, injection molding and hydraulic presses.

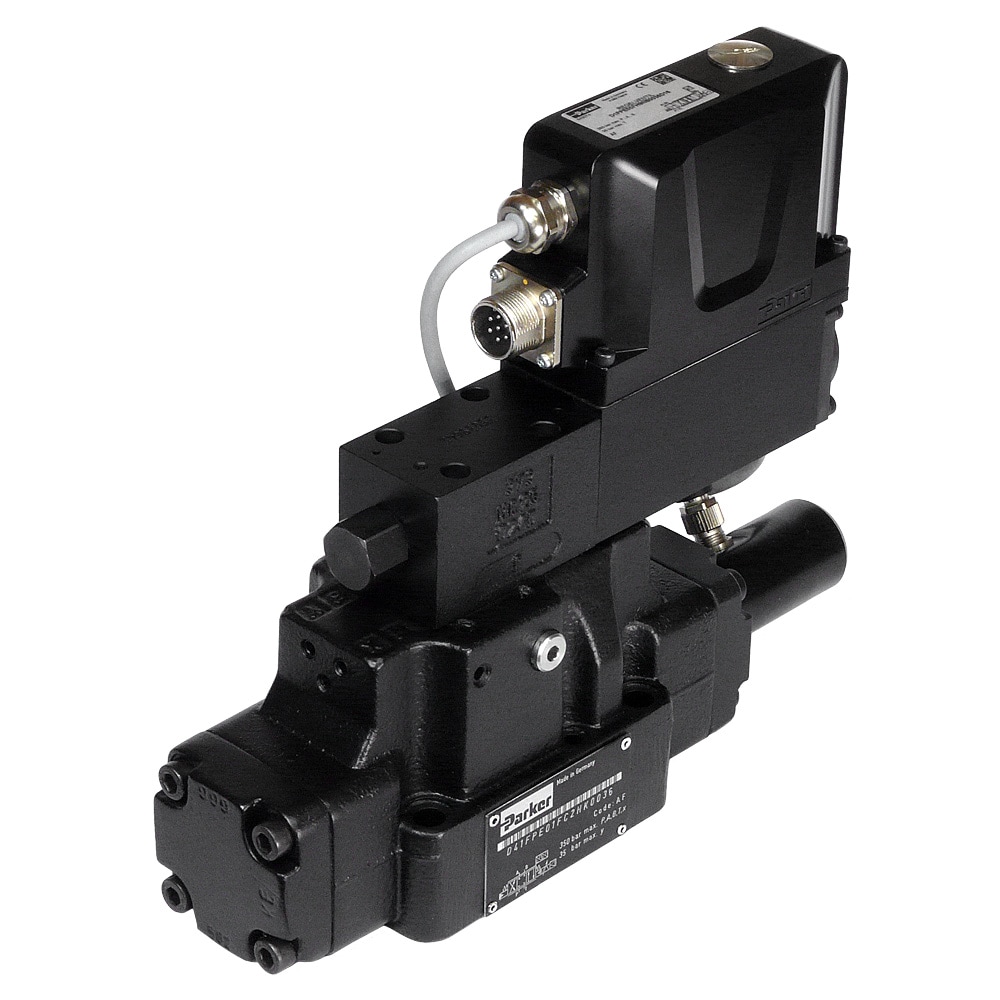

Pilot Operated Servo Proportional Directional Control Valve - Series D31FP / D41FP / D81FP / D91FP / D111FP

Parker's pilot operated servo proportional directional control valve series D*1FP is the ultimate choice for demanding hydraulic applications. The valves are optionally available with energy-saving regenerative/hybrid function and EtherCAT® interface.

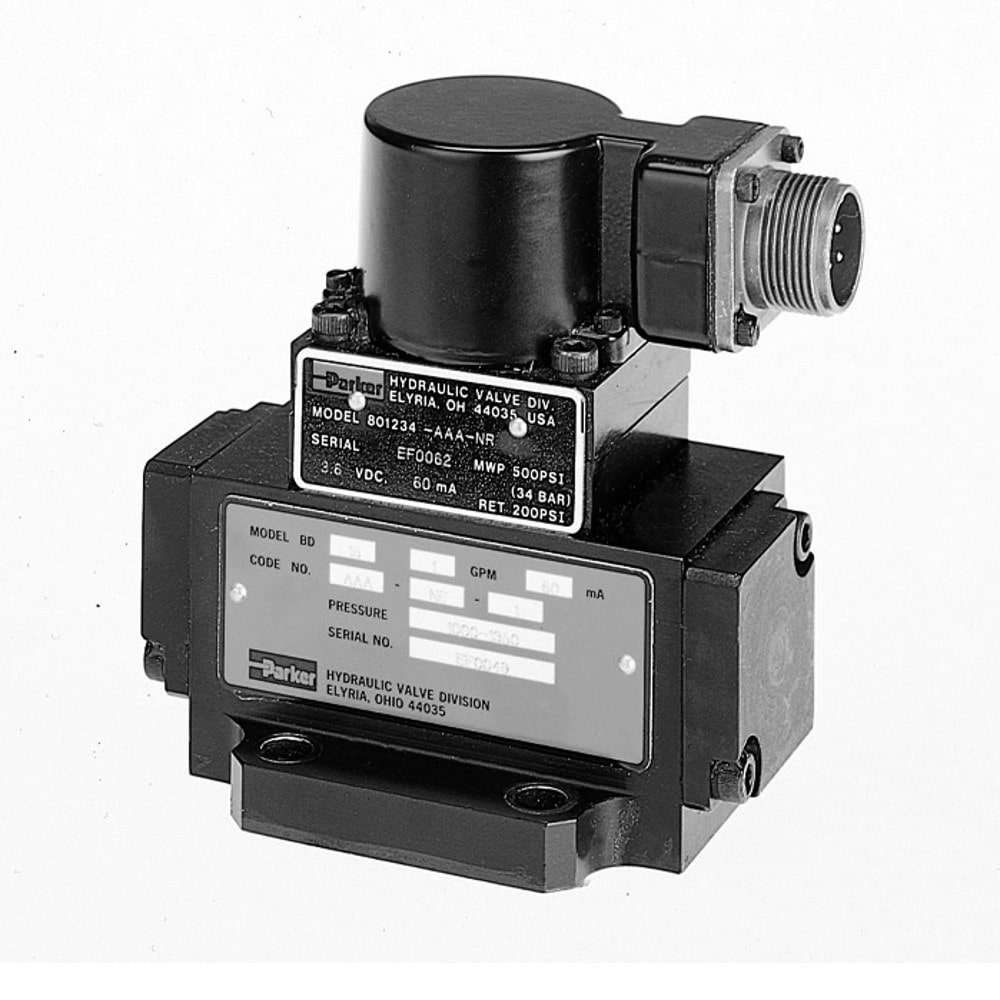

Two-Stage Torque Motor Servovalve – BD Series

Parker’s BD series servovalves provide high resolution in the control of position, velocity and force in motion control applications.

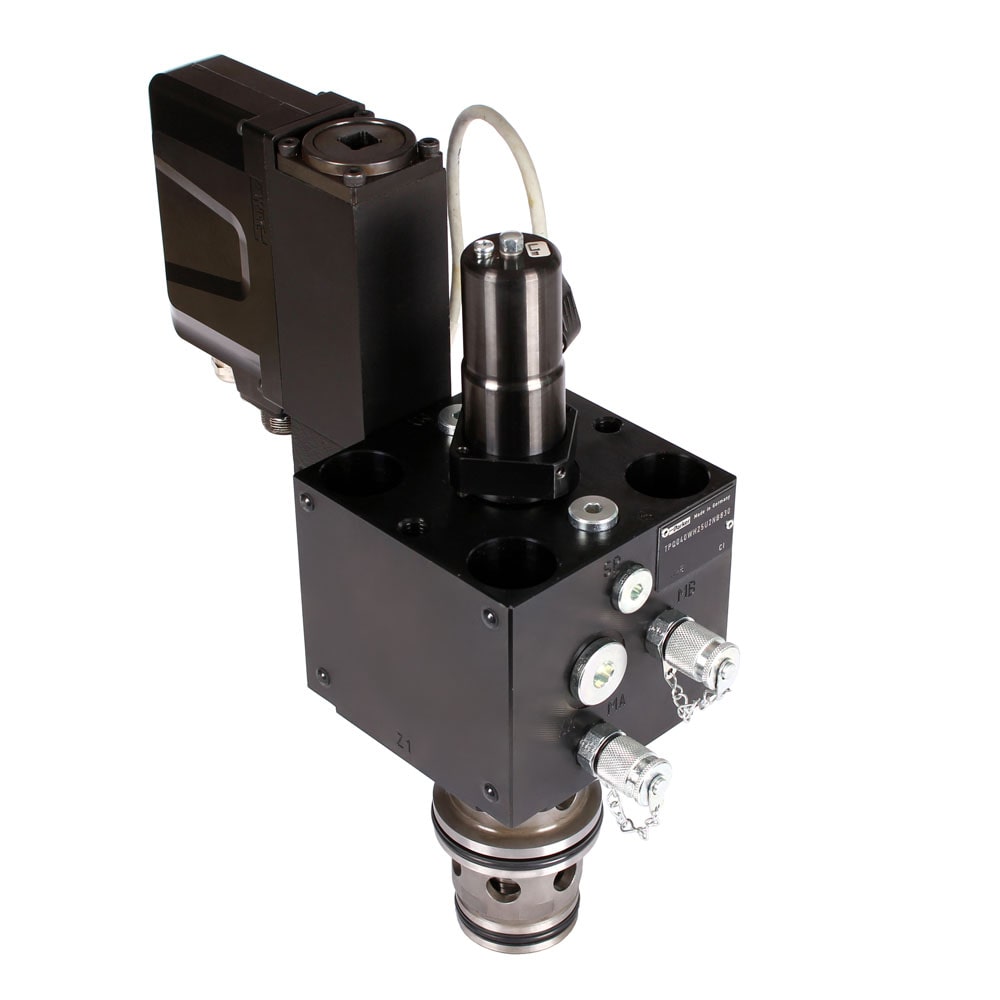

3-Way High-Response Valve - Series TPQ

Parker's 3-way high-response cartridge valves series TPQ provide high flow control at maximum dynamics. They are predestined for demanding applications like injection molding and die cast.

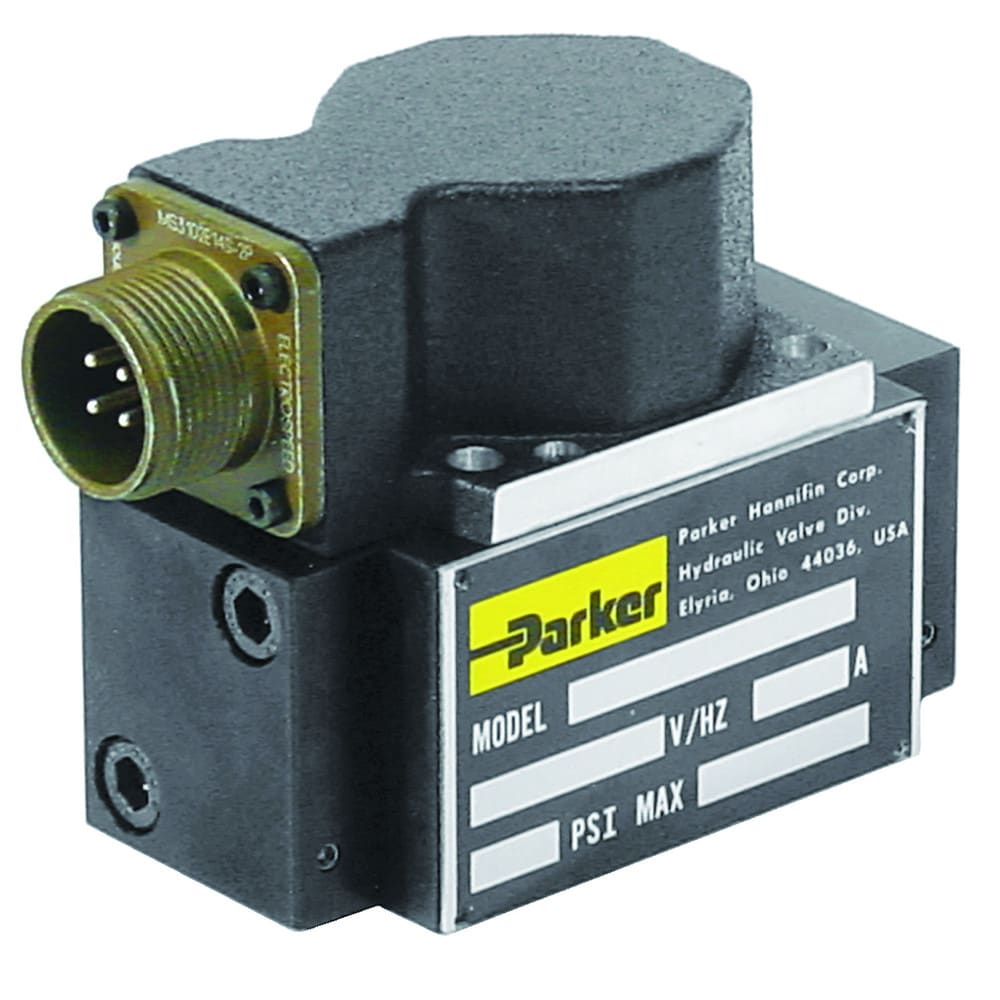

Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.

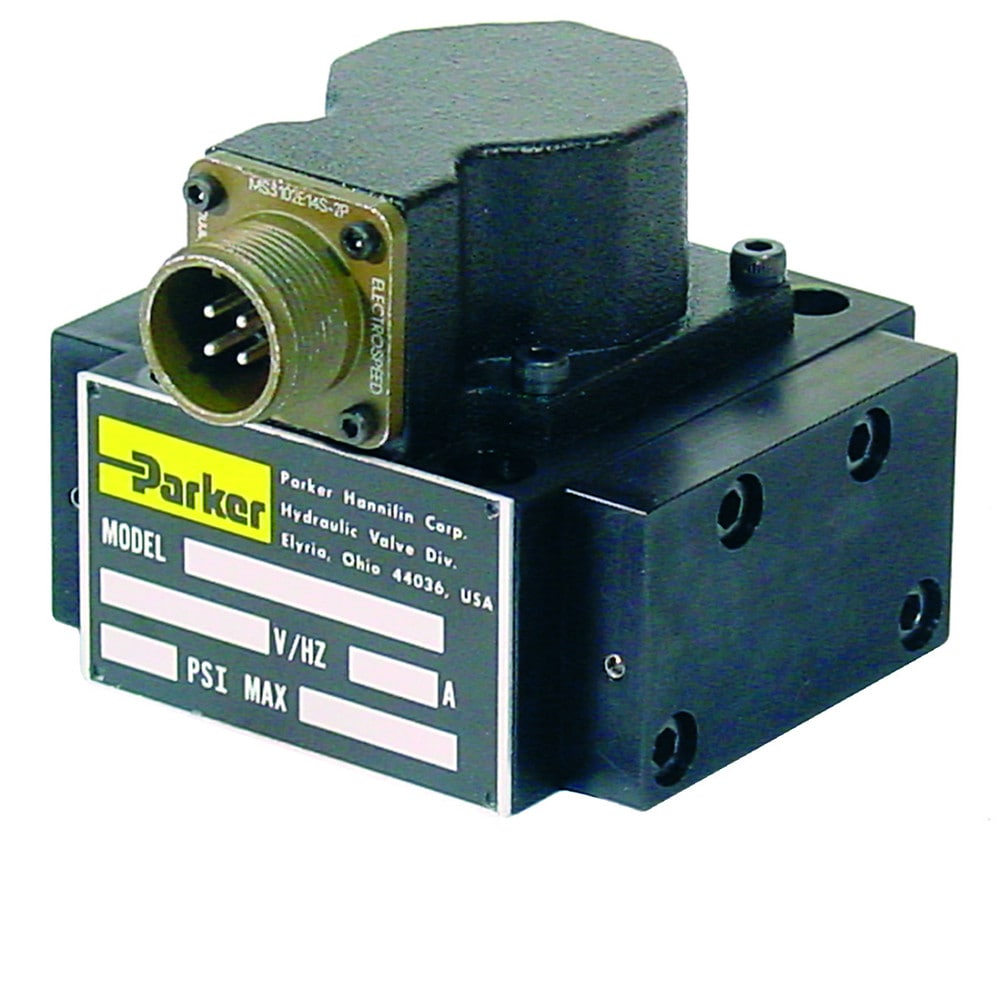

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

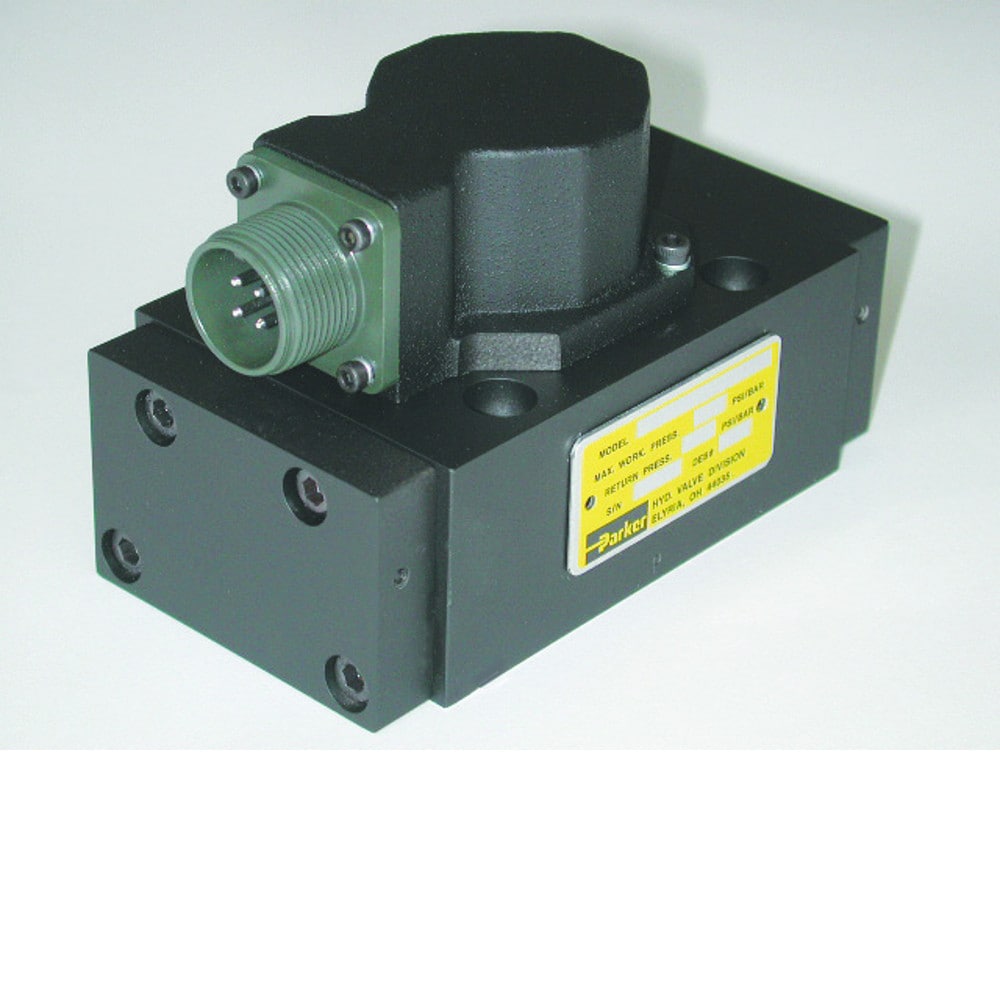

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series

Parker’s SE31 series valve is a two stage, 4-way, flapper and nozzle style servovalve and is designed to fit onto DIN NG10 or NFPA D05 port patterns.

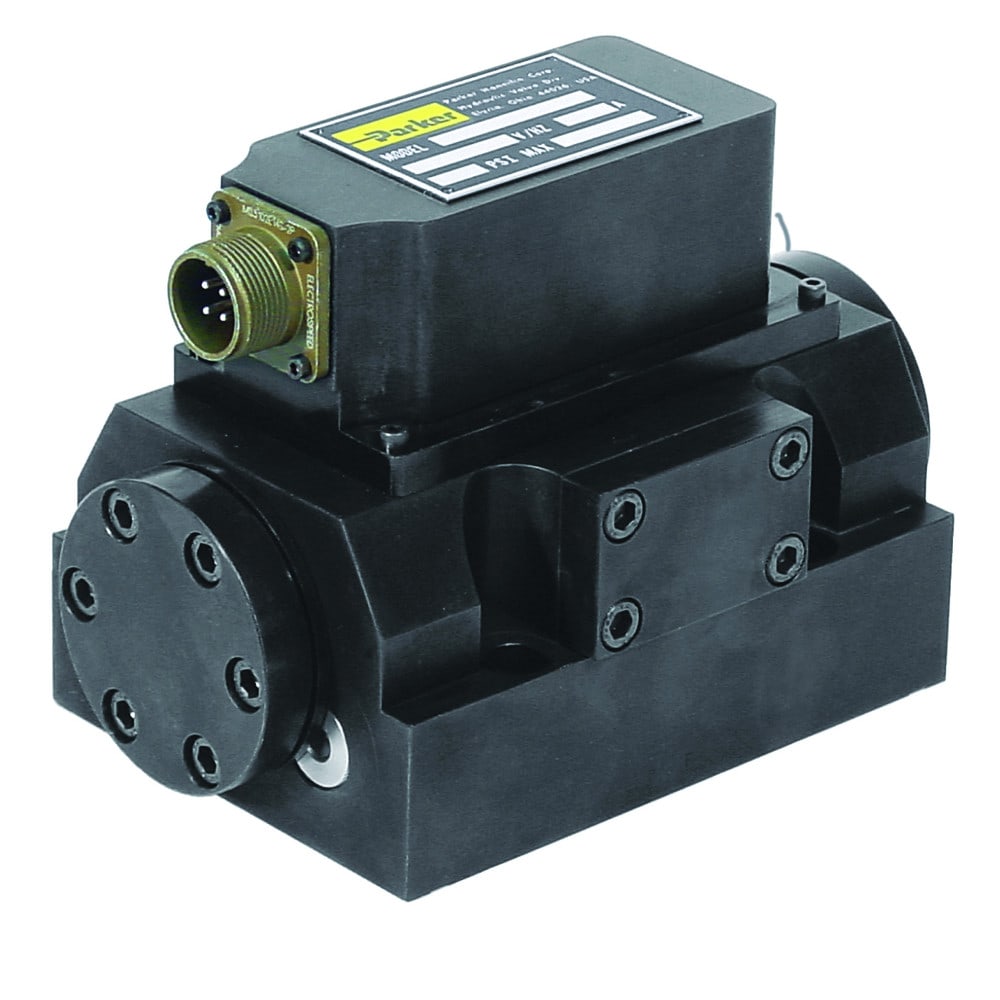

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series

Parker’s SE60 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Pilot Operated Proportional Directional Control Valve - Series D30FP

With high flow capacity and practically no flow limits, Parker's pilot operated proportional DC valve series D30FP in size NG10 (CETOP 05) delivers optimized cycle times and exceptional dynamic performance in a small footprint.

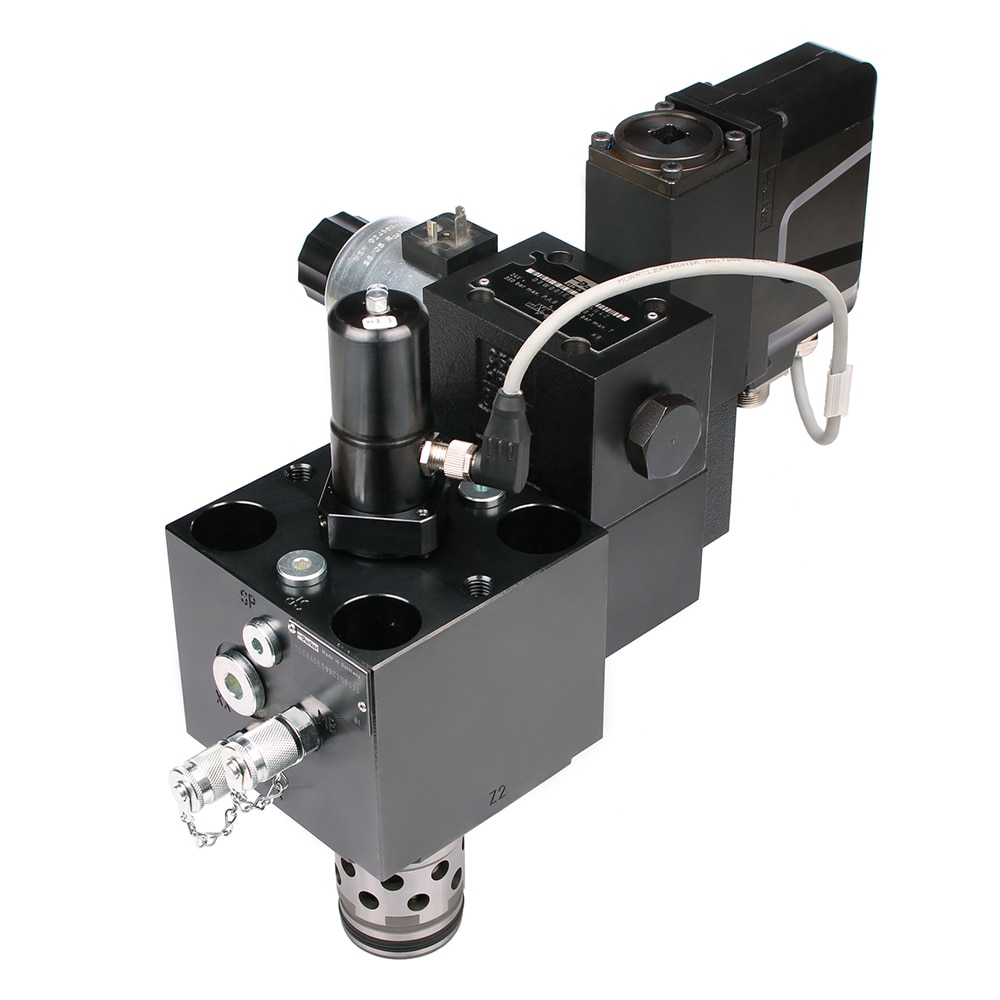

2-Way High-Response Valve with Shut-Off Valve - Series TEP

2-way high-response valves series TEP in cartridge design base on the TDP range and provide a precise control of high flows at maximum dynamics. Additionally, TEP valves are equipped with a direction control valve for shutting off the pilot system.

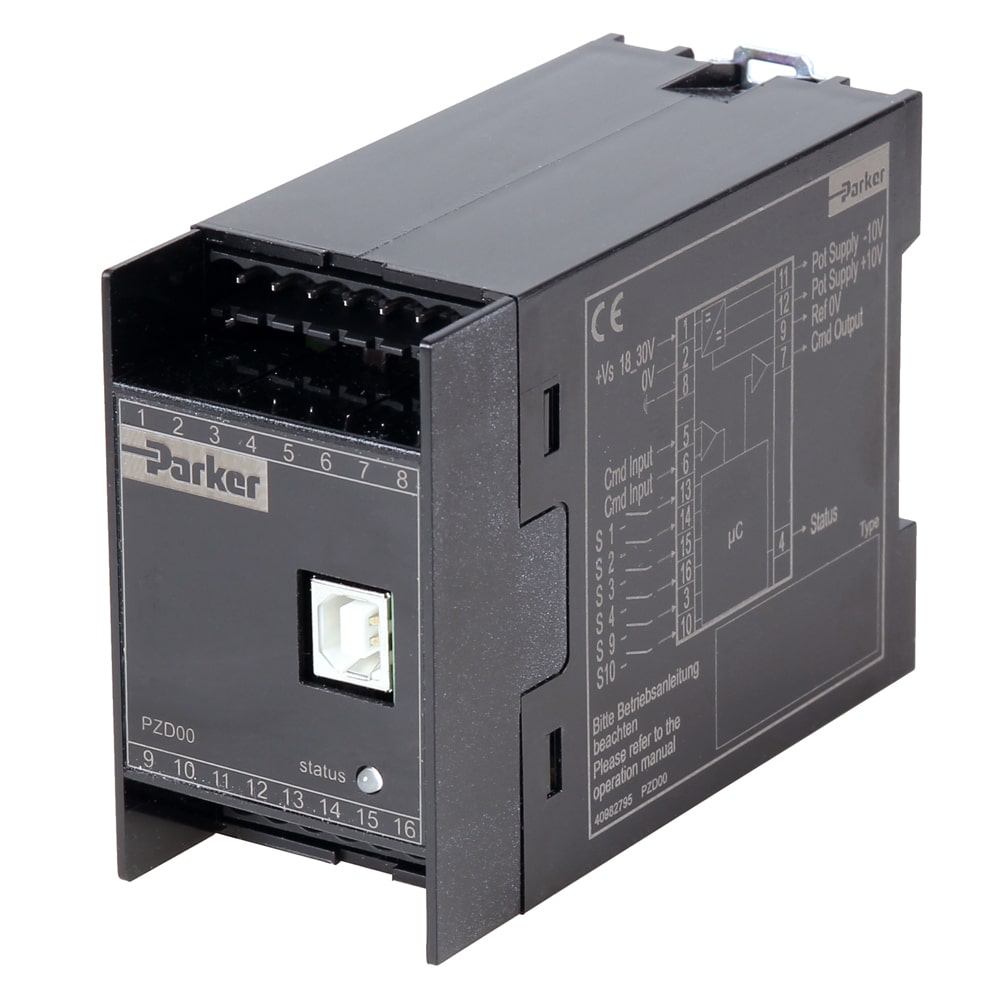

E-Module for Command Signal Processing - Series PZD00A-40*

Parker electronic modules PZD00A-40* for command signal processing may be connected in series to proportional valves with onboard electronics as well as to Parker amplifier modules.

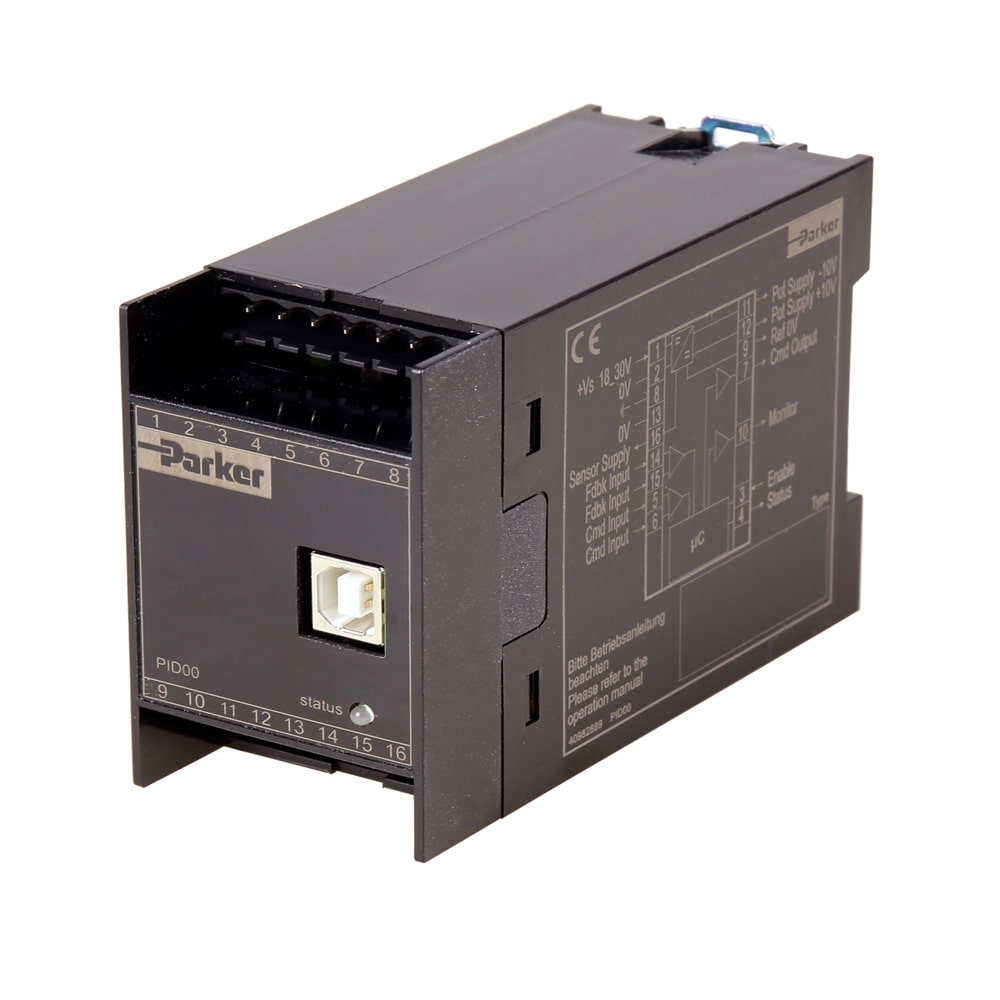

E-Module for Closed Loop Control - Series PID00A-40*

Parker electronic modules series PID00A-40* for closed loop control meet the demands of position, pressure and velocity control applications for valves with integrated electronics and spool position feedback capability.

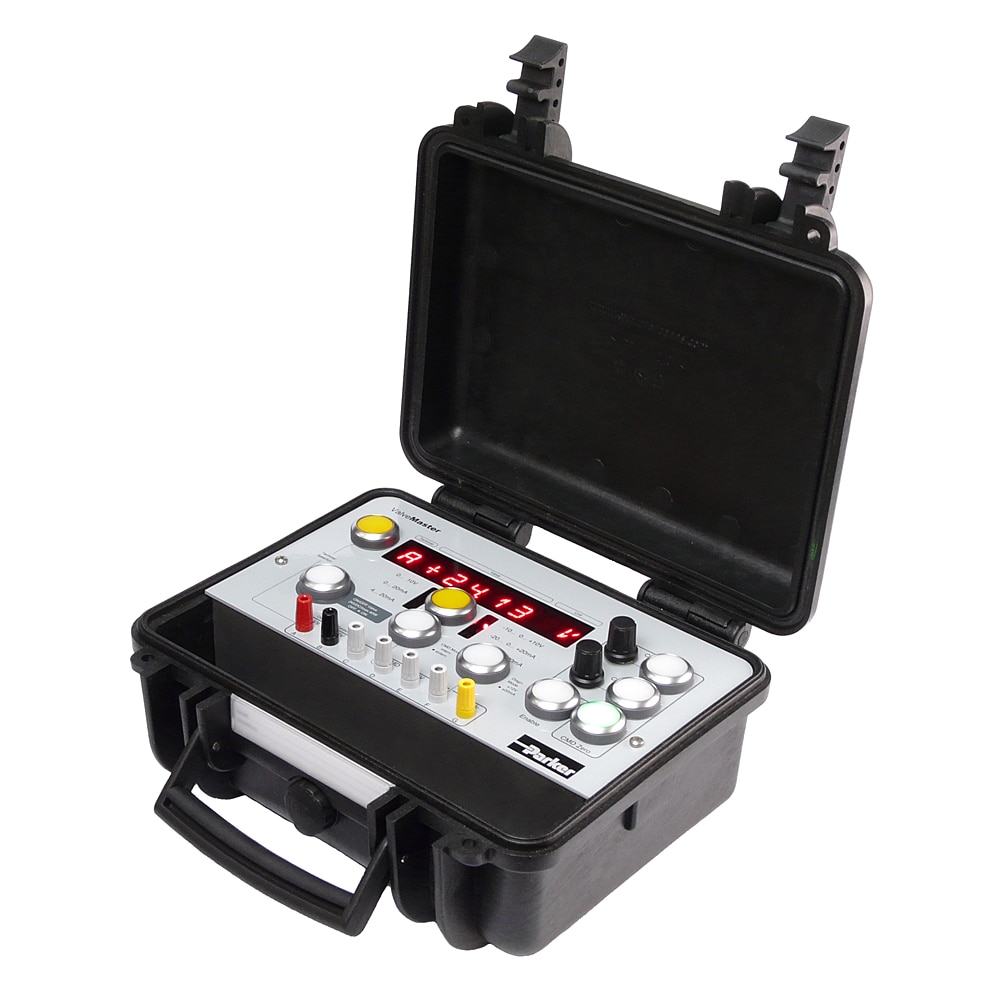

ValveMaster® Test Unit - Series EX-M05

The test unit EX-M05 ValveMaster® is particularly suitable for testing and commissioning of Parker proportional and servo proportional valves with onboard electronics.

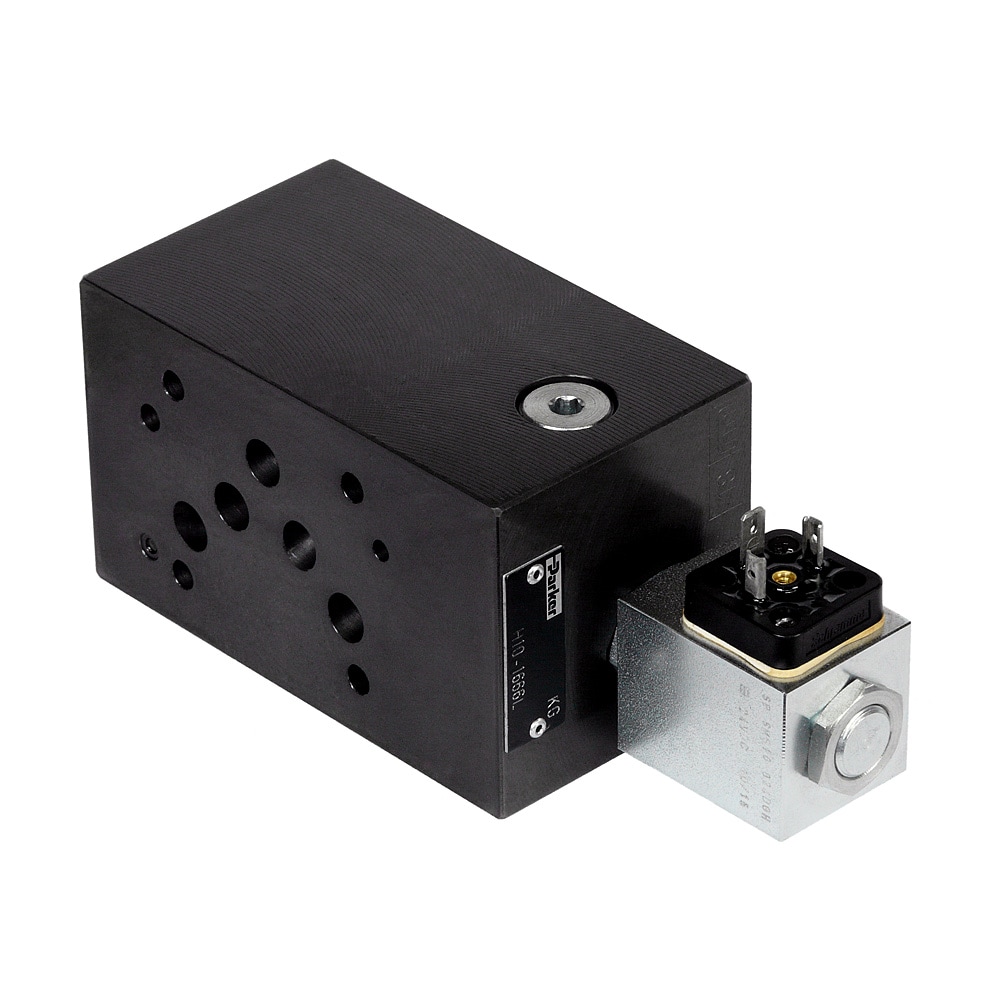

Sandwich Plates for Regenerative and Hybrid Circuits - Series H10

Parker sandwich plates series H10 allow energy saving circuits for differential cylinders in combination with various directional control and proportional DC valves in size NG10 / CETOP 05.

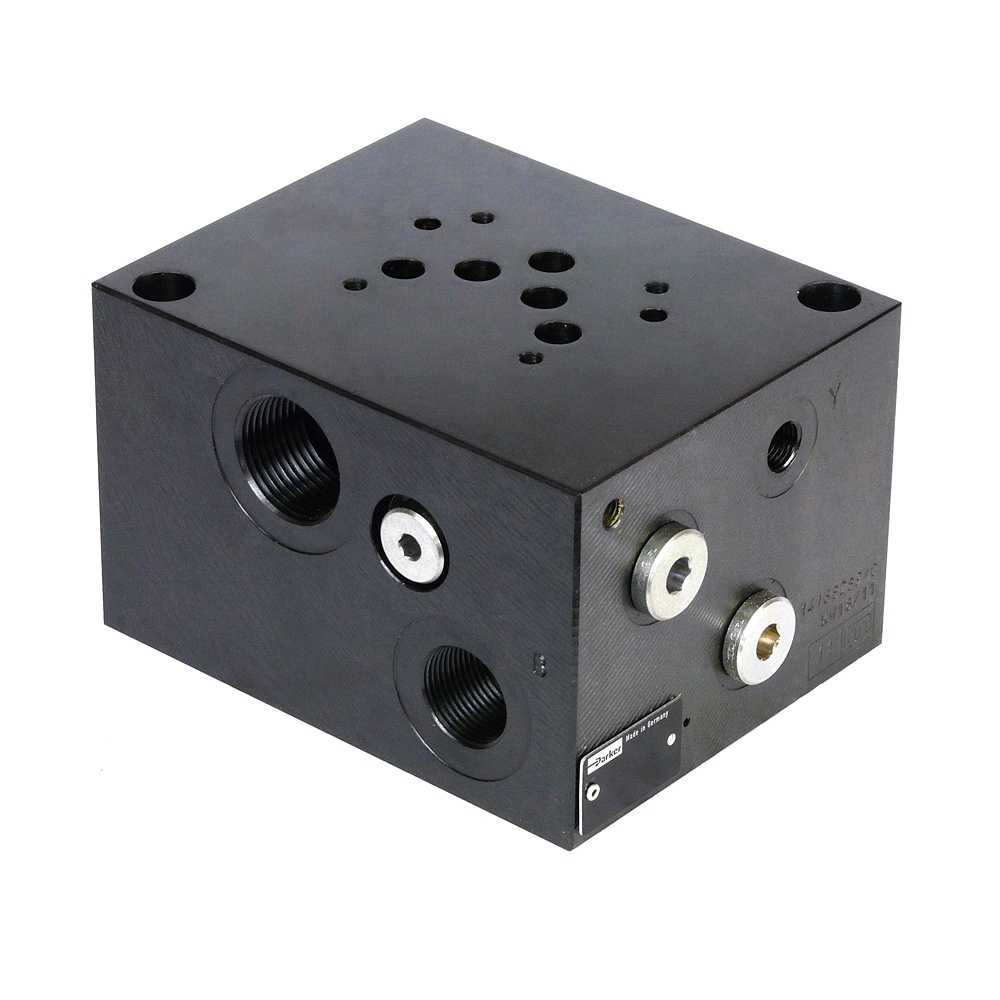

Adaptor Plates for Regenerative and Hybrid Circuits - Series A10

Parker adaptor plates series A10 allow energy saving circuits for differential cylinders in combination with various directional control and proportional DC valves in size NG10 / CETOP 05.

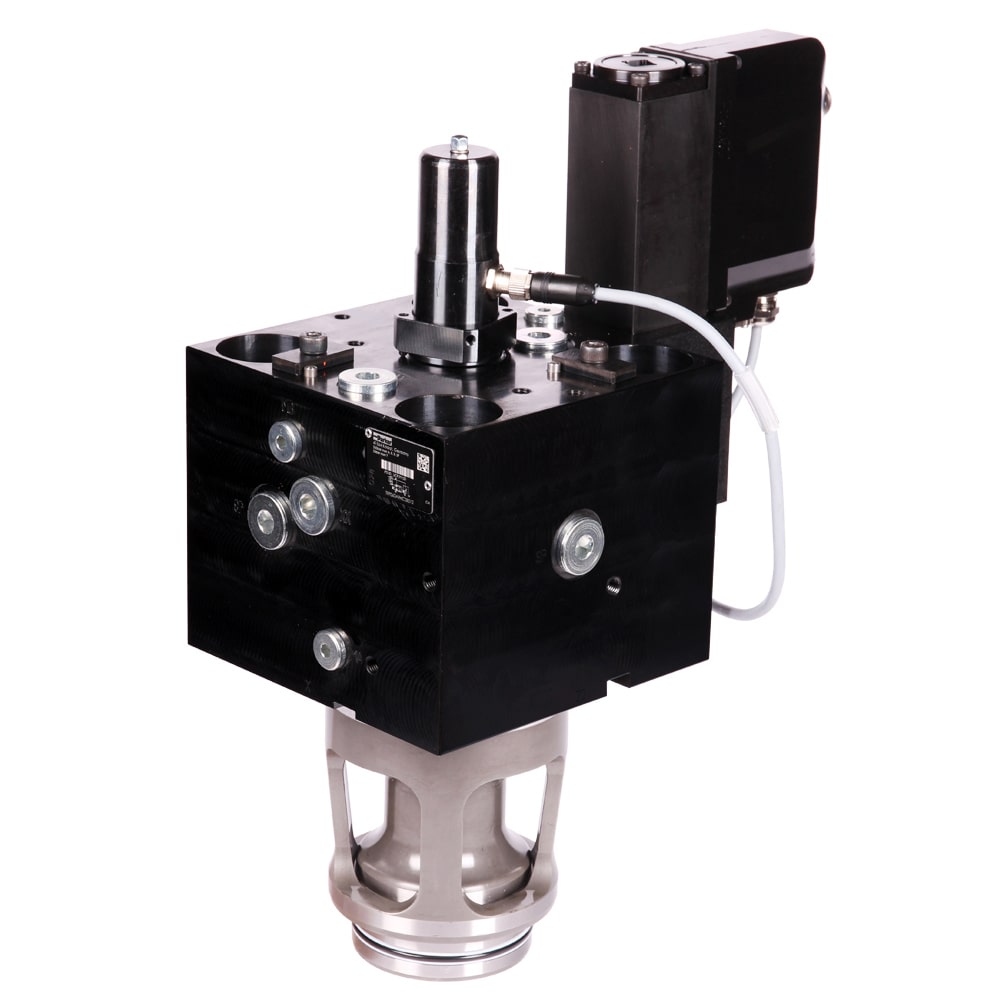

2-Way Servo Proportional Valve with VCD® Technology – Series TFP

The new proportional cartridge throttle valves series TFP provide outstanding flow rates and minimized pressure losses. They control highest flows precise and with maximum dynamics in applications like die cast, hydraulic presses and injection molding.
