Parker shuttle valves are screw-in type cartridge valves used in hydraulic systems as a pressure resolver. Uses include load sense type circuits or hot oil shuttle applications.

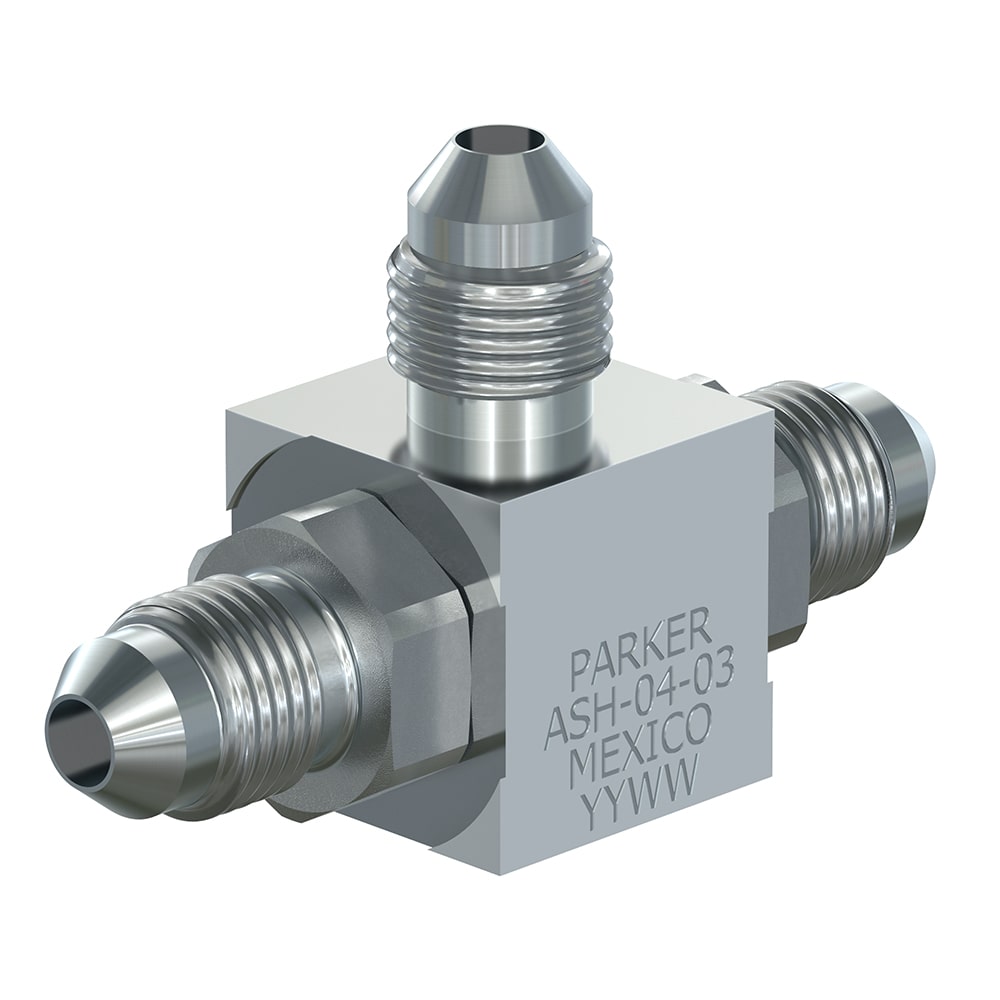

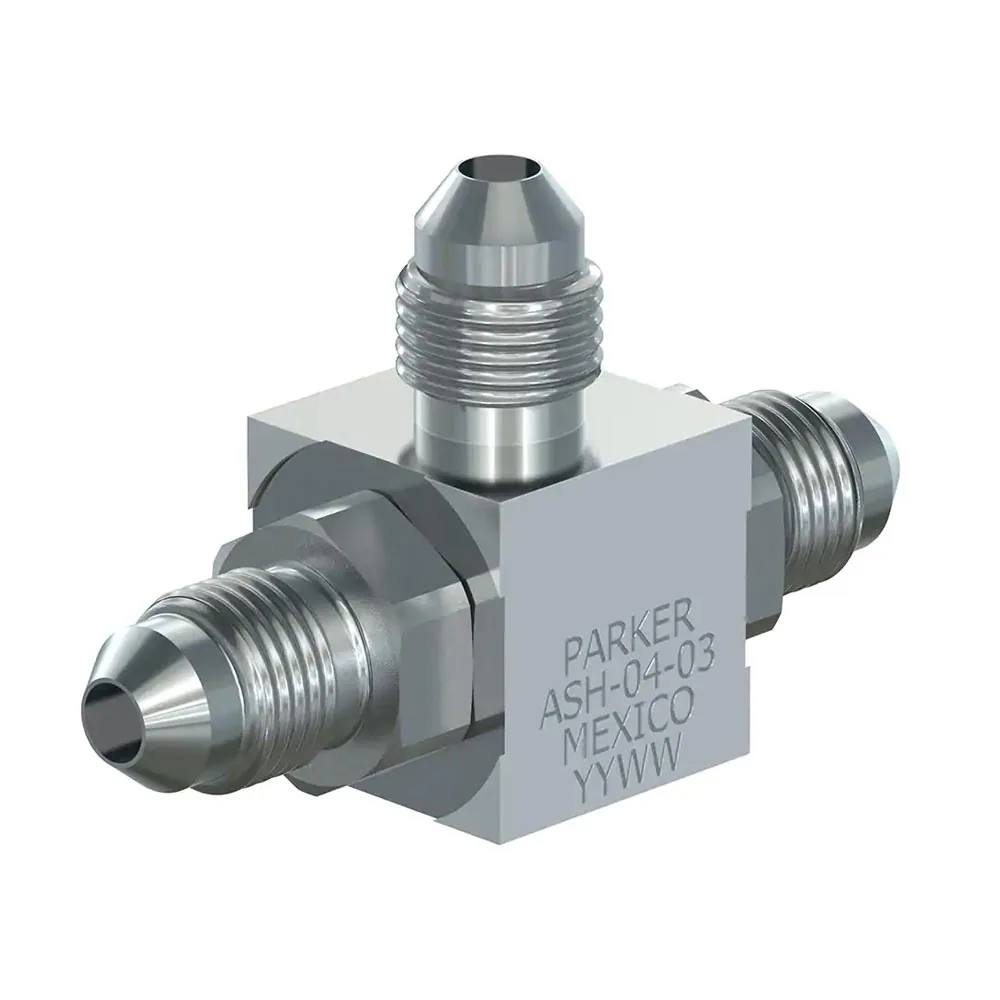

Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).

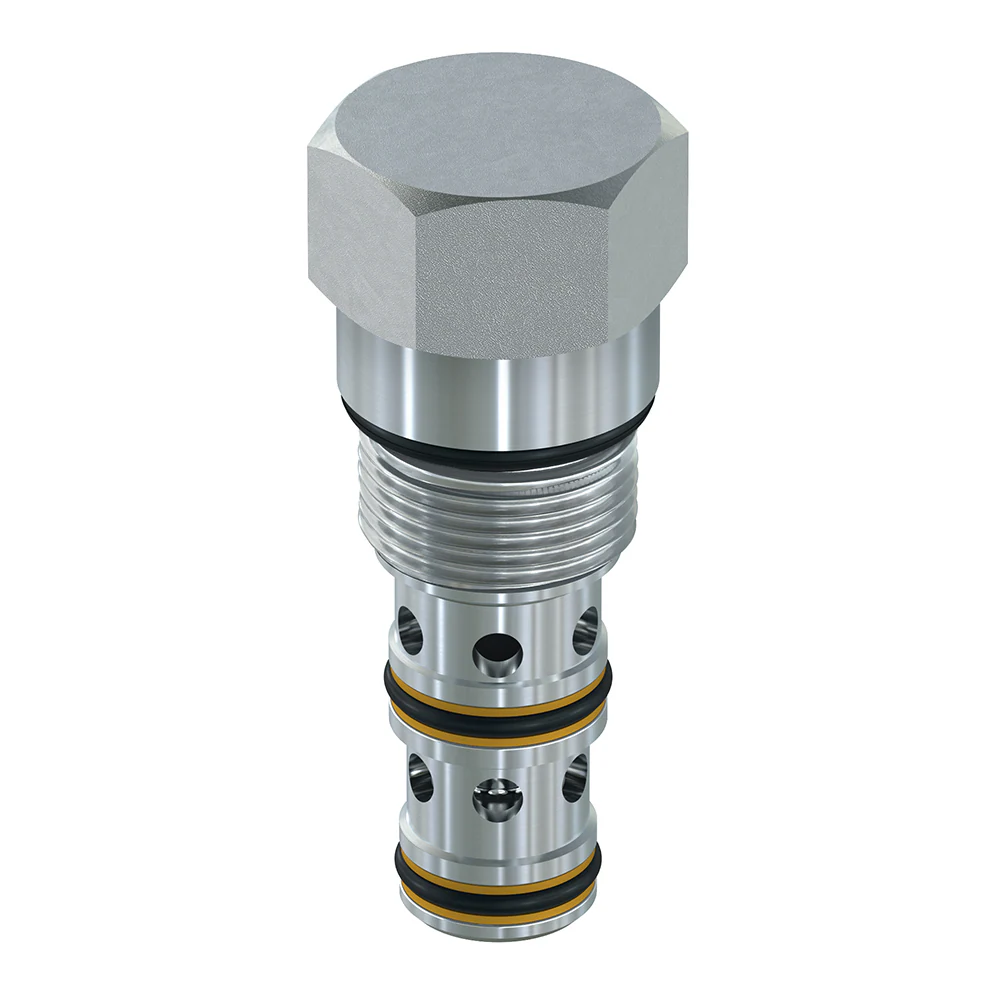

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

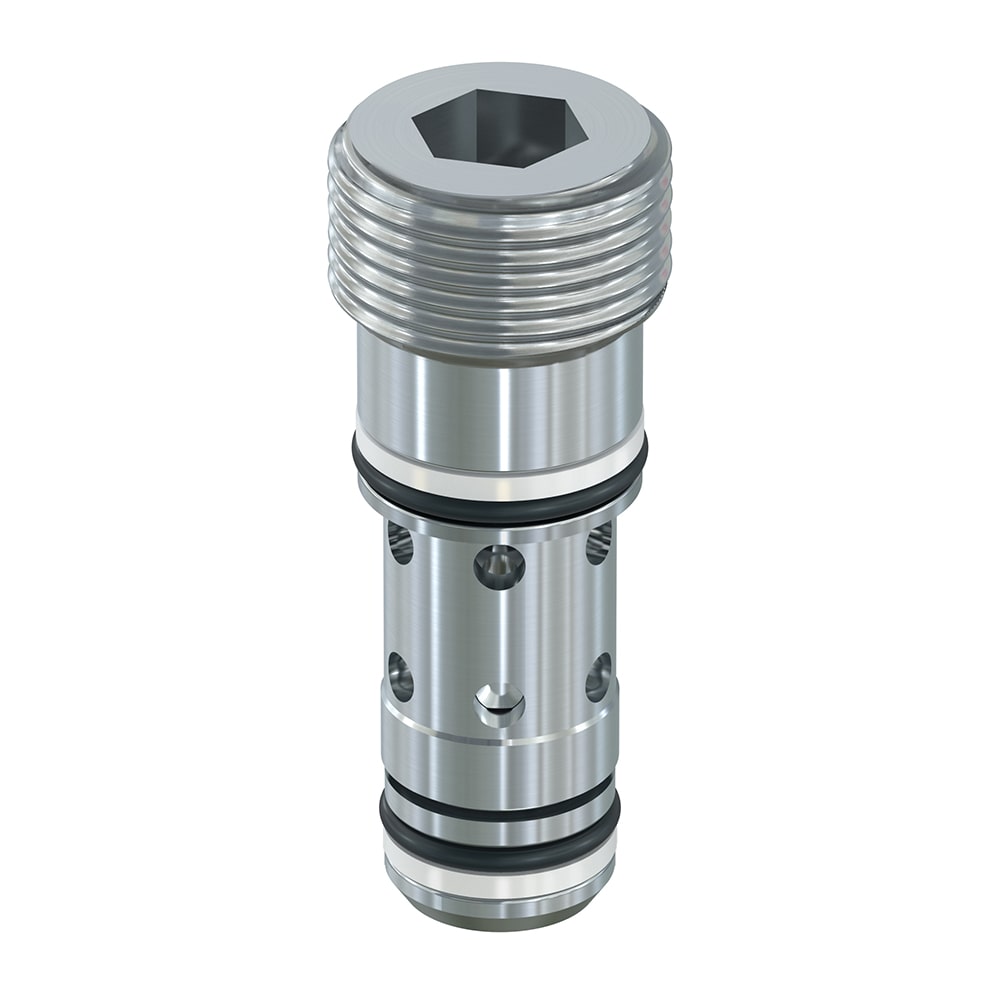

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).

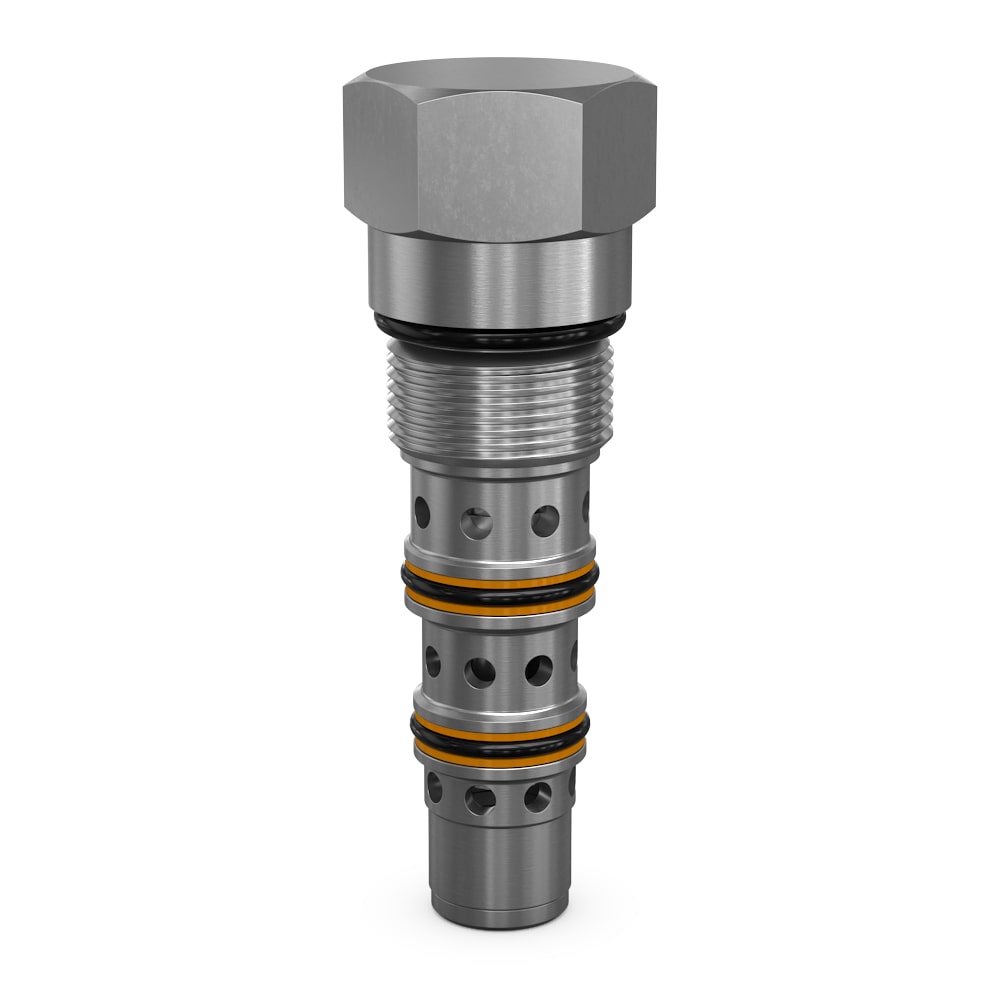

Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

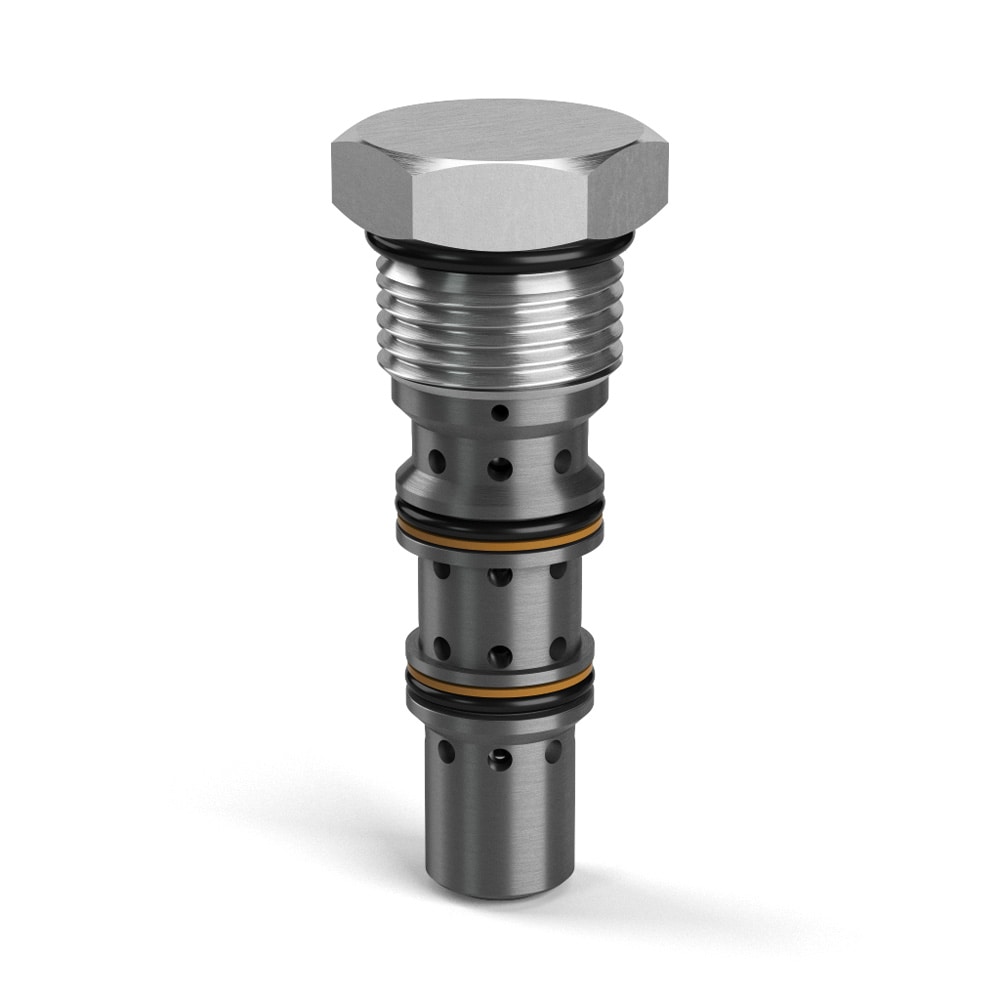

Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).
Parker's 3-position, 3-way open center spool type inverse shuttle valves are available in two cavity sizes and are pilot controlled with integrated reverse checks. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

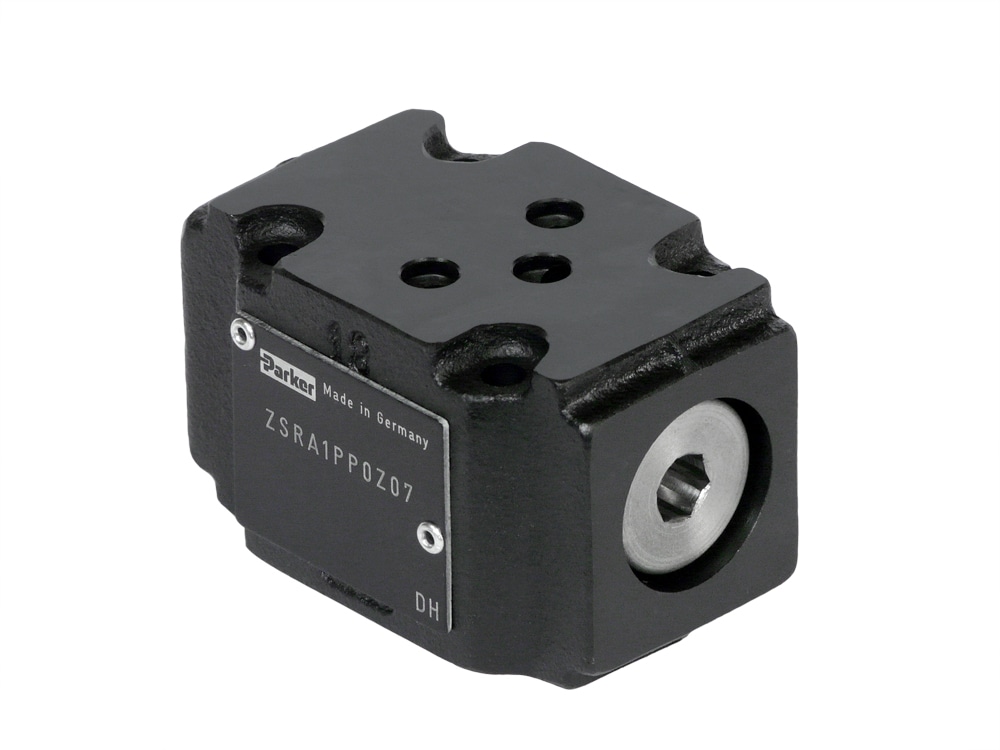

The shuttle valves for sandwich plate mounting series ZSRA and ZSRB in size NG06 are part of the wide Parker pilot control range for DIN cartridge valves.
Parker's 2-position, 3-way spool type shuttle valve with spring offset are purposefully spring biased into its normal position and are designed to fit an industry common cavity and are capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).
Parker's 2-position, 3-way spool type shuttle valves will fit industry common cavities while providing superior performance; capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

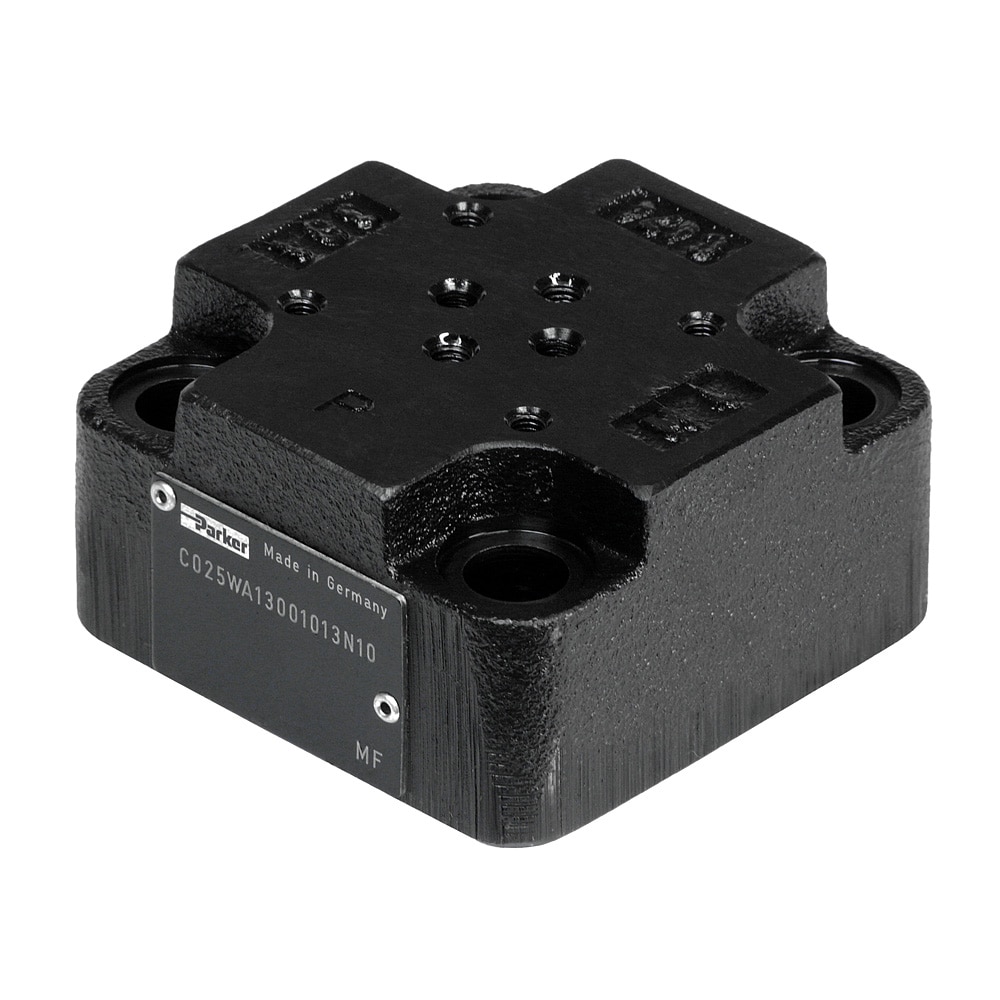

Universally applicable for compact manifold block installation, Parker's cover with shuttle valve series C*V and cover with shuttle valve and pilot system mounting series C*W are available in many different sizes.
The shuttle valve series SSR is designed as a threaded cartridge valve. All parts are assembled in one unit and easy to mount.
