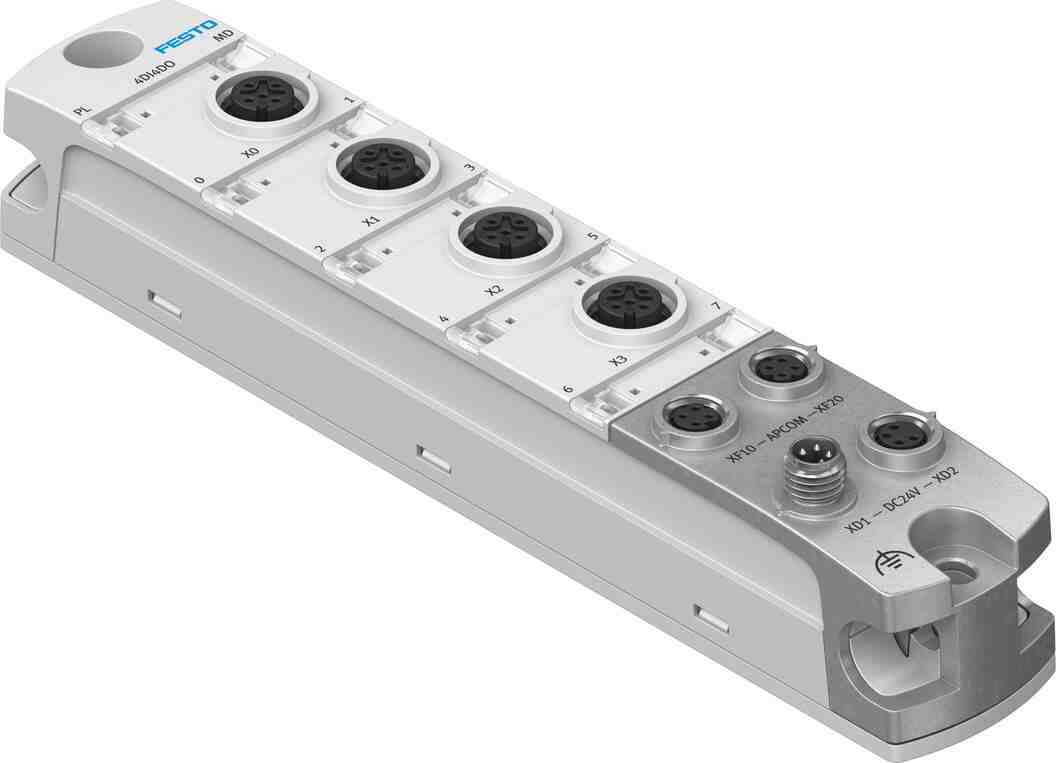

Modules for the automation system CPX-AP-I
Selection of module types: bus interface, IO-Link master, input modules, input/output modules,
interface for valve terminal
Up to 80 individual, freely combinable modules/valve terminals per bus interface
For valve terminals VTUG, MPA-L, VTOC
Can be expanded into the installation system CTEL
Fieldbus-typical LEDs, interfaces and switching elements
CPX
197330
Automation platform
Open to all common fieldbus protocols and Ethernet
Integrated diagnostic and maintenance functions

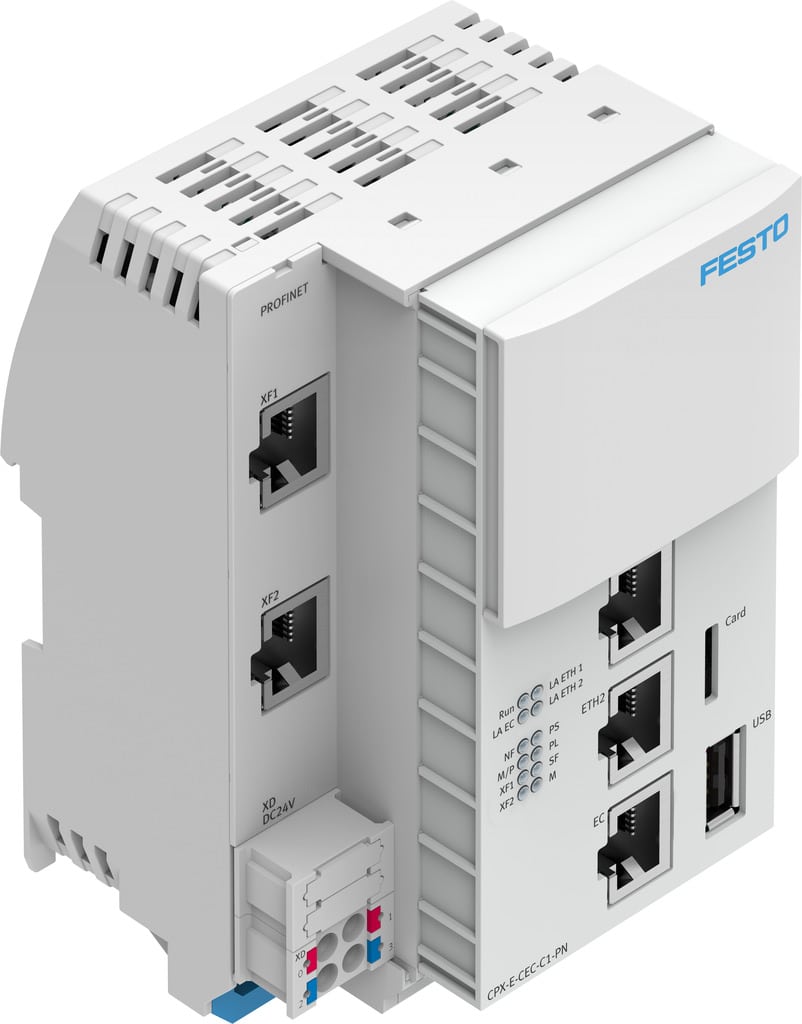

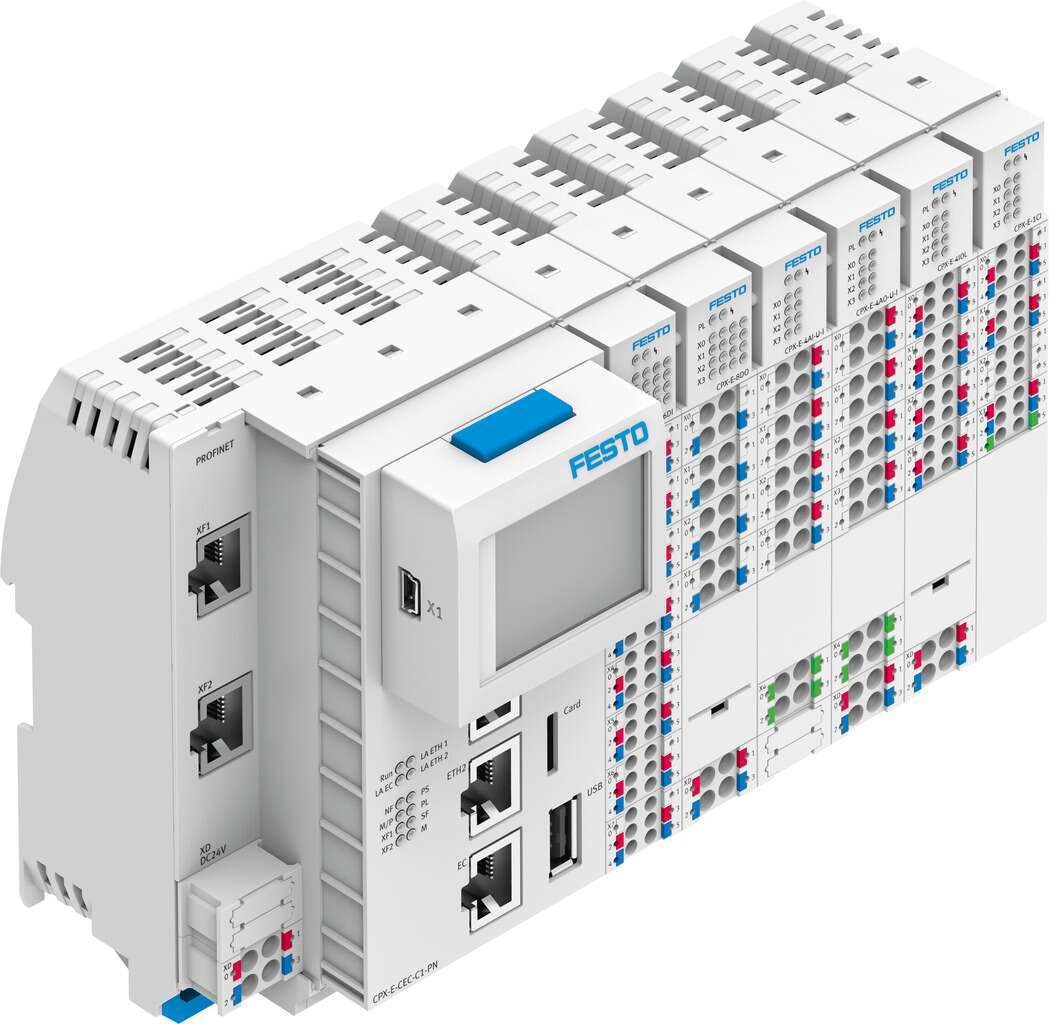

CPX-E /-EX1E
5237644
Modern control system with high performance
Fieldbus master interfaces, EtherCAT® master, fieldbus slave interfaces, PROFINET, EtherNet/IP,
PROFIBUS, EtherCAT® digital input modules (16DI), digital output modules (8DO/0.5A)
Analogue input modules (current, voltage), analogue output modules (current, voltage)

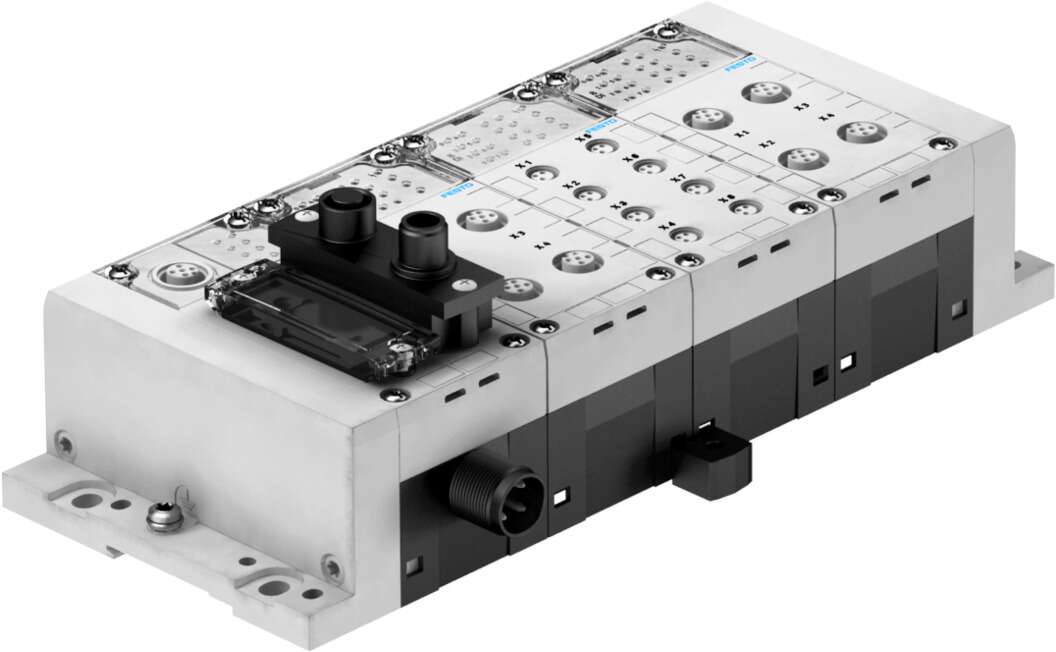

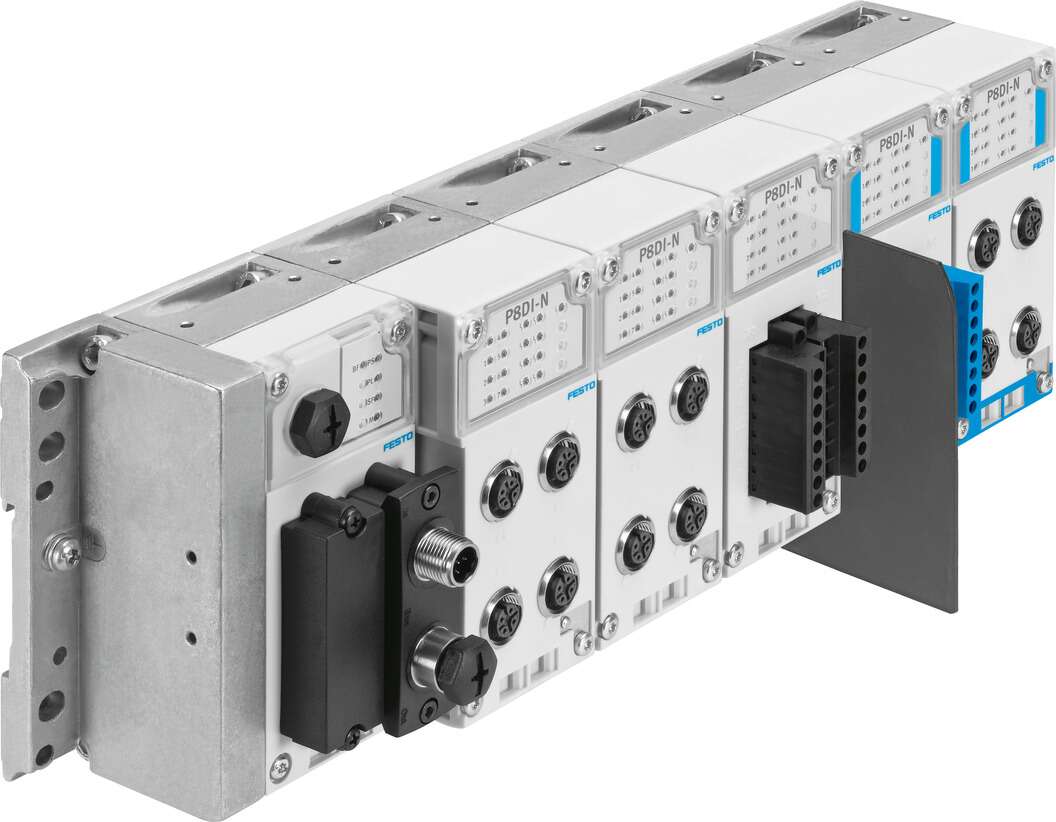

CPX-P
562818
Use of matching remote I/O and valve manifolds in a control cabinet
Combination with modules of the electrical terminal CPX, which enables use for hybrid applications
Unique modular structure

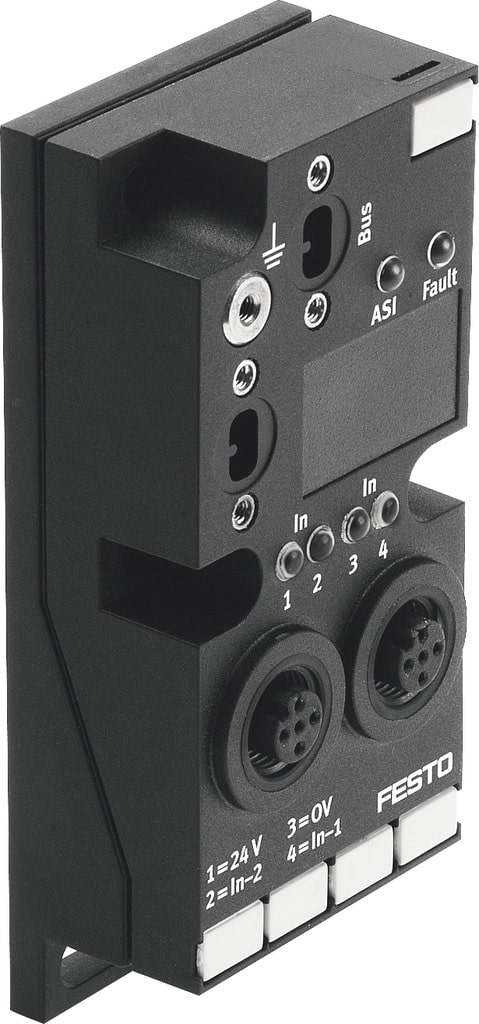

Accessories for the AS-Interface installation system

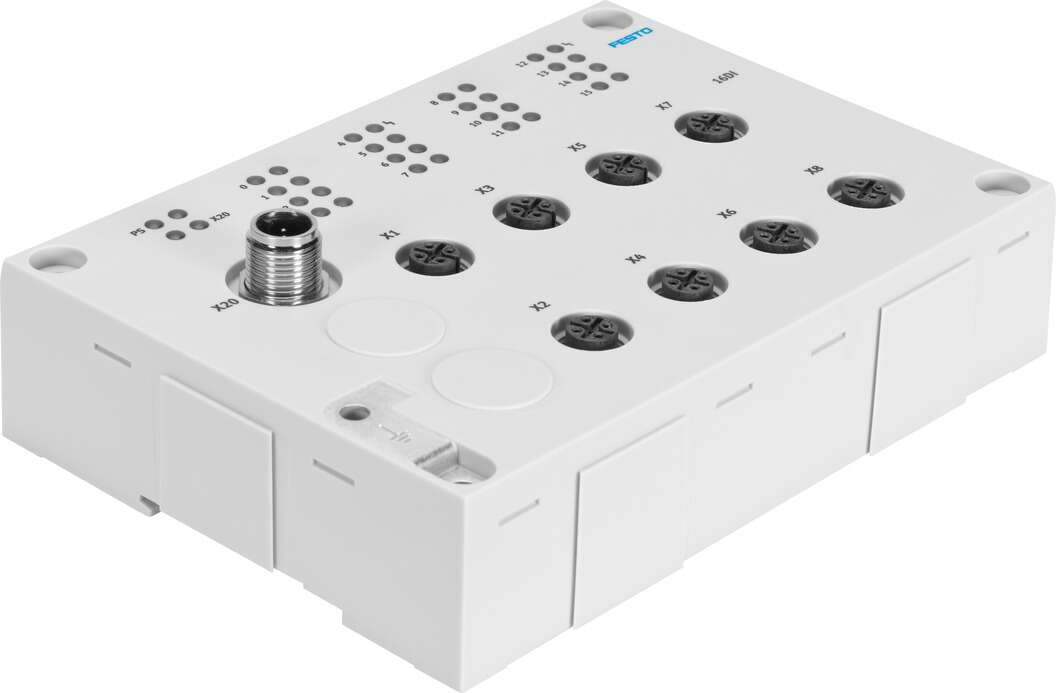

Compact I/O modules (IP65, IP67)

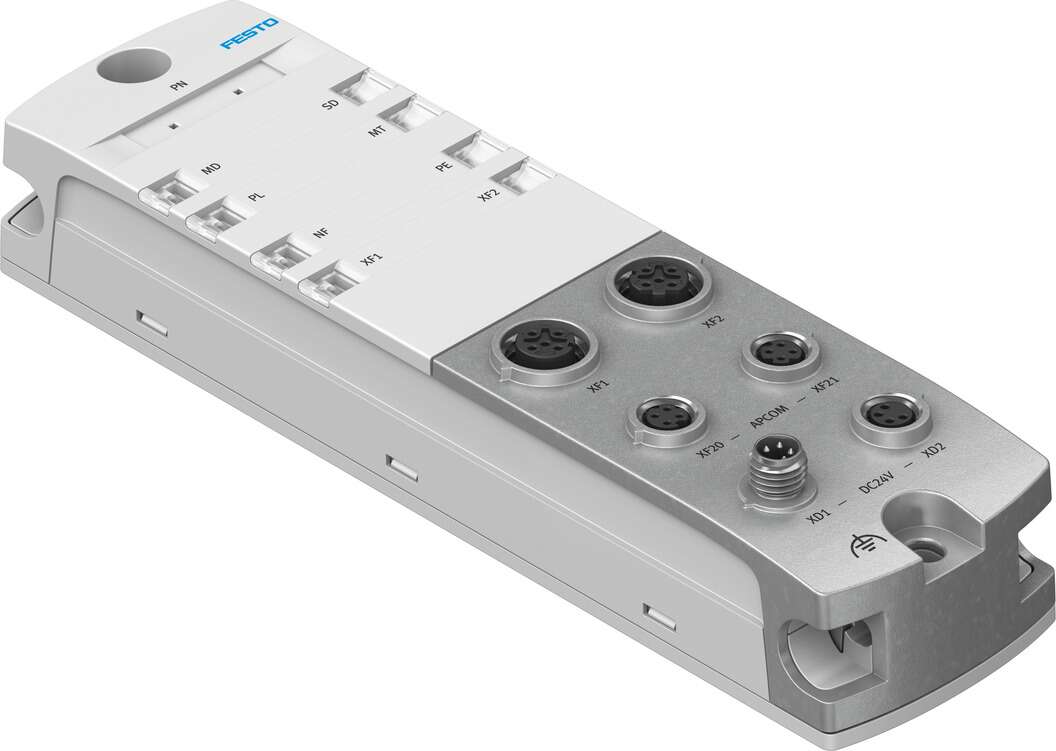

CPX-AP-I
8094920
Powerful remote I/O system that flexibly links 80 modules at a data rate of 200 Mbaud in real-time
Seamless connectivity along with advanced diagnostics option increase the machine availability and productivity
Simple integration into the controller of your choice: PROFINET, PROFIBUS, EtherCAT®, EtherNet/IP, ModbusTCP
For installation system CTEL
For recording sensor input signals
Display of the input statuses for each input signal via an assigned LED

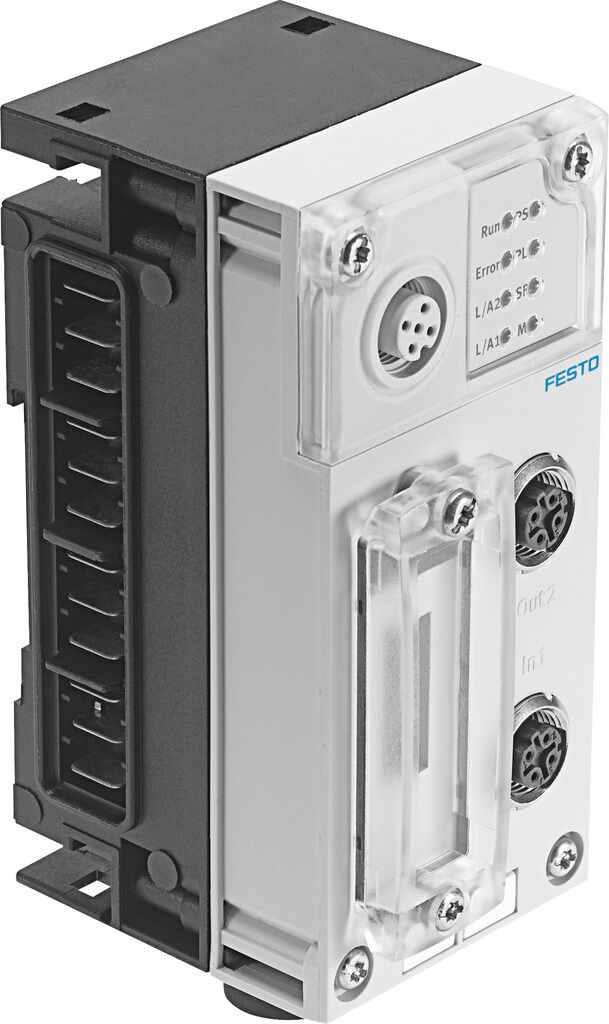

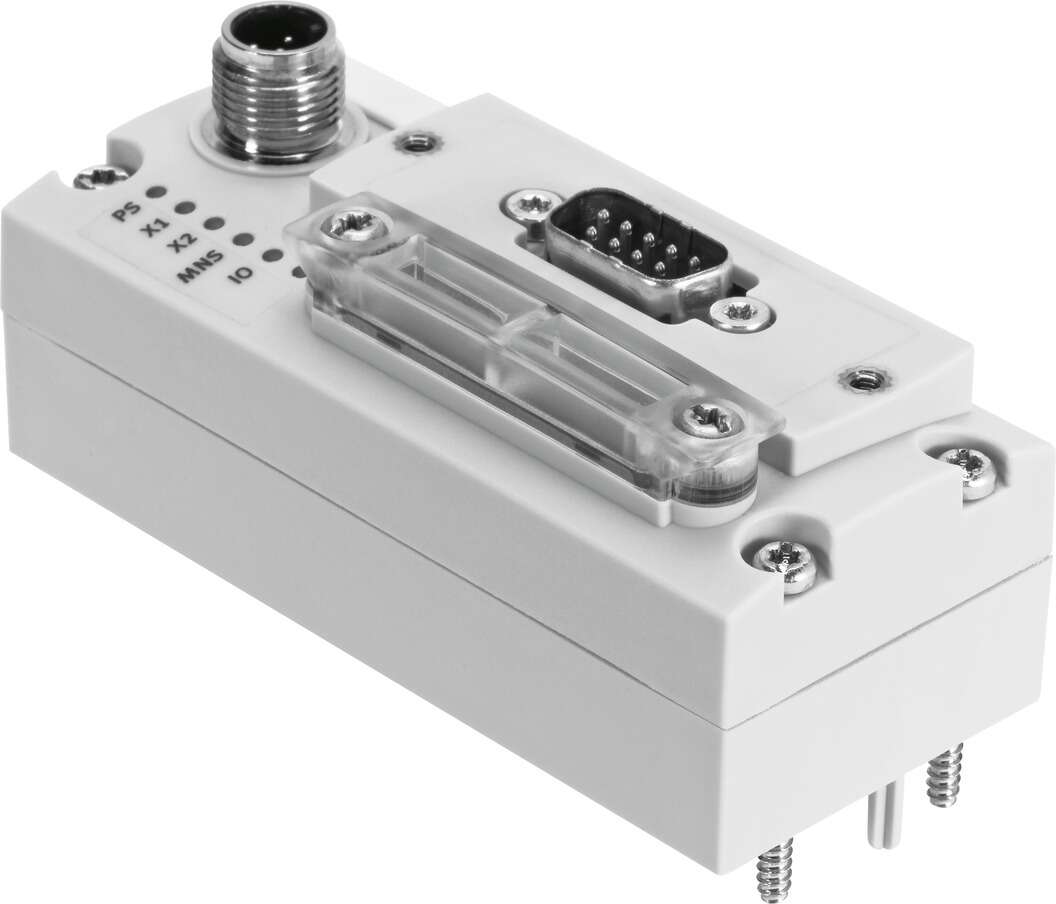

Individual components for the electrical terminal CPX

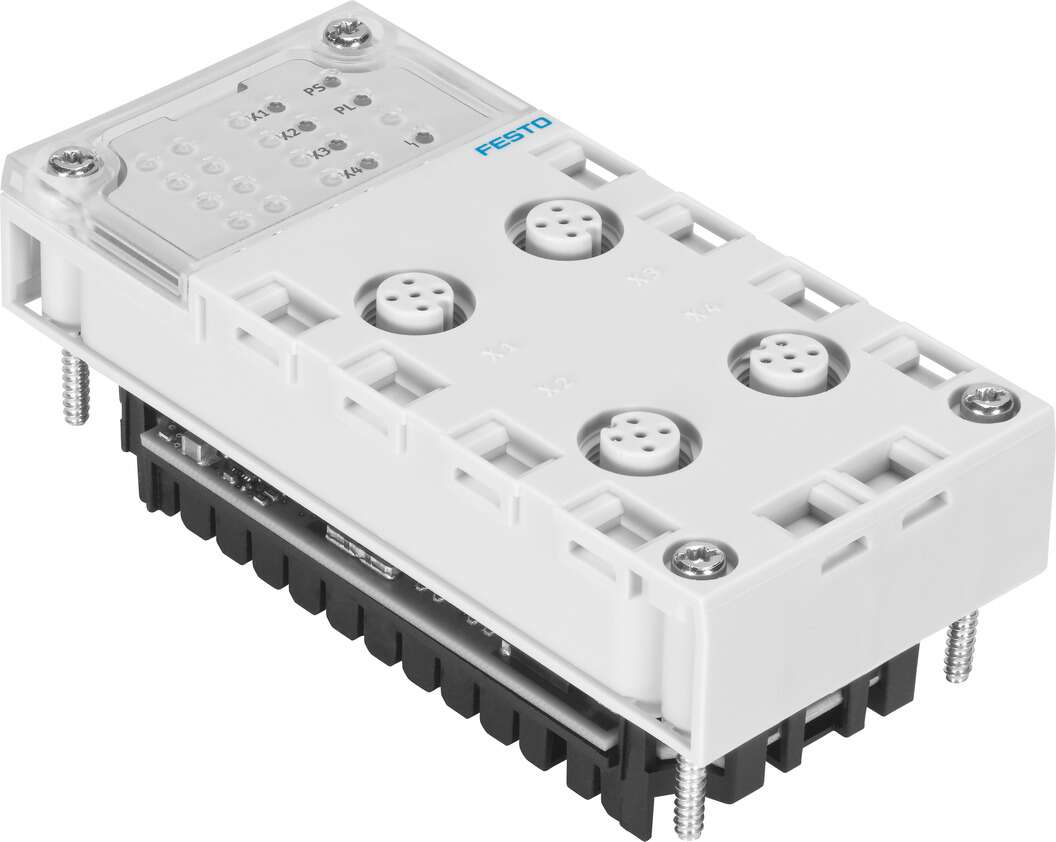

CPX-CTEL master module with 4 I-Port connections
Decentralized pneumatic components and sensors for fast processes
Standardized M12 connections
Individual components for the automation system CPX-E
Individual components for the electrical terminal CPX-P

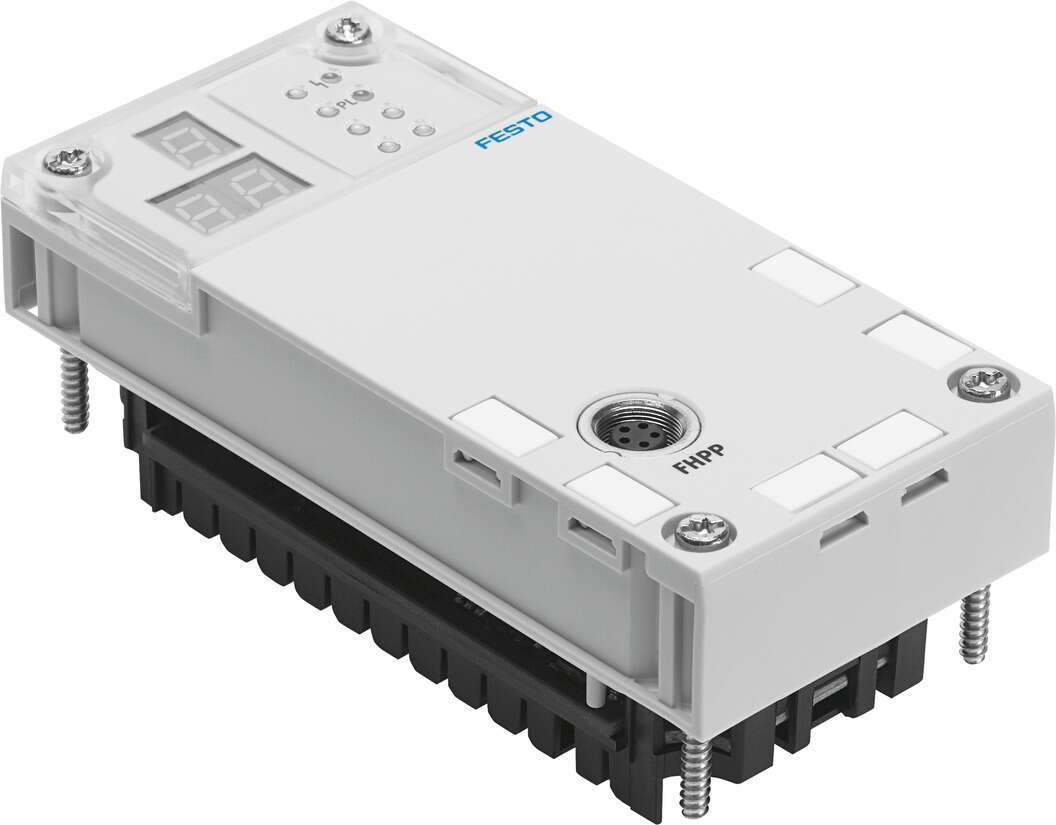

CPX-CM-HPP
562214
CPX-CMIX-M1-1
567417
Pneumatics and electrics – movement and measurement on one platform
Innovative measurement technology for piston rod drives, rodless drives, rotary drives
Control via fieldbus
