Schmalz vacuum blocks for grid tables enable simple and flexible use; without complex installation. The non-slip fixings enable secure clamping of the workpieces even with high processing forces. This makes them ideal for complex five-axis applications without a wear plate.

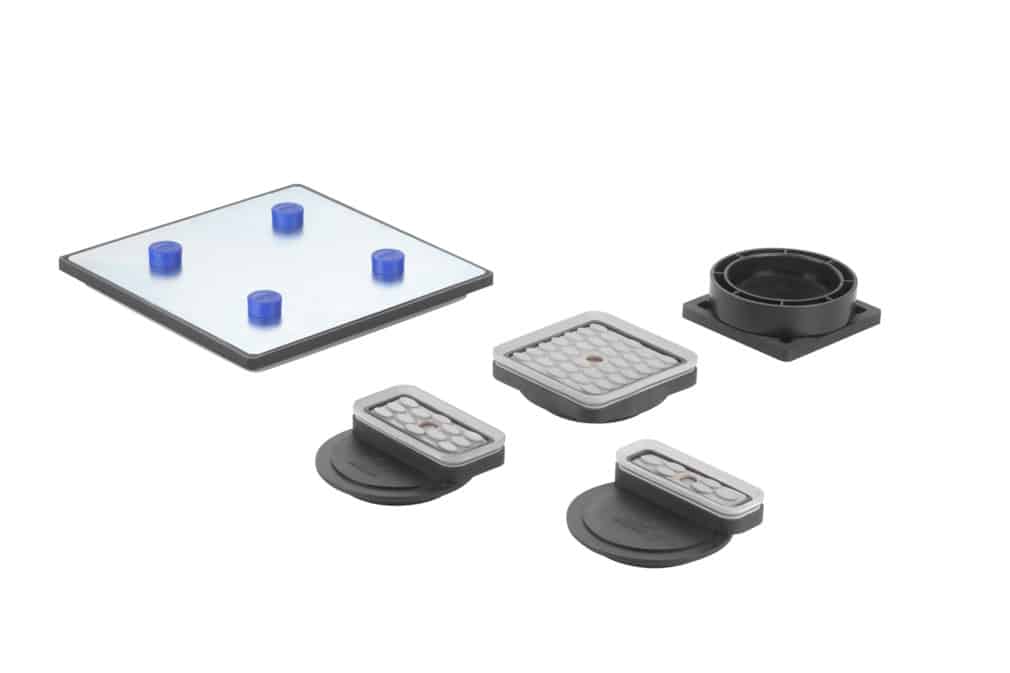

Vacuum system for grid tables
Fixation via positioning inserts
Integrated touch valve

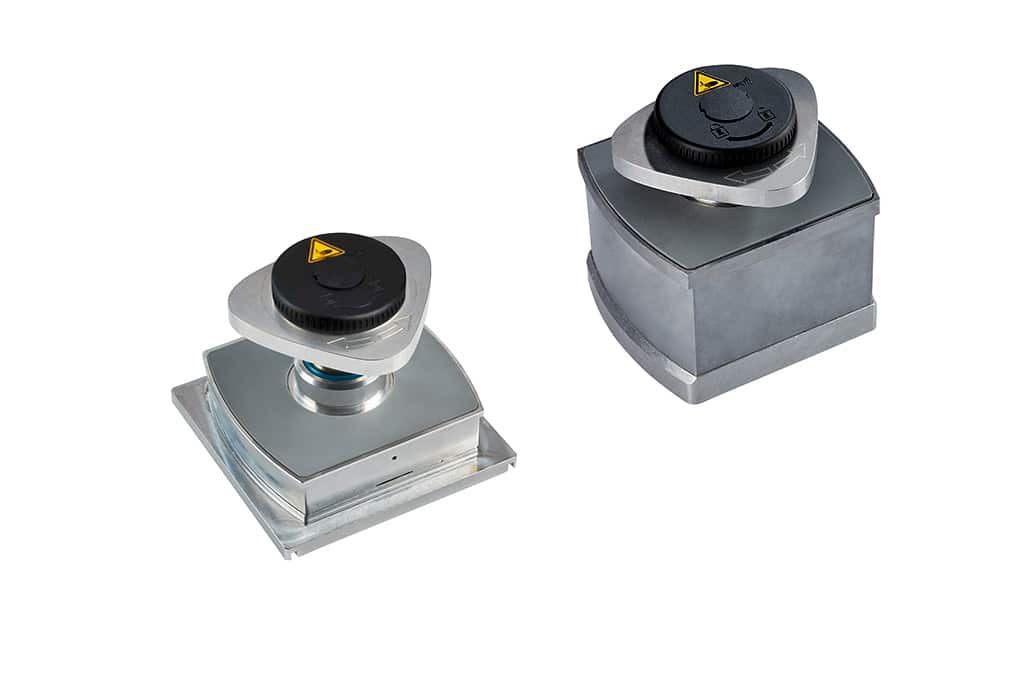

Vacuum System for grid tables
Use of Innospann suction cups

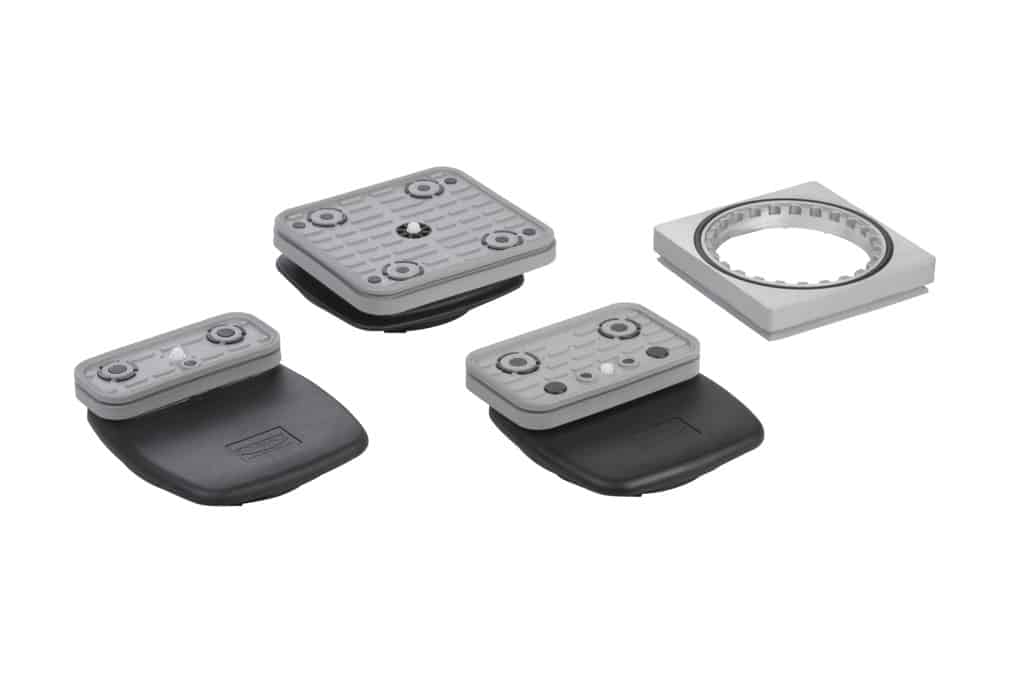

Vacuum system for grid tables
For all common grid geometries
Use with VCBL-B

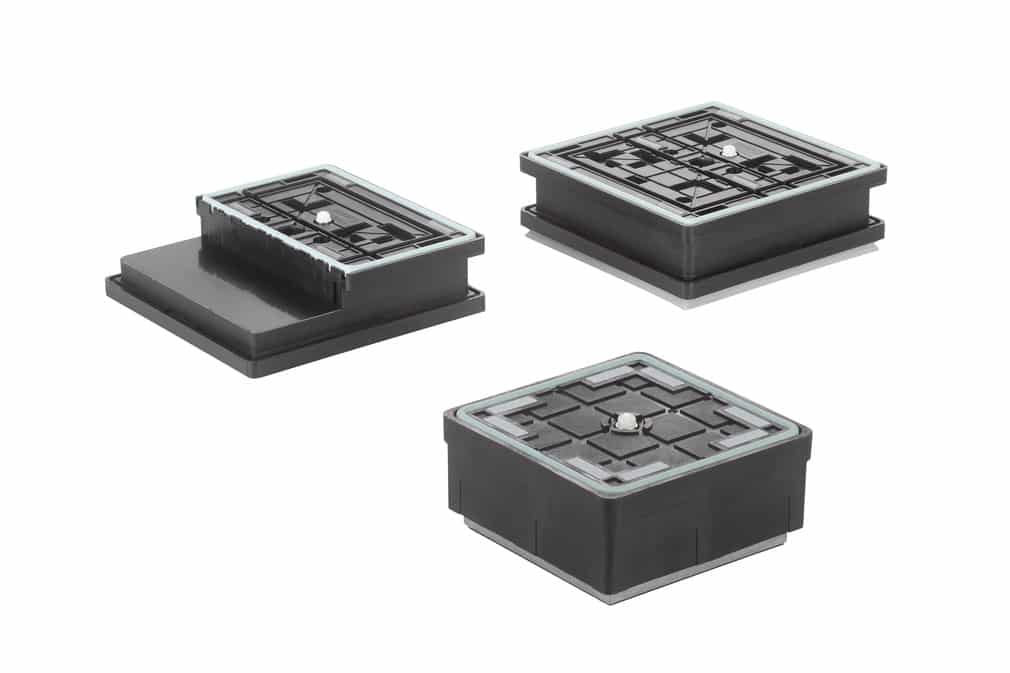

Vacuum system for grid tables
For frames and window profiles
