Jib cranes from Schmalz are very versatile and can be combined with many lifting devices such as chain hoists, rope hoists, rope balancers or vacuum lifting devices. The jib crane is attached to an existing column or wall and has a pivoting angle of 180°. This enables the optimum use of existing hall dimensions. Schmalz offers various solutions for attaching the crane according to the customer’s local conditions. Special, newly developed, wall consoles for attachment of the wall-mounted jib crane permit easy installation.
For a weight of up to 1,000 kg, the crane systems use aluminium crane rails. This guarantees extreme responsiveness and supports ergonomic and fatigue-free working. All crane columns are anchor-ready, no additional intermediary plates are necessary.
.jpg)

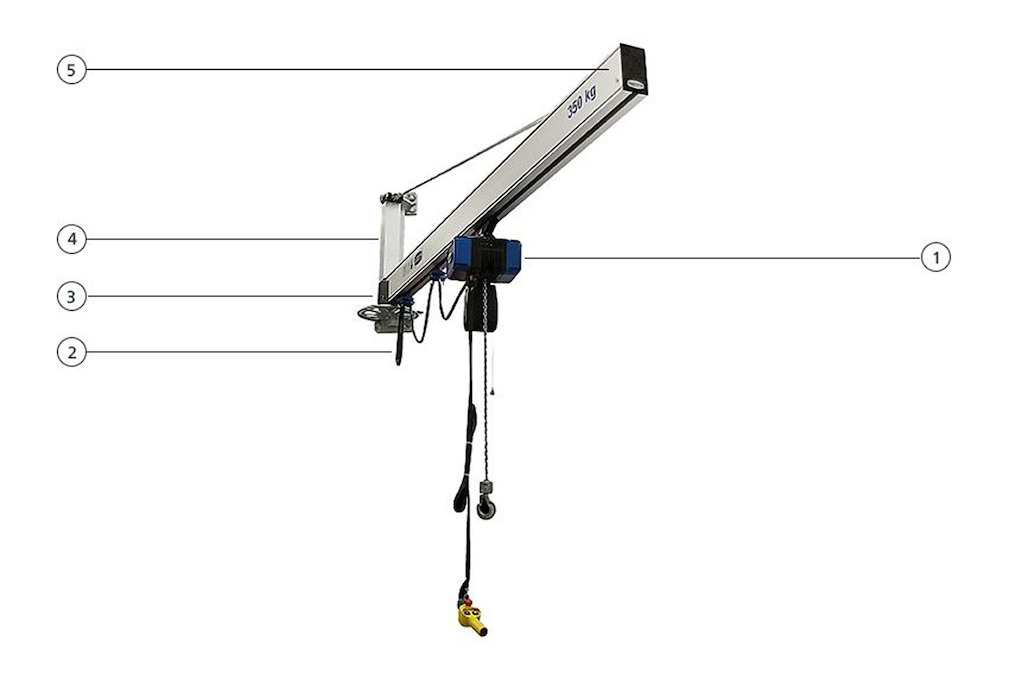

(1) Chain hoist
(2) Energy supply

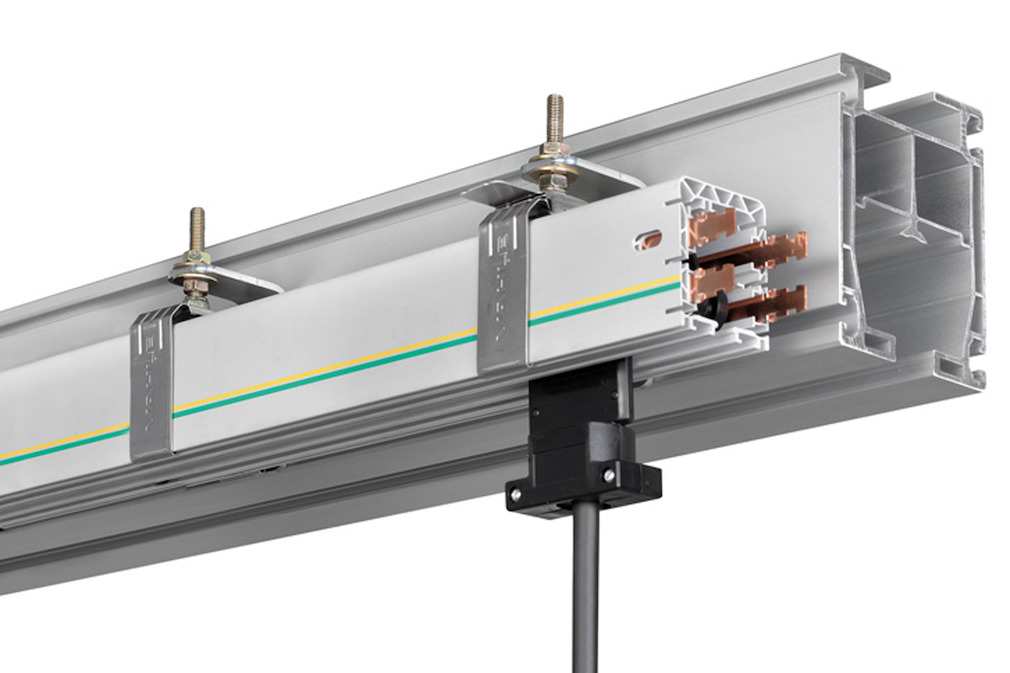

Trailing cable or conductor line

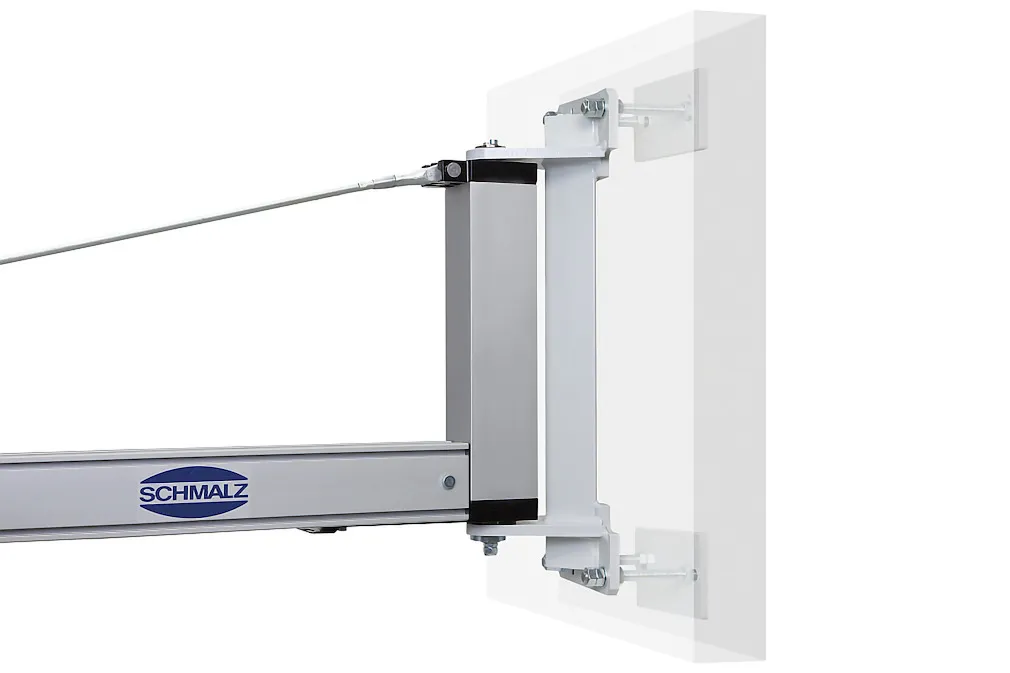

(3) Wall bracket painted steel
For adaptation to fastening elements
(4) Aluminum pivot bearing
Column mounted jib crane swivel angle: 270°
Wall mounted jib crane swivel angle: 180°
Can be limited
(5) Aluminum jib
Length: 2,000 mm to 8,000 mm
.jpg)
.jpg)
.jpg)
.jpg)
Wall-mounted jib crane WK with aluminium crane rails for vacuum lifting device VacuMaster

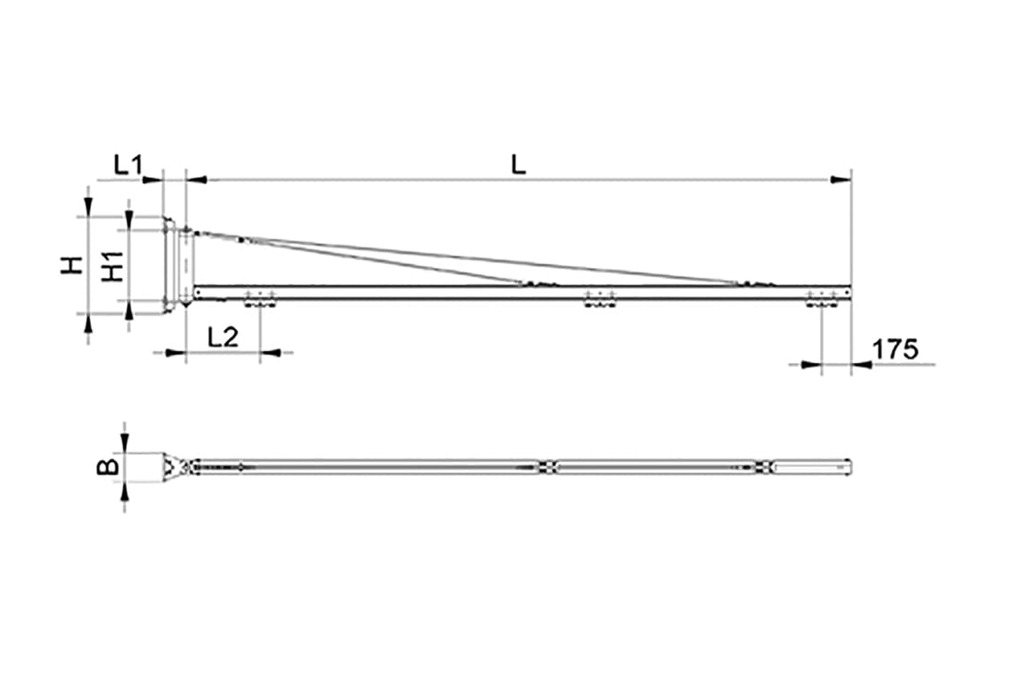

| Type | Max. lift capacity [kg] | L [mm] | H* [mm] | H1 [mm] | B [mm] | L1 [mm] | L2 [mm] |
| WK-KZG-80 | 80 | 3,000 – 6,000 | 695 | 500 | 205 | 155 | 650 – 850 |
| WK-KZG-125 | 125 | 3,000 – 6,000 | 695 – 945 | 500 – 750 | 205 | 155 | 650 – 850 |
| WK-KZG-200 | 200 | 3,000 – 8,000 | 945 | 750 | 250 | 155 | 700 – 900 |
| WK-KZG-350 | 350 | 3,000 – 6,000 | 945 | 750 | 250 | 155 | 700 – 900 |
| WK-KZG-650 | 650 | 3,000 – 6,000 | 1,195 | 1,000 | 400 | 155 | 750 – 950 |
| WK-KZG-1000 | 1,000 | 3,000 – 6,000 | 1,495 | 1,300 | 600 | 155 | 800 – 1,000 |
*H max. = 5,000 mm
Wall-mounted jib crane WK with aluminium crane rails for vacuum tube lifter Jumbo
| Type | Max. lift capacity [kg] | L [mm] | H* [mm] | H1 [mm] | B [mm] | L1 [mm] | L2 [mm] |
| WK-JU-45 | 45 | 2,000 – 6,000 | 695 | 500 – 505 | 205 | 155 | 450 – 750 |
| WK-JU-65 | 65 | 2,000 – 6,000 | 695 | 500 | 205 | 155 | 450 – 750 |
| WK-JU-85 | 85 | 3,000 – 6,000 | 695 | 500 | 205 | 155 | 650 – 850 |
| WK-JU-110 | 110 | 3,000 – 6,000 | 695 | 500 | 205 | 155 | 650 – 850 |
| WK-JU-140 | 140 | 3,000 – 6,000 | 695 – 945 | 500 – 750 | 205 – 250 | 155 | 650 – 850 |
| WK-JU-200 | 200 | 3,000 – 6,000 | 945 | 750 | 250 | 155 | 700 – 900 |
| WK-JU-300 | 300 | 3,000 – 6,000 | 945 | 750 | 250 | 155 | 700 – 900 |
*H max for type WK…45-140 = 4,500 mm (4,750 mm for type WK…200/300)

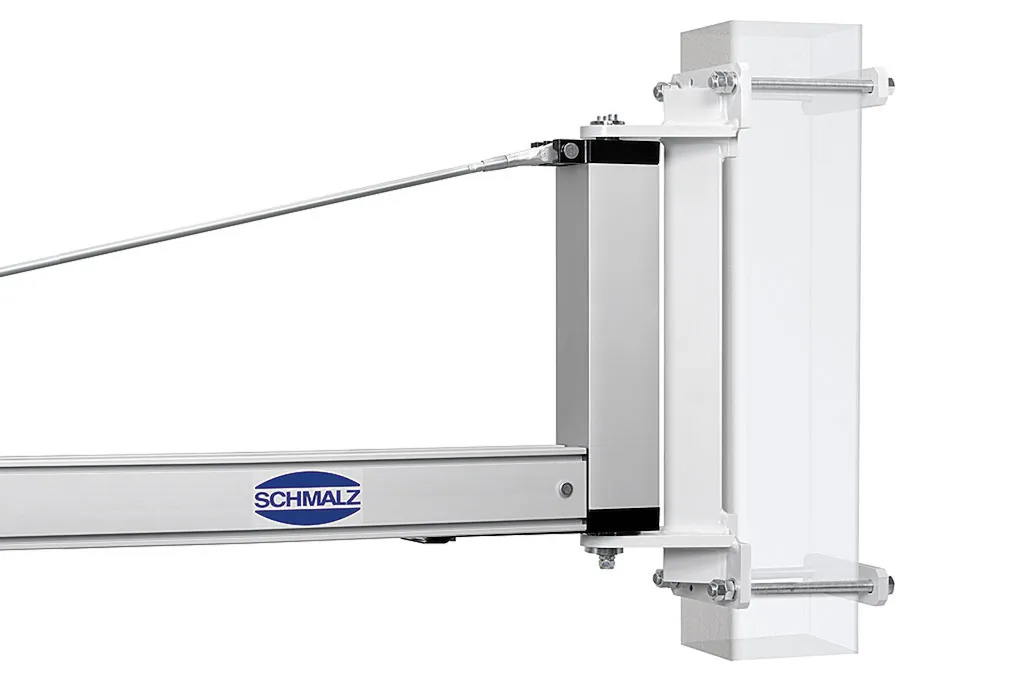

For mounting the wall bracket to an existing production hall pillar or column
High quality injection mortar anchor for attachment to walls (wall thickness min. 250 mm)
For loads weighing up to 110 kg (depending on the jib length)

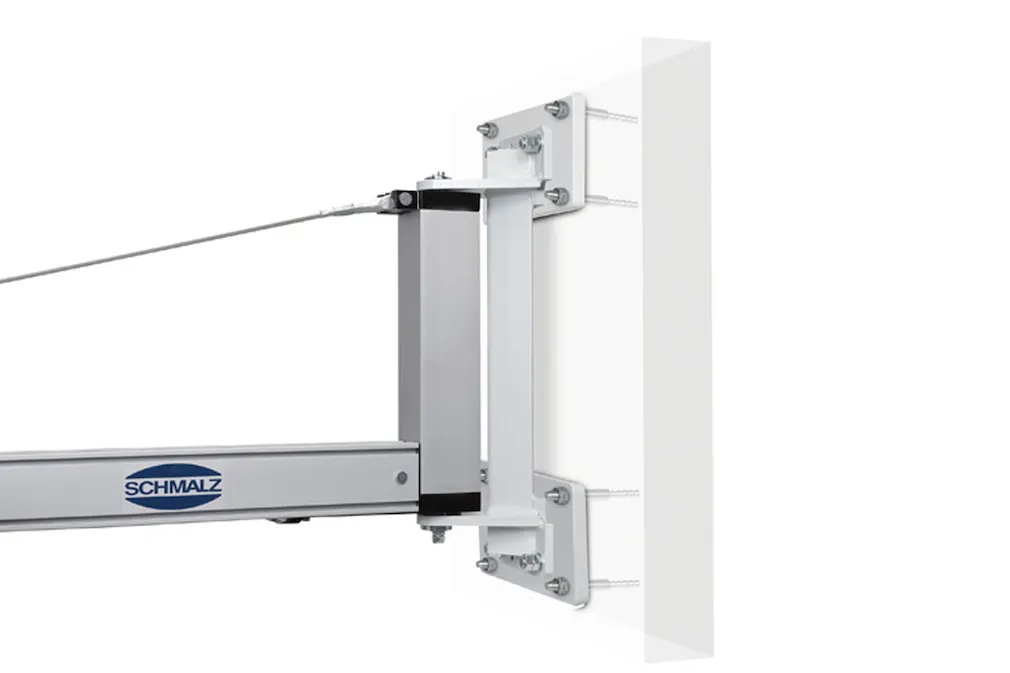

Counter plate with clearance holes for attachment to walls

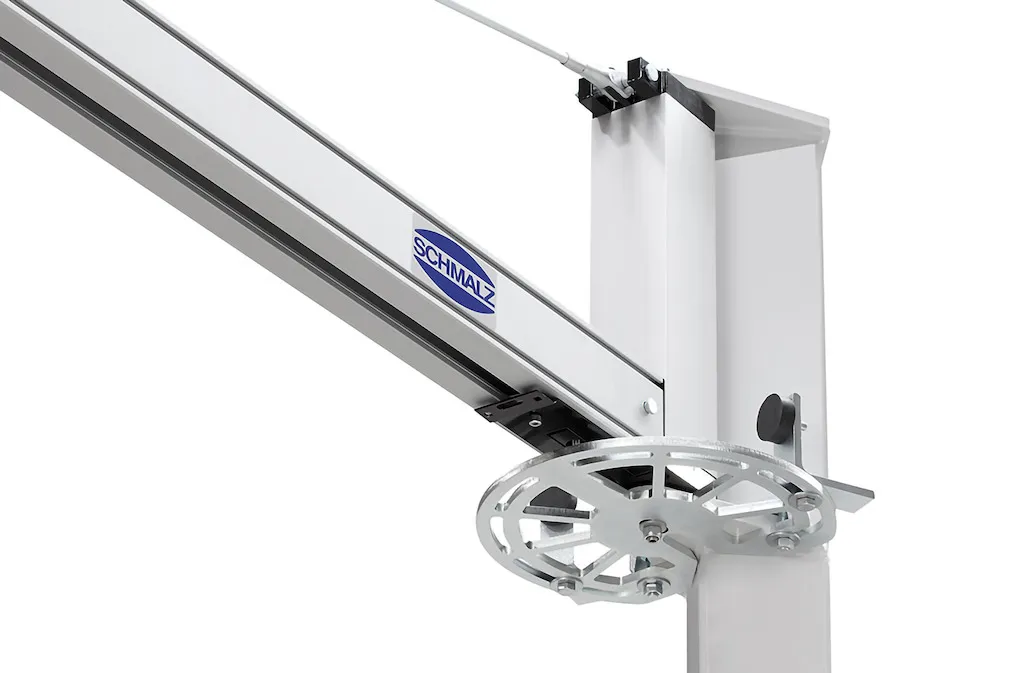

Limit stop for individual adjustment of the swiveling range
The limit for each swivel side is 0° to 100°
For attaching vacuum generators directly to the crane column
Easy mounting by means of a clasp
To protect electrical devices against overvoltage
Can be locked, optional and therefore suitable as main switch

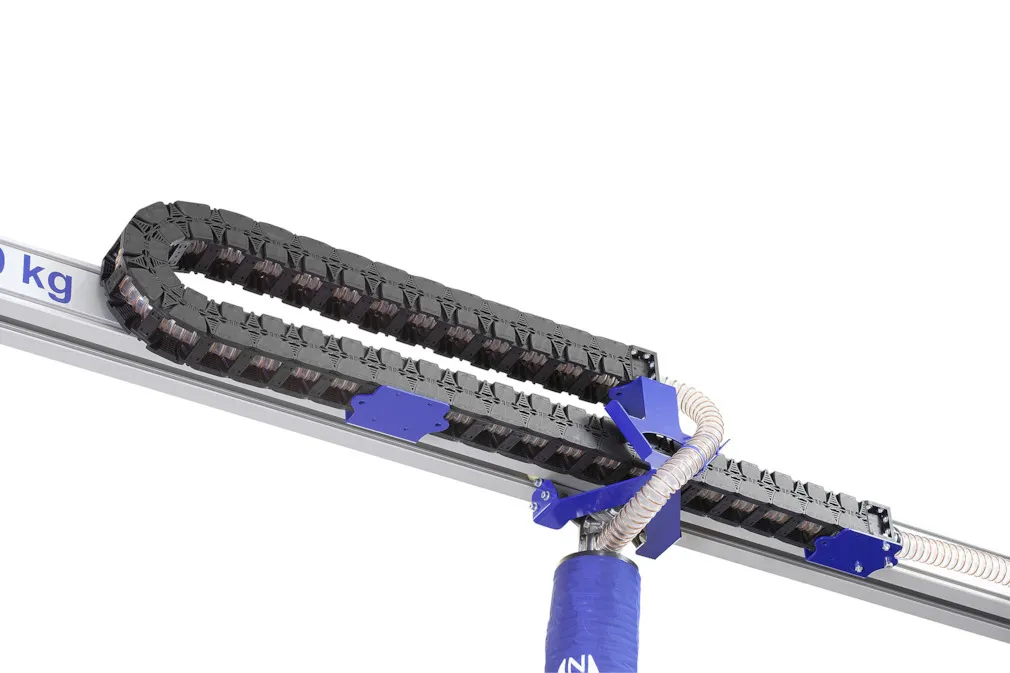

Packs the vacuum supply hose package
Saves additional space with low room heights

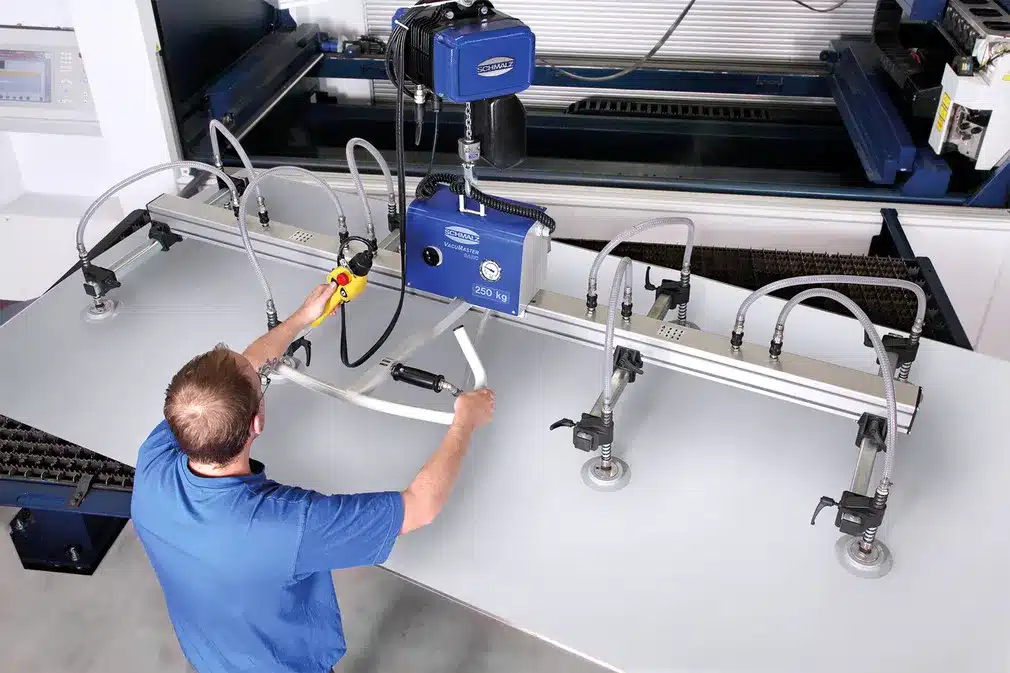

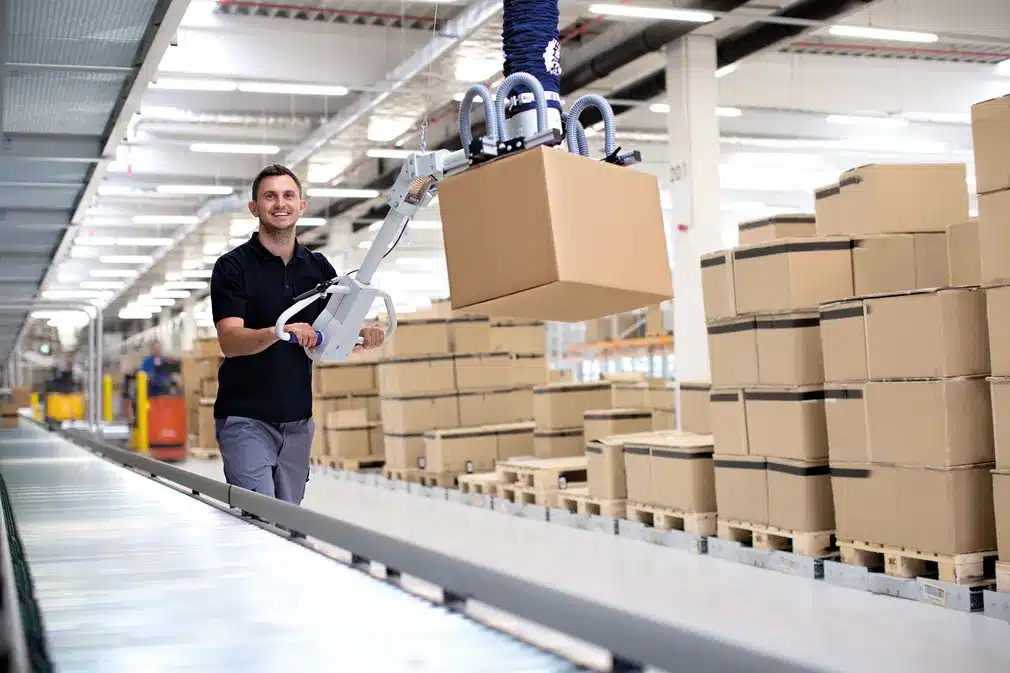

Move workpieces up to 300 kg quickly and easily
Configurable lifting unit, operator handle, vacuum gripper and vacuum generator
Lifting and lowering the load using vacuum
Move heavy loads up to several tons ergonomically and securely
Basic module, operating unit, load beams and suction plates configurable
Lifting and lowering the load using a chain hoist
