The lifting unit, operating unit, vacuum grippers and vacuum generator on the vacuum tube lifter Jumbo can be configured according to customer specifications. The Jumbo is characterized by its lifting unit, which contracts and extends when lifting and lowering the load. The large effective suction area confers a safe holding of the workpiece. Schmalz also offers a comprehensive range of accessories and a complete system with a highly responsive aluminum crane upon request.

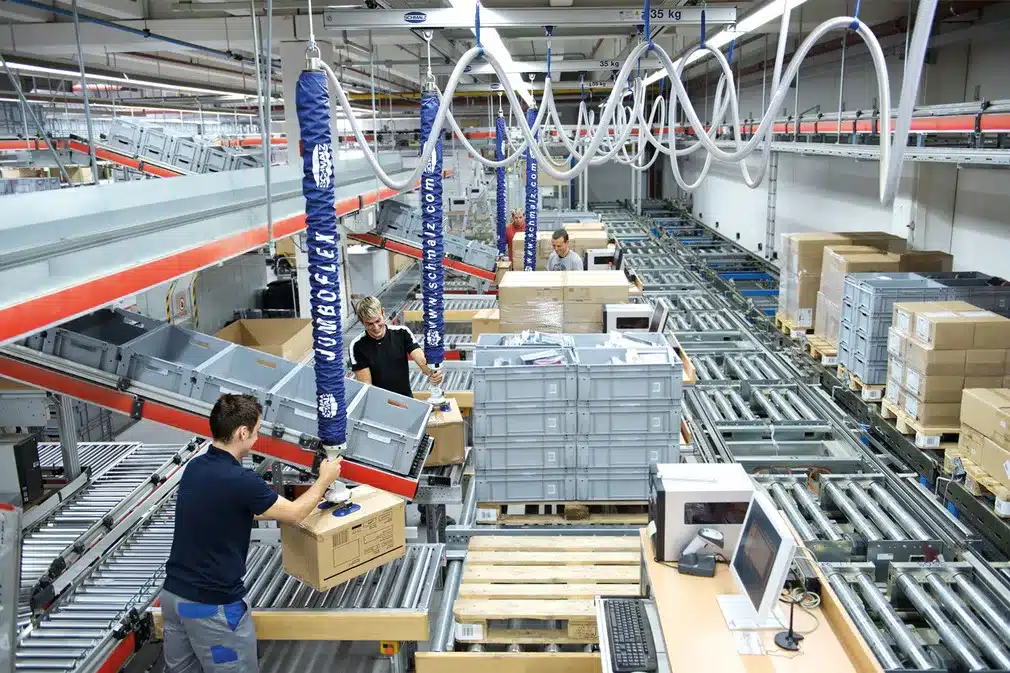

JumboFlex, JumboErgo and JumboSprint as well as JumboFlex High-Stack and Jumbo Low-Stack differ in the form and function of their operator handles and are conceived in each case for specific applications.

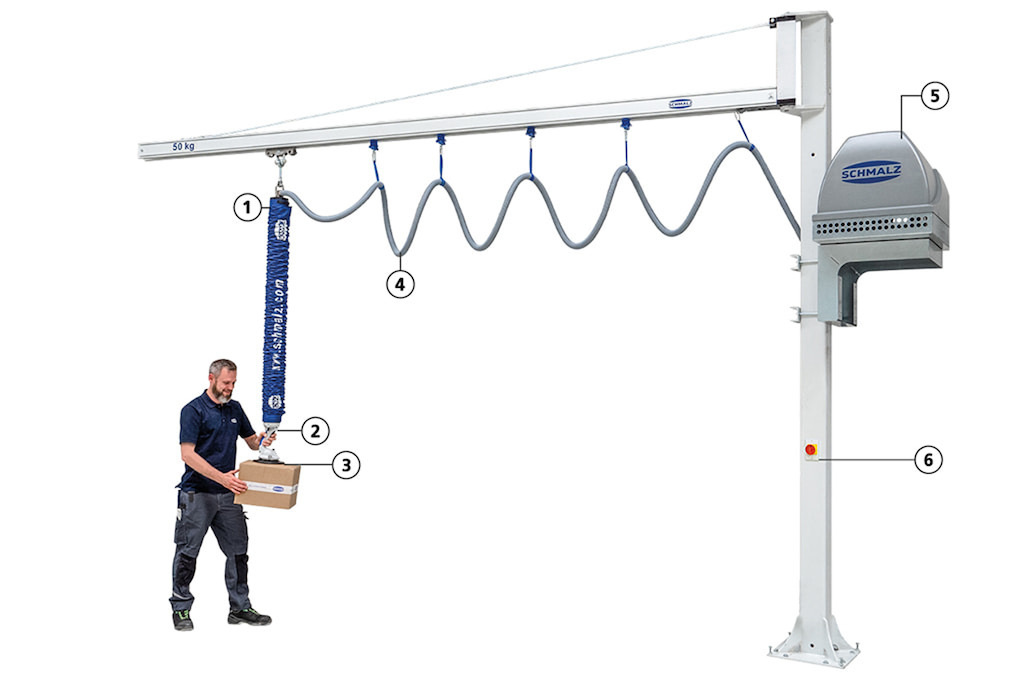

(1) Lifting unit
(2) Operating unit
(3) Vacuum gripper
(4) Supply hose
(5) Vacuum Generator with accessories
(6) Crane
| Type | Max. lift capacity (horizontal) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 kg | 35 kg | 45 kg | 50 kg | 65 kg | 80 kg | 85 kg | 110 kg | 140 kg | 200 kg | 300 kg | |
| JumboFlex | X | X | X | X | |||||||
| JumboFlex High-Stack | X | X | X | X | |||||||
| Jumbo Low-Stack | X | X | X | X | X | X | |||||
| JumboErgo / JumboSprint | X | X | X | X | X | X | X | X | X | X | X |
JumboFlex for ergonomic one-hand operation for fast movement sequences
Configurable lifting unit, operator handle, vacuum gripper and vacuum generator
One-finger / two-finger control for right-handed and left-handed users
For workpieces up to 50 kg
Tube lifter JumboErgo for dynamic handling of flat workpieces
Configurable lifting unit, operator handle, vacuum gripper and vacuum generator
Workpieces can be swiveled by 90° (optional with JumboErgo PSE)
Workpieces up to 300 kg
Tube lifter JumboSprint for ergonomic handling of compact workpieces
Configurable lifting unit, operator handle, vacuum gripper and vacuum generator
All around operator handle for precise operation
For compact workpieces up to 300 kg
Tube lifter JumboSprint-EX for efficient handling of loads in explosion protection zones
Configurable lifting unit, operator handle, vacuum gripper and vacuum generator
Circumferential operator handle for precise operation
For compact workpieces up to 250 kg
JumboFlex High-Stack for back-friendly lifting and lowering of loads
For optimal use of space in storage areas and transport equipment
Up to a stacking height of 255 cm
For workpieces up to 50 kg
Jumbo Low-Stack for ergonomically picking up workpieces from low heights
Ideal for reaching deep into transport containers
For workpieces up to 80 kg

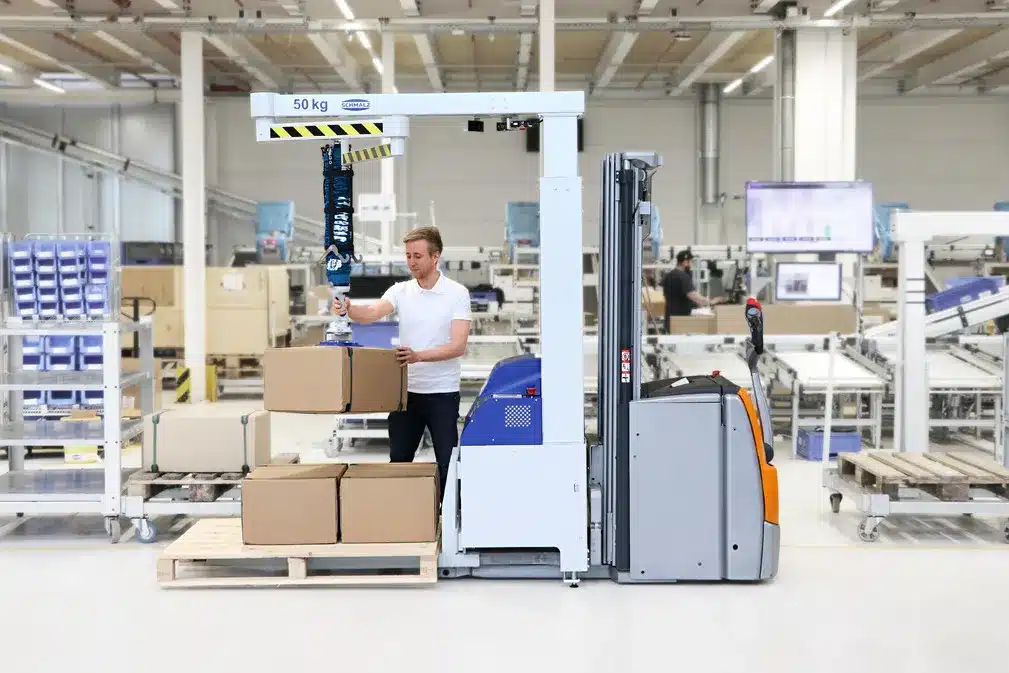

Mobile tube lifter solution for use with various floor conveyors
Long jib and forks for loading up to two Euro-pallets
Clear touch display and partly automated processes for intuitive and fast operation
Vehicle-independent due to integrated power supply and simple mounting on the vehicle forks

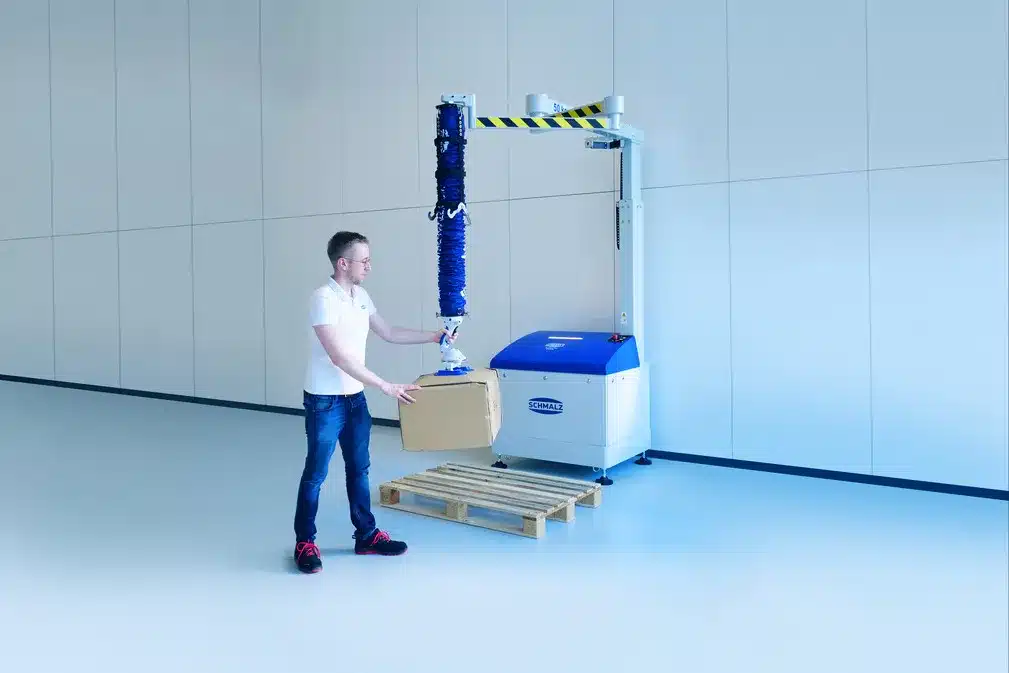

Mobile tube lifter solution for flexible use at various locations
Easy operation through conventional industrial sockets
Height-adjustable column and compact parking position of the articulated-arm jib ensure compact transport dimensions
Wide range of spare and wear parts for vacuum tube lifters Jumbo
Vacuum generators, lifting hoses, protective tubes, suction cups, supply hoses
