The JumboSprint is equipped with a bow-shaped operator handle which extends all the way around the unit. This allows the user to optimally position it on compact goods such as bags or rubber bales. The load is raised by pulling up on the handle lever and lowered by pushing down.
(1) Radio remote control SRC for vacuum generator (optional)
(2) Filter – changable without tools
(3) Bow-shaped Operator handle for Lifting, lowering and releasing the load
(4) Suspension height can be adjusted without the load attached
(5) Quick-change adapter for vacuum grippers (optional)
(6) Suspension height can be adjusted with a load attached
Versatility is key: Schmalz offers the right suction cups for virtually any application. With quick-change adapter the gripper can be changed quickly and easily.
.jpg)

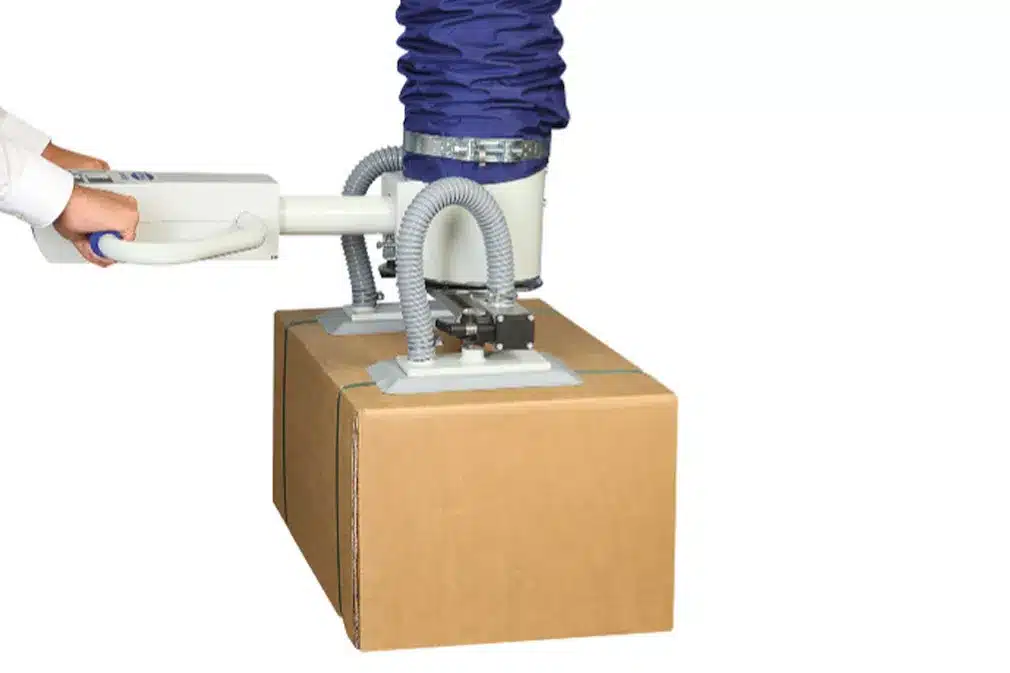

For compact goods such as cardboard boxes, barrels, buckets, jugs and cabinets.
.jpg)
For pallets, narrow cardboard boxes, beams, square tubes and other elongated workpieces.
.jpg)
For barrels, buckets or stone slabs with rough surfaces.
For paper and plastic bags, raw rubber bails and shrink-wrapped packages.
.jpg)
For cardboard boxes, crates or sheets. The vacuum grippers can be continuously adjusted along the beam.
For pallets, sections or cut pieces where the vacuum gripper is not fully covered by the workpiece. The grippers can be continuously adjusted along the beam.
For large cardboard boxes, sheets and non-rigid pieces. The vacuum grippers can be continuously adjusted lengthwise and crossways.
.jpg)
For uneven workpieces such as foil trays or unstable cardboard boxes. The individual vacuum grippers optimally compensate for any unevenness.
.jpg)

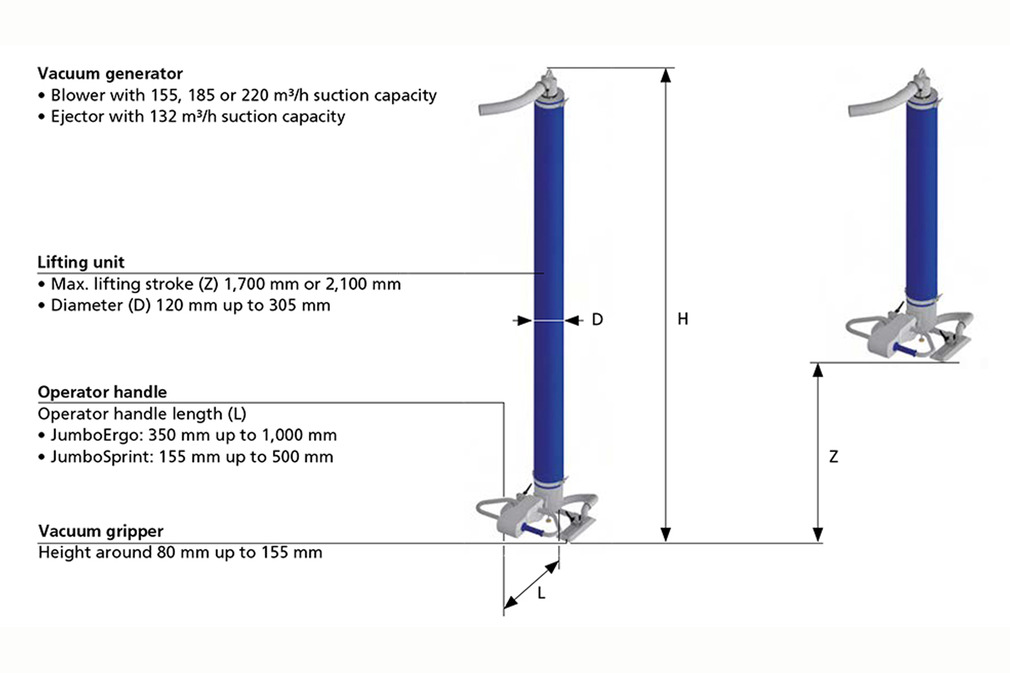

The vacuum tube lifters JumboErgo and JumboSprint can be configured specifically based on the requirements of each individual application due to their modular design. The technical data varies depending on the configuration and on the vacuum gripper chosen.
The following technical data are standard values.
| Type | Workpiece format* Min [mm] | Workpiece format* Max [mm] | Operator handle length L [mm] | Max. lifting speed [m/min] | Max. lifting stroke Z [mm] | Height H** [mm] |
|---|---|---|---|---|---|---|
| JumboErgo | 300×200 | 4,000×2,000 | 350-1,000 | 60 | 1,700 | 2,850 |
| 300×200 | 4,000×2,000 | 350-1,000 | 60 | 2,100 | 3,400 | |
| JumboSprint | 300×200 | 3,000×1,000 | 155-500 | 60 | 1,700 | 2,850 |
| 300×200 | 3,000×1,000 | 155-500 | 60 | 2,100 | 3,400 |
A lift capacity of 140 kg and higher applies: lifting stroke Z +160 mm, height H +250 mm
*Depends on the vacuum gripper chosen
**Vacuum gripper not included (total height = H + height of the vacuum gripper)
| Jumbo type | Max. lift capacity [kg] | Ø Lift tube | |
|---|---|---|---|
| Horizontal | 90° swivel | D [mm] | |
| Ergo/Sprint 35 | 35 | – | 120 |
| Ergo/Sprint 45 | 45 | 30 | 140 |
| Ergo/Sprint 65 | 65 | 50 | 160 |
| Ergo/Sprint 85 | 85 | 70 | 178 |
| Ergo/Sprint 110 | 110 | 90 | 203 |
| Ergo/Sprint 140 | 140 | 120 | 230 |
| Ergo/Sprint 200 | 200 | – | 250 |
| Ergo/Sprint 300 | 300 | – | 305 |
Wide range of spare and wear parts
Vacuum generation, lifting hoses, protective hoses, etc
Save up to 40% in energy with the push of a button With the radio remote control SRC, you can directly switch off the vacuum generator on the operator handle when not in use and then back on again. The radio remote control is activated by a simple button push and needs no energy source due to an integrated solar cell.

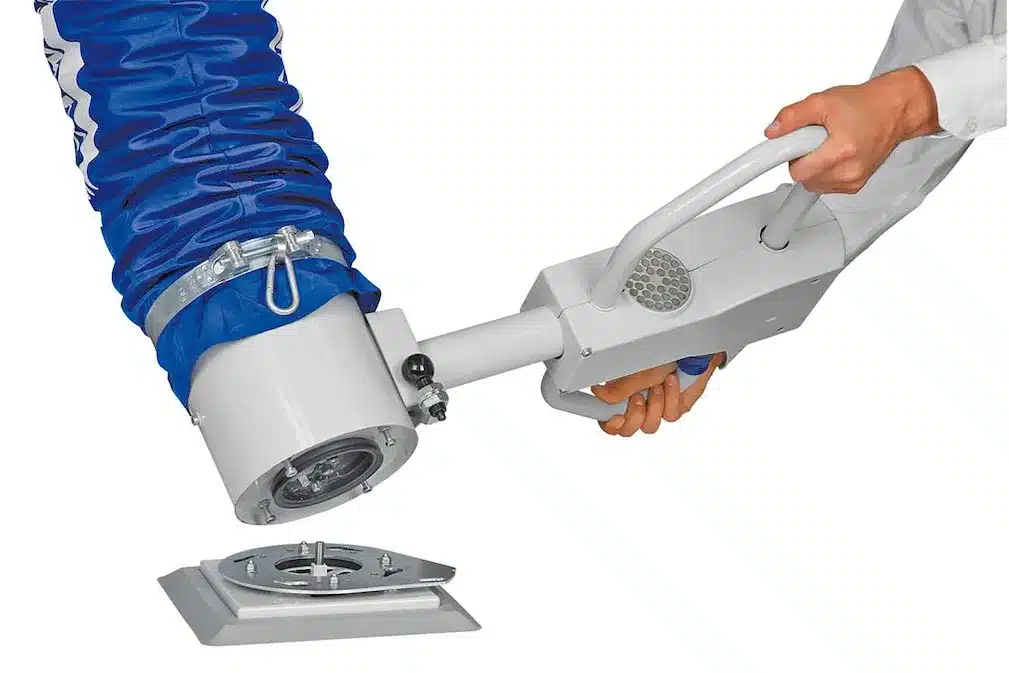

Instantly switch vacuum gripper The quick-change adapter SWA allows you to quickly and easily switch the vacuum gripper on your tube lifter in order to adapt to changing workpieces.

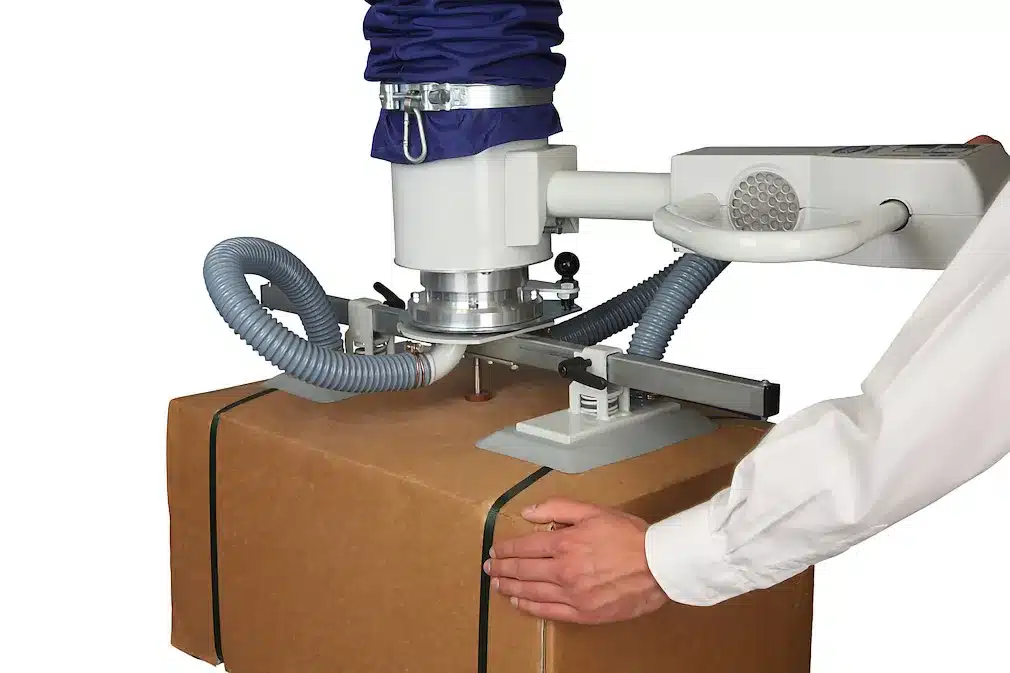

Continuously rotate workpieces With the rotation unit DE, vacuum-gripped workpieces weighing up to 200 kg can be continuously rotated and positioned precisely.

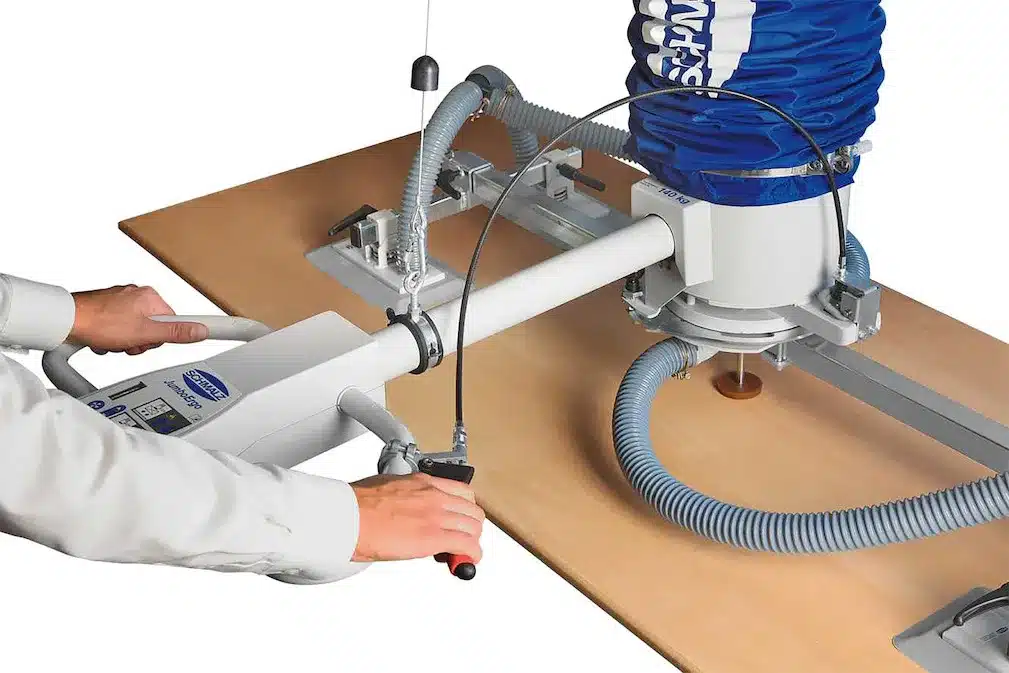

Instantly release workpieces The venting unit BEL allows non-porous workpieces to be released from the vacuum gripper and set down.

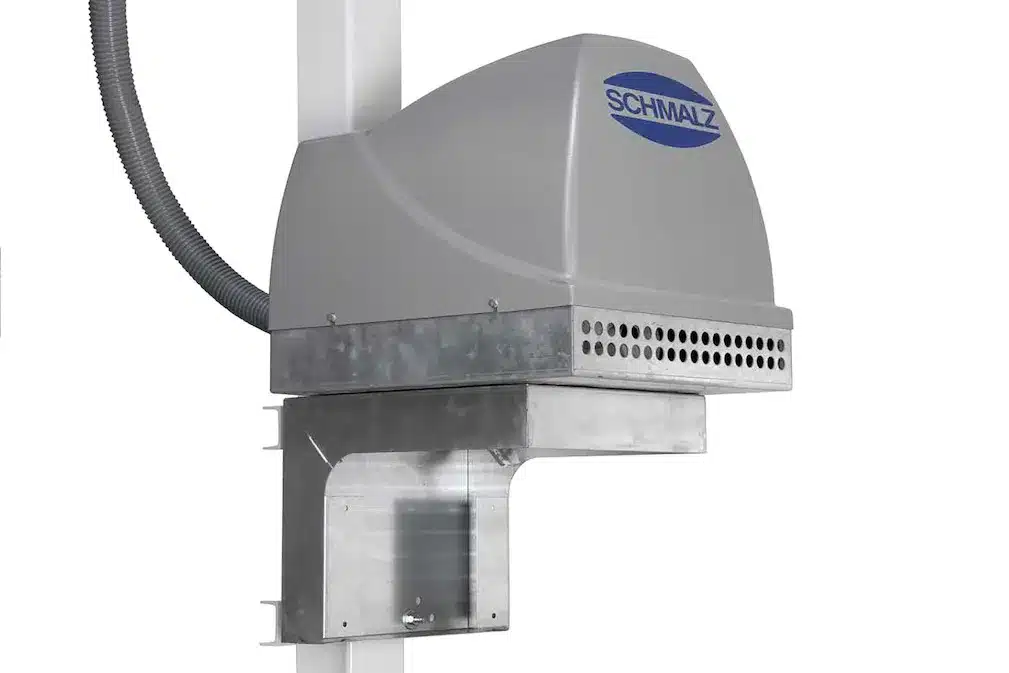

Reduce the sound level The silencer box SBB reduces the sound level of the vacuum generator to 65 dB(A) and protects it from outside dirt. It can be easily mounted on the optional blower mounting platform.

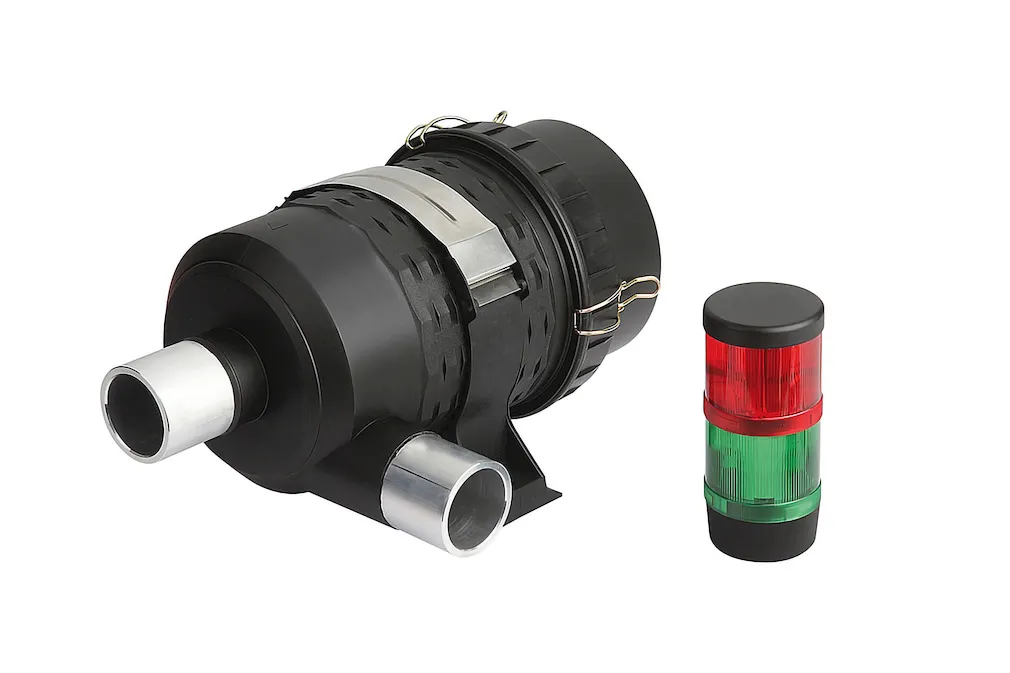

Protection against dirt The dust filter STF keeps dirt particles away from the vacuum generator and is always recommended to protect the generator. An optional differential pressure monitor with a signal lamp indicates when the dirty filter has to be changed.

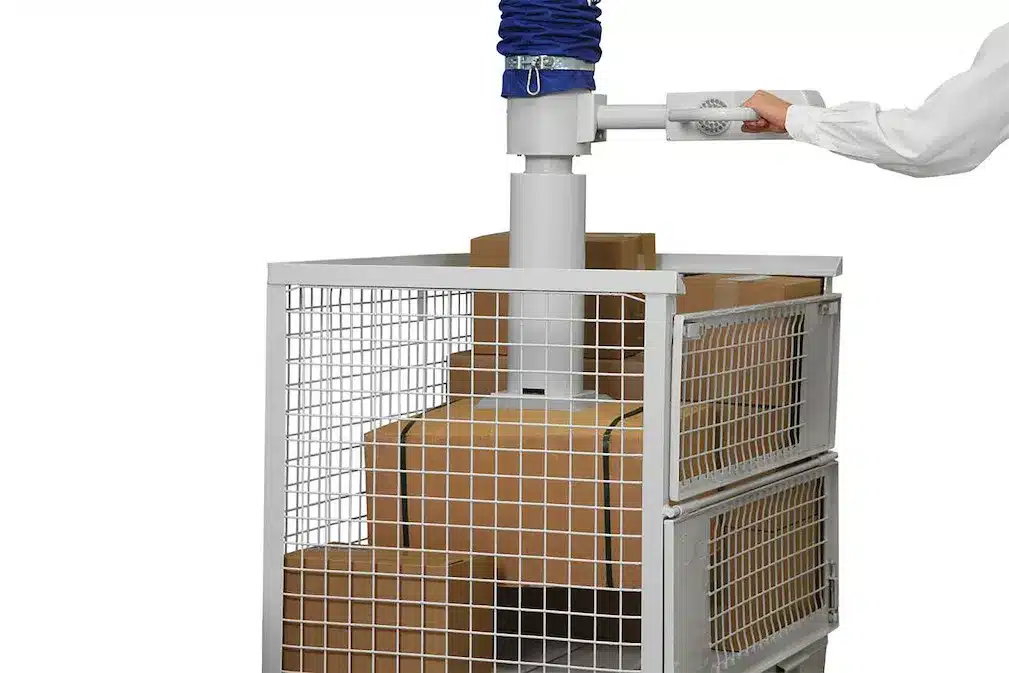

Reach into deep containers The hose-cylinder extension SZV enables ergonomic loading and unloading of containers such as lattice boxes.

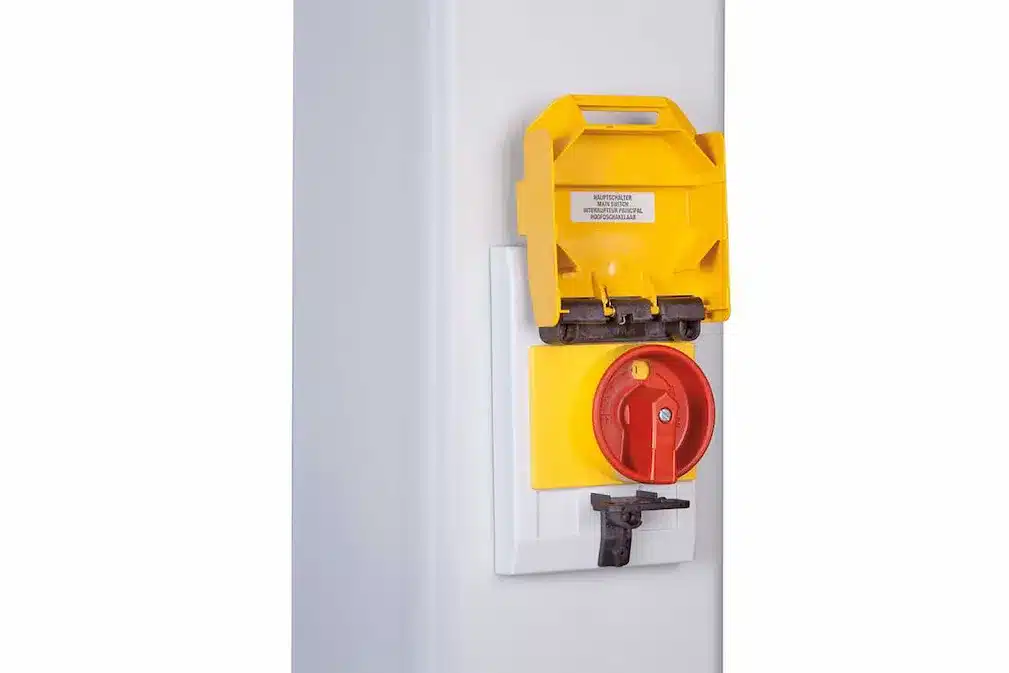

Protection against thermal overload With the motor-protection switch MSS the vacuum generator can be switched on/off and protected against overcurrent. It can be integrated into the Schmalz crane column without the need for complicated wiring and can be optionally locked.

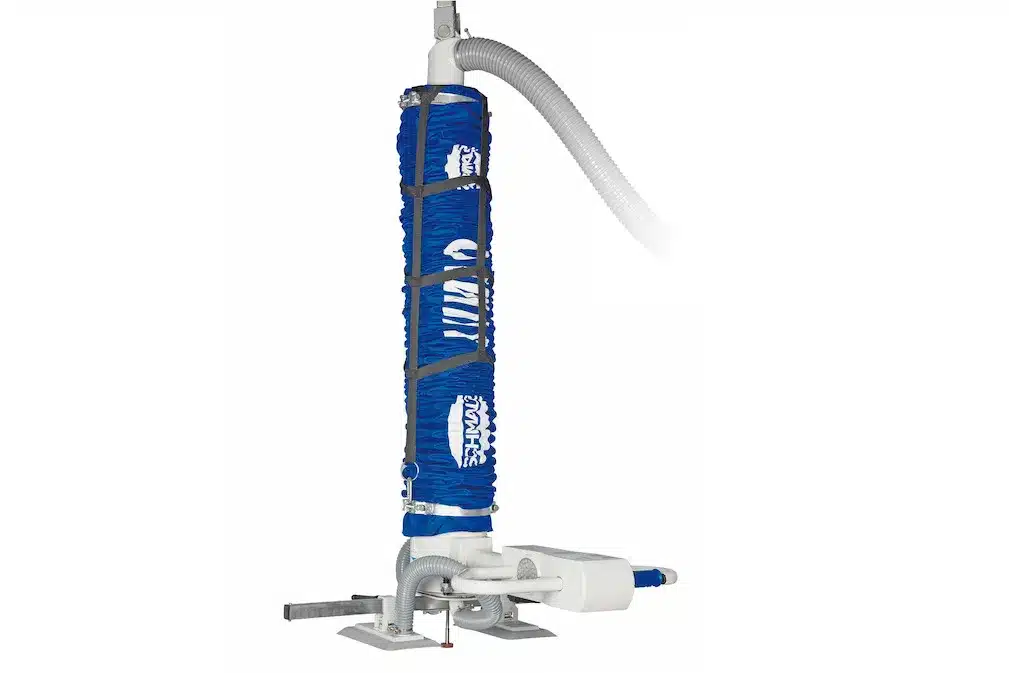

Protection against wear The protective tube prevents mechanical damage to the lift tube and is easy to clean. The retaining net protects the vacuum grippers and the lift tube when the tube lifter is not in use and allows for space-saving storage.

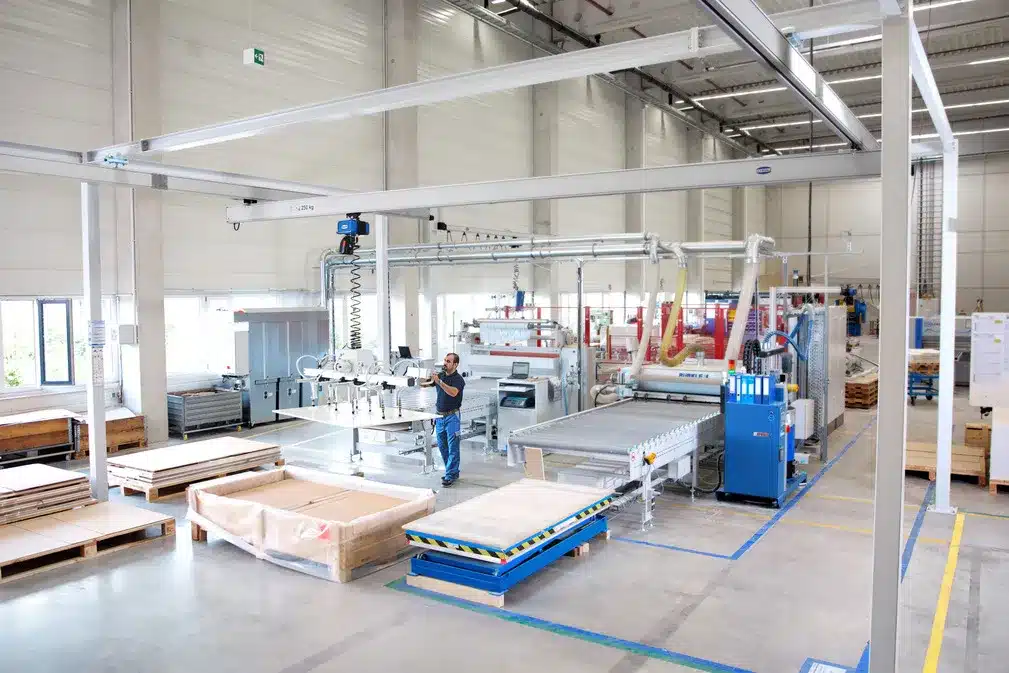

Modular crane system for flexible and cost-effective assembly of individual crane solutions
Installation on ceiling or portal construction
Particularly suitable for large workspaces
Lift capacity up to 1,200 kg

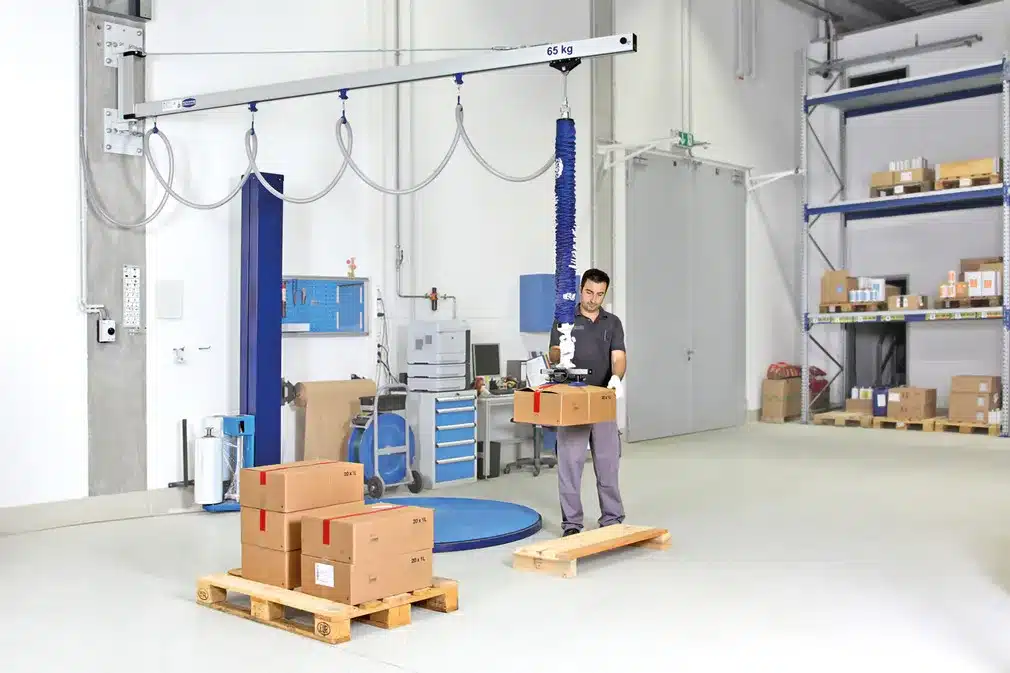

Mounted using a wall bracket or clasp bracket
Lift capacity up to 1,000 kg
Fitted with anchors for floor mounting
Lift capacity up to 1,000 kg
Optionally with mobile base plate (lift capacity up to 200 kg)
