Holder System for Profile with T-slot HP

The holders for standard slot profiles are suitable for connecting a wide range of Schmalz components. This also allows a flexible vacuum gripper to be set up.

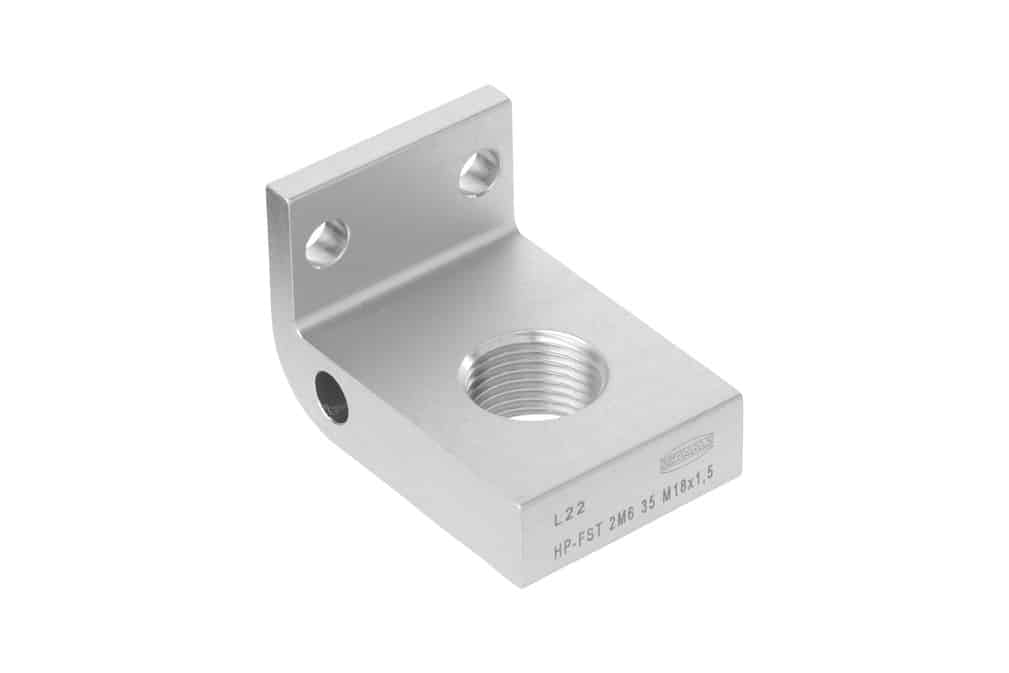

Holders for Spring Plungers HP-FST

Width 35 mm, mounting for spring plungers with mounting threads of M18x1.5 and M20x1.5
Material: Aluminum
Connection to profile with double sliding blocks M6

Holders for Sensors HP-SE

Width 30 mm, mounting for sensors with diameters from 12 to 18 mm
Material: Aluminum
Connection to profile with single slot nut M6

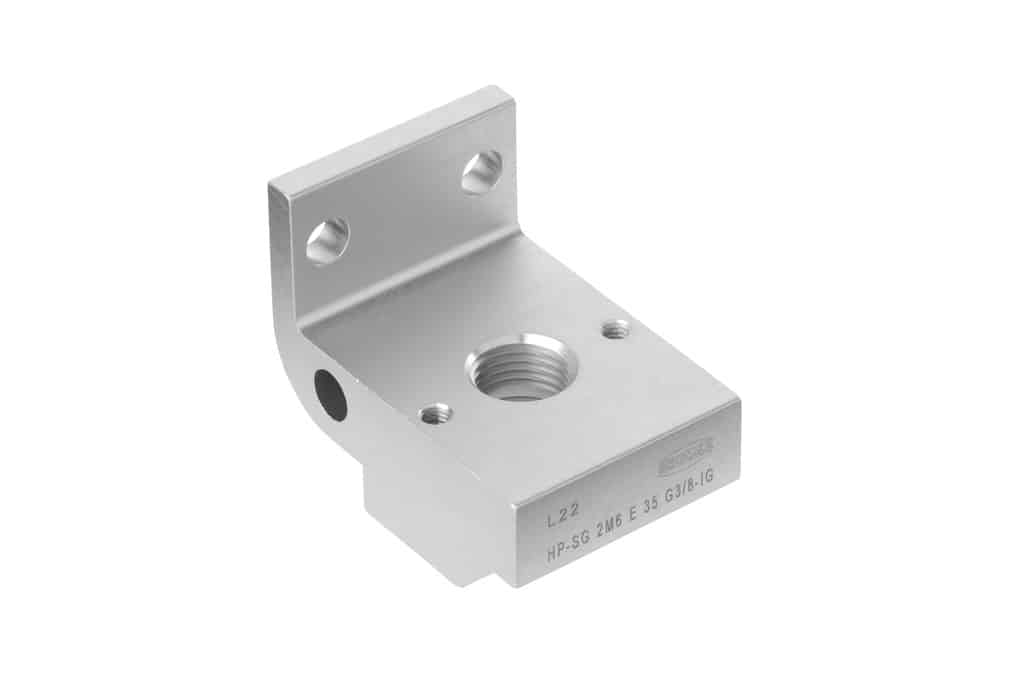

Holders for Suction Cups HP-SG

Width 35 mm, mounting for vacuum suction cups with connections G1/4" and G3/4", internal and external threads
Material: Aluminum
Connection to profile with double sliding blocks M6

Holder System for Magnetic Gripper HPS-SGM

Suitable for SGM-20 to SGM-70, design SGM and SGM-HP
Material: Aluminum
Connection to profile with double sliding blocks M6 and M8

Holders for Needle Grippers HPS-SNG

Suitable for needle grippers type SNG-AP and SNGi-AE
Material: Aluminum
Connection to profile with double sliding blocks M6

Holder system for Holder with Ball Head HP-HT

Width 56 mm, mounting for ball head 28.5 mm
Material: Aluminum
Connection to profile with double sliding blocks M6
