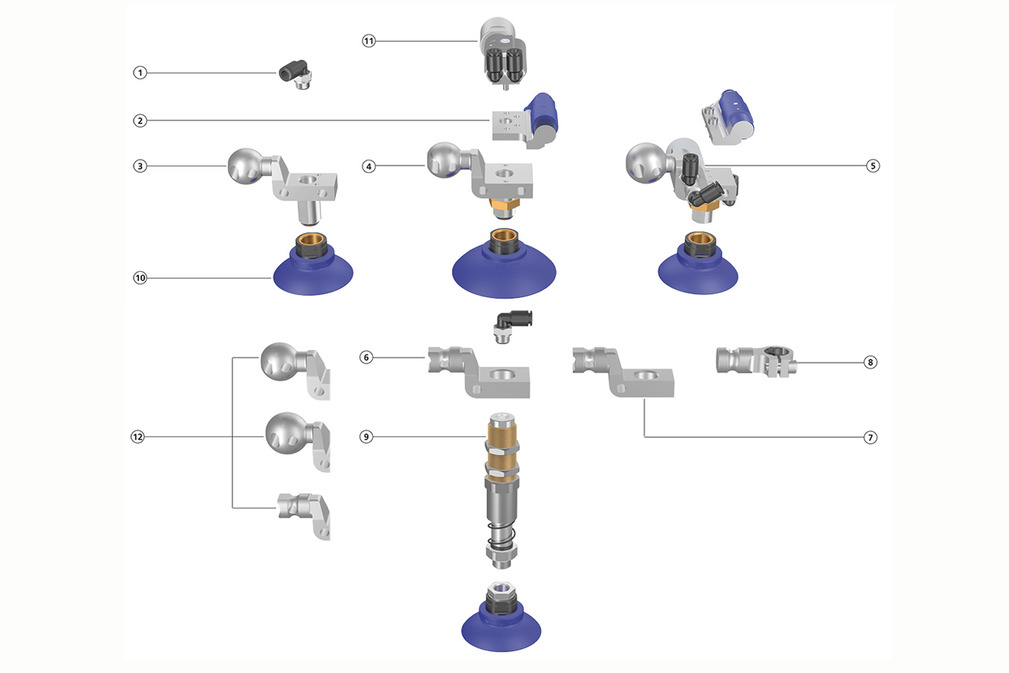

(1) Plug-in screw unions for vacuum hoses and compressed air hoses
(2) Vacuum switch VSi-HD with matching holder
(3) Holder for suction cup HT-SG… in slim design
(4) Holder for suction cup HT-SG…E… for decentralized vacuum generators SEAC (mounted on top)
(5) Holder for suction cup HT-SG…I with integrated vacuum nozzle
(6) Holder for spring plunger HT-FST…
(7) Holder for sensor HT-SE…
(8) Holder for sensor HT-SE-U… Universal holder for sensors diameter 12 mm and 18 mm
(9) Spring plungers e.g. FSTE-HDB
(10) Suction cups e.g. SAX
(11) Decentralized vacuum generators e.g. SEAC
(12) Connection to tooling beams
for holder types HT-SG…, HT-FST…, HT-SE…
A3 – Ball diameter 28.5 mm
A5 – Ball diameter 32 mm
A2 – “Apple-core” pin diameter 19 mm
The modular HT system provides two different holder solutions to suit differing requirements.
For custom configurations, please contact your system consultant for vacuum automation.
Selected parts of the following product families (selection) may be used in connection with the holder system HT.
| Type | Vacuum generation options | Combination options | |||
|---|---|---|---|---|---|
| Vacuum suction cup | Spring plunger | Vacuum switch | Screw union | ||
| HT-SG | Central with compact ejector or vacuum pump | ✓ | – | – | ✓ |
| HT-SG E | Decentralized with Schmalz ejector SEAC 10 | ✓ | – | ✓ | ✓ |
| HT-SG I | Decentralized with integrated vacuum nozzle | ✓ | – | ✓ | ✓ |
| HT-FST | Central with compact ejector or vacuum pump | ✓ | ✓ | – | ✓ |
| HT-SE | – | – | – | – | – |

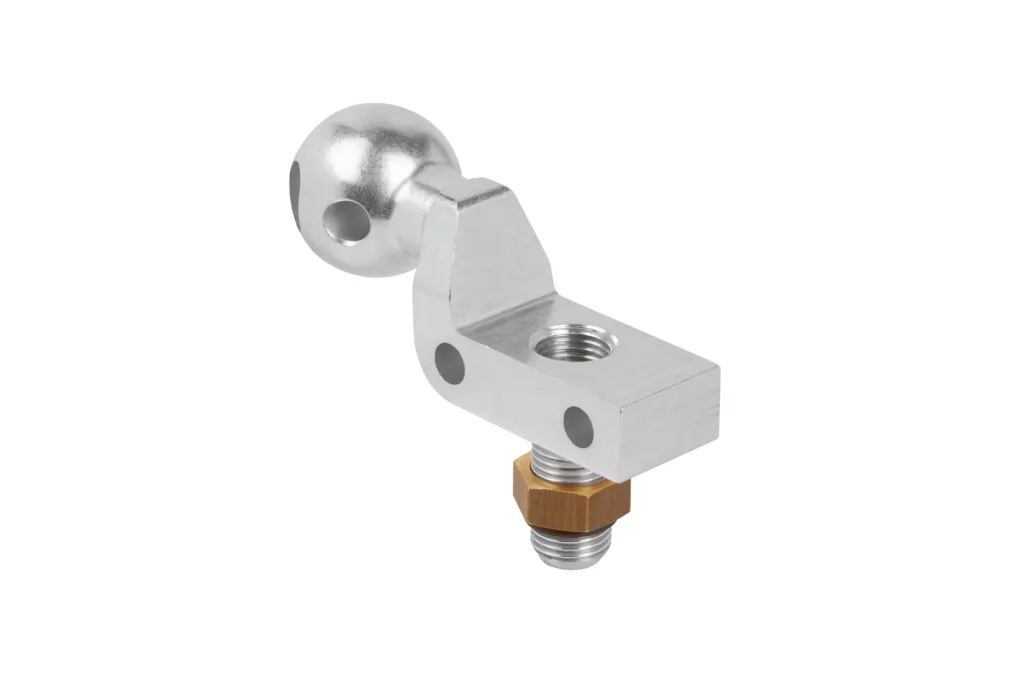

Mounts for vacuum suction cups with connections for G, NPT and M threads and right-angled adapters
Mounts for vacuum suction cups with connections for G, NPT and M threads and right-angled adapters

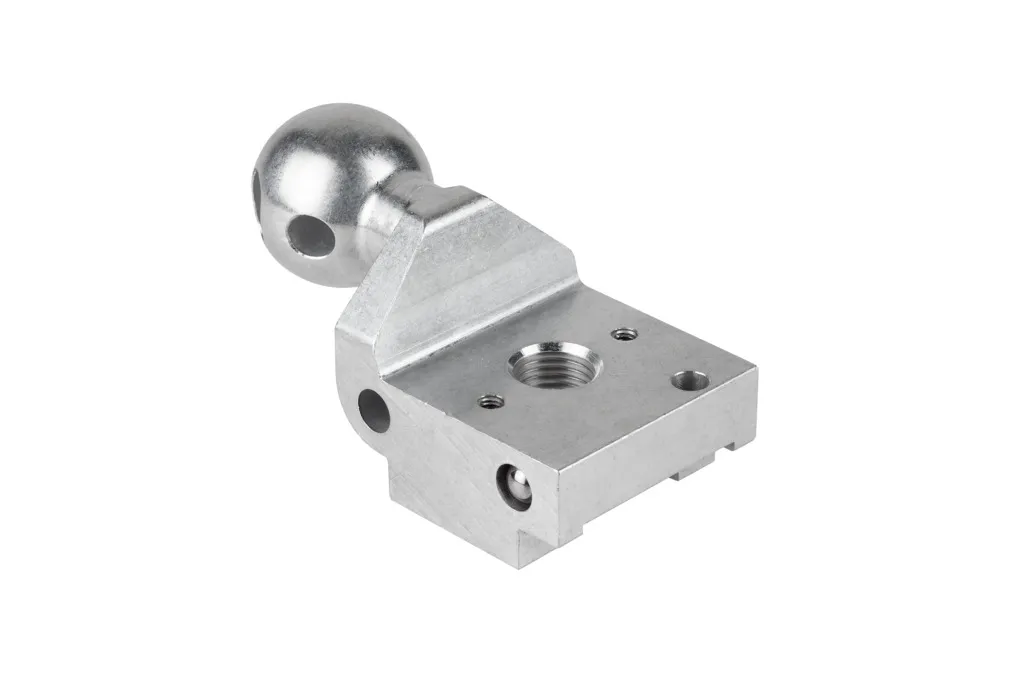

Mountings for decentralized vacuum generators
Mounts for vacuum suction cups with connections for G, NPT and M threads and right-angled adapters

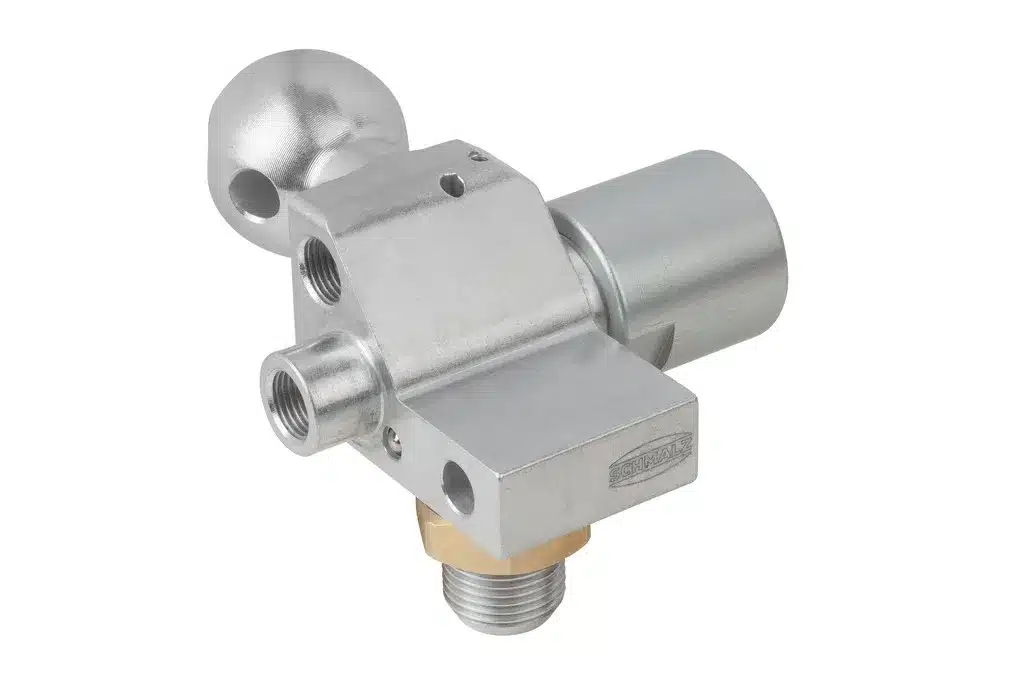

Holders for vacuum nozzles integrated in the holder

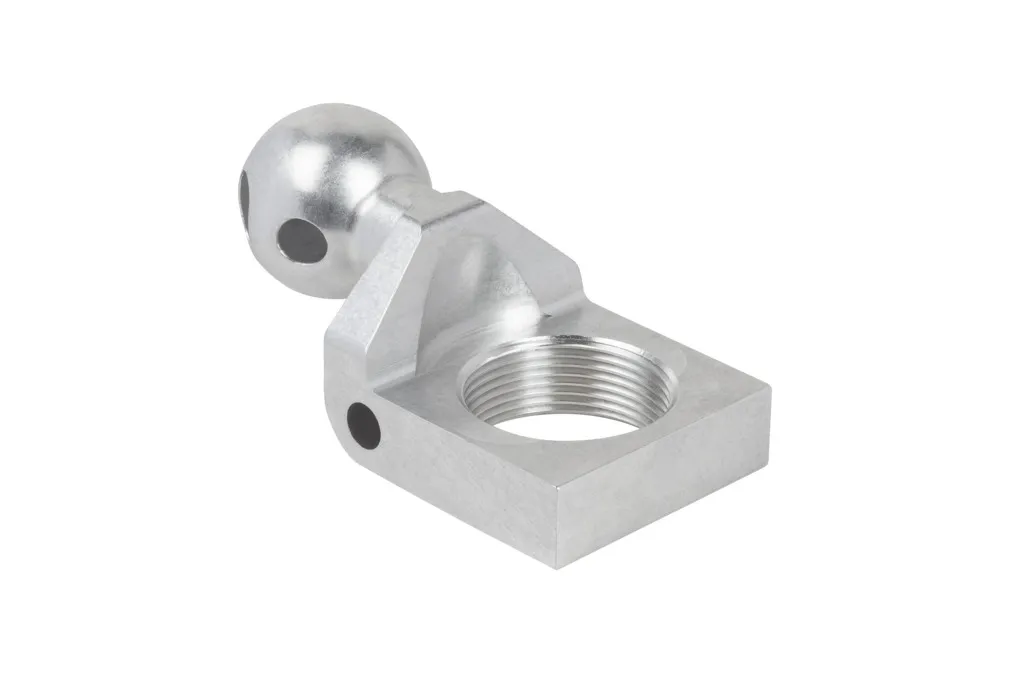

Mounts for spring plungers with mounting threads M18 x 1.5 to M30 x 1.5

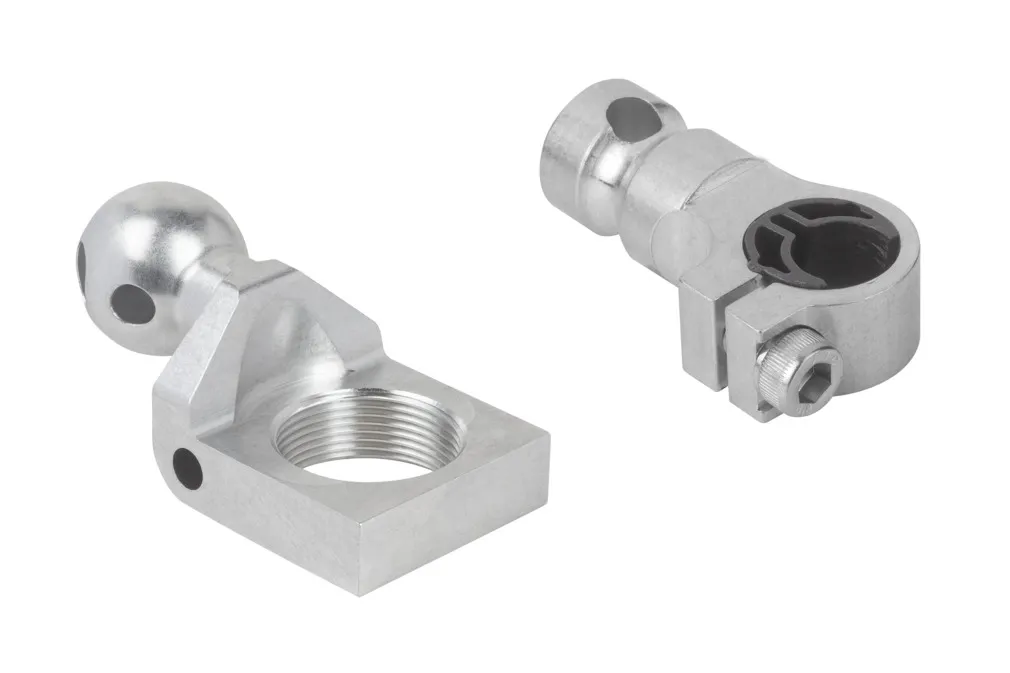

Mounts for sensors with diameters of 12 to 30 mm
