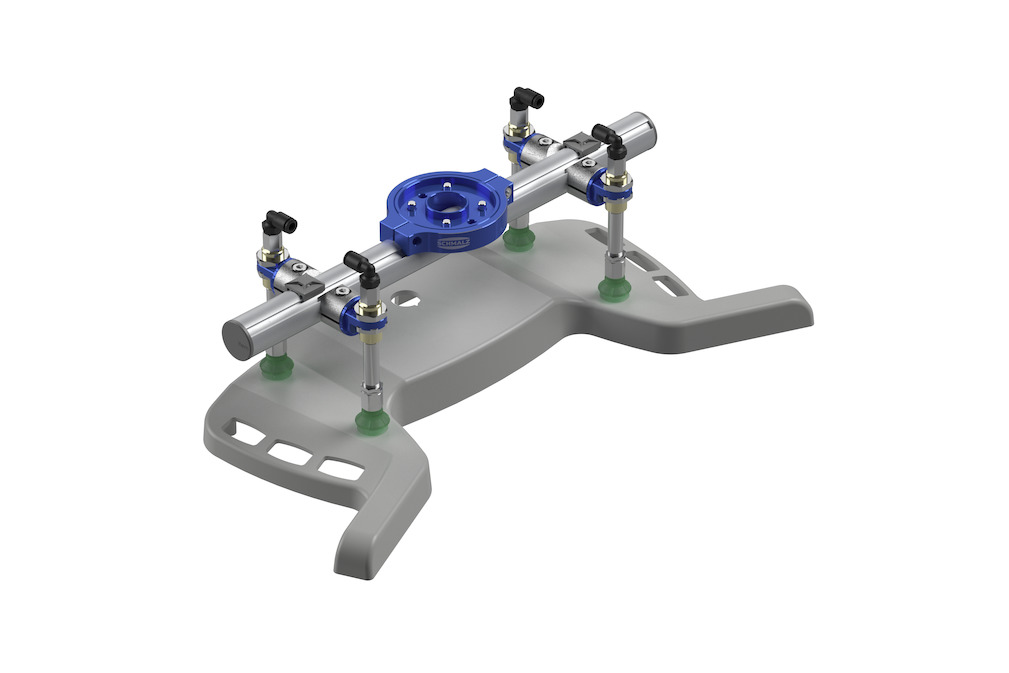

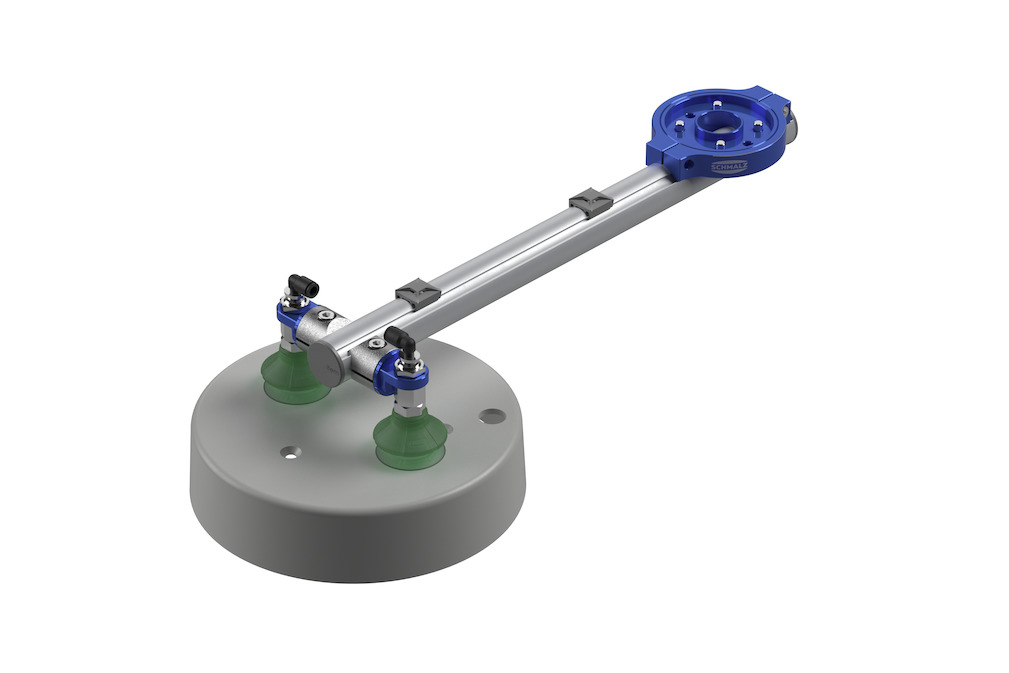

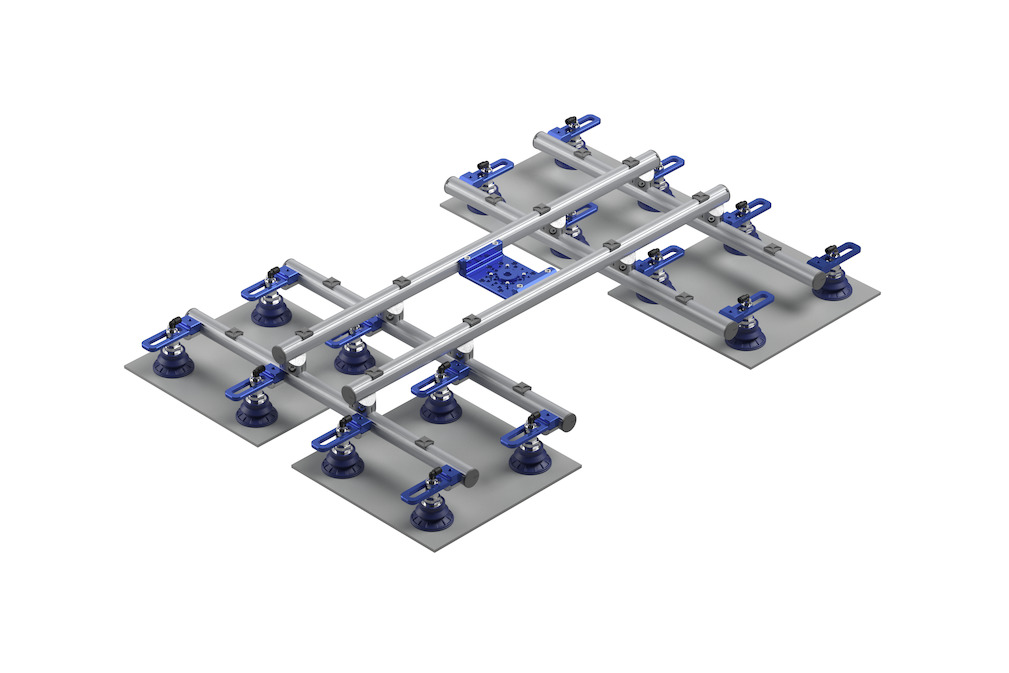

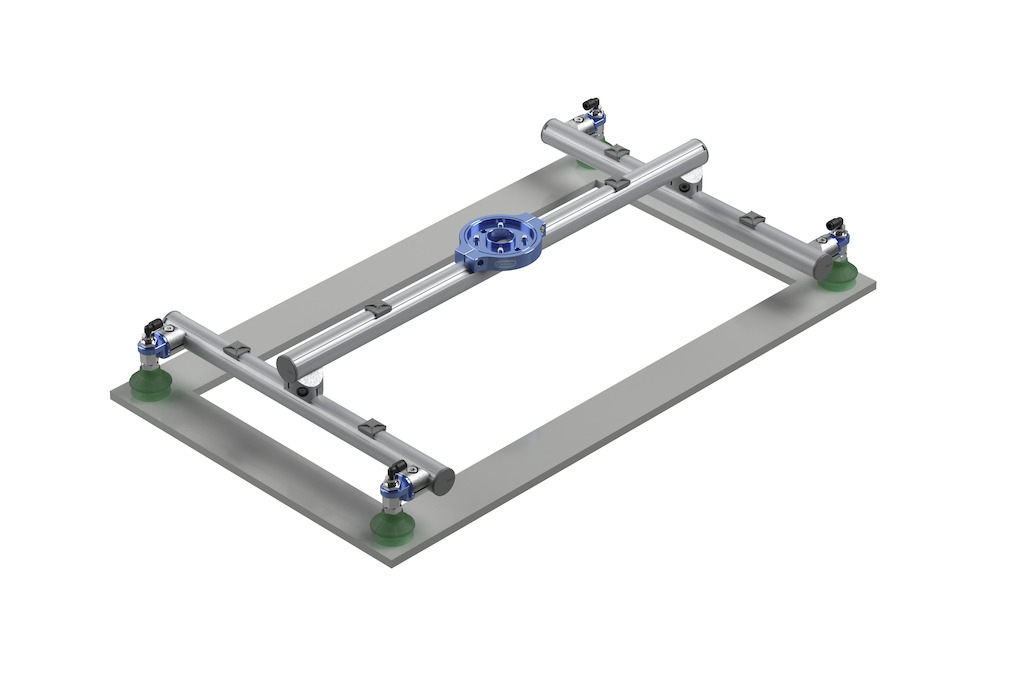

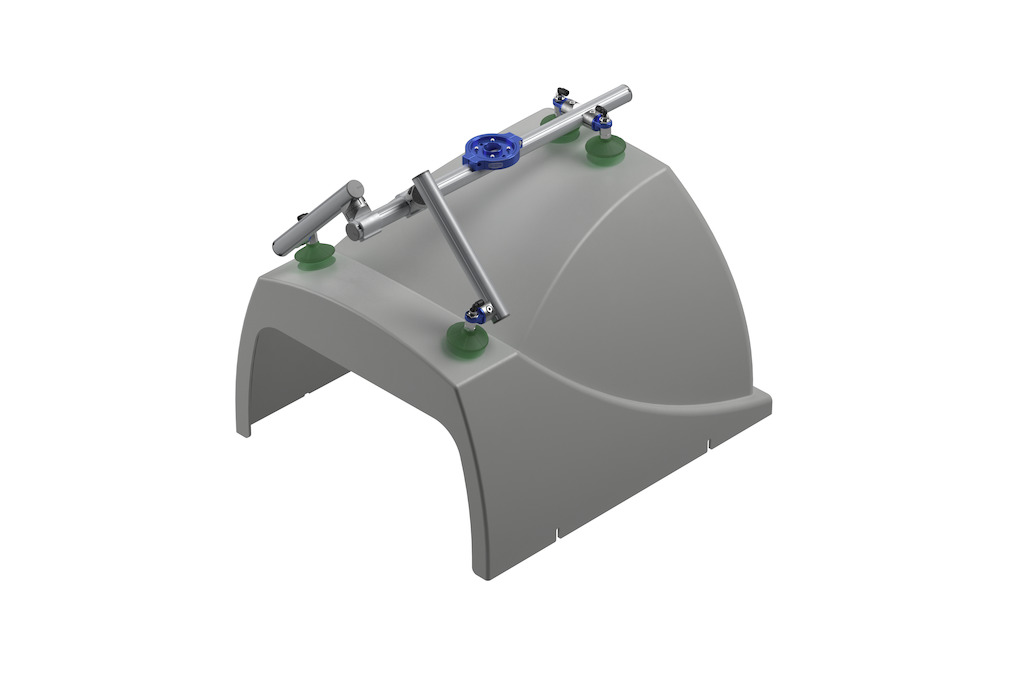

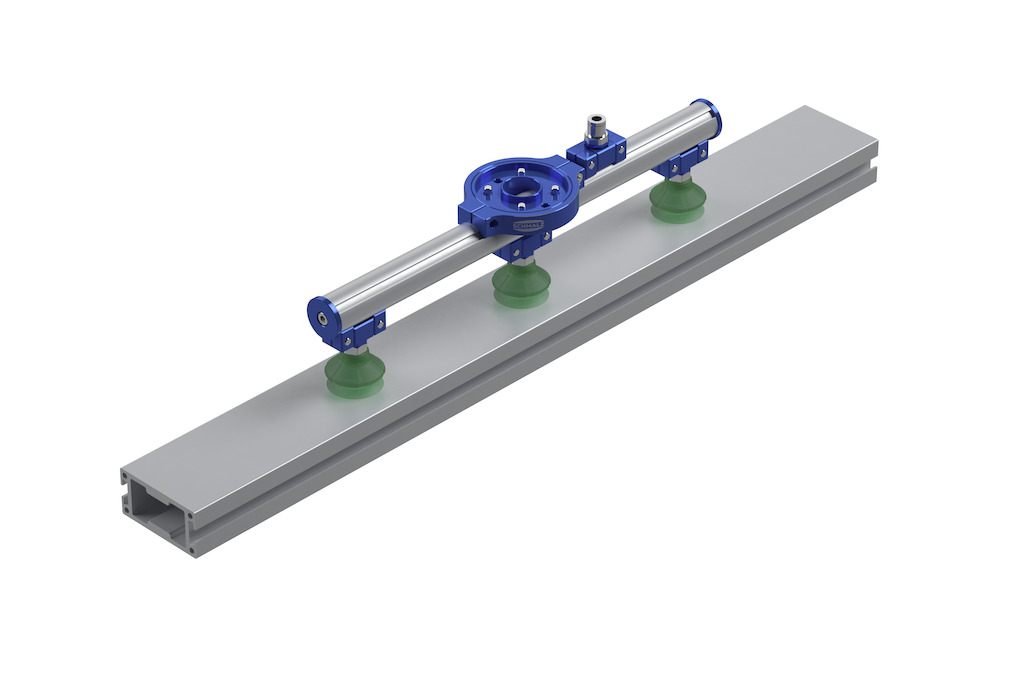

Modular Gripper System PXT

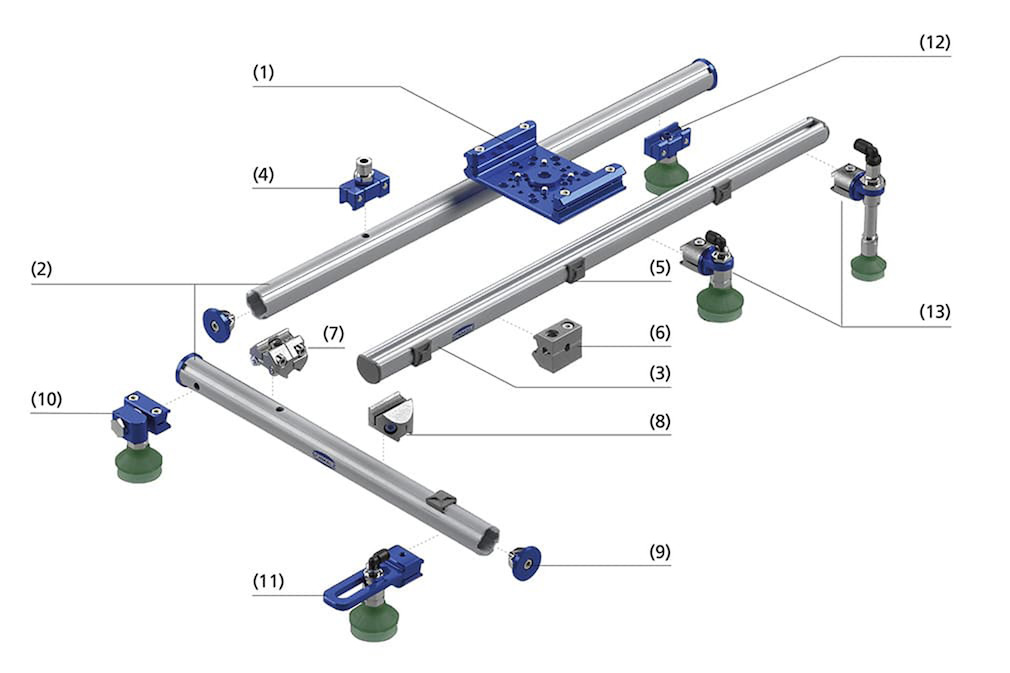

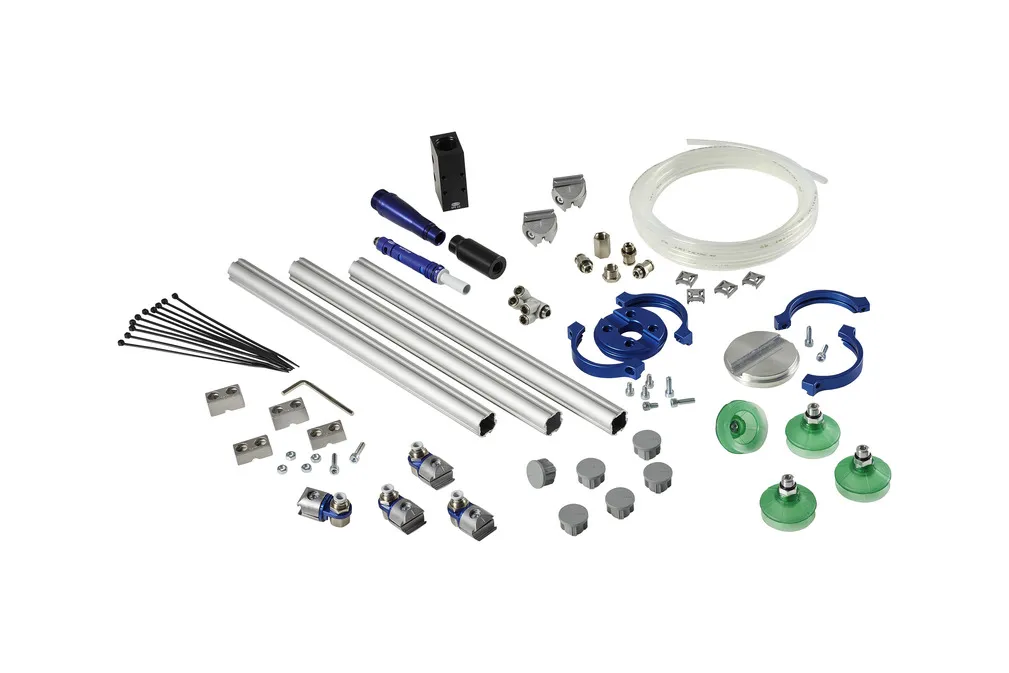

IMG 1:

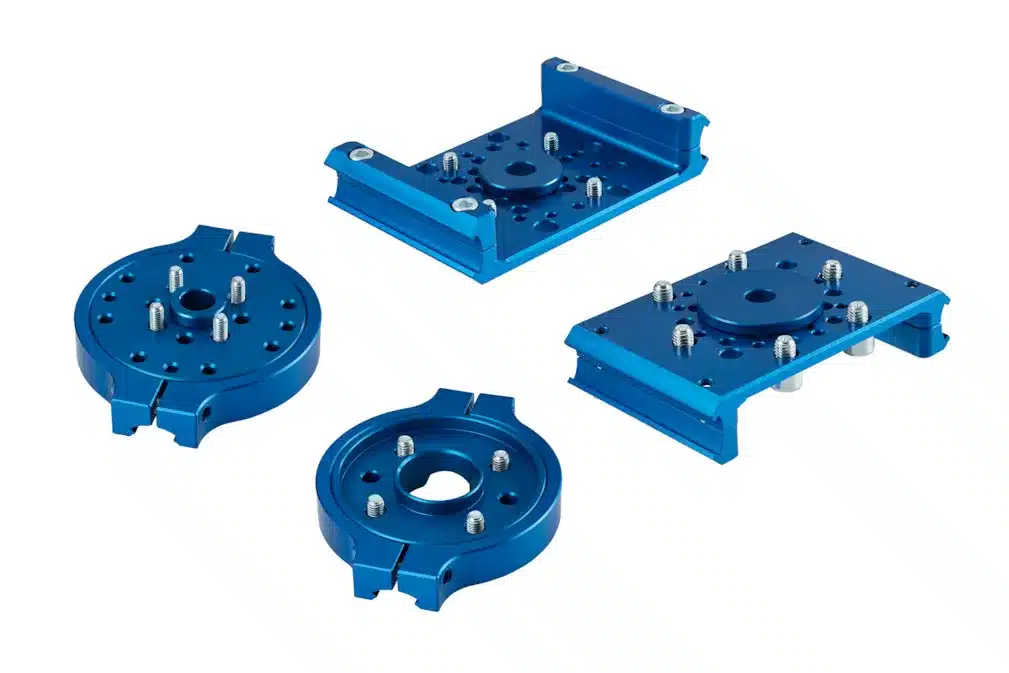

• Multi-flange (1) with connections for six types of robots

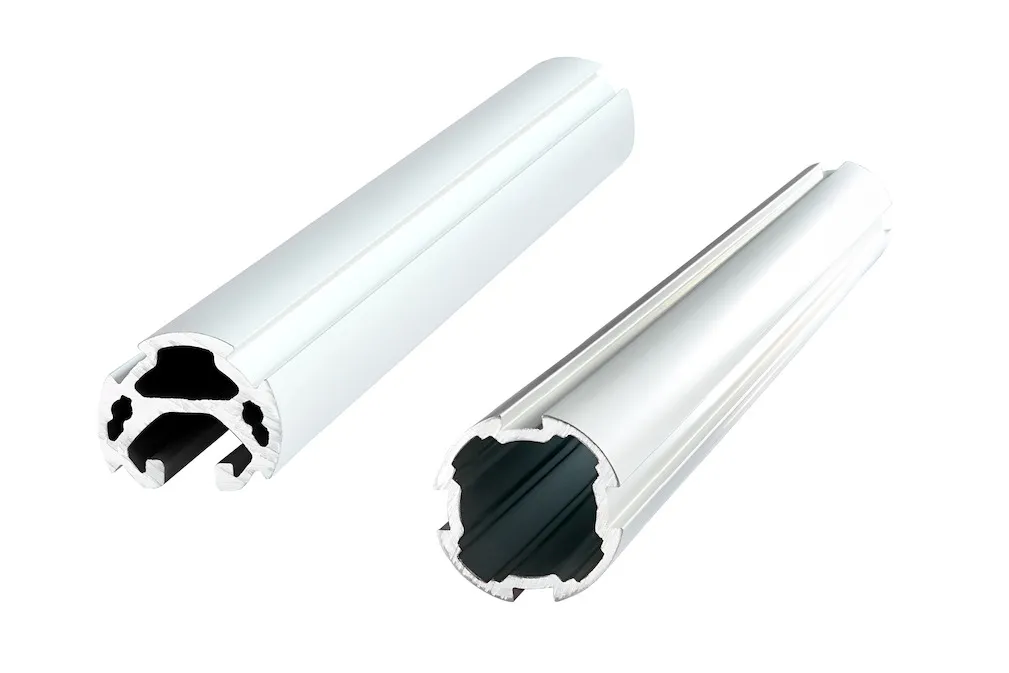

• Standard section (2)
• Section with groove (3) for sliding blocks

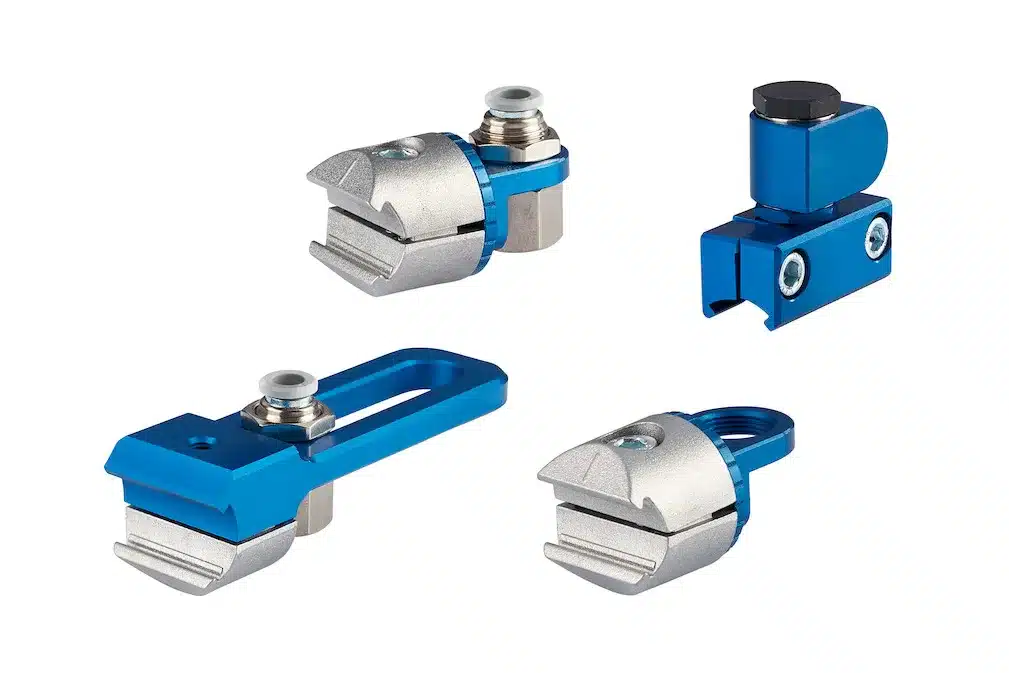

• Connection element (4) for internal vacuum line and plug-in screw union
• Universal holder (5) for attaching hoses and cables with cable tie
• Multi-connection block (6) for connecting various components with M6 screws

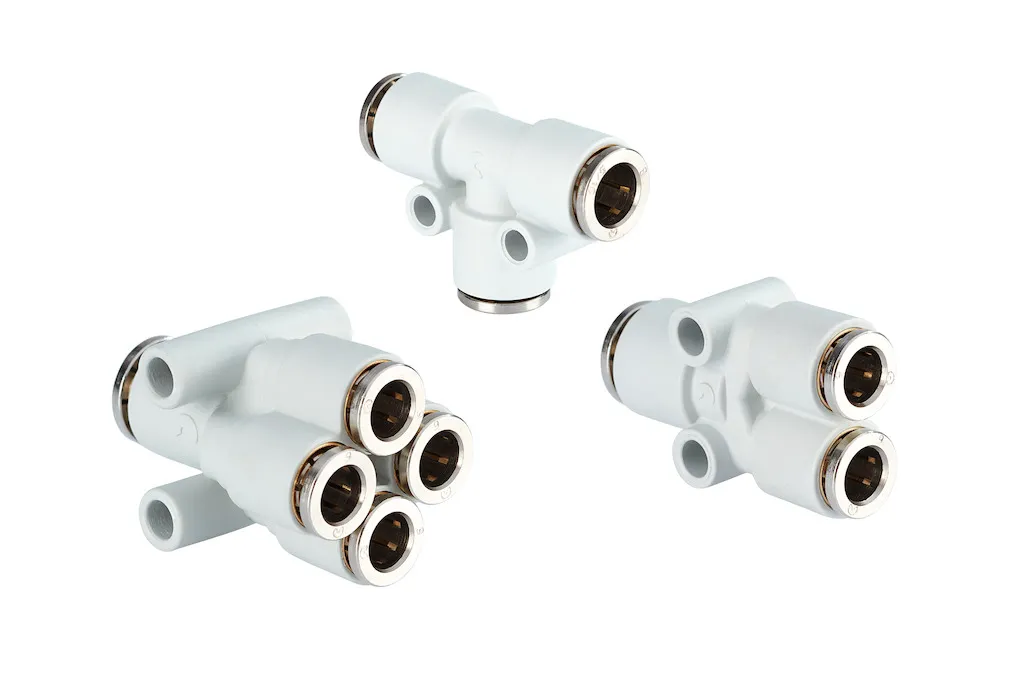

• Fluid cross connector (7)
• Single cross connector (8), height suitable for fluid cross connector
• Sealing end covers (9) for evacuating standard sections
• Connection element for internal vacuum line (10) with swiveling 1/4″ suction cup connection
• Sliding suction cup connection (11), height suitable for connections without spring plunger
• Connection element for internal vacuum line (12) with 1/4″ suction cup
• Suction cup connection (13) with/without spring plunger

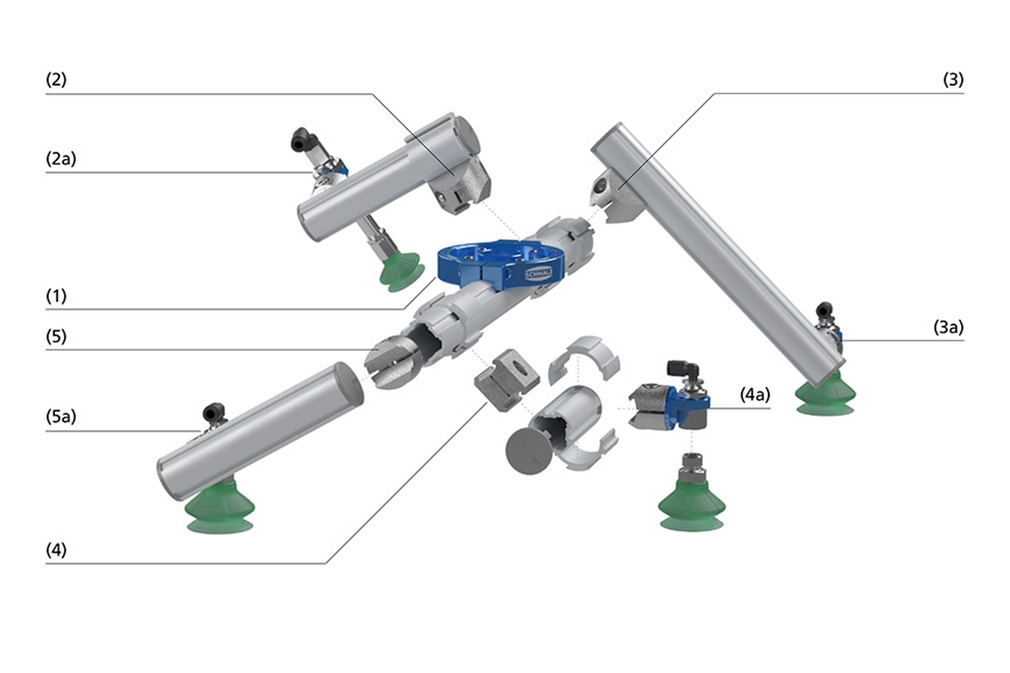

IMG 2:

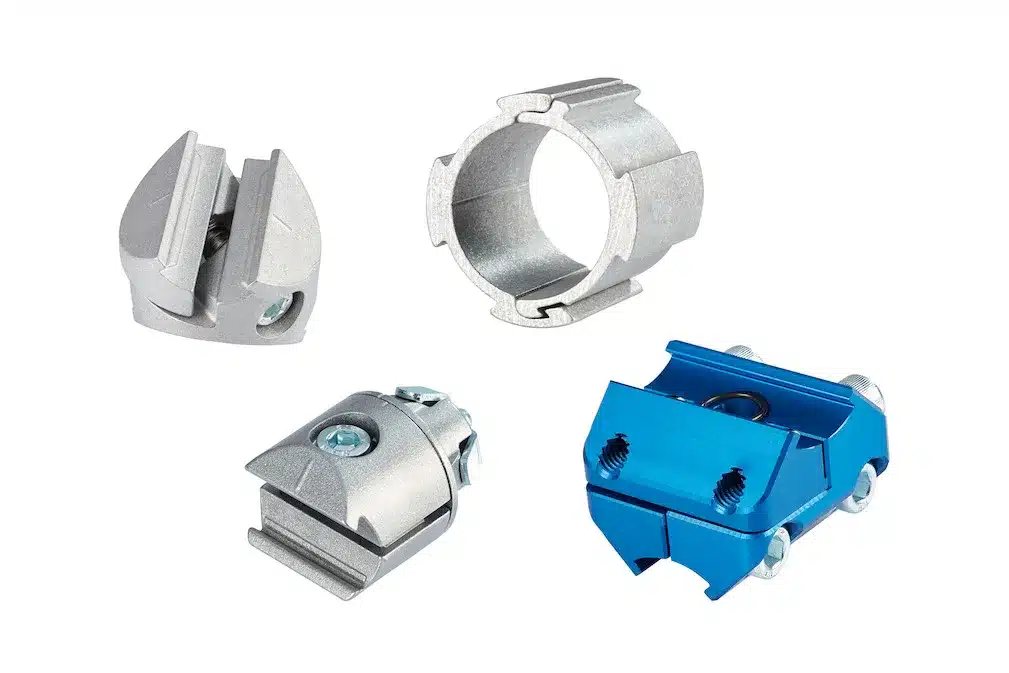

• Flange (1) for connecting a longitudinal crosshead
• Double rotation of the crosshead via two 3D clamps and a cross connector (2) as well as swiveling spring plunger connection (2a)
• Single rotation of the crosshead via 3D clamp and cross connector (3) as well as swiveling suction cup connection (3a)
• Parallel displacement of the suction cup via two 3D clamps and a parallel connector (4) as well as swiveling suction cup connection to the 3D clamp (4a)
• Simple rotation of the crosshead via an internal connector (5) and swiveling suction cup connection (5a)
