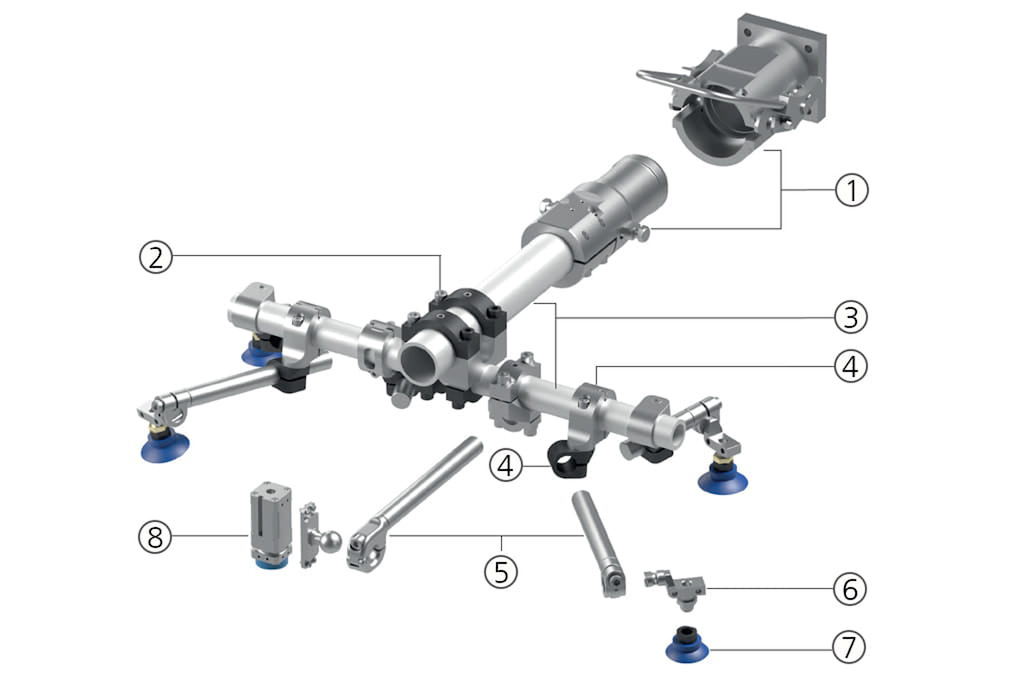

(1) Quick-change robot bayonet SXT-QC-CON – With or without compressed air feedthrough
(2) Clamp SXT-CL – Cross clamps and parallel clamps
(3) Tube SXT-RT – Diameter 25 mm to 60 mm

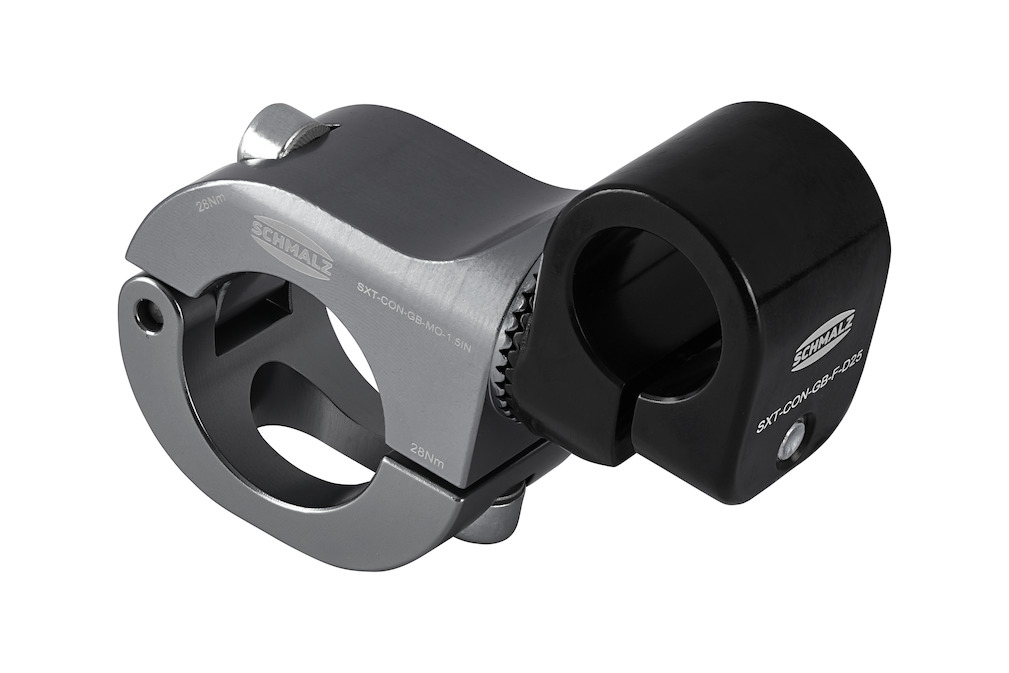

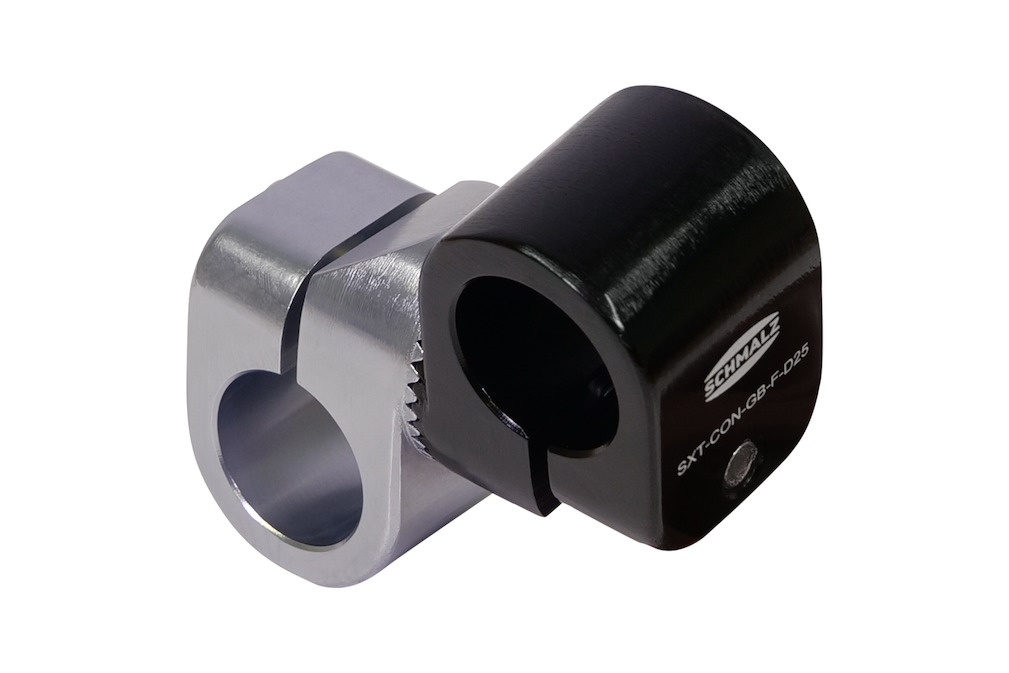

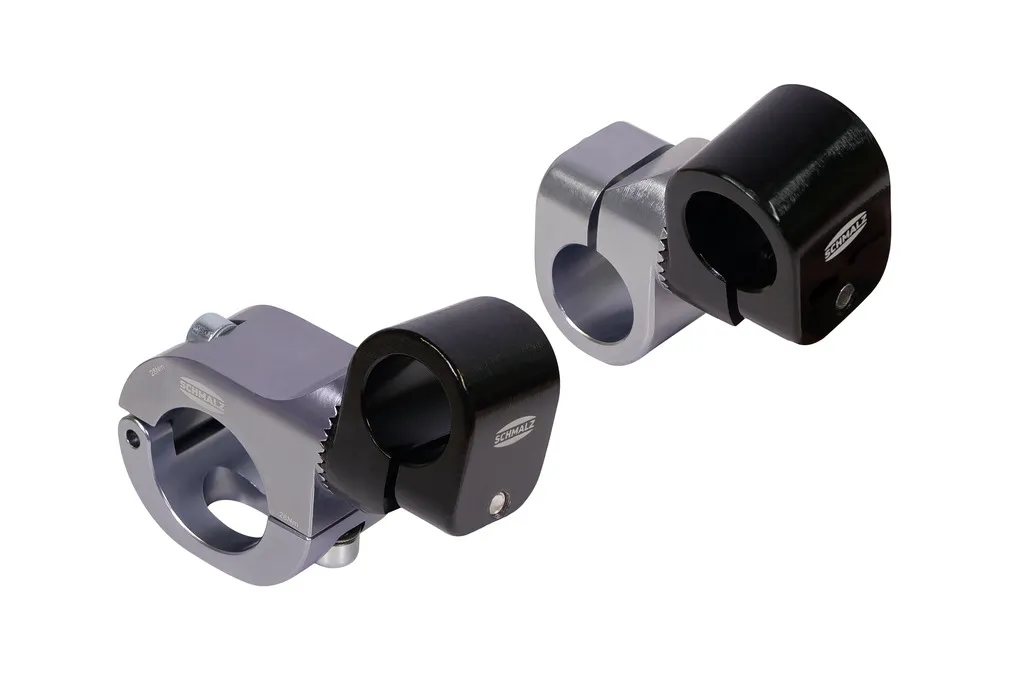

(4) Connection (geared) SXT-CON-GB – Gearing with 10° graduation
(5) Clamp with extension SXT-CL-EXT – Extension from 100 mm to 510 mm
(6) Holder system HT – For suction cups, spring plungers and sensors
(7) Suction cups – e.g. SAX
(8) Magnetic grippers – e.g. SGM-HP
Not illustrated:

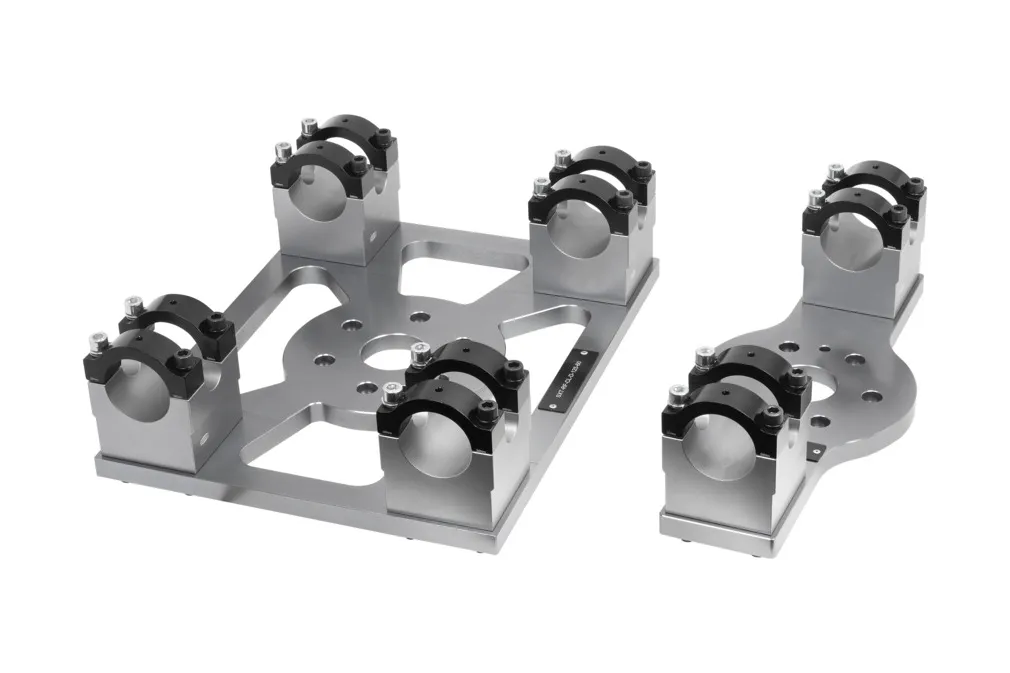

Robot Flanges SXT-RF-CL

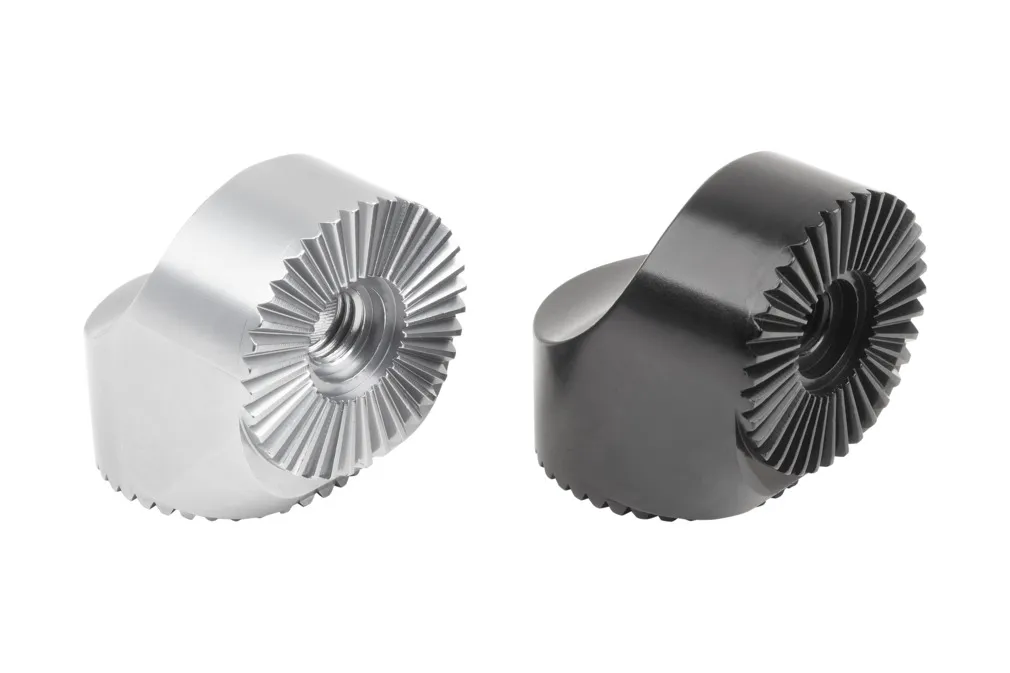

Elbow connectors (geared) SXT-ANG
Extensions (geared) SXT-EXT

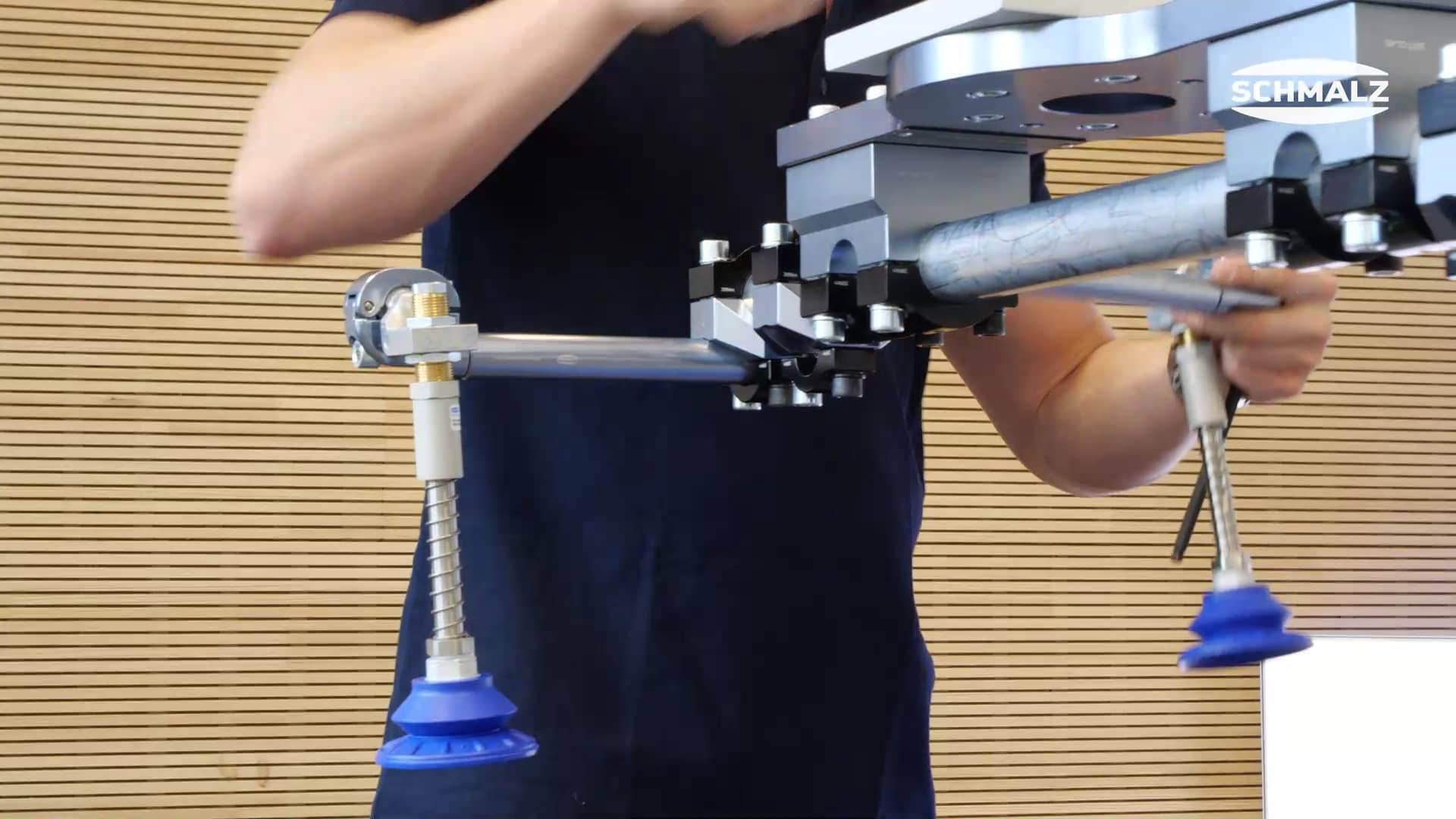

The Schmalz Tooling System SXT offers various configuration options. In addition to the individual components, complete assemblies in customer specific designs are also available.
.jpg)

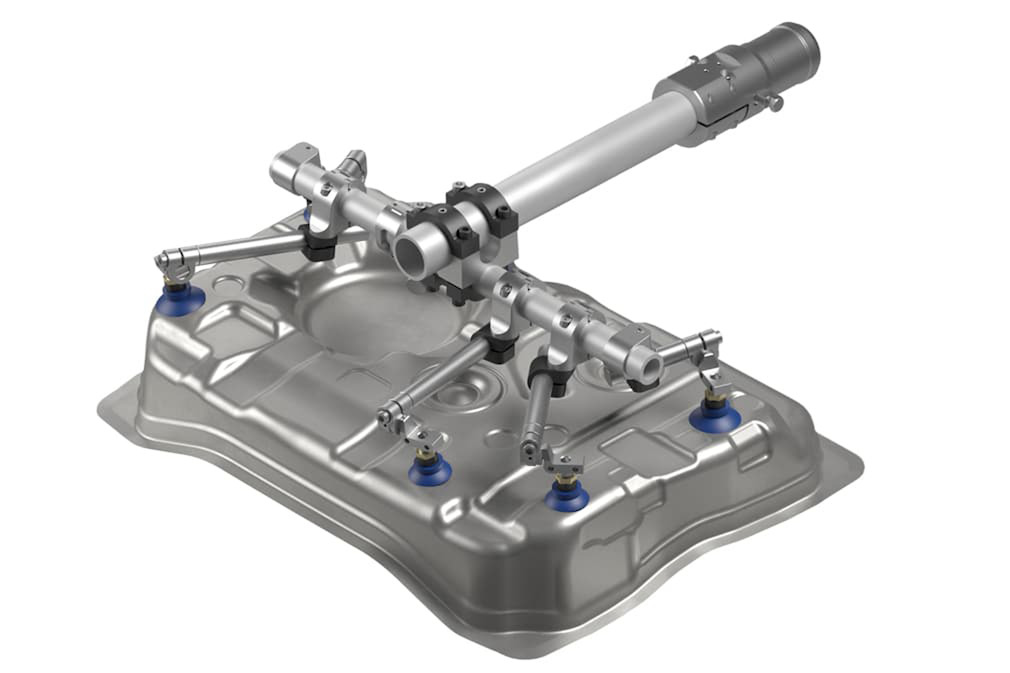

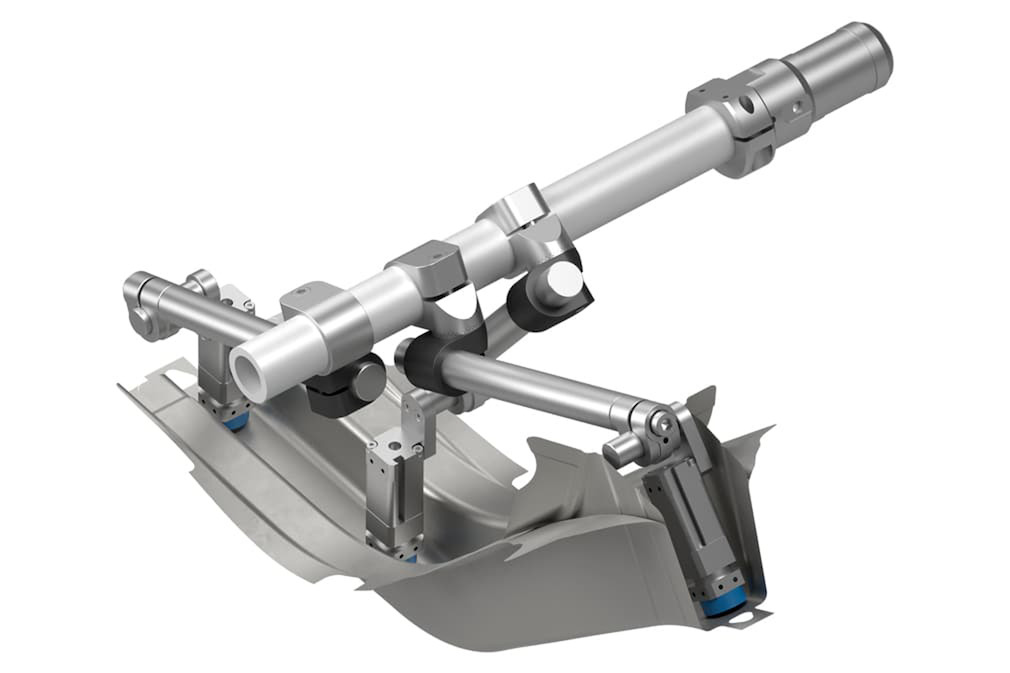

Schmalz Tooling SXT with suction cups SAX for handling formed body parts
.jpg)

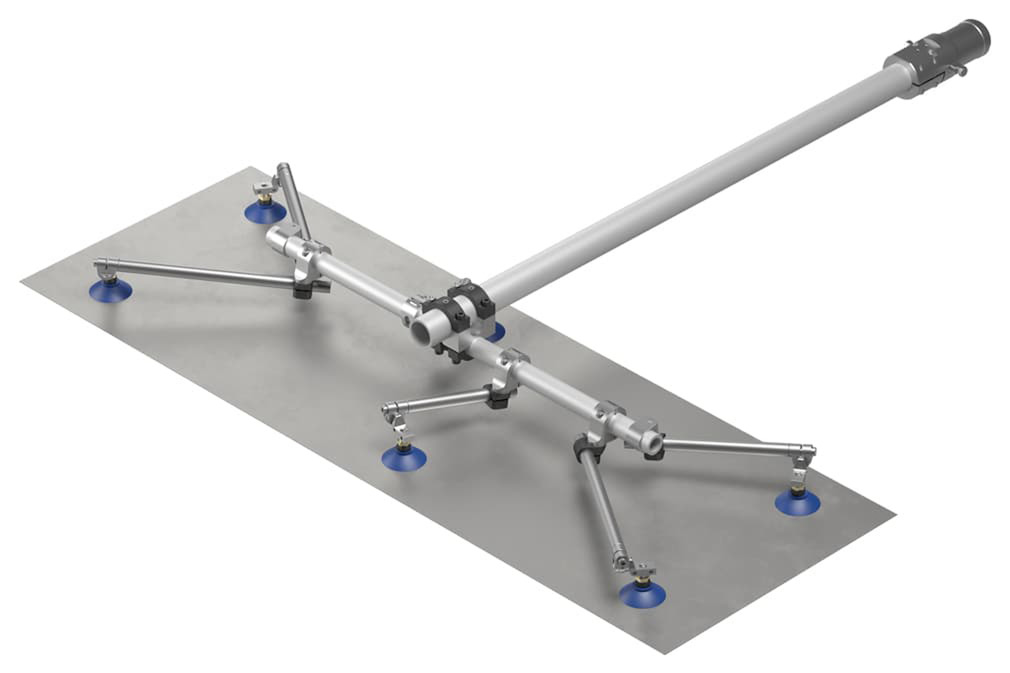

Schmalz Tooling SXT with suction cups SAX for handling sheet metal plates
.jpg)
Schmalz Tooling SXT with magnetic grippers SGM-HP for handling structural parts
.jpg)

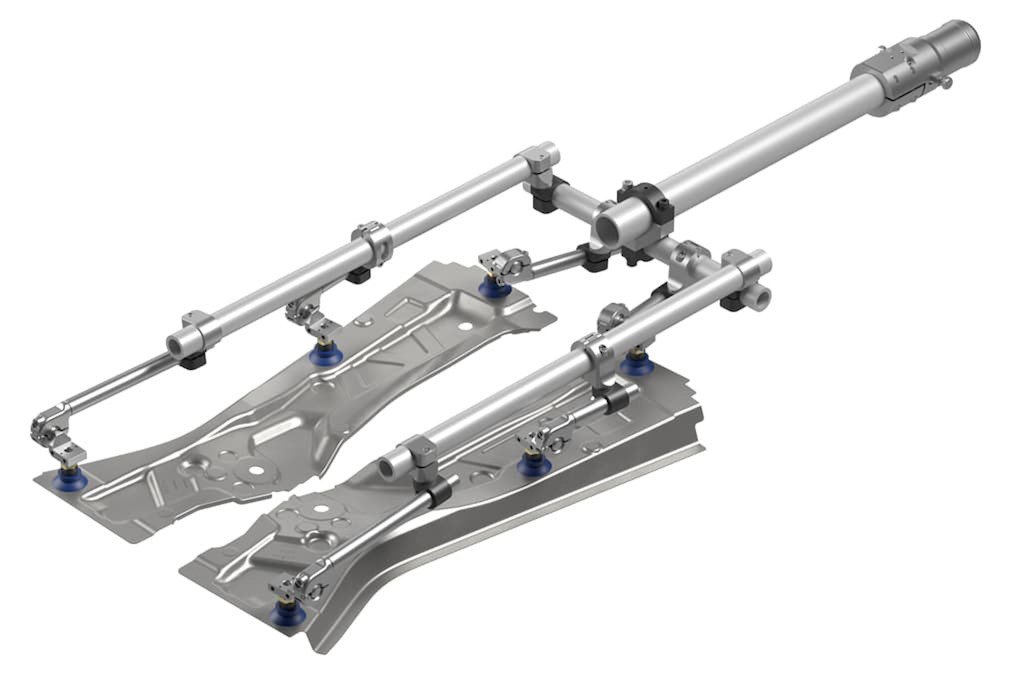

Schmalz Tooling SXT for simultaneous handling of two symmetrical body parts
Slide-on and clamp-on tube clamps
Slide-on tube clamps
.jpg)

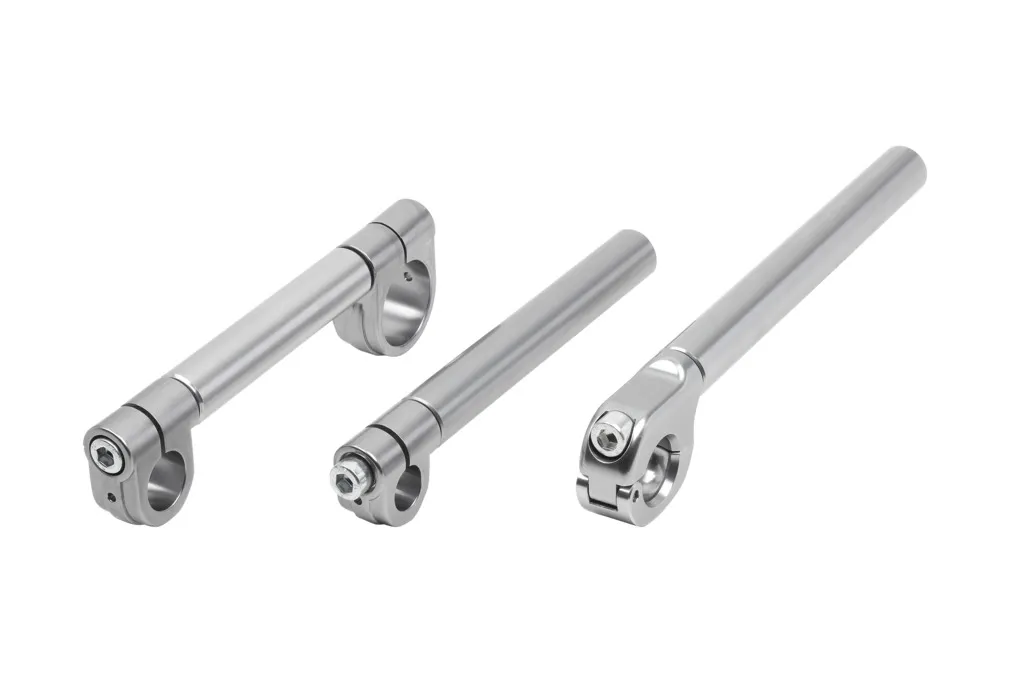

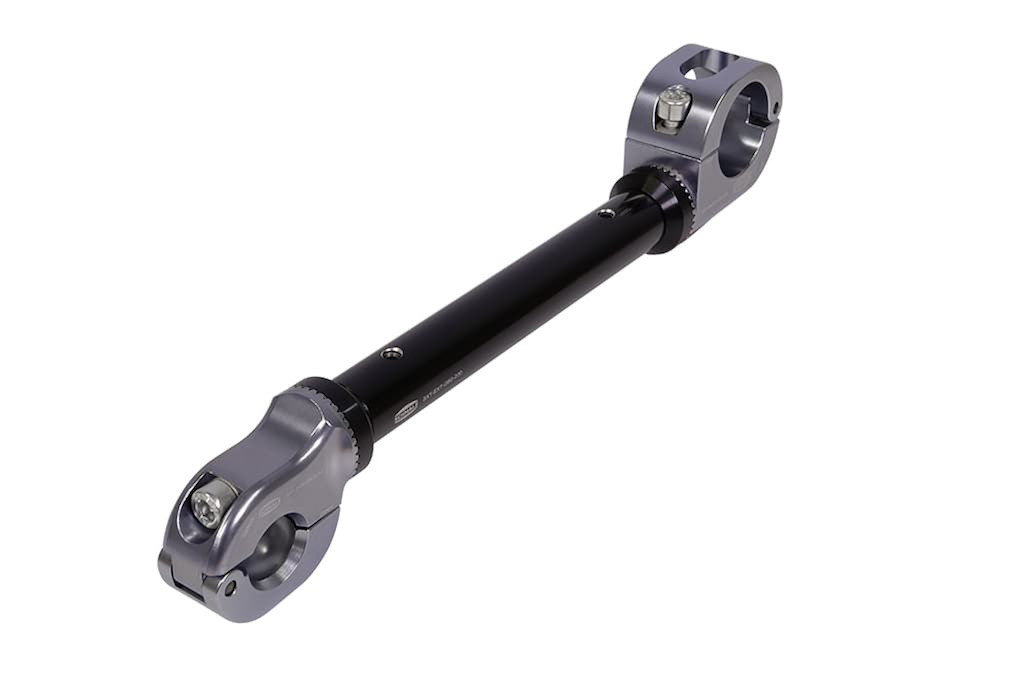

Tube clamps with extension
.jpg)

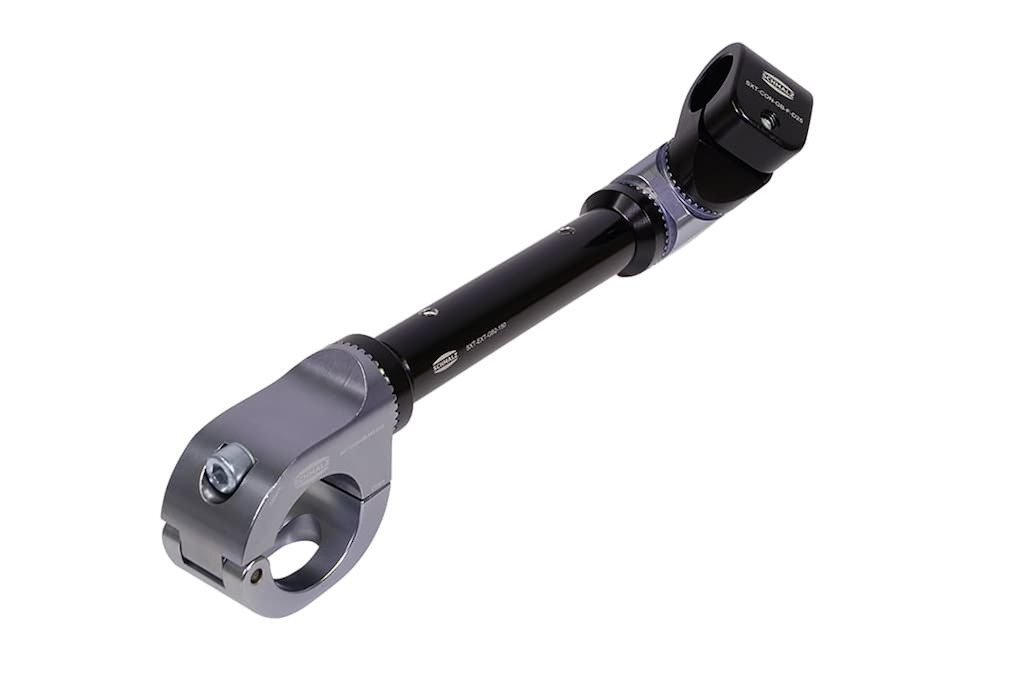

Clamp-on tube clamp and ball clamp with extension
.jpg)

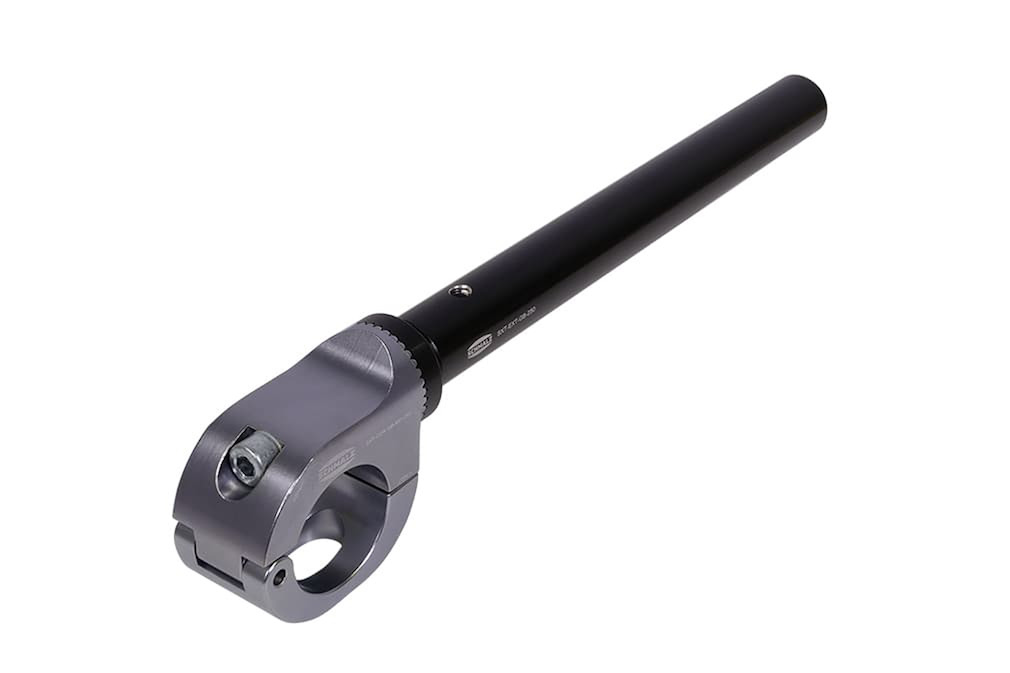

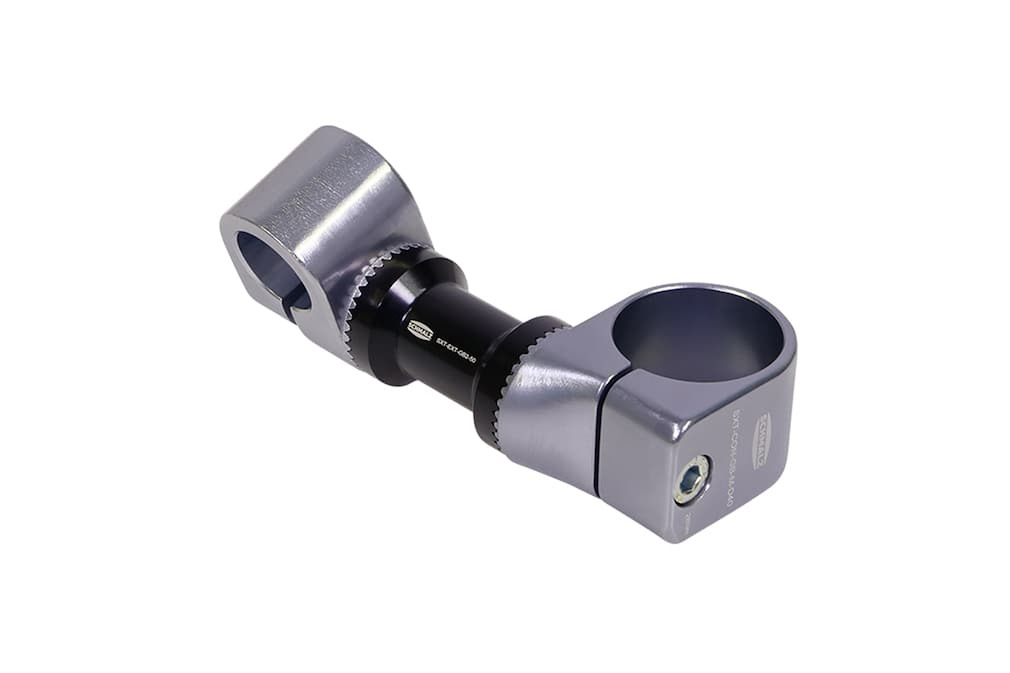

Clamp-on tube clamp with extension
.jpg)

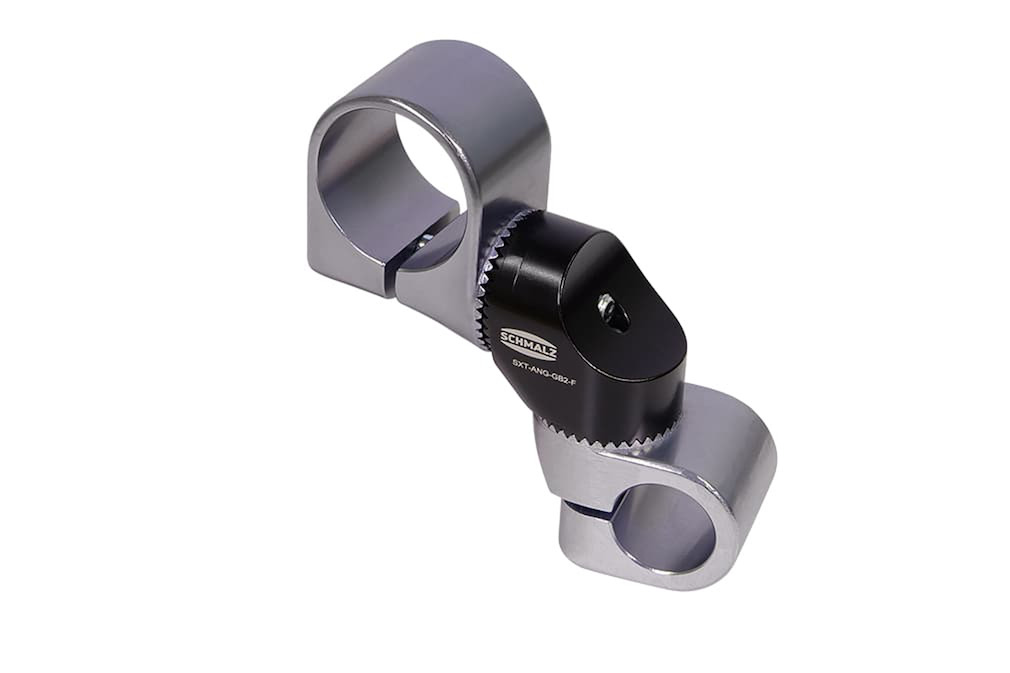

Slide-on tube clamps with angle
.jpg)
Slide-on tube clamps with angle
.jpg)

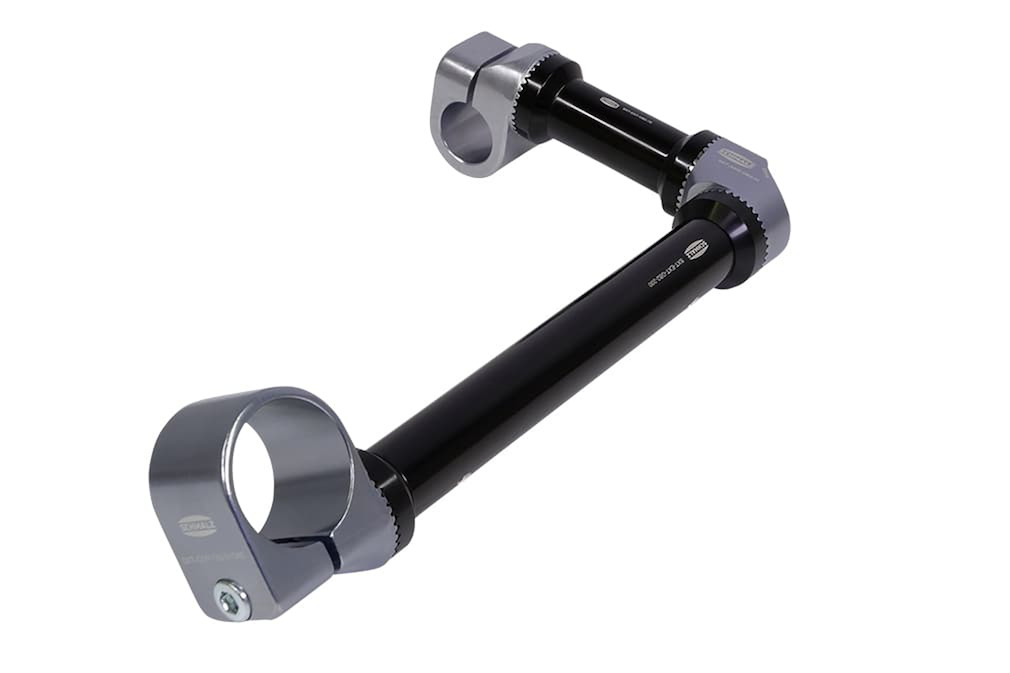

Slide-on tube clamps with extensions and angles

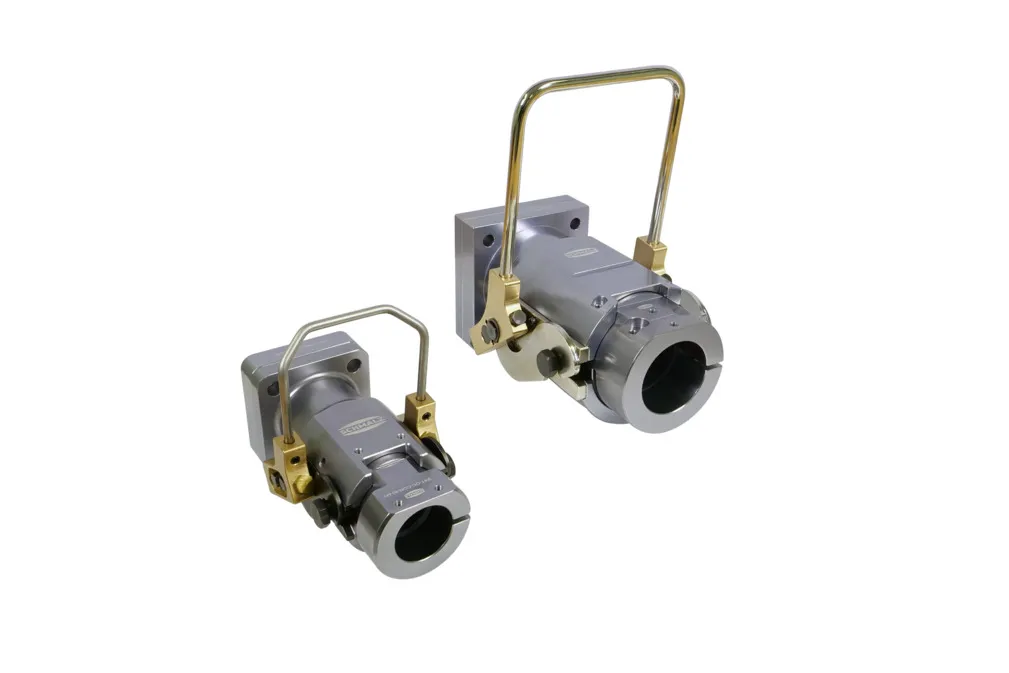

Manually locked bayonet connection
Pipe diameters of 40 and 60 mm
With or without pneumatic media feed-through
Pipe diameter of 40 and 60 mm

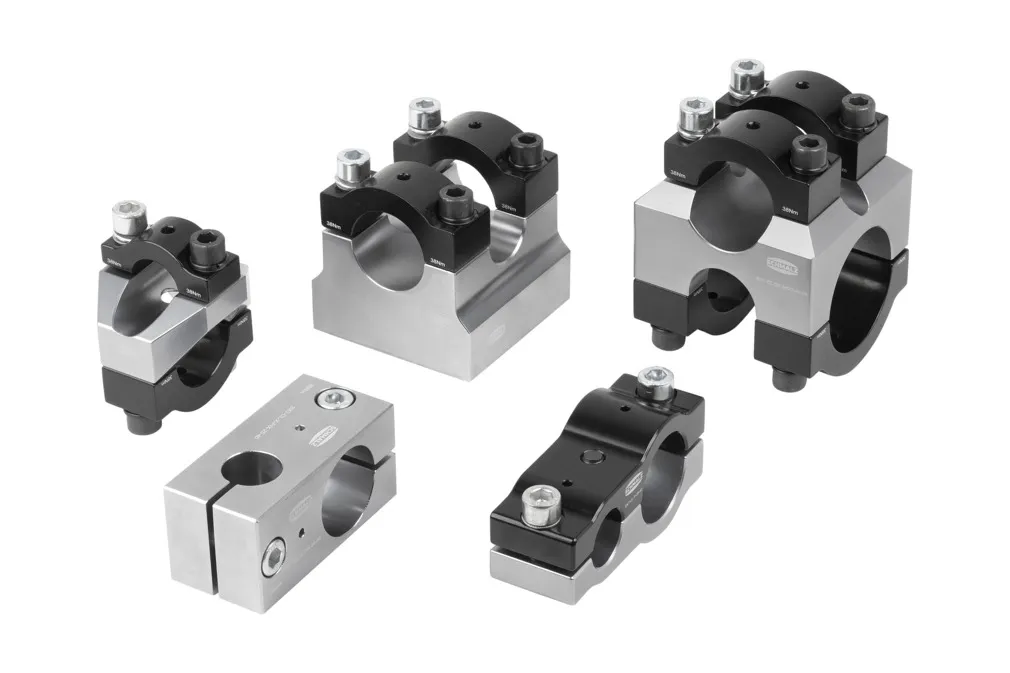

Single and double pipe clamps
Attachable or clampable clamps
Double and single pipe clamps
Cross clamps and parallel clamps

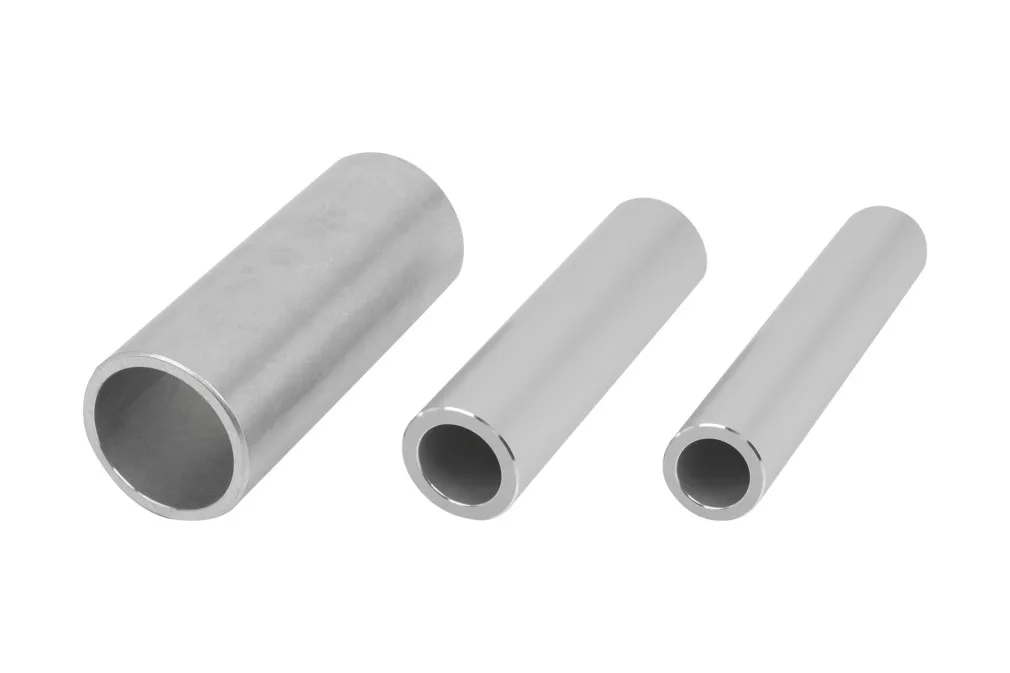

Aluminium pipe with large wall thickness (5 to 6 mm)
Diameters of 25 to 60 mm
Max. Length 3,000 mm
Single and double sided clamps
With extension 100 to 510 mm
For pipe diameters of 19 to 40 mm
For ball joint connections with 28.5 to 32 mm diameter
Gearing with 10° pitch

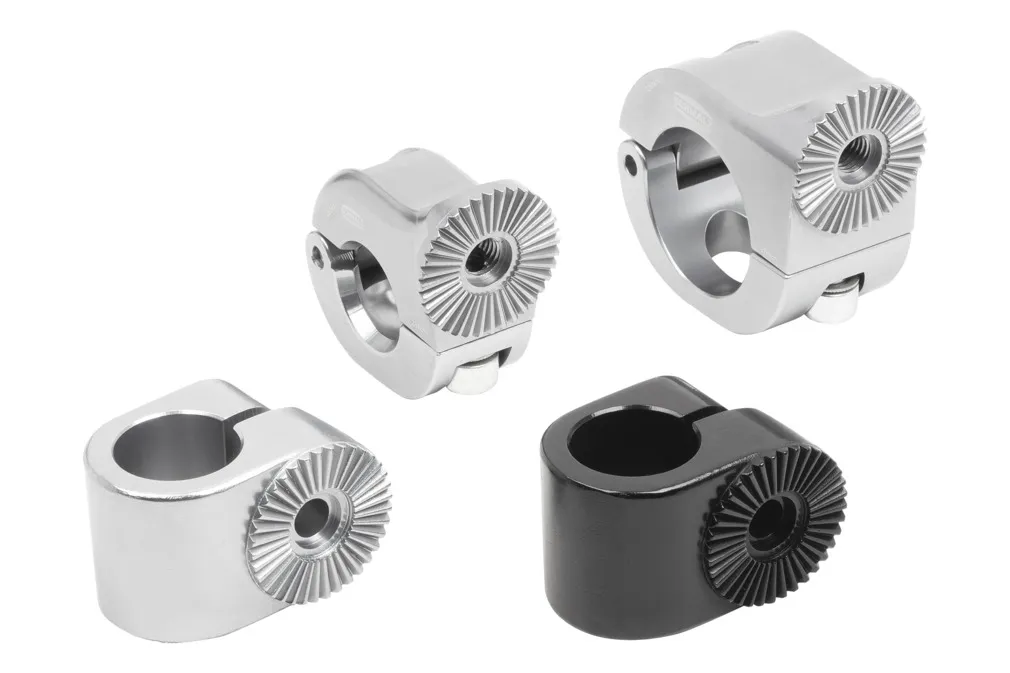

Male version in gray
Female version in black
Gearing with 10° pitch
Male version in gray
Female version in black
Gearing with 10° pitch
Single-sided and double-sided toothing

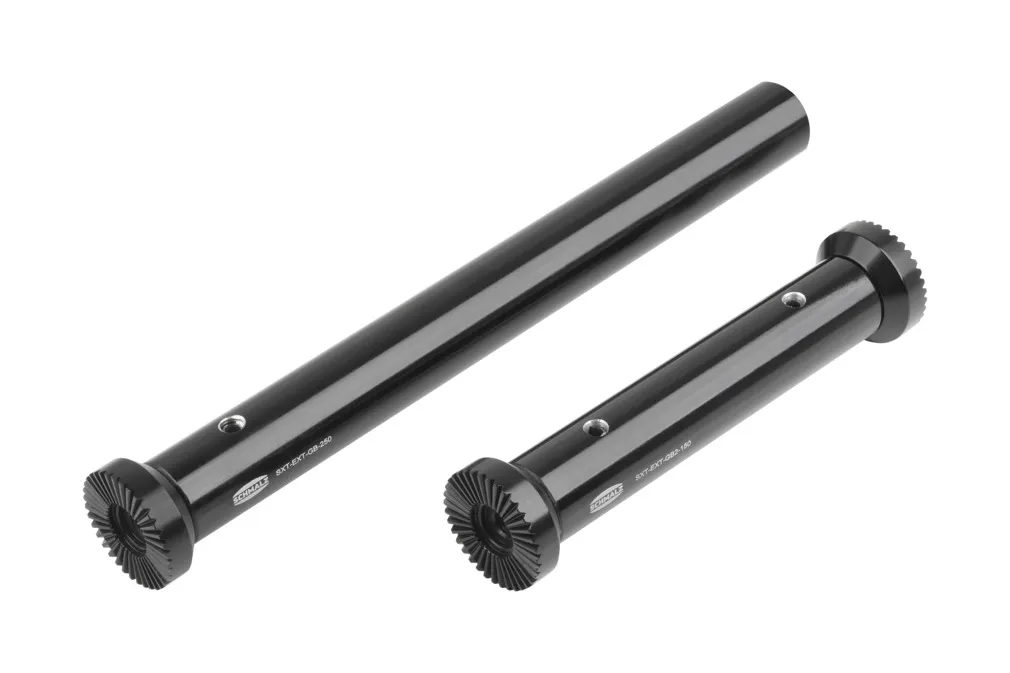

Extension from 50 to 500 mm
Extension of 50 to 500 mm
Gearing with 10° pitch
Male design in gray
Female version in black
