The pneumatically actuated modular system WDP-5X enables user-friendly set-up of large components. The modules are clamped via spring force and can be opened simultaneously with compressed air. Depending on customer’s request, the pneumatic modules can be replaced by manual modules in order to enable manual actuation.
The basic modules serve as a basis for every clamping solution. They establish a rigid connection to all conventional machine tables. Using the stacking modules, the individual clamping heights can then be achieved. The form-fit connection to the workpiece is finally implemented using clamping modules in combination with clamping pins, compensation pins or clamping pin increases.

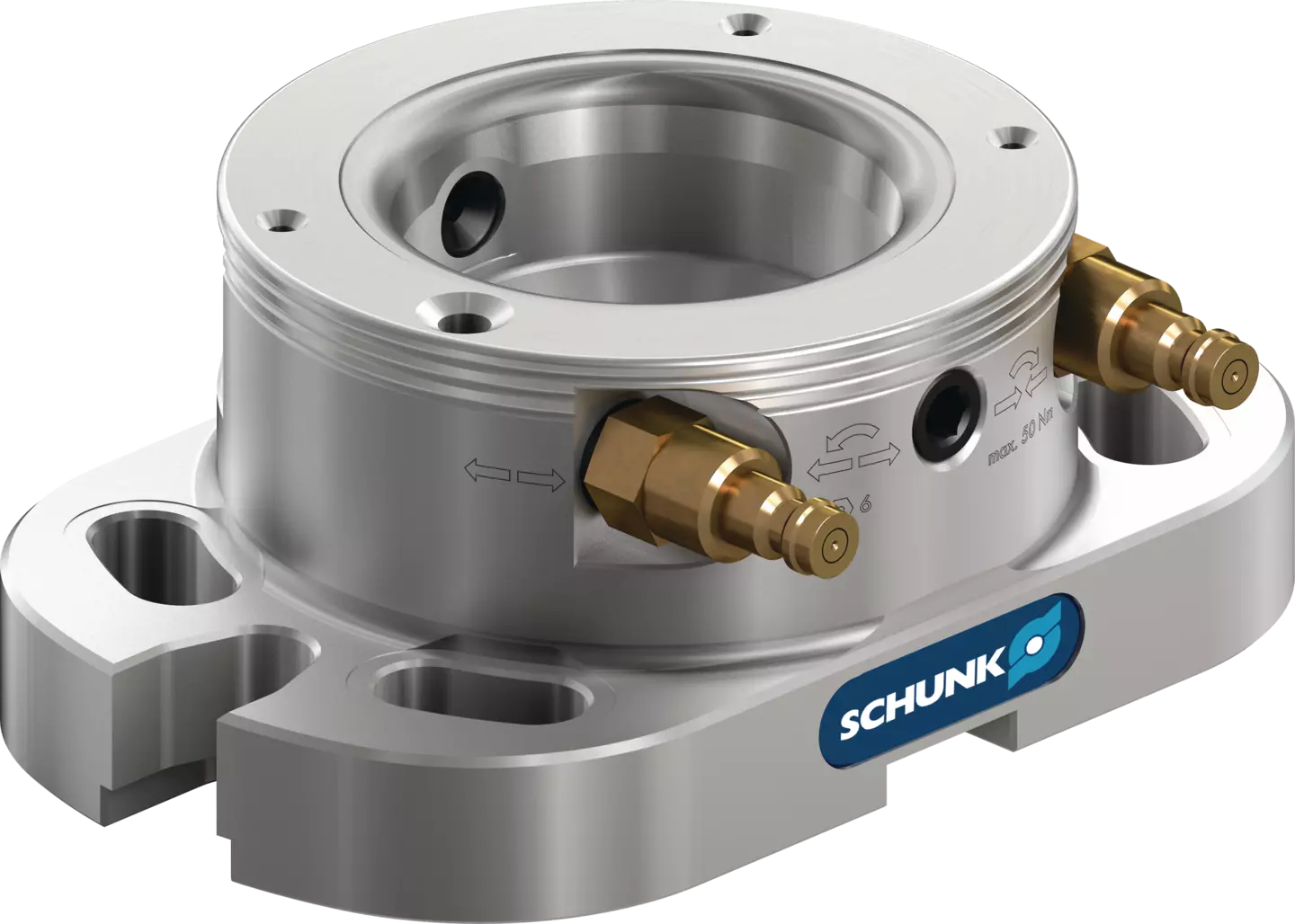

Basic modules as interfaces for all conventional machine tables of milling centers.
Stacking modules with integrated media feed-through to achieve a wide range of clamping heights.

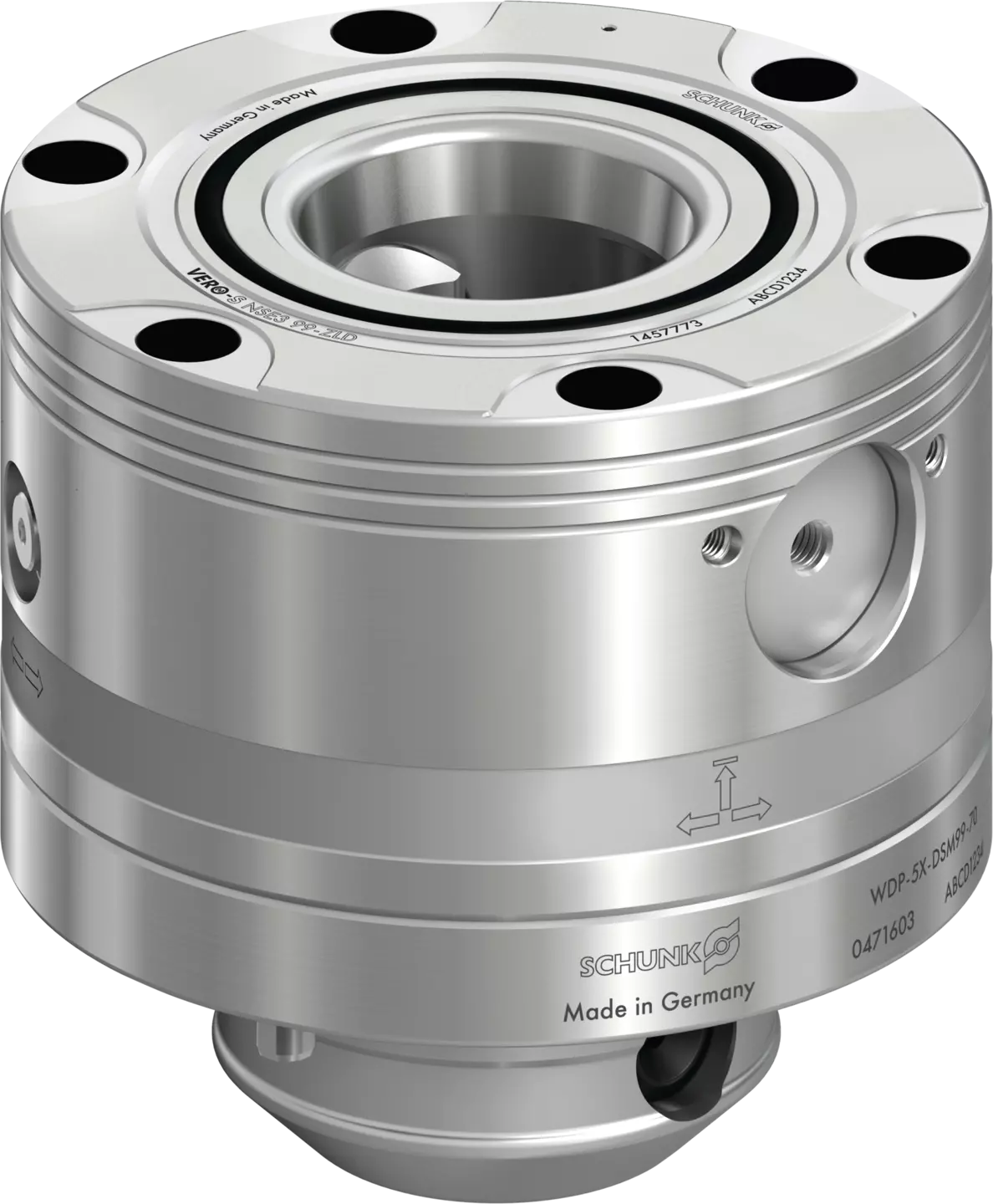

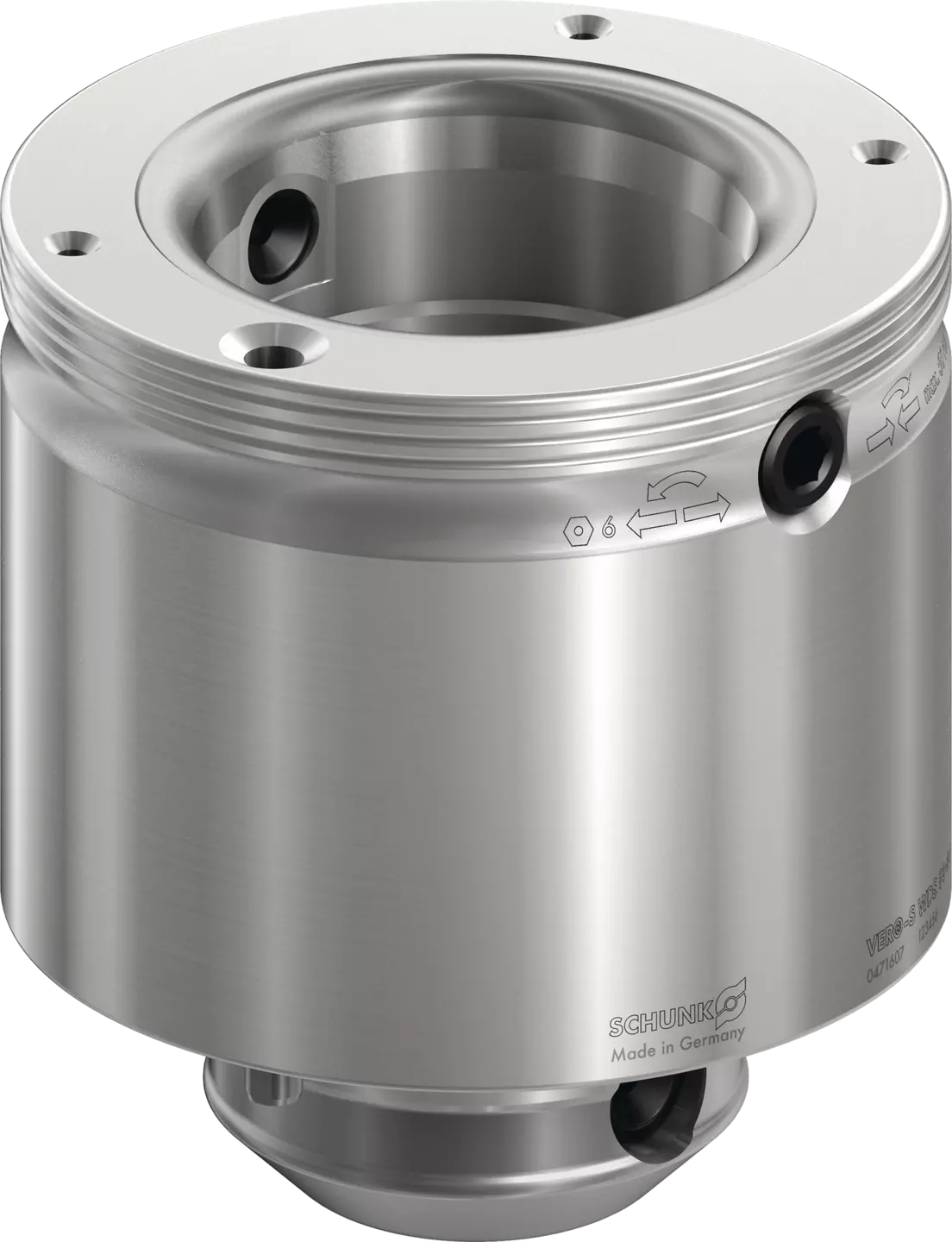

Clamping modules or compensation modules used as an interface to the workpiece. The clamping modules can be actuated pneumatically or manually. The compensation modules serve to compensate for fine height differences.

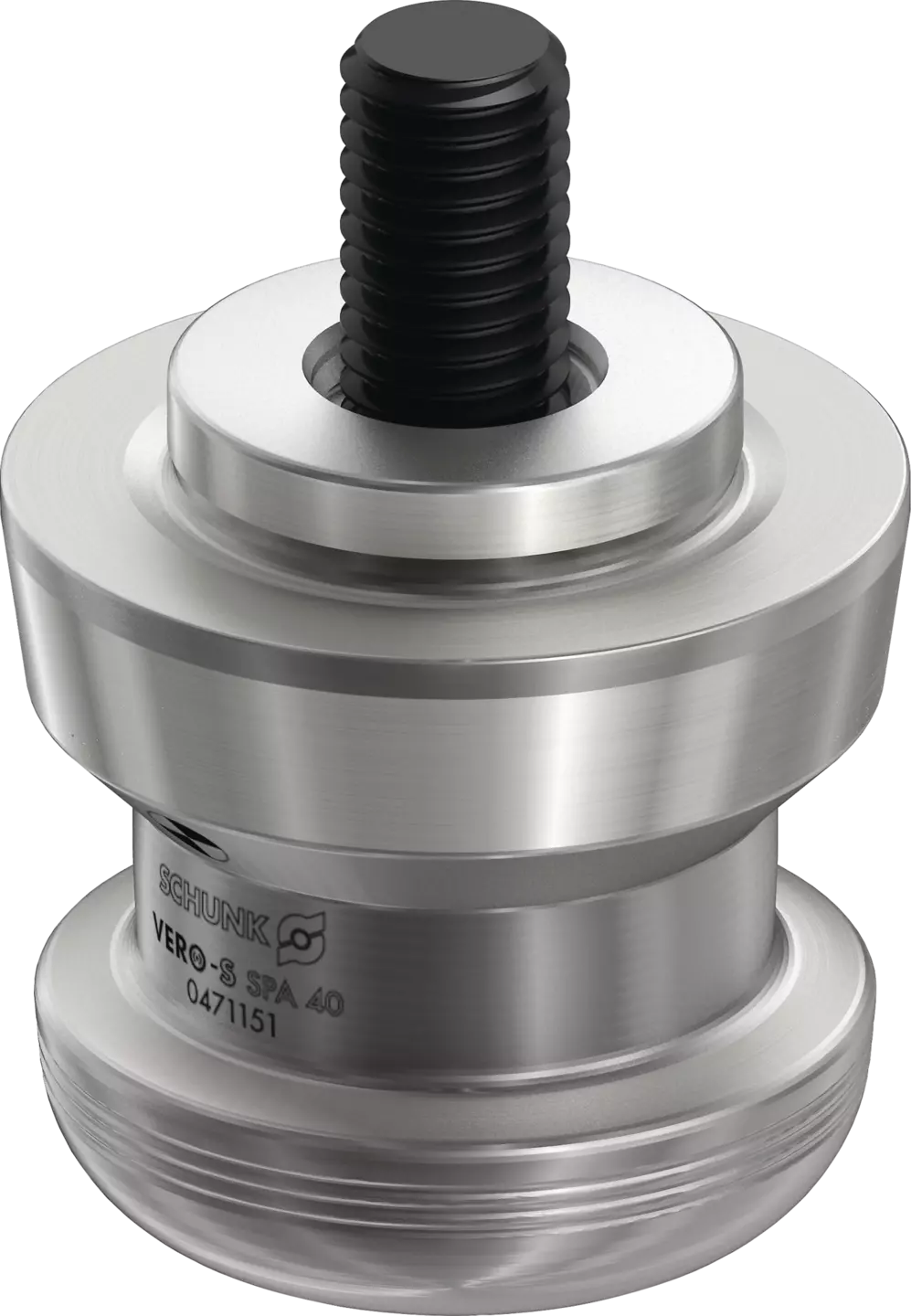

Clamping pins with short taper for form-fit connection of workpieces or devices with the clamping modules.
