VacuMaster Coil

Handling coils and slit strip

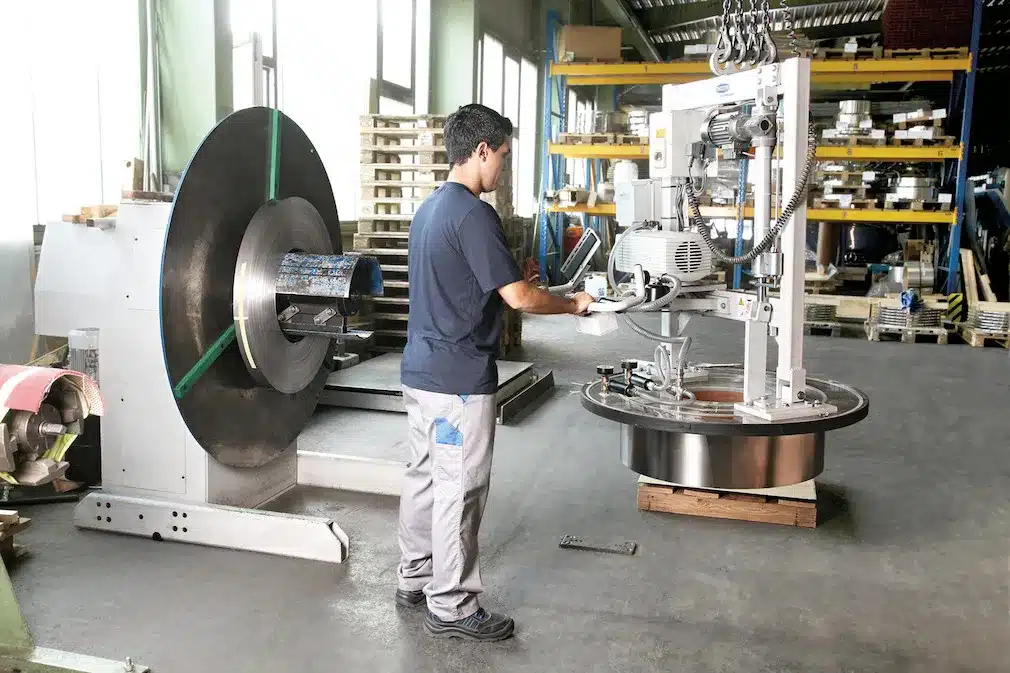

Application

Handling of coils and slit strips up to 1,000 kg, e.g. for positioning on a decoiler mandrel

Suitable for coils made from thin and ultra-thin sheet metal, steel and stainless steel, metal foils, tinplate and aluminum

Maximum slit-coil thickness of 3.0 mm (aluminum) or 1.5 mm (steel)

Continuous swiveling up to 90°

Design

Technical Data

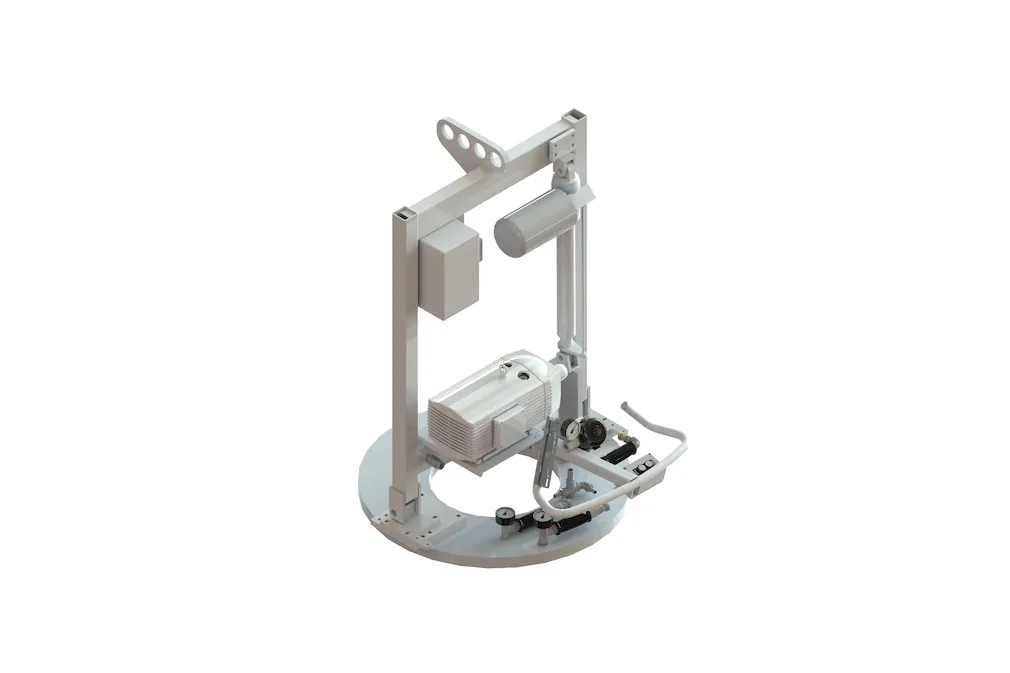

Design

Vacuum lifting device (1) with separately switchable vacuum chambers (suction rings)
Electrical vacuum pump (2) for short evacuation times
Electric drive (3) for precise, continuous swiveling of the load
Transparent suction plate (4) for easy positioning of the load
Audible warning device and vacuum reservoir (5) for protection against vacuum drop in case of a power failure

Technical Data

Type	Max. lift capacity [kg]	Min. workpiece Ø [mm]	Max. workpiece Ø [mm]	Number of suction clamps
Coil 500 90°	500	600	1,200	3
Coil 750 90°	750	600	1,400	3
Coil 1000 90°	1.000	750	1,800	3

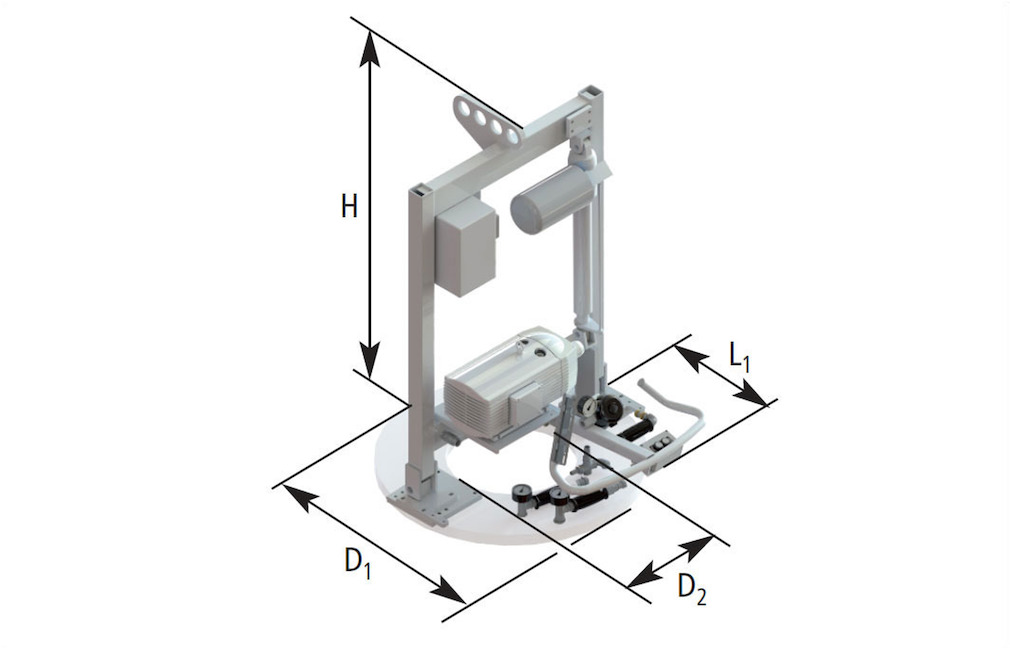

Type	Ø suction plate inner D₁ [mm]	Ø suction plate outer D₂ [mm]	Overall height H [mm]	Operator handle L₁ [mm]	Weight [kg]
Coil 500 90°	410	850	1,300	660	140
Coil 750 90°	410	1,050	1,300	660	155
Coil 1000 90°	410	1,200	1,300	660	190

Spare parts

Spare and Wear Parts VacuMaster Coil

Wide range of spare and wear parts
Vacuum generator, filter, suction plates

Accessories

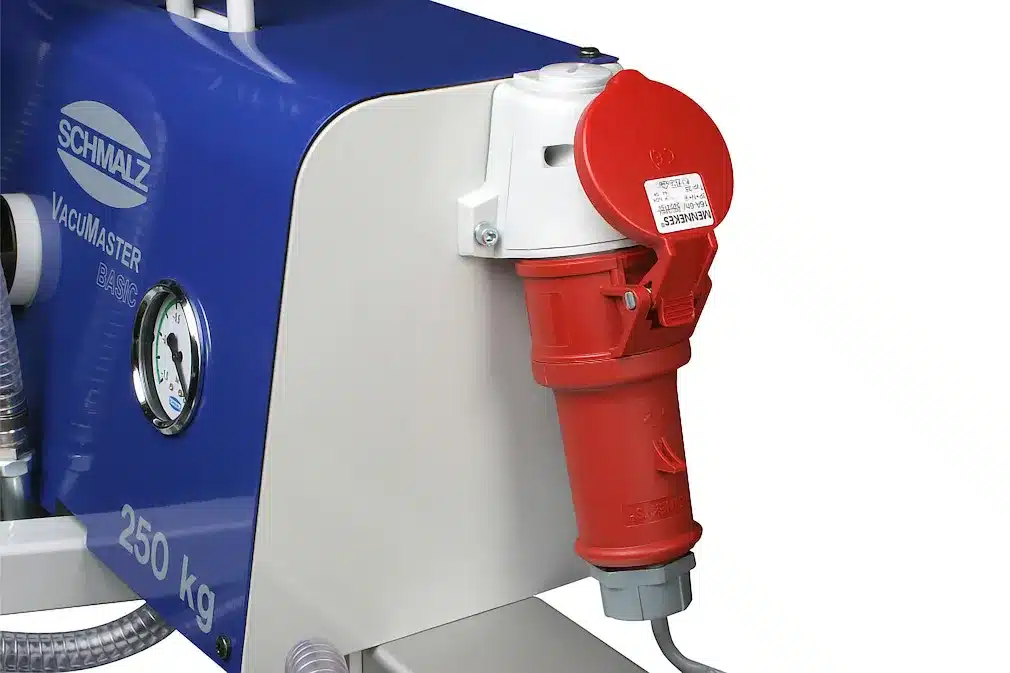

CEE-Connect

Quick-connect electrical connection The CEE plug suggests the lifting device to be easily connected to the power supply and then quickly disconnected if necessary.

Product recommendations

Aluminum Bridge Cranes

Modular crane system for flexible and cost-effective assembly of individual crane solutions
Installation on ceiling or portal construction
Particularly suitable for large workspaces Lift capacity up to 1,200 kg

Wall-Mounted Jib Cranes

Mounted using a wall bracket or clasp bracket
Lift capacity up to 1,000 kg

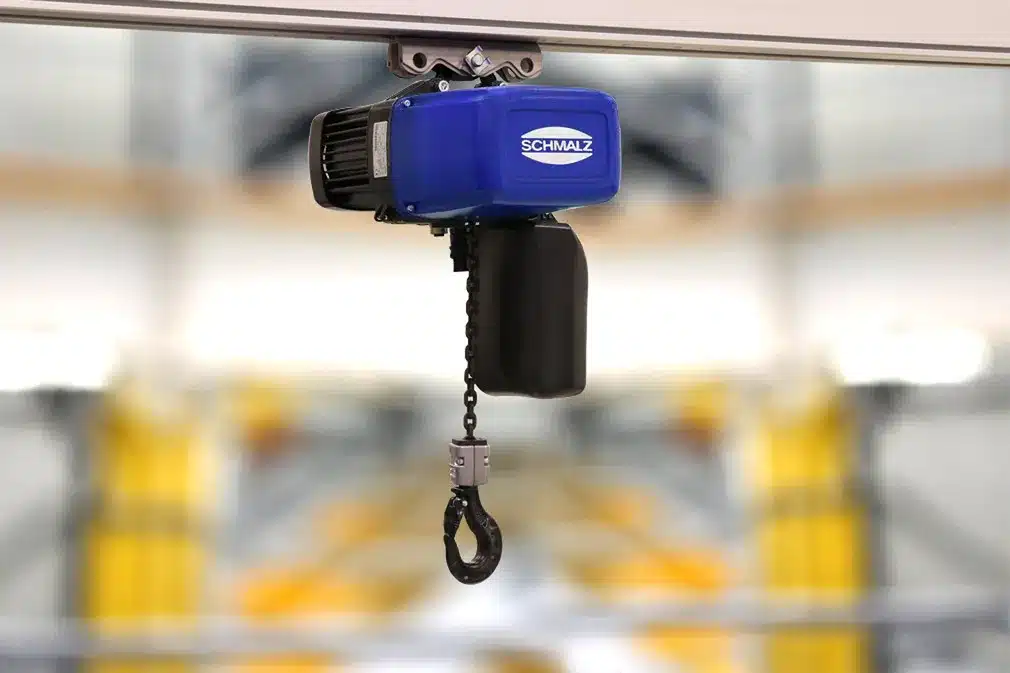

Chain Hoists

Sturdy chain hoist with limit switch Lift capacity up to 2,500 kg
Standard lifting height of 3,000 mm CSA certified for USA and Canada

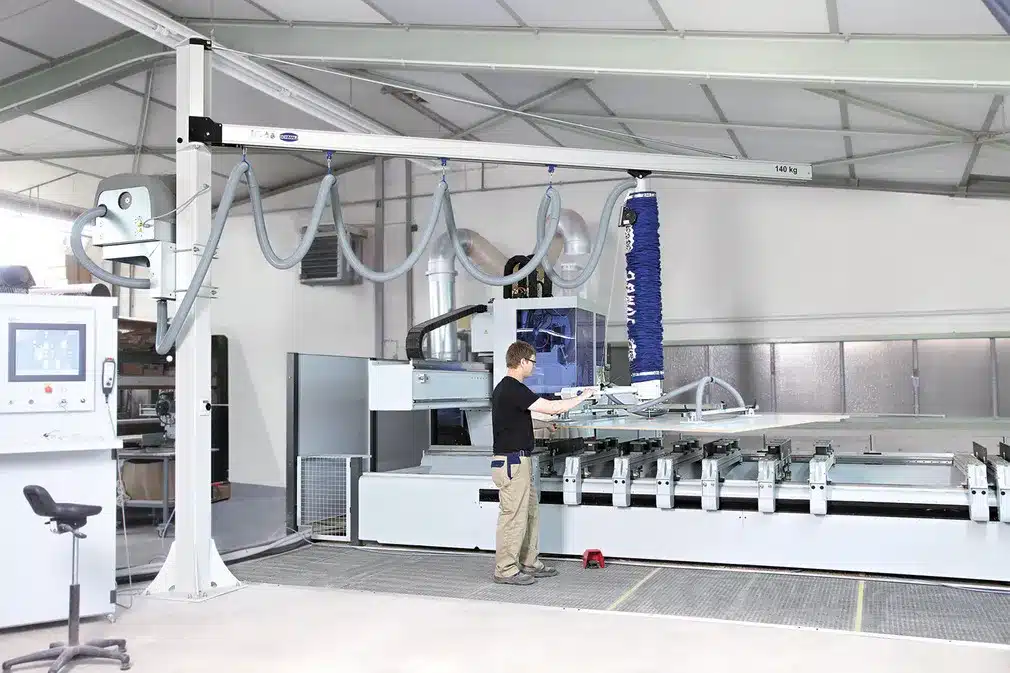

Column-Mounted Jib Cranes
