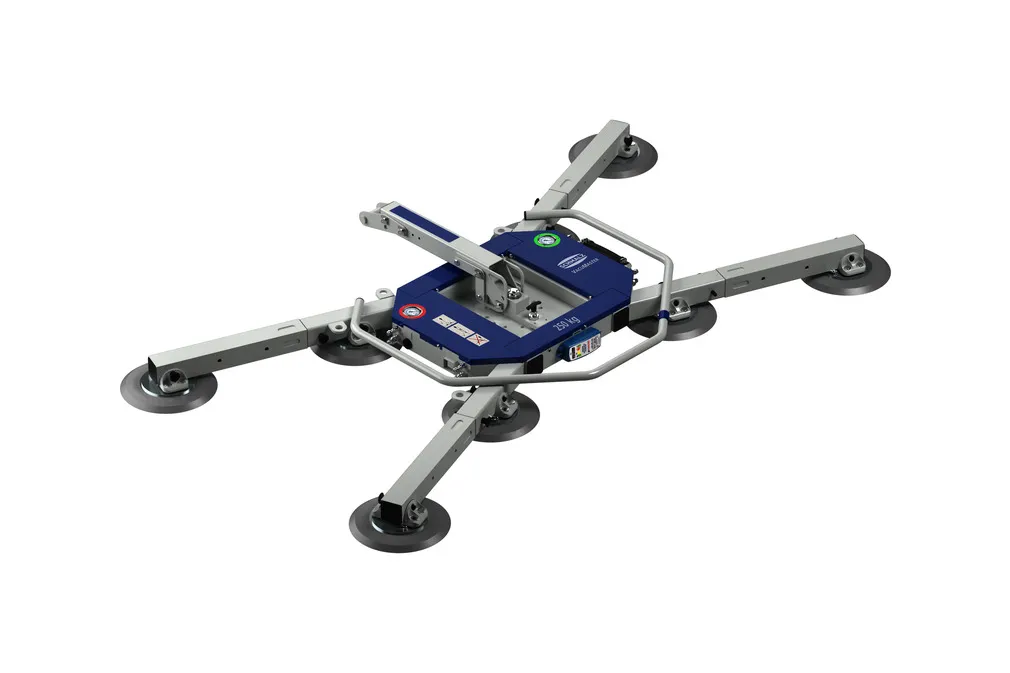

VacuMaster Glass

Safe and Ergonomic Handling of Glass Outdoors

Application

Handling of windows, glass sheets and facade elements up to 1,000 kg in outdoor environments

Handling of windows with muntins and mullions using optional suction cup spacers (with reduced lift capacity)

The slim design allows it to be used behind construction site scaffolding

Specially designed for outdoor use with UV and ozone resistant suction plates with a protective cover

Design

Battery powered vacuum lifting device with two redundant vacuum circuits for use on construction sites

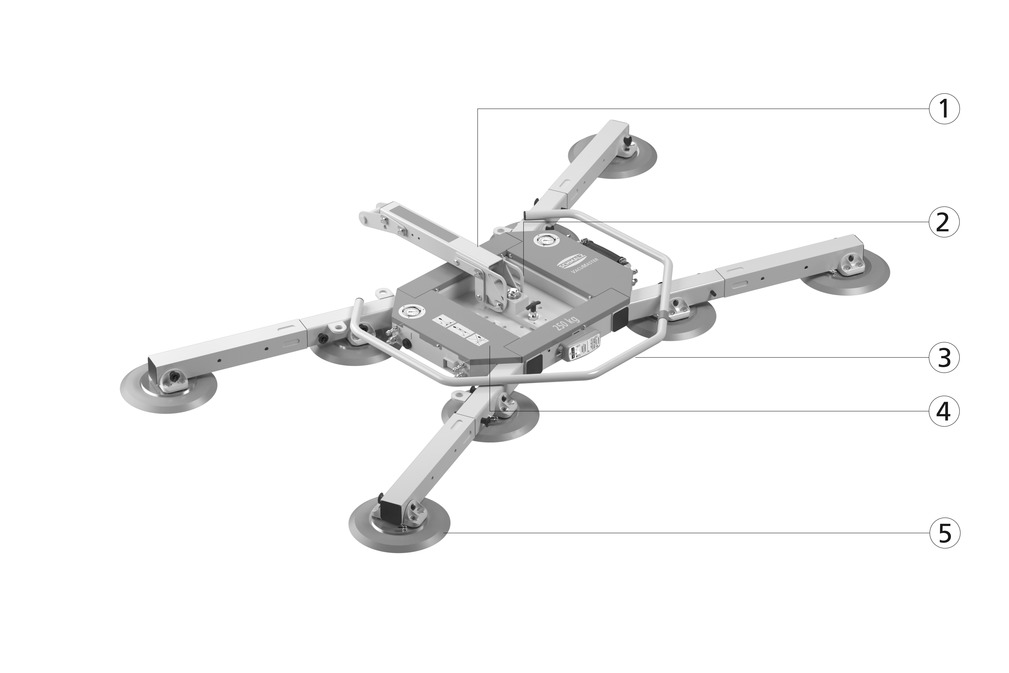

Base body (1) with two manometers to display the vacuum in each circuit and status display for the battery charge
Manual swiveling and rotating device (2)
Circumferential operator handle (3) for guiding the lifting device
Reliable elements (4) for picking up and releasing the load
Suction plates (5) can be removed and flexibly positioned for small workpieces

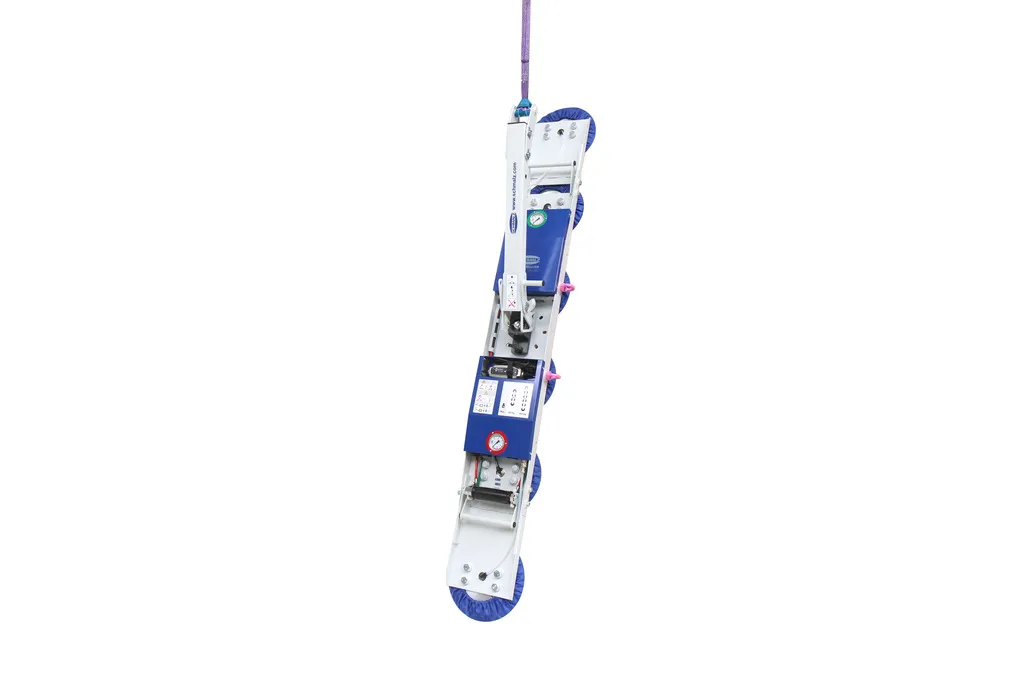

Vertical and horizontal handling of windows and glass sheets
Manual swiveling 90° and manual rotation 360° For lift capacities up to 350 kg

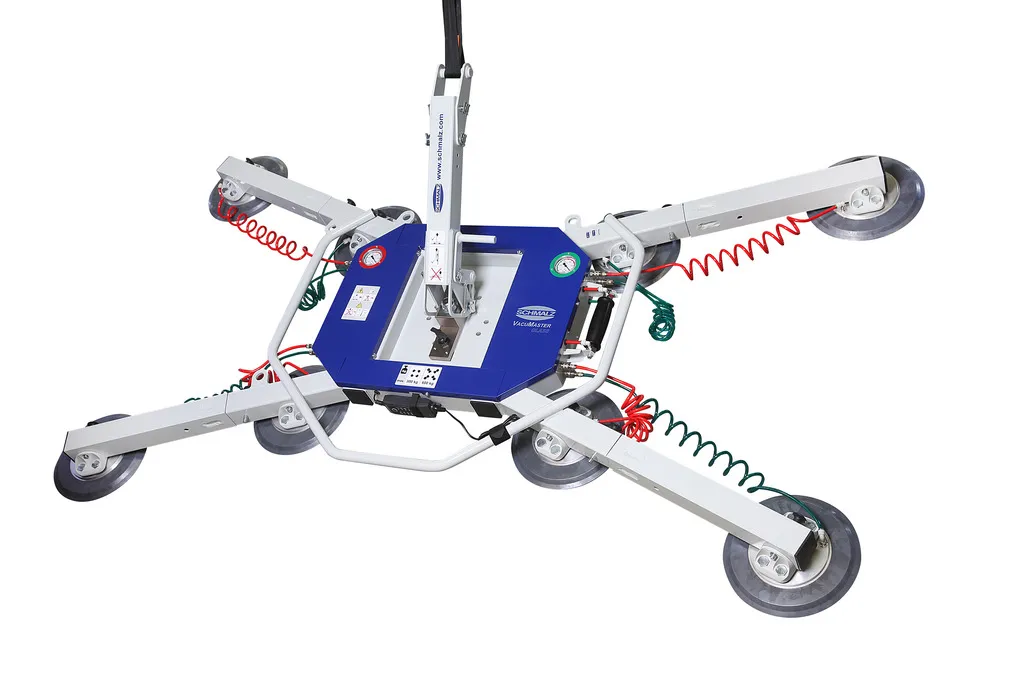

Vertical and horizontal handling of windows and glass sheets
Manual swiveling 90° and manual rotation 360° For lift capacities up to 450 kg

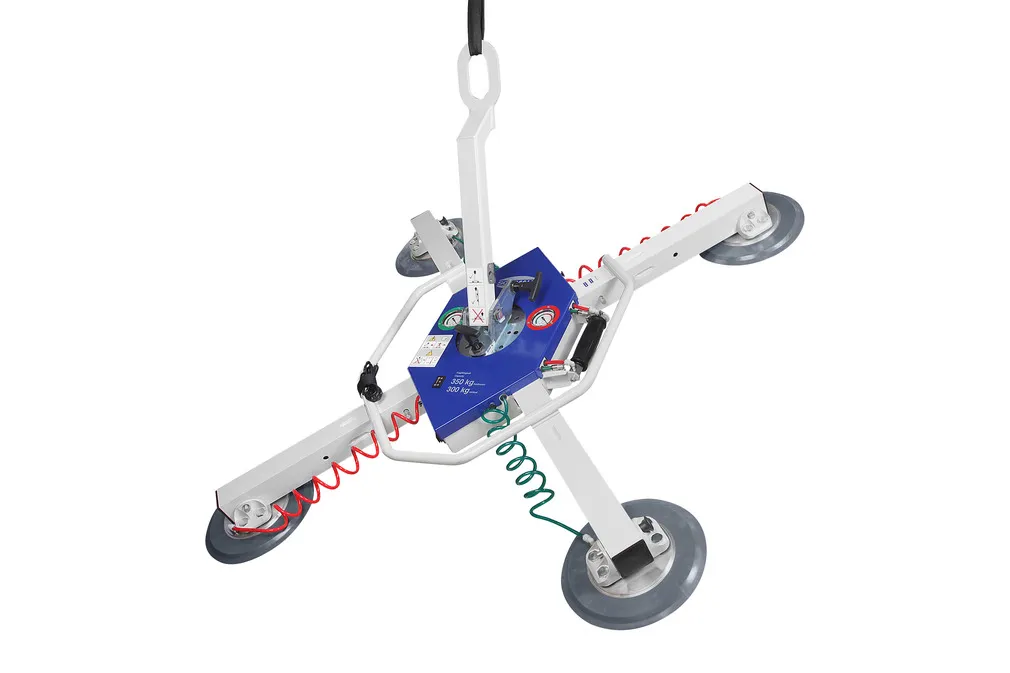

Manual swiveling 90° and manual rotation 360°
Vertical and horizontal handling of windows and glass sheets
For lift capacities up to 600 kg

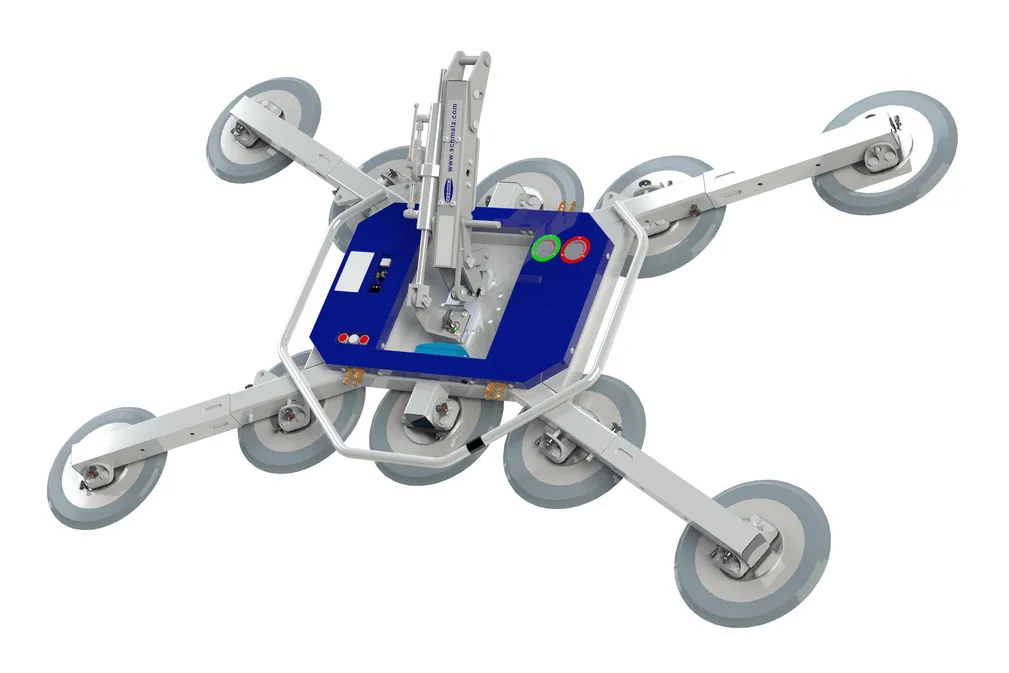

Vertical and horizontal handling of windows and glass sheets
Manual swiveling 90° and manual rotation 360° For lift capacities up to 1,000 kg

Wide range of spare and wear parts
