VacuMaster Light

Horizontal handling of small to mediumsized workpieces

Application

Horizontal handling of small to medium-sized workpieces up to 100 kg

Handling of metal plates, plastic sheets, barrels, furniture bodies, furniture parts or sections

Versatile use in processes such as component assembly, packaging and machine loading

Design

Technical Data

Design

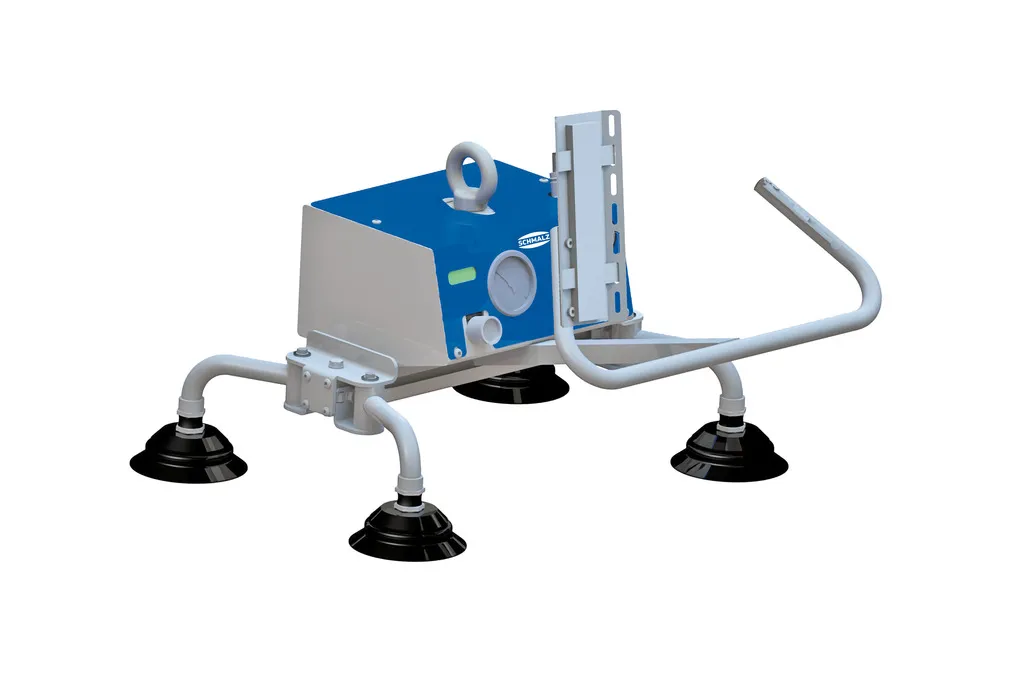

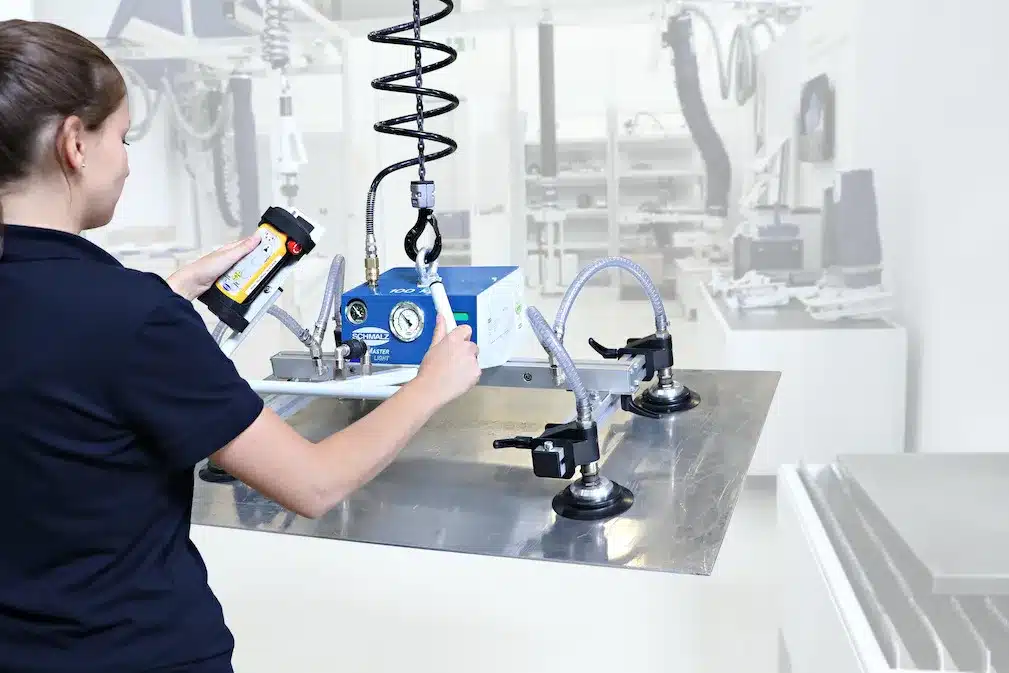

Compact and lightweight vacuum lifting device with slim base body (1)
Pneumatic vacuum ejector with high suction capacity in the basic module (2)
Reliable manual slide valve (3) for vacuum control
Choice of one large suction plate, four articulated and infinitely adjustable suction feet (4) or variable traverse system

Technical Data

Type	Max. lift capacity* [kg]	Min. workpiece format [mm]	Max. workpiece format [mm]	Length L [mm]
Light 100-1	100	250 x 250	1.500 x 800	260
Light 100-4	100	250 x 250	2.000 x 800	400
Light CON	100	250 x 250	1.250 x 2.500	500 – 1.600

* Higher lift capacities available on request

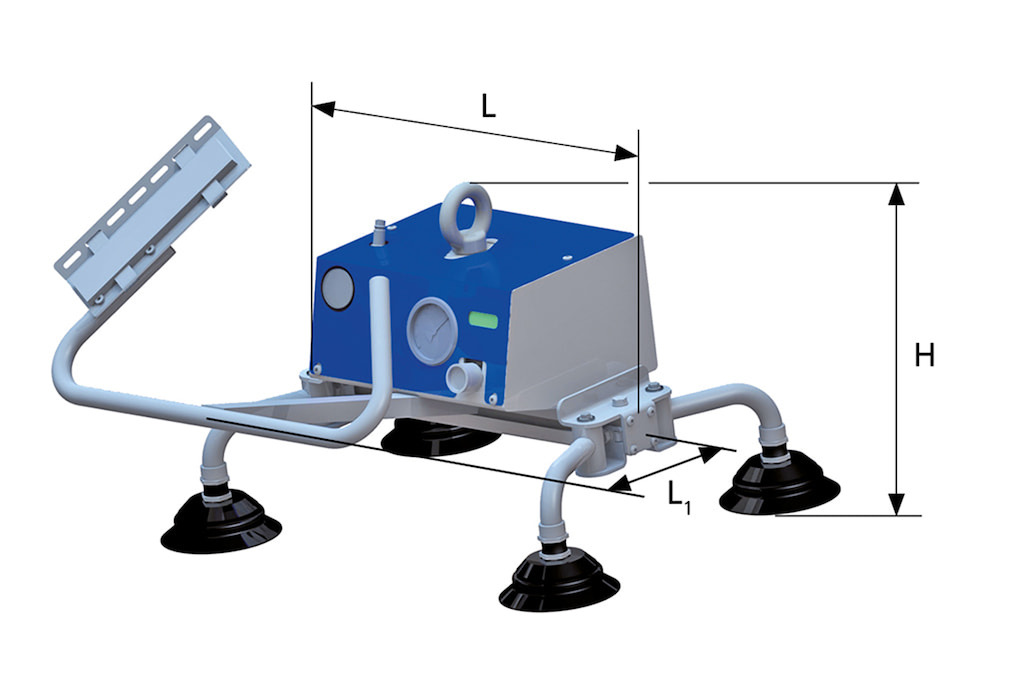

Type	No. of sution plates	Ø suction plates [mm]	Overall height H [mm]	Operator handle L₁ [mm]	Weight [kg]
Light 100-1	1	250	270	405	15
Light 100-4	4	120	330	405	15
Light CON	4 – 6	110 – 250	320 – 410	410 – 650	14 – 30

Spare parts

Spare and Wear Parts VacuMaster Light

Accessories

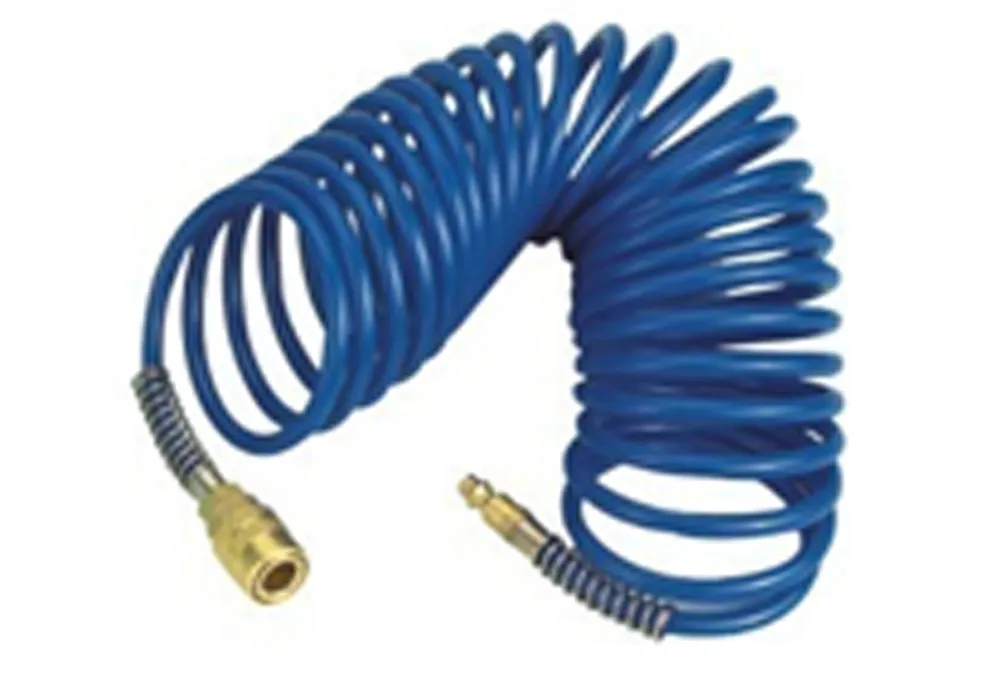

Spiral Hose

Spiral hose for flexible length compensation in vacuum and compressed-air lines

Product recommendations

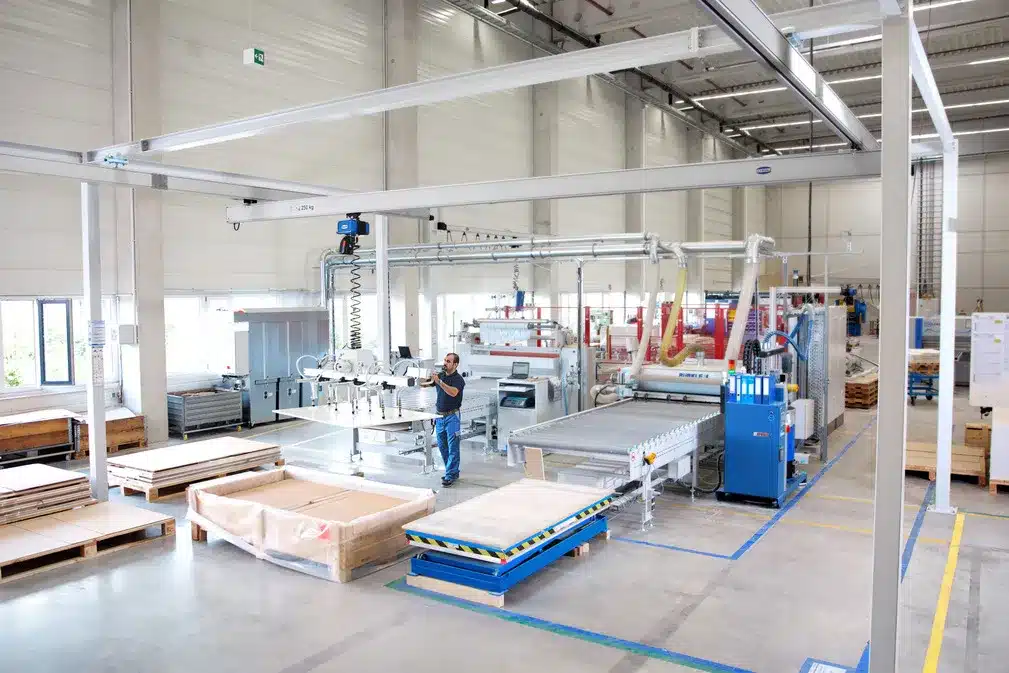

Aluminum Bridge Cranes

Modular crane system for flexible and cost-effective assembly of individual crane solutions
Installation on ceiling or portal construction
Particularly suitable for large workspaces Lift capacity up to 1,200 kg

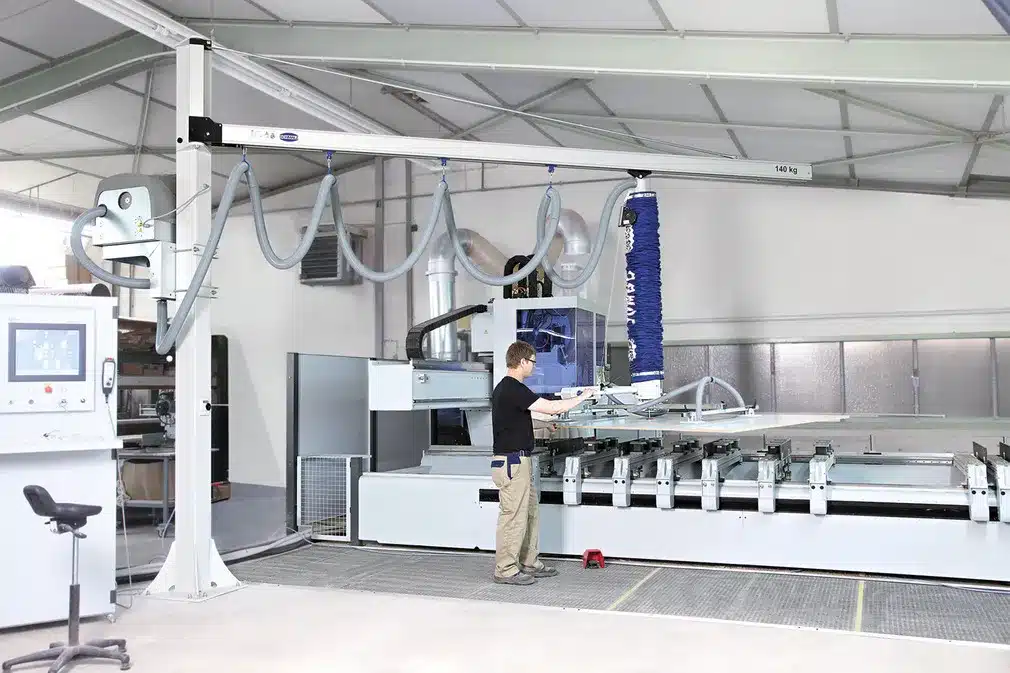

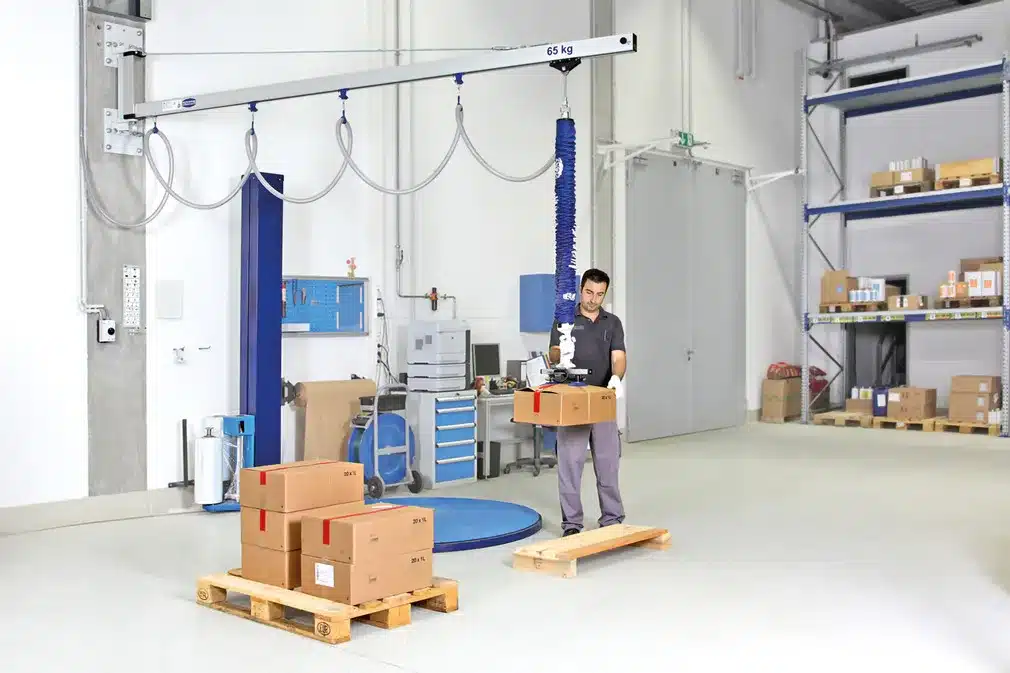

Wall-Mounted Jib Cranes

Mounted using a wall bracket or clasp bracket
Lift capacity up to 1,000 kg

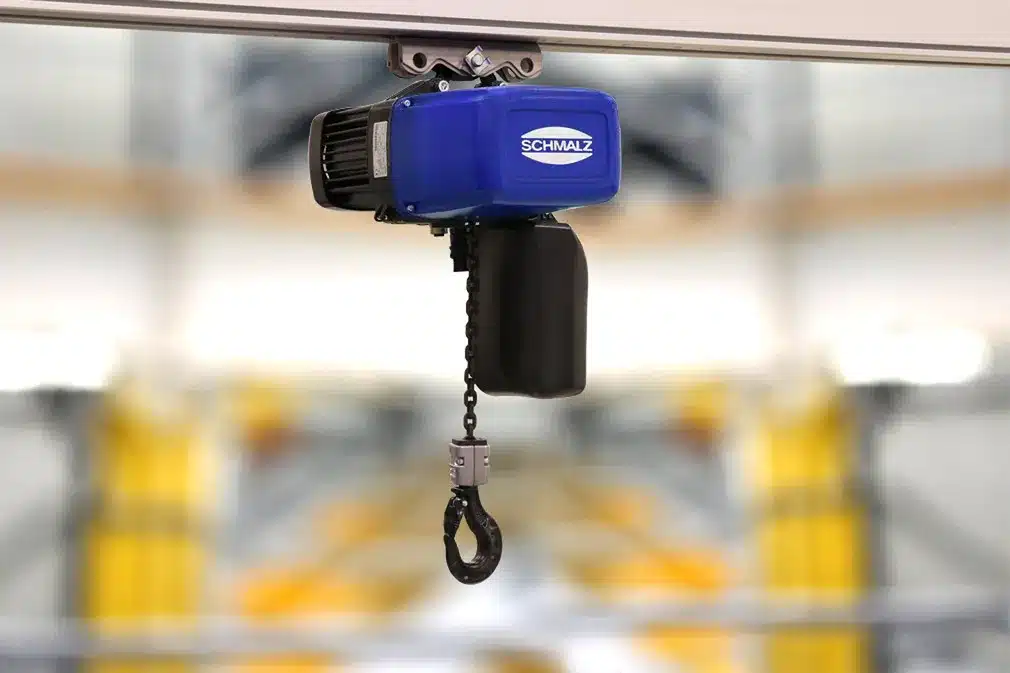

Chain Hoists
