VacuMaster Multi

Handling large, heavy wooden boards, either airtight or porous

Application

Handling of large and heavy, airtight or porous wooden boards up to 400 kg horizontal

Ideal for rough and coated MDF, OSB and particle boards

Also for gypsum fiber and gypsum plaster board as well as plastic sheets

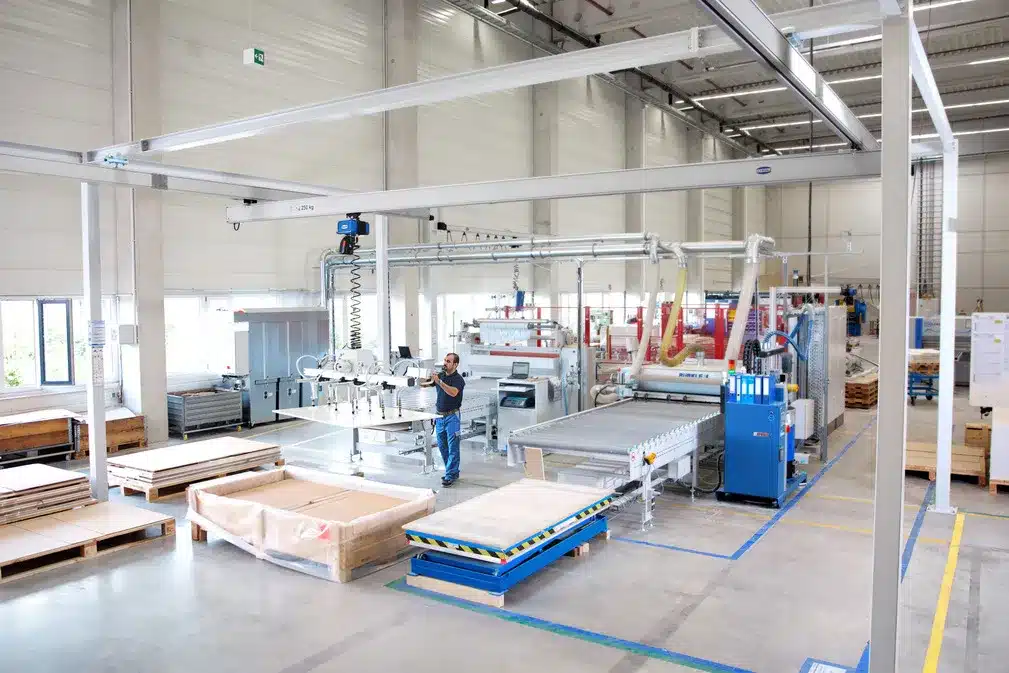

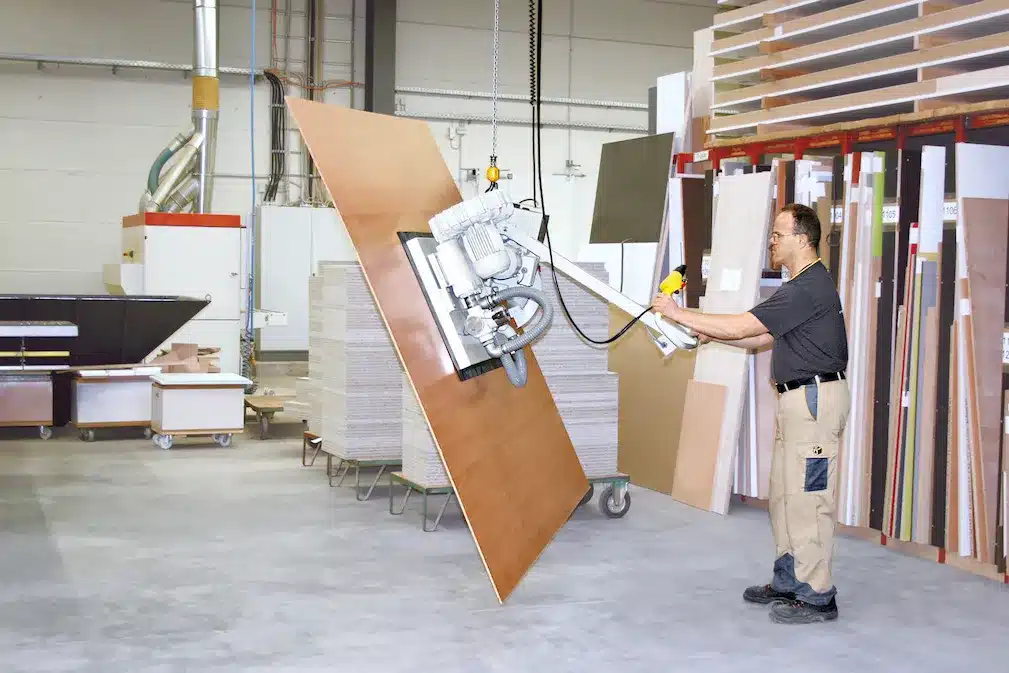

Swiveling of workpieces up to 300 kg by up to 90° (optional)

Design

Technical Data

Design

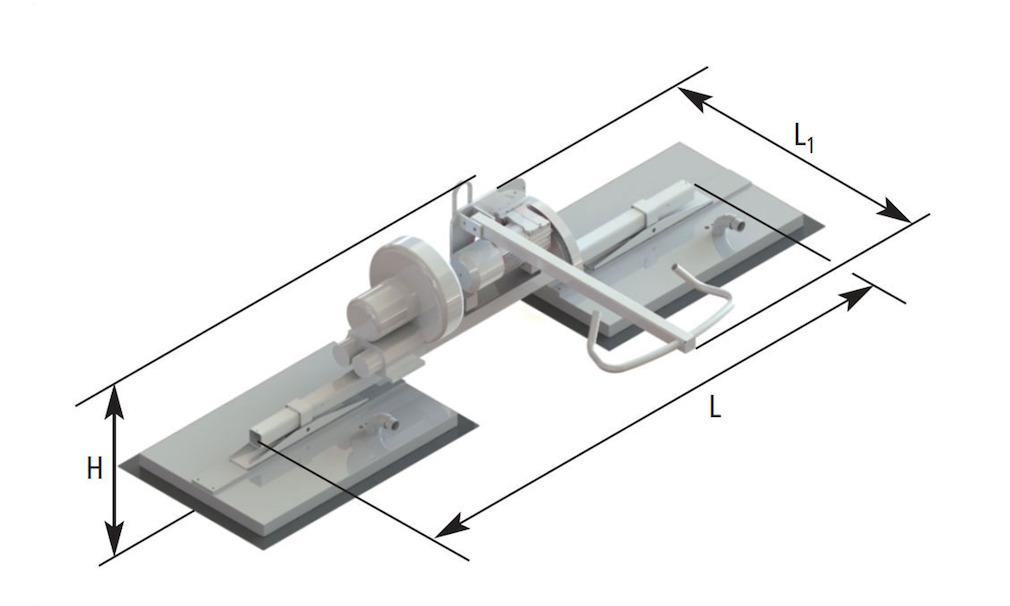

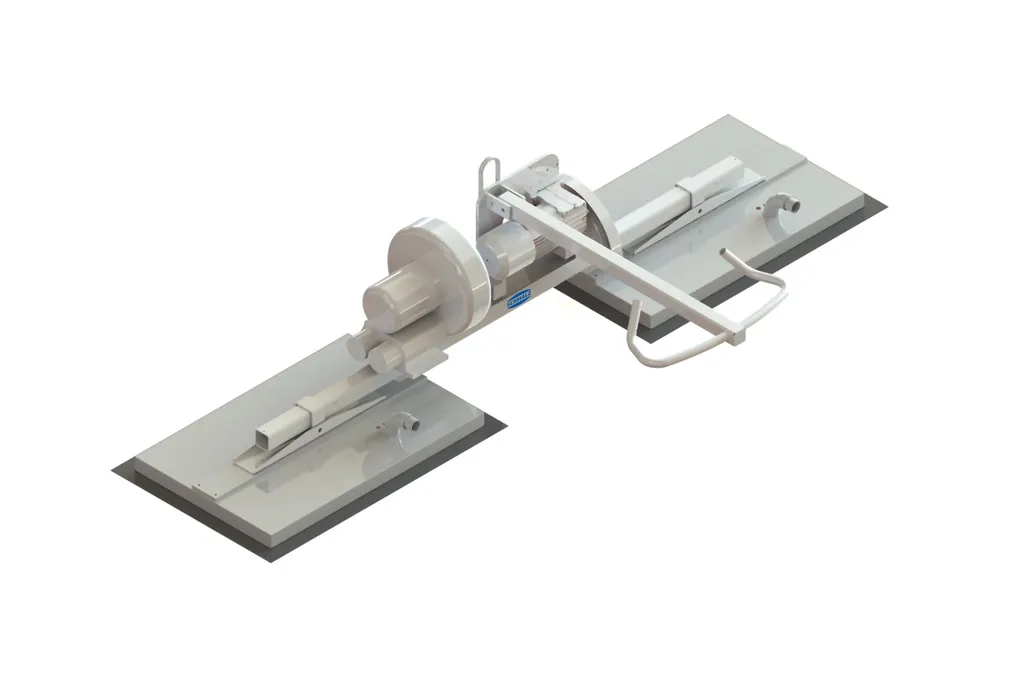

Vacuum lifting device (1) with movable operator handle to adjust the working height
High-power vacuum blower (2) with centrifugal mass to delay vacuum dissipation in event of a power failure
Reversing valve (3) to quickly release the load
Electric drive (4) for continuous and precise swiveling by 90° (optional)
Large suction plates (5) that can be moved along the beam
Audible warning device for protection against vacuum drop in case of a power failure

Technical Data

Type	Max. lift capacity horizontal [kg]	Max. lift capacity vertical [kg]	Workpiece format min. [mm]	Workpiece format max. [mm]	No. suction plates	Size suction plates [mm]
Multi 400	400	–	1,100 x 700	4,100 x 2,100	1	1,000 x 675
Multi 400	400	–	1,400 x 1,100	5.600 x 2,100	2	1,000 x 675
Multi 400/150 90°	400	150	1,100 x 700	4,100 x 2,100	1	1,000 x 675
Multi 400/300 90°	400	300	1,400 x 1,100	5.600 x 2,100	2	1,000 x 675
Multi 400/300 90°	400	300	2,200 x 1,000	5,600 x 2,100	8	∅ 400

Type	Main beam length L [mm]	Overall height H [mm]	Operator handle L₁ [mm]	Weight [kg]
Multi 400	–	520	1,050	80
Multi 400	2,000	600	1,050	133
Multi 400/150 90°	–	540	1,050	101
Multi 400/300 90°	2,000	620	1,050	159
Multi 400/300 90°	2,500	630	1,050	189

Spare parts

Spare and Wear Parts VacuMaster Multi

Wide range of spare and wear parts
Suction plates, manometer, hoses

Accessories

CEE-Connect

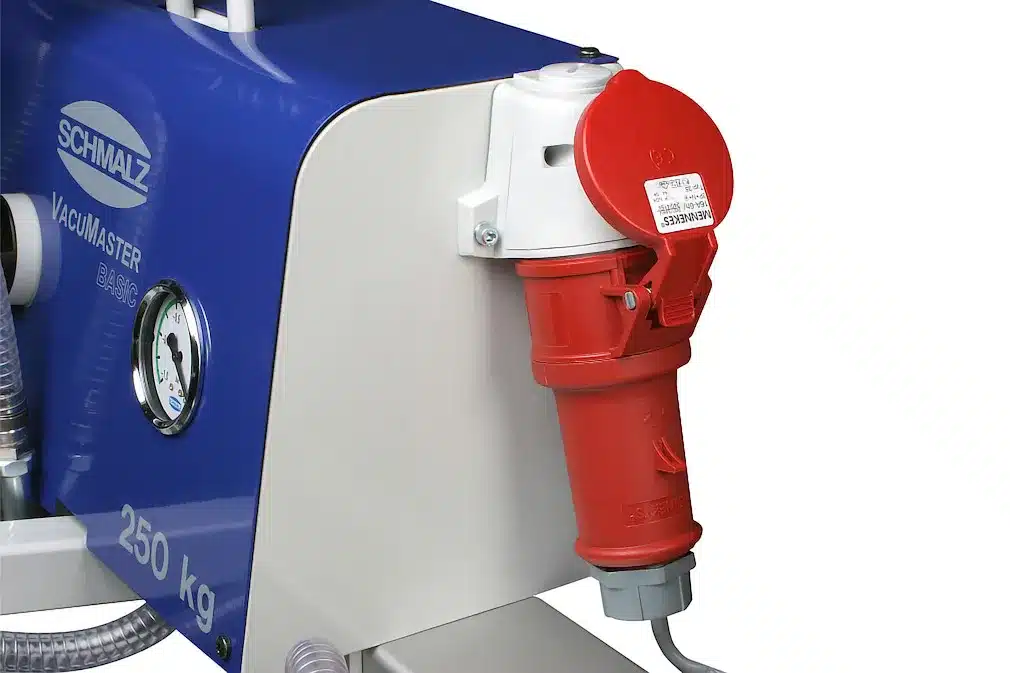

Quick-connect electrical connection The CEE plug suggests the lifting device to be easily connected to the power supply and then quickly disconnected if necessary.
