VacuMaster Vario

Horizontal handling of especially heavy, airtight workpieces

Application

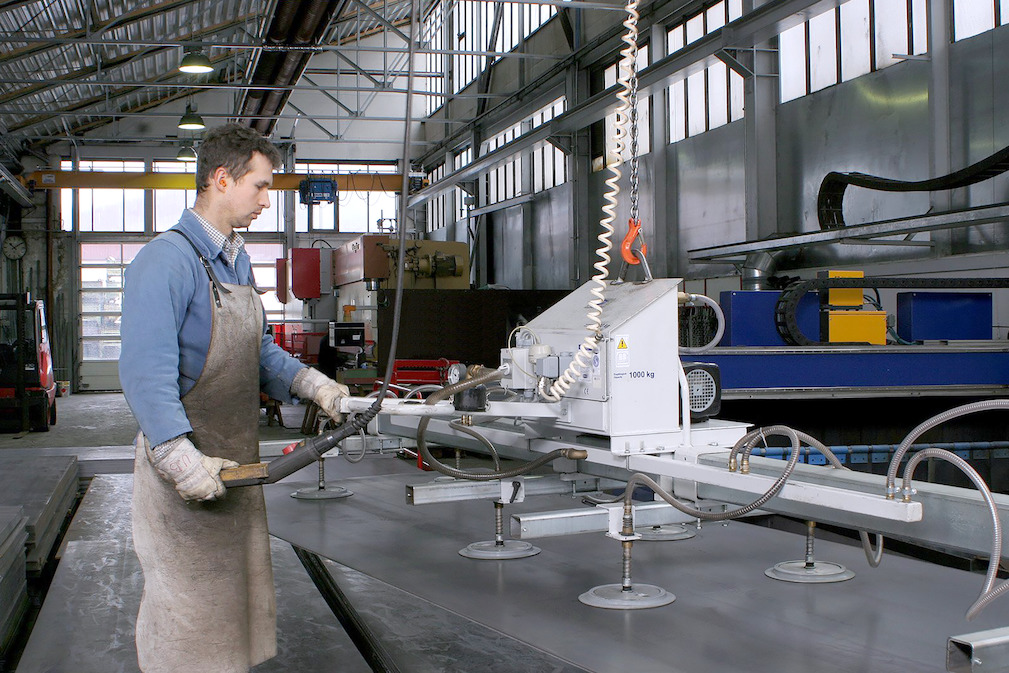

Horizontal handling of heavy workpieces up to 2,000 kg

Loading and unloading of machines with large metal sheets and plates

Solutions with higher lift capacities are also possible, e.g. for handling rotor blades weighing several tons and up to 60 m in length

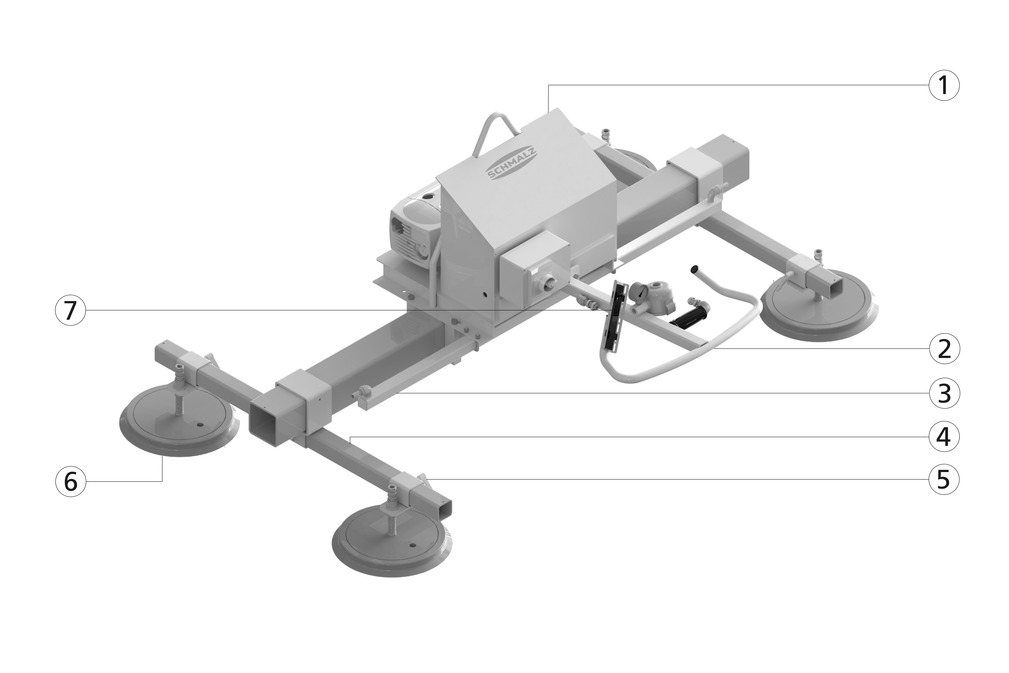

Design

Basic module (1) with electric vacuum generator, motor-protection switch and audible warning device
Ergonomic operator handle (2) for controlling the lifting device
Configurable and adjustable beam system consisting of one aluminum main beam (3) and several steel cross beams (4)
Suction plate holders (5) and suction plates (6) adapted to the workpiece
Separate operator handle (7) for lifting and lowering the load with a connected hoist, e.g. a chain hoist (not included in delivery)

Spare parts

Spare Parts VacuMaster Vario

Wide range of spare and wear parts
Vacuum generators, filters, valves, drives, measuring equipment, suction plates and connections

Accessories

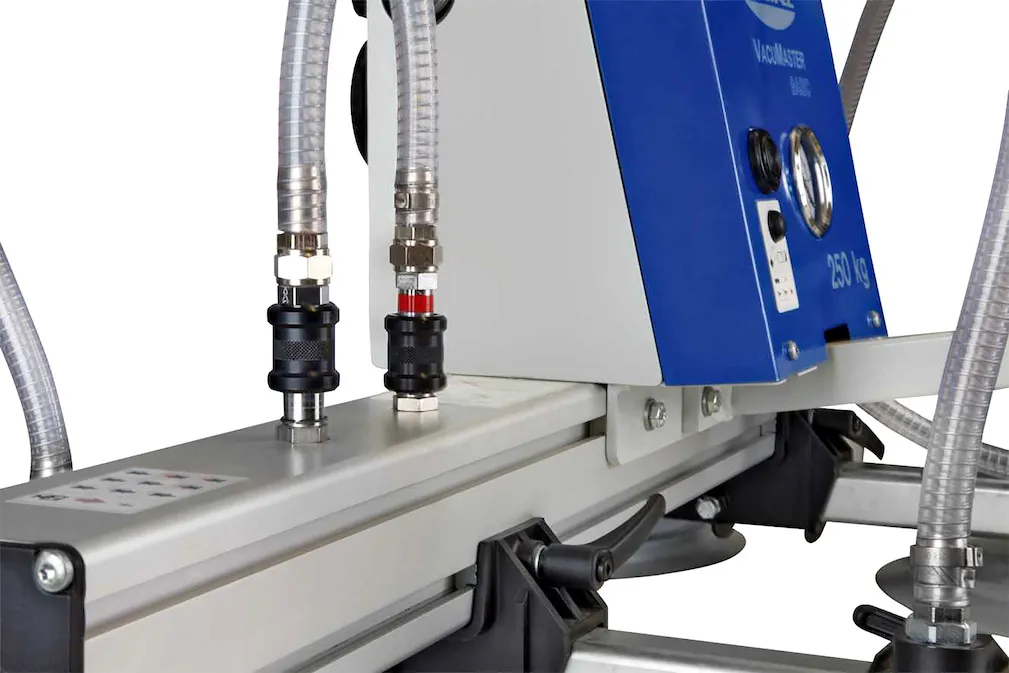

Vacuum Gripper Shut-Off

Adapts to changing workpieces With the vacuum gripper shut-off valve several vacuum grippers can be turned off for handling of cut pieces or pieces with gaps.

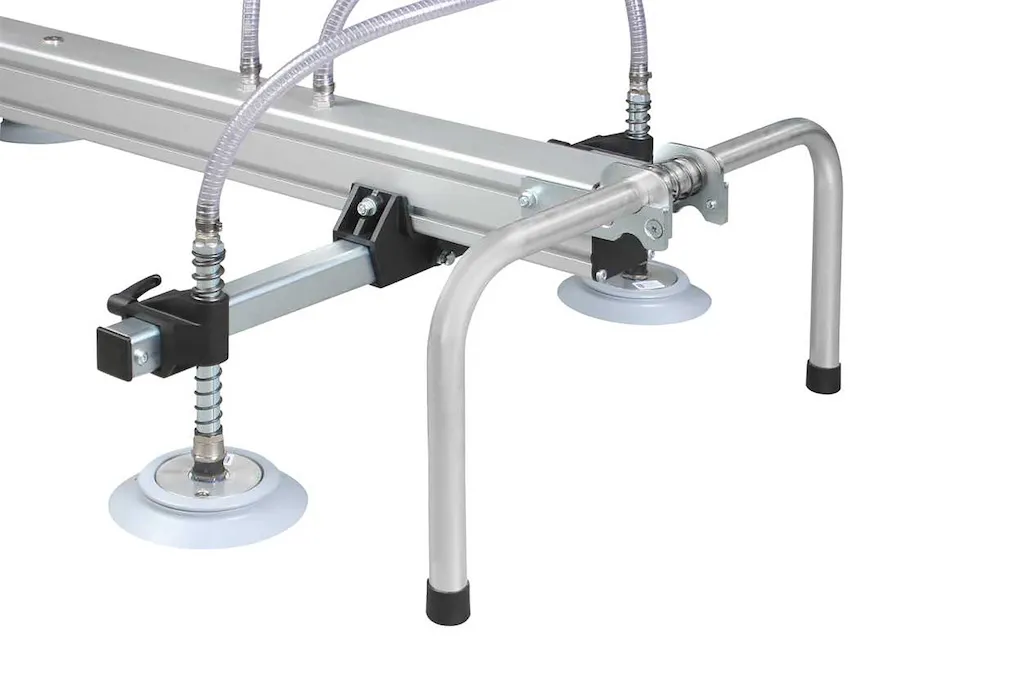

Parking Stands

Secure storage of the lifting device When the lifting device is not in use, the parking stands allow it to be stored securely while protecting the suction plates. This allows the crane to be used for other purposes.

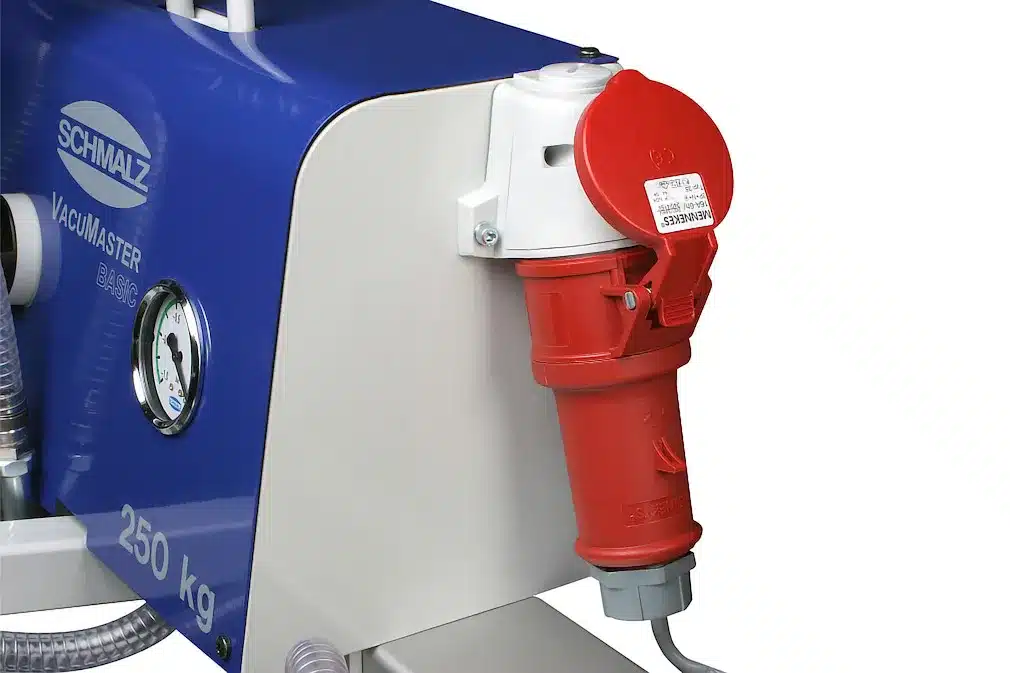

CEE-Connect

Quick-connect electrical connection The CEE plug suggests the lifting device to be easily connected to the power supply and then quickly disconnected if necessary.
