VacuMaster Window 200/300

Vertical handling of windows, glass sheets and glass components

Application

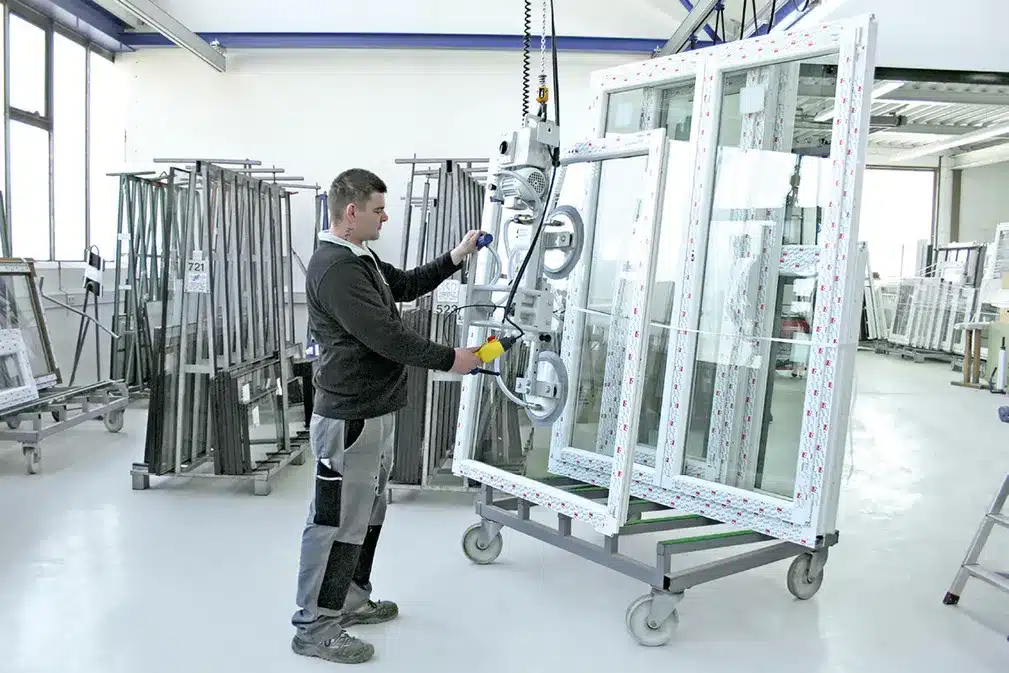

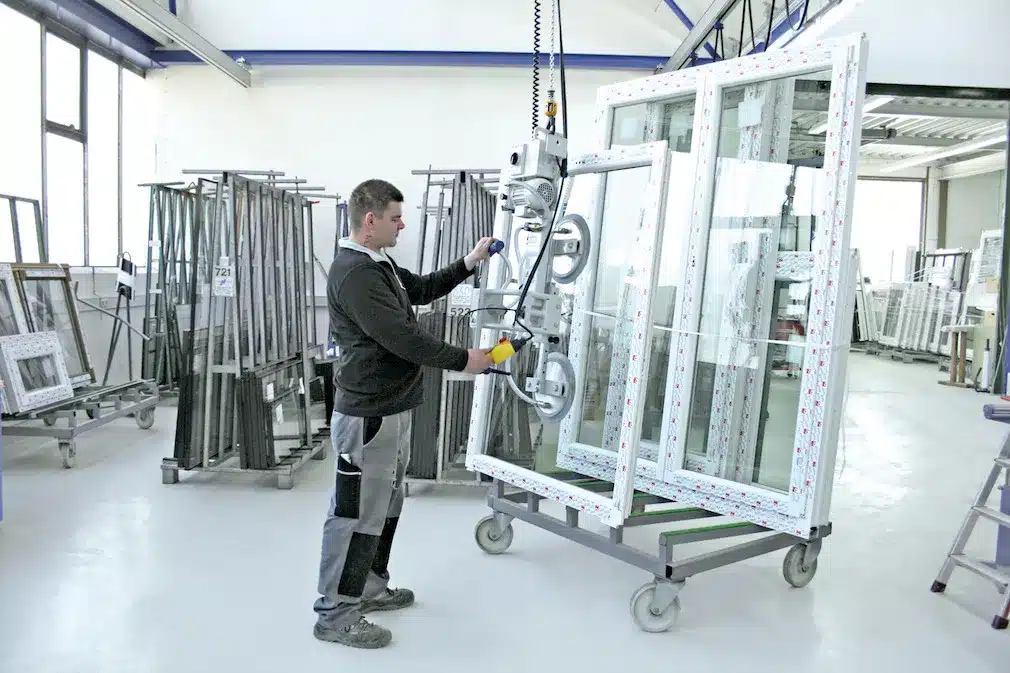

Vertical handling of windows, glass sheets and glass components up to 300 kg

Workpieces can be rotated by 90° (workpiece diagonal during rotation max. 3,000 mm)

For windows with sash parts or frames protruding up to 45 mm

Design

Technical Data

Design

Narrow basic body (1) for vertical handling
Electrical vacuum pump (2) for short evacuation times
Ergonomic operator handle (3) for vertical rotation of workpieces
Manual rotation unit (4) up to 90° left or right, with optional electric drive
System of beams (5) with UV and ozone resistant suction plates (6)
Audible warning device and vacuum reservoir (7) for protection against vacuum drop in case of a power failure

Technical Data

VacuMaster Window Basic

Type	Rotation mechanism	Max. lift capacity [kg]	Number of suction plates	∅ suction plates [mm]
Window Basic 200	Manual, left/right	200	2	305
Window Basic 300	Manual, left/right	300	4	305

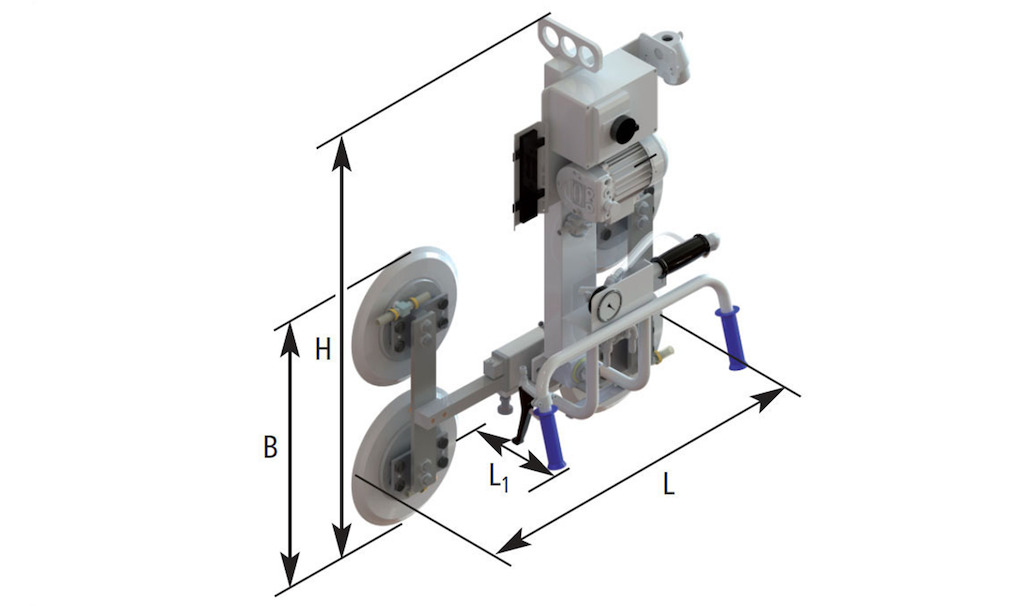

Type	Length L [mm]	Width B [mm]	Overall height H [mm]	Total depth L₁ [mm]	Weight [kg]
Window Basic 200	630 – 930	305	940	390	39
Window Basic 300	620 – 910	640	1,100	400	55

VacuMaster Window Comfort

Type	Rotation mechanism	Max. lift capacity [kg]	Number of suction plates	∅ suction plates [mm]
Window Comfort 200	Manual, left/right	200	2	305
Window Comfort 200 EL	Electric, right	200	2	305
Window Comfort 300	Manual, left/right	300	4	305
Window Comfort 300 EL	Electric, right	300	4	305

Type	Length L [mm]	Width B [mm]	Overall height H [mm]	Total depth L₁ [mm]	Weight [kg]
Window Comfort 200	630 – 930	300	940	550	55
Window Comfort 200 EL	630 – 930	630	940	570	71
Window Comfort 300	620 – 910	300	1.100	630	59
Window Comfort 300 EL	620 – 910	630	1.100	650	76

Spare parts

Spare and Wear Parts VacuMaster Window 200/300

Wide range of spare and wear parts
Vacuum generator, filter, suction plates

Accessories

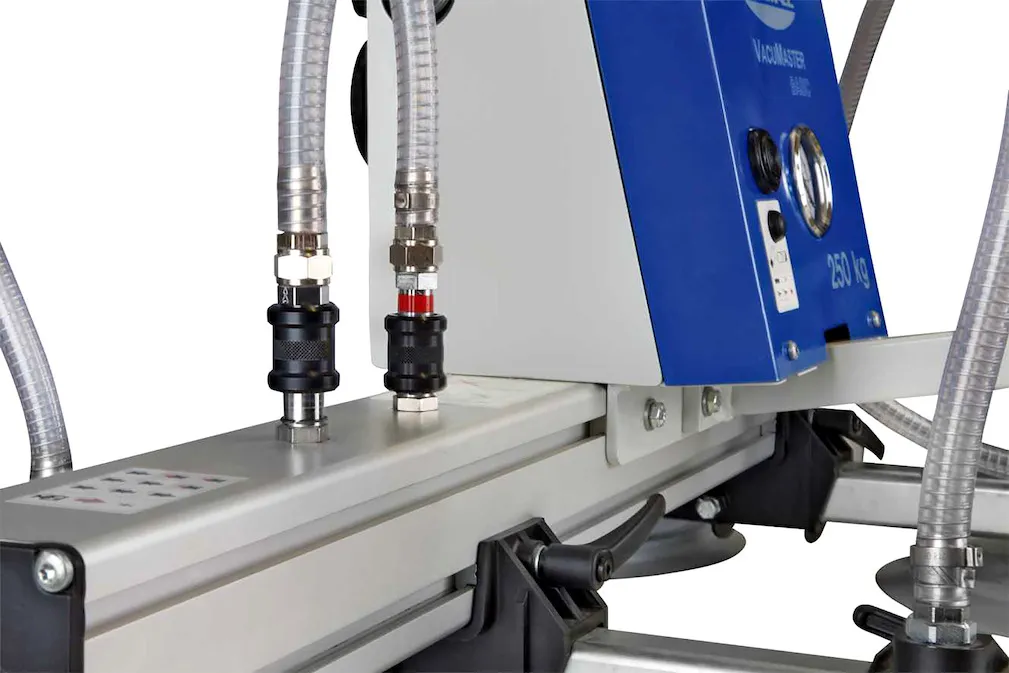

Vacuum Gripper Shut-Off

Adapts to changing workpieces With the vacuum gripper shut-off valve several vacuum grippers can be turned off for handling of cut pieces or pieces with gaps.

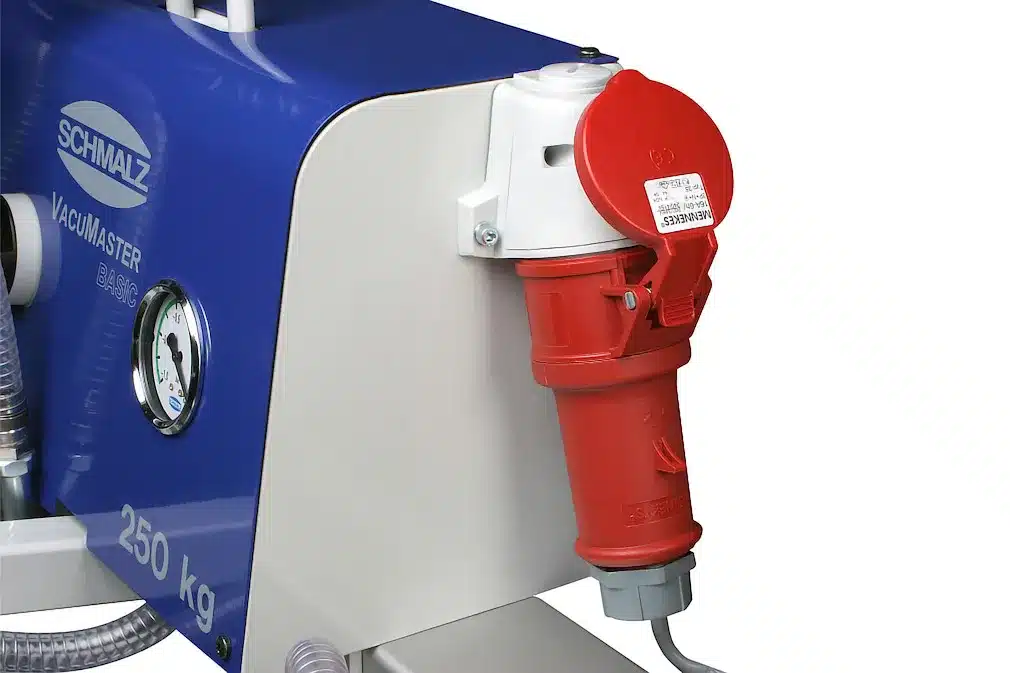

CEE-Connect

Quick-connect electrical connection The CEE plug suggests the lifting device to be easily connected to the power supply and then quickly disconnected if necessary.

Product recommendations

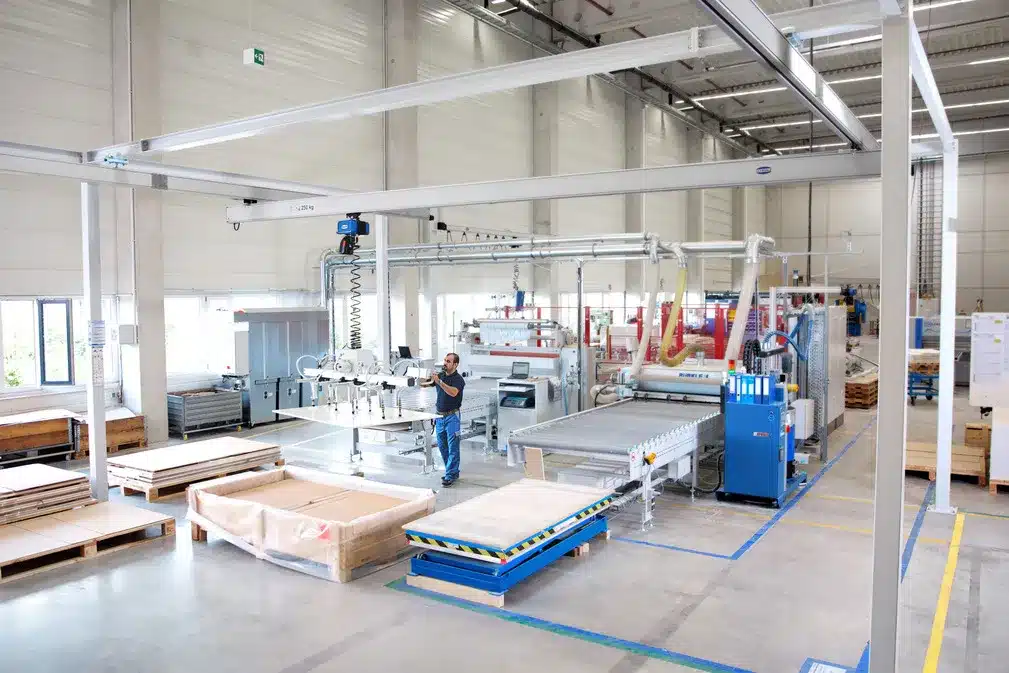

Aluminum Bridge Cranes

Modular crane system for flexible and cost-effective assembly of individual crane solutions
Installation on ceiling or portal construction
Particularly suitable for large workspaces Lift capacity up to 1,200 kg

Wall-Mounted Jib Cranes

Mounted using a wall bracket or clasp bracket
Lift capacity up to 1,000 kg

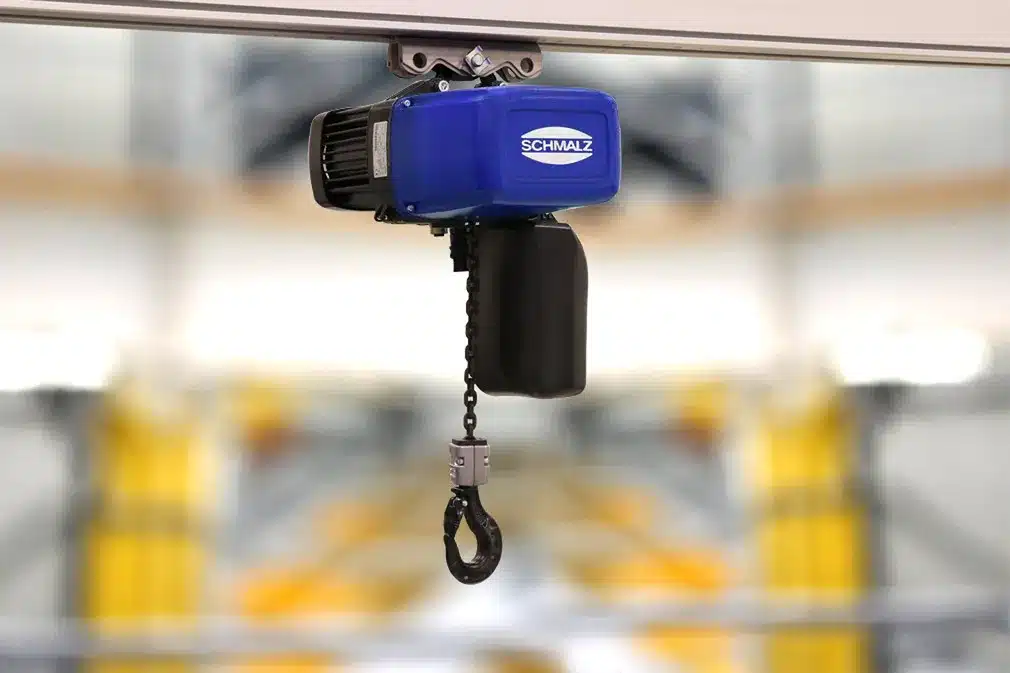

Chain Hoists

Sturdy chain hoist with limit switch Lift capacity up to 2,500 kg
Standard lifting height of 3,000 mm CSA certified for USA and Canada

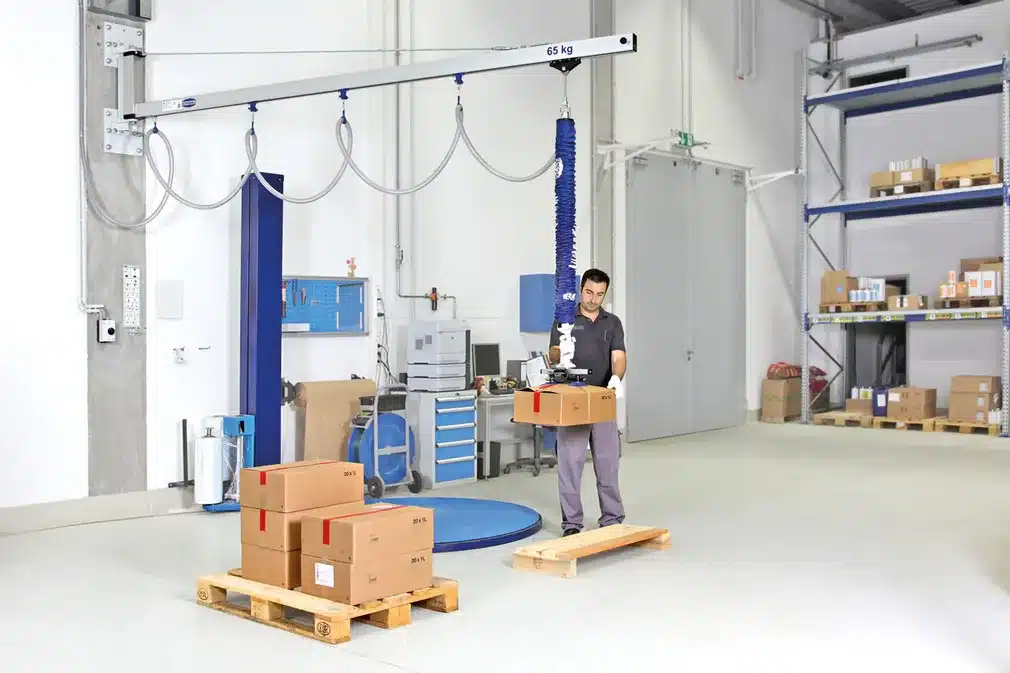

Column-Mounted Jib Cranes
