VacuMaster Wood

Handling of wood workpieces and other air-permeable workpieces

Whether for carpenters, furniture makers or wood traders: The VacuMaster Wood Comfort is the ideal lifting solution for the woodworking shop. The vacuum lifting device transports a wide variety of wooden boards or beams gently and ergonomically. Both airtight and air-permeable workpieces up to 5,000 mm in length can be handled.

Application

Handling of a wide range of airtight or porous boards up to 250 kg

Ideal for raw or coated MDF, OSB and chipboard as well as gypsum fiberboards, plasterboards and plastic boards

Loading and unloading of panel saws and machining centers

Swiveling of workpieces by up to 90° for removal from upright storages and loading of upright saws

Design

Technical Data

Design

Basic module (1) incl. multi-stage vacuum ejector “High Flow”, audible warning device, vacuum gauge and dust filter
Operating unit (2) in Comfort design with ergonomic handle shape and integrated control elements
Main beam (3) optionally with movable cross beams
Special suction plates (4) with friction pads for high transverse force absorption

Technical Data

Type	Max. Load capacity [kg]	Workpiece format [mm]		Main beam LL [mm]	Cross beam LQ [mm]	Overall height H [mm]	Operator handle L1 [mm]	Suction plates		Weight [kg]
	250 kg	Minimum	Maximum					Quantity	Size [mm]
VM Wood C-H-1600-2	250 kg	700 x 560	2.500 x 1.250	1.600	–	780	600	2	200 x 550	60
VM Wood C-H-2400-4	250 kg	870 x 700	4.500 x 2.000	2.400	1.150	780	900	4	180 x 340	90
VM Wood C-90-1600-2	250 kg	700 x 560	2.500 x 1.250	1.600	–	805	600	2	200 x 550	72
VM Wood C-90-2400-4	250 kg	870 x 700	4.500 x 2.000	2.400	1.150	805	900	4	180 x 340	102

Spare parts

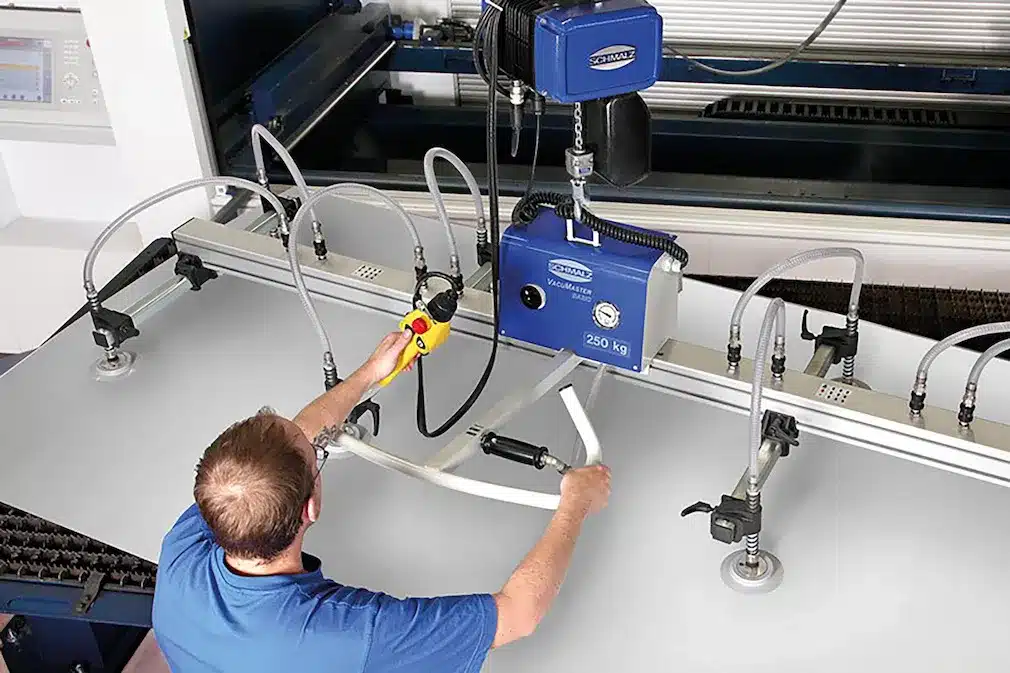

Spare and Wear Parts Vacuum Lifting Devices VacuMaster

Wide range of spare and wear parts for VacuMaster
Vacuum generators, filters, valves, drives, measuring equipment, suction plates and connections

Product recommendations

Aluminum Bridge Cranes

Modular crane system for flexible and cost-effective assembly of individual crane solutions
Installation on ceiling or portal construction
Particularly suitable for large workspaces Lift capacity up to 1,200 kg

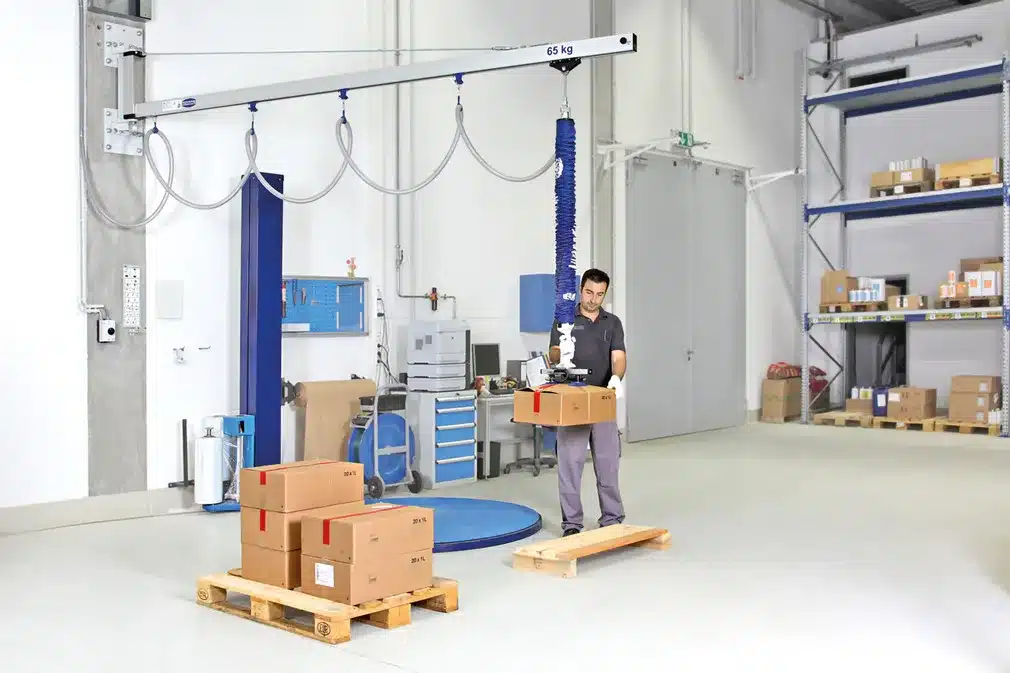

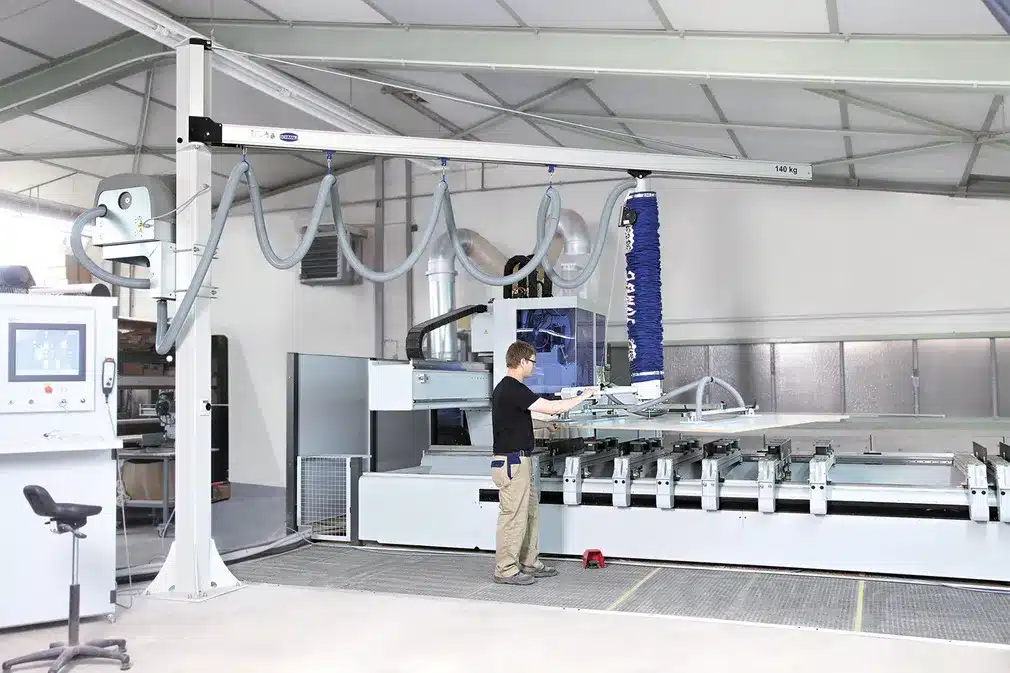

Column-Mounted Jib Cranes

Fitted with anchors for floor mounting Lift capacity up to 1,000 kg
Optionally with mobile base plate (lift capacity up to 200 kg)

Wall-Mounted Jib Cranes

Mounted using a wall bracket or clasp bracket
Lift capacity up to 1,000 kg

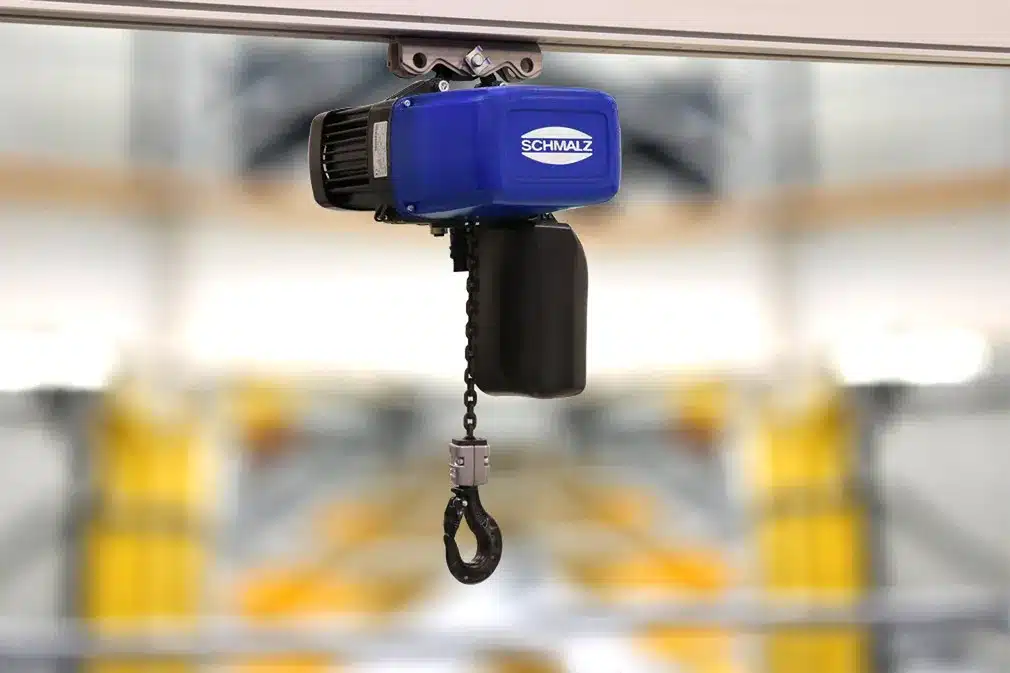

Chain Hoists

Sturdy chain hoist with limit switch Lift capacity up to 2,500 kg
Standard lifting height of 3,000 mm CSA certified for USA and Canada

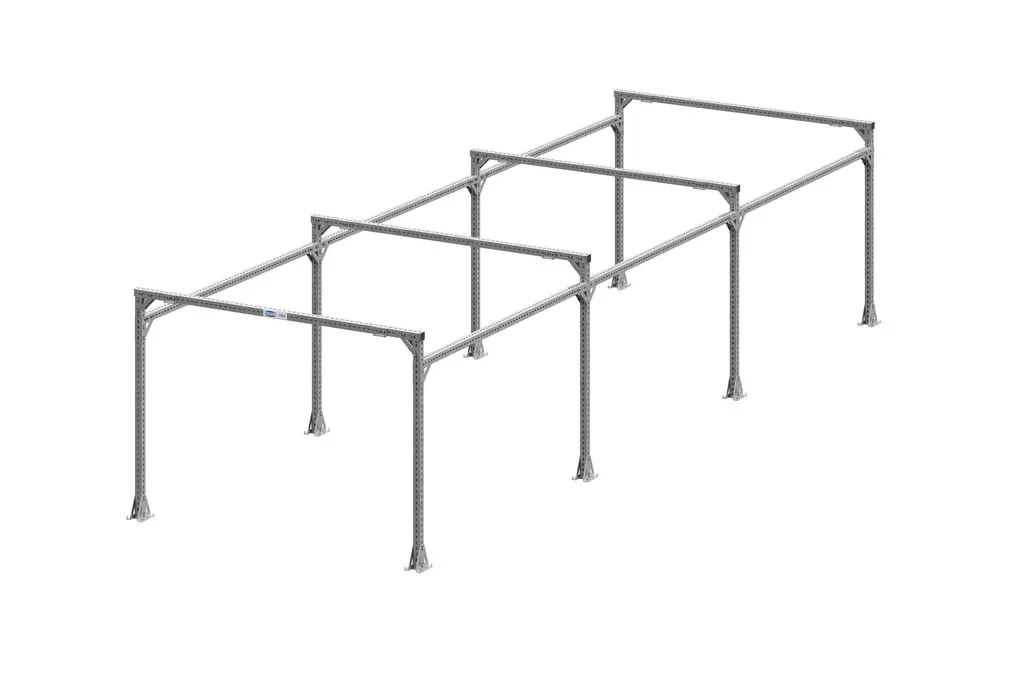

Modular Crane Gantry KBG
