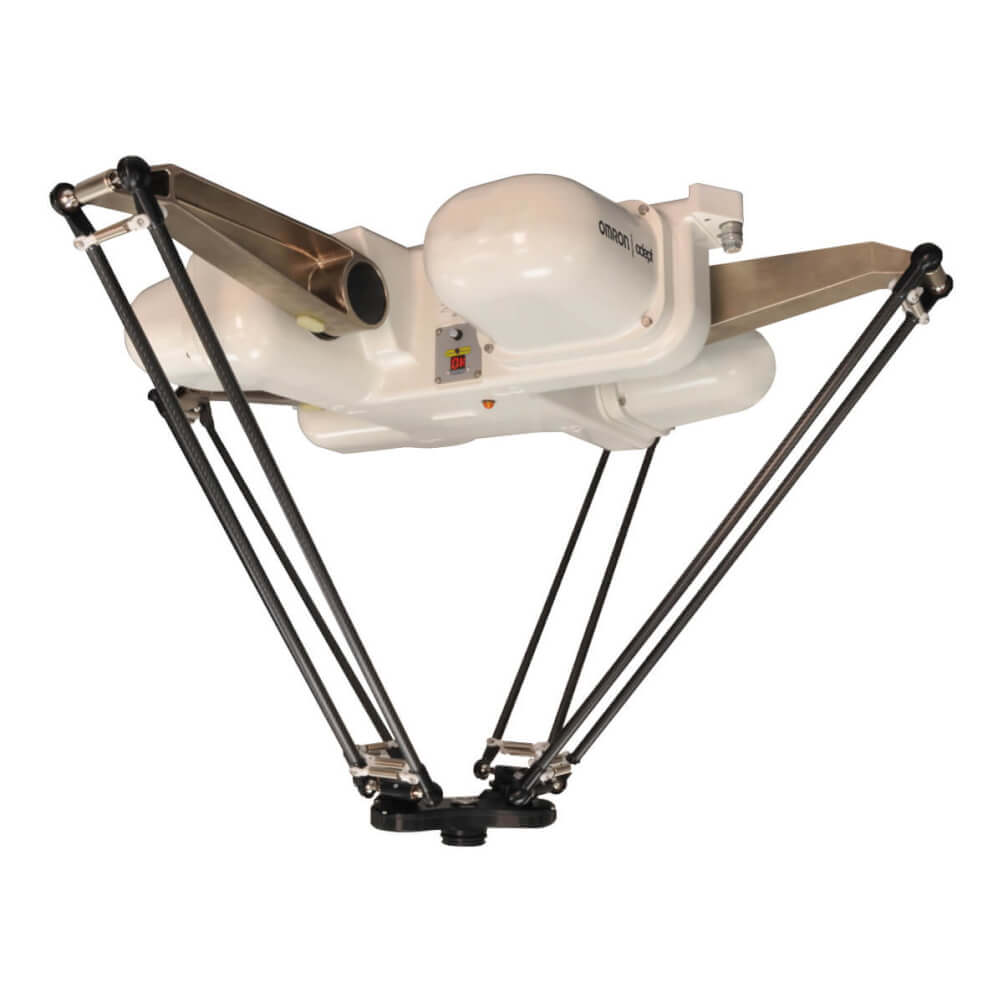

Quattro 650H, SmartController EX, 15 kg payload, 1300mm diameter reach, P30, 0º rotation, 4 axis, 500mm Zaxis, IP65 Base, IP67 Tooling, ePLC
| Robot type | Parallel |
| Robot controller | EX Controller |
| Degree of protection (IP) | IP65 |
| Cleanroom class | None |
| Payload | 15 kg |
| Reach | 650 mm |
| Z-Stroke | 500 mm |
| Rotation -/+ | 0 ° |
| Platform type | P30 |
| Cycle time | 0.3 s |
| Repeatability | 0.1 mm |
| Degrees of freedom | 3 |
| Number of joints | 4 |
| Suitable for pedestal/floor mounting | ❌ |
| Suitable for ceiling mounting | ✔️ |
| Vision | ✔️ |
| PackXpert | ✔️ |
| Force sensor | ✔️ |
| I/O-Blox | ✔️ |
| Number of I/O-Blox | 4 |
 |
03695-000 | Cable, XIO Termination Block to XIO Connector on Robot |
|
 |
04677-030 | IO Blox extension cable, 3.0 m (connects IO Blox to robot) |
|
 |
04679-003 | IO Blox extension cable, 0.3 m (connects IO Blox to IO Blox) |
|
 |
04679-030 | IO Blox extension cable, 3.0 m (connects IO Blox to IO Blox) |
|
 |
09439-001 | Adept TR-1 Conveyor Encoder IP65 |
|
 |
09443-000 | Cable, Belt Encoder to M12 Female, Y-Adapter, 2-Encoder Support, 3 m |
|
 |
09446-050 | Encoder Extension Cable, M12 Male to M12 Female, 8-pin, 5 m |
|
 |
13463-000 | XBELTIO Cable |
|
 |
90356-30100 | IO Blox 8/IP-8/OP to (expansion – connects to previous IO Blox) |
|
 |
90356-30200 | IO Blox 8/IP-8/OP (1st IO Blox – connects to robot) |
|
 |
90356-40100 | XIO Termination Block, 12/IP-8/OP |
|
| ROBOT 6MTH WRTY EXT LB QUATTRO | After Sales Robotic Services – 6 Months Warranty Extension Package for Labor Quattro Robot (Labor and Travelling costs included, Warranty Extension package requires Basic and/or Registered warranty) |
|
| ROBOT 6MTH WRTY EXT SP QUATTRO | After Sales Robotic Services – 6 Months Warranty Extension Package for Spare Parts Quattro Robot (Warranty extension package requires Basic and/or Registered warranty) |
|
| ROBOT AS HOUR FEE | After Sales Robotic Services – Hourly Rate for Working Days (local office working hours) |
|
| ROBOT AS HOUR FEE OVT | After Sales Robotic Services – Hourly Rate for Working Days (overtime, outside local office working hours) |
|
| ROBOT AS INHOUSE REMOTE ASSIS | After Sales Robotic Services – In House Remote Assistance Phone / Team Viewer, value for each 30 minutes |
|
| ROBOT MNT CONT FIXED BRONZE | Maintenance Contract for Fixed Robots – Bronze – Price per robot and per year, travelling cost to be added for qty under 4pcs. https://industrial.omron.eu/en/services-support/robotic-services |
|
| ROBOT MNT CONT FIXED GOLD | Maintenance Contract for Fixed Robots – Gold – Price per robot and per year, spare parts included, minimum 3 year contract time. https://industrial.omron.eu/en/services-support/robotic-services |
|
| ROBOT MNT CONT FIXED SILVER | Maintenance Contract for Fixed Robots – Silver – Price per robot and per year. https://industrial.omron.eu/en/services-support/robotic-services |
|
| TCD21 PROG E V+ PROF | In House Training Course for Robot Programming – eV+ Professional (2 days, price per person) |
|
| TCD23 PROG ACE OPERATORS | In House Training Course for Robot Programming – ACE for Operators (2.0 days, price per person) |
|
