3301G*A DIN 950 3301G* DIN THREE -ARM ALUMINIUM HANDWHEEL (FORM G*A)

SKU: 3301G*A DIN 950 3301G* DIN THREE -ARM ALUMINIUM HANDWHEEL (FORM G*A)
ID:491283

Description

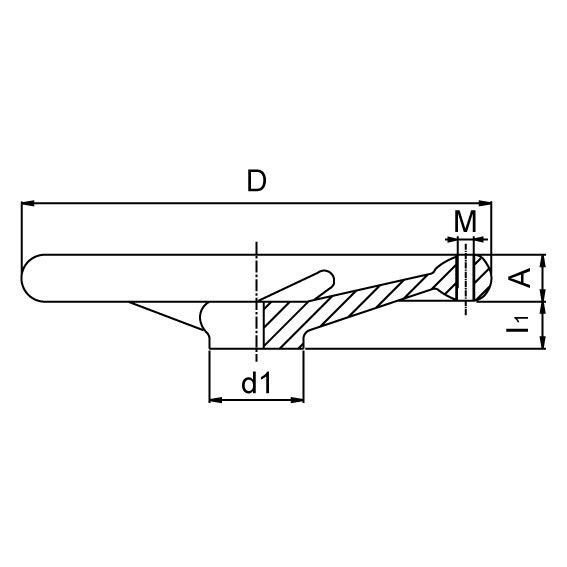

ESQUEMA-3301Ga

AL: Aluminium, polished.

Centre hole from Ø5 to 10mm.

M: Threaded for wheel handle.



Code No D d1 I1 A Number of Arms M Surface
330108151 80 24 16 14 3 M6 Polished
330110151 100 26 17 15 3 M6 Polished
330112151 125 29 18 16 3 M8 Polished
330114151 140 30 19 17 3 M8 Polished
330116151 160 37 20 18 3 M10 Polished
330118151 180 38 22 20 3 M10 Polished
330120151 200 42 24 22 3 M10 Polished
330122151 225 44 26 24 5 M10 Polished
330125151 250 53 28 26 5 M12 Polished
330128151 280 56 30 26 5 M12 Polished
330131151 315 57 33 28 5 M12 Polished
330136151 360 70 35 30 5 M12 Polished
330140151 400 70 38 32 5 M16 Polished
330150151 500 79 45 34 5 M16 Polished
330156151 560 102 50 36 5 M16 Polished
