3701G*A DIN 950 THREE-ARMED SOLID HANDWHEEL (FORM G*A)

SKU: 3701G*A DIN 950 THREE-ARMED SOLID HANDWHEEL (FORM G*A)
ID:491372

Description

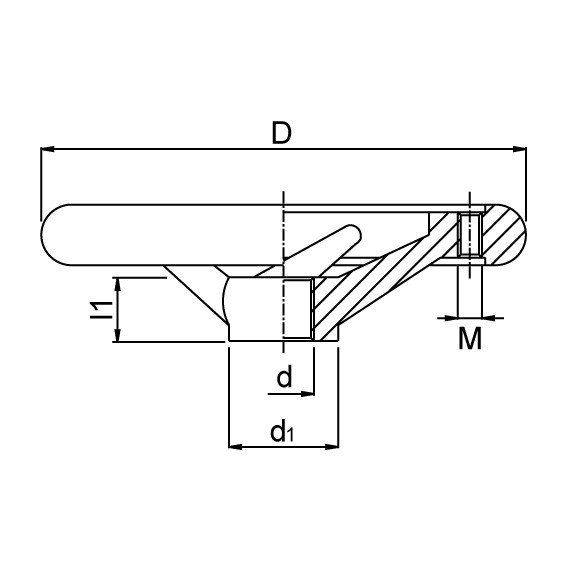

ESQUEMA-3701Ga

The centre with a through hole.

FE: Grey cast iron with burrs removed. The hub is machined.

d5: Threaded for wheel handle.

Kama conduit can be manufactured. Please contact



Code No D d1 l1 d M Number of Arms
370108151 80 24 16 10 M6 3
370110151 100 26 17 10 M6 3
370112151 125 28 18 12 M8 3
370114151 140 30 19 14 M8 3
370116151 160 32 20 14 M10 3
370120151 200 38 24 18 M10 3
370125151 250 45 28 22 M12 5
370131151 315 53 33 26 M12 5
370140151 400 65 38 30 M16 5
