Body: Free-cutting steel, darkened.
Locking pin: Hardened steel.
Thermoplastic PA 6 handle, fixed, mattete Black.
Temperature range, from -30°C up to +80°C’.
Locking nuts are to be ordered separately.
The handle is locked when pulled out and rotated 90°.
*Statistically average value.

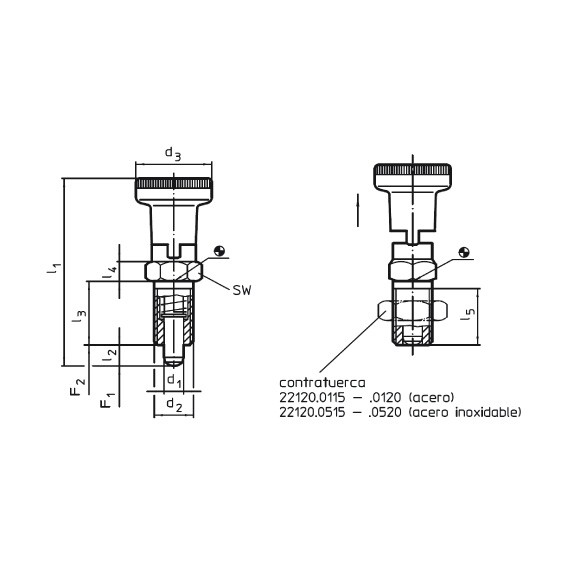

| Code No | d1 | d2 | d3 | l1 | l2 | l3 | l4 | l5 | WS | F1*(N) | F2*(N) |
| 377800205 | 5 | M10x1.0 | 21 | 51.0 | 5 | 17 | 5 | 15 | 12 | 6.0 | 14 |
| 377800206 | 6 | M12x1.5 | 25 | 61.0 | 6 | 20 | 6 | 17 | 14 | 5.5 | 13 |
| 377800208 | 8 | M16x1.5 | 31 | 75.5 | 8 | 26 | 8 | 23 | 19 | 11.5 | 28 |
| 377800210 | 10 | M20x1.5 | 31 | 91.0 | 10 | 33 | 10 | 30 | 22 | 23.0 | 54 |
| KİLİTLEME nutU | |||||||||||
| Code No | d2 | ||||||||||
| 377800115 | M10x1.0 | ||||||||||
| 377800116 | M12x1.5 | ||||||||||
| 377800118 | M16x1.5 | ||||||||||
| 377800120 | M20x1.5 | ||||||||||
KİLİTLEME nutU
