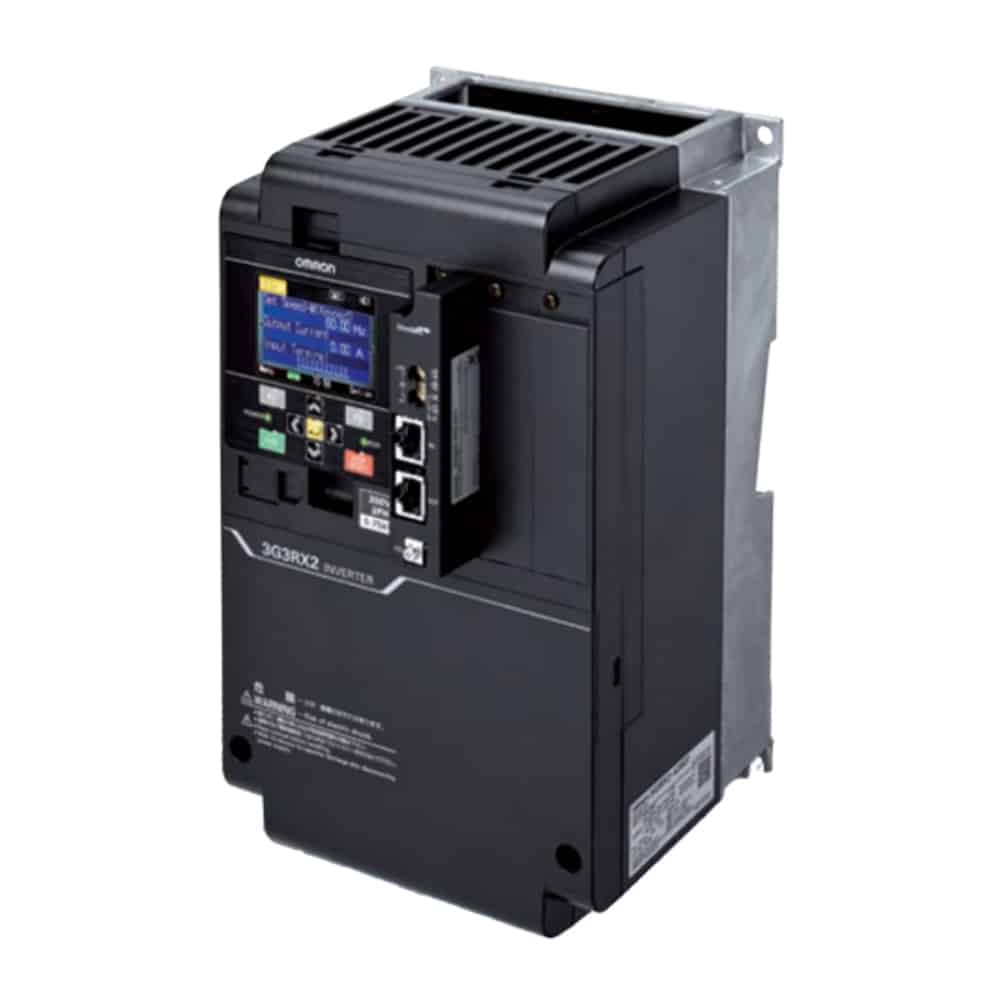

3G3RX2-A2220

Inverter RX2, 200 V, VLD: 124 A / 30 kW, LD: 113 A / 30 kW, ND: 95 A / 22 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.



SKU: 3G3RX2-A2220
ID:1582369

Description

Drive control method Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
Drive supply voltage 230 V three phase
Max. motor output at constant torque (HD) 22 kW
Max. motor output at variable torque (ND) 30 kW
Built in EMC filter ✔️
Finless type
Compatible motor type Induction or asynchronous motor, Permanent magnet motor
Regenerative solutions As inverter option
Communication port(s) Serial RS-485, USB
Communication option(s) MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave
Product Height (unpacked) 390 mm
Product Width (unpacked) 245 mm
Product Depth (unpacked) 190 mm
Product Weight (unpacked) 10000 g
Degree of protection (IP) IP20



Accessories

AX-FER5045-PE Ferrite choke, 50mm diameter, for 45kW inverters and below



AX-RAI00091000-DE AC input reactor, 100 A, 0.09 mH, for 18.5 to 22 kW sizes, 200 VAC, 3 phase



AX-RAO00330950-DE AC output reactor, 95 A, 0.33 mH, for 22 kW , 200 VAC, 3 phase



AX-RC00301275-DE DC link reactor, 127.5 A, 0.30 mH, for 18.5 kW and 22 kW , 200 VAC, 3 phase





RX

Datasheet
EN PDF
