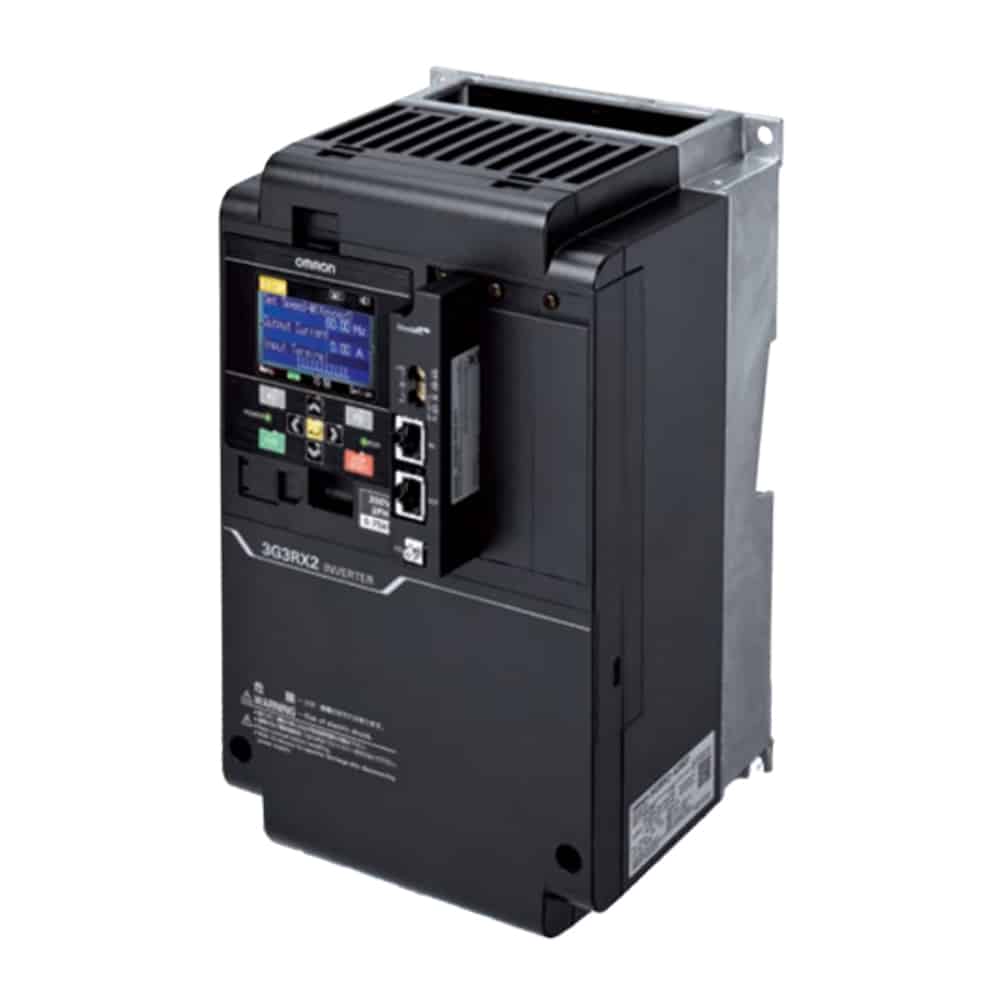

3G3RX2-A2550

Inverter RX2, 200 V, VLD: 295 A / 75 kW, LD: 270 A / 75 kW, ND: 220 A / 55 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.



SKU: 3G3RX2-A2550
ID:1582465

Description

Drive control method Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
Drive supply voltage 230 V three phase
Max. motor output at constant torque (HD) 55 kW
Max. motor output at variable torque (ND) 75 kW
Built in EMC filter ✔️
Finless type
Compatible motor type Induction or asynchronous motor, Permanent magnet motor
Regenerative solutions As inverter option
Communication port(s) Serial RS-485, USB
Communication option(s) MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave
Product Height (unpacked) 700 mm
Product Width (unpacked) 480 mm
Product Depth (unpacked) 250 mm
Product Weight (unpacked) 47000 g
Degree of protection (IP) IP20



RX

Datasheet
EN PDF
