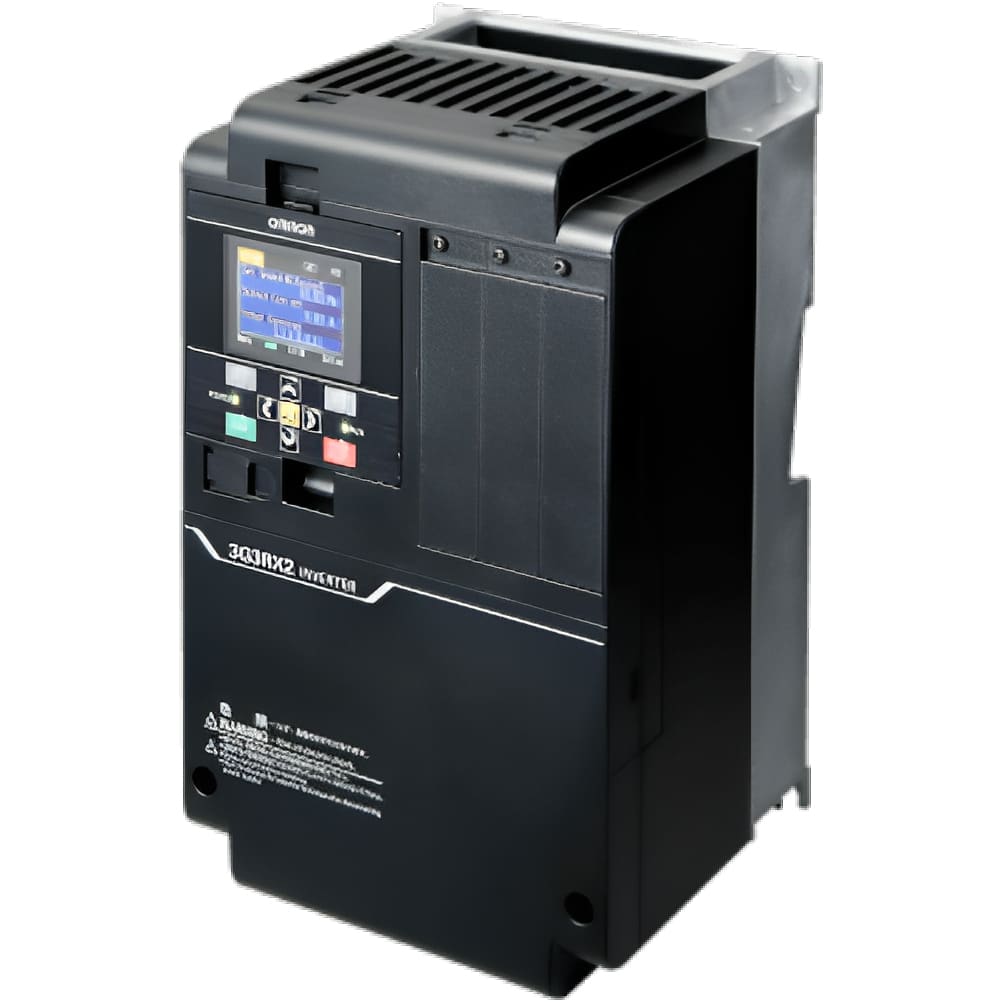

Inverter RX2, 400 V, VLD: 5,4 A / 2,2 kW, LD: 4,8 A / 2,2 kW, ND: 4,0 A / 1,5 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 1.5 kW |
| Max. motor output at variable torque (ND) | 2.2 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 255 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 140 mm |
| Product Weight (unpacked) | 3000 g |
| Degree of protection (IP) | IP20 |
 |
AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
 |
AX-FIR4011-SE | RX2 footprint RFI filter, 11 A, 3~ 400 VAC, for 0.75-3.7 kW models |
|
 |
AX-RAO16300038-DE | AC output reactor, 3.8 A, 16.3 mH, for 0.4, 0.7 and 1.5 kW , 400 VAC, 3 phase |
|
 |
AX-RC14000047-DE | DC link reactor, 4.7 A, 14 mH, for 1.5 kW, 400 VAC |
|
