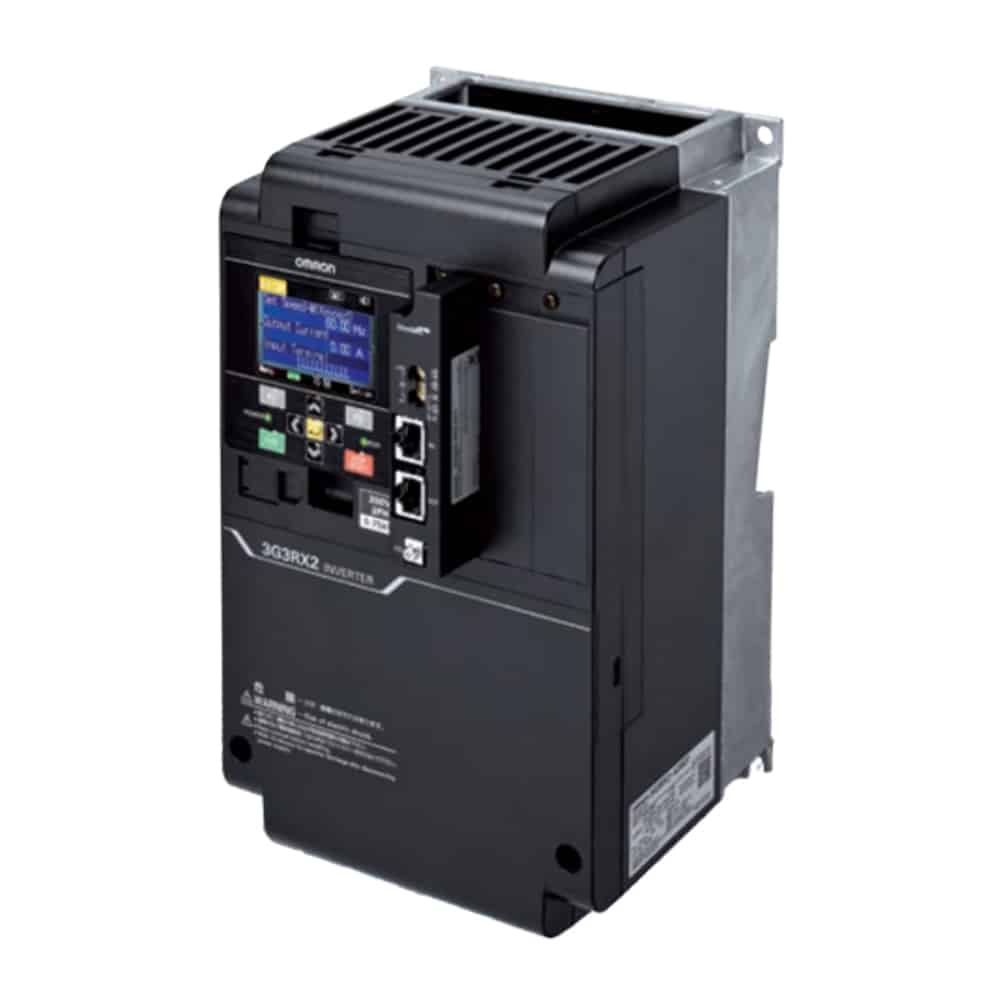

3G3RX2-A4150

Inverter RX2, 400 V, VLD: 40 A / 18,5 kW, LD: 37 A / 18,5 kW, ND: 32 A / 15 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.



SKU: 3G3RX2-A4150
ID:1582537

Description

Drive control method Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector
Drive supply voltage 400 V three phase
Max. motor output at constant torque (HD) 15 kW
Max. motor output at variable torque (ND) 18.5 kW
Built in EMC filter ✔️
Finless type
Compatible motor type Induction or asynchronous motor, Permanent magnet motor
Regenerative solutions As inverter option
Communication port(s) Serial RS-485, USB
Communication option(s) MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave
Product Height (unpacked) 390 mm
Product Width (unpacked) 245 mm
Product Depth (unpacked) 190 mm
Product Weight (unpacked) 8500 g
Degree of protection (IP) IP20



Accessories

AX-FER2815-PE Ferrite choke, 28mm diameter, for 15kW inverters and below



AX-FIR4058-SE RX2 foot print RFI filter, 58 A, 3~ 400 VAC, for 15-22 kW models



AX-RAI00740335-DE AC input reactor, 33.5 A, 0.74 mH, for 11 to 15 kW sizes, 400 VAC, 3 phase



AX-RAO02000320-DE AC output reactor, 32 A, 2 mH, for 15 kW , 400 VAC, 3 phase



AX-RC01750430-DE DC link reactor, 43 A, 1.75 mH, for 15 kW, 400 VAC





RX

Datasheet
EN PDF
