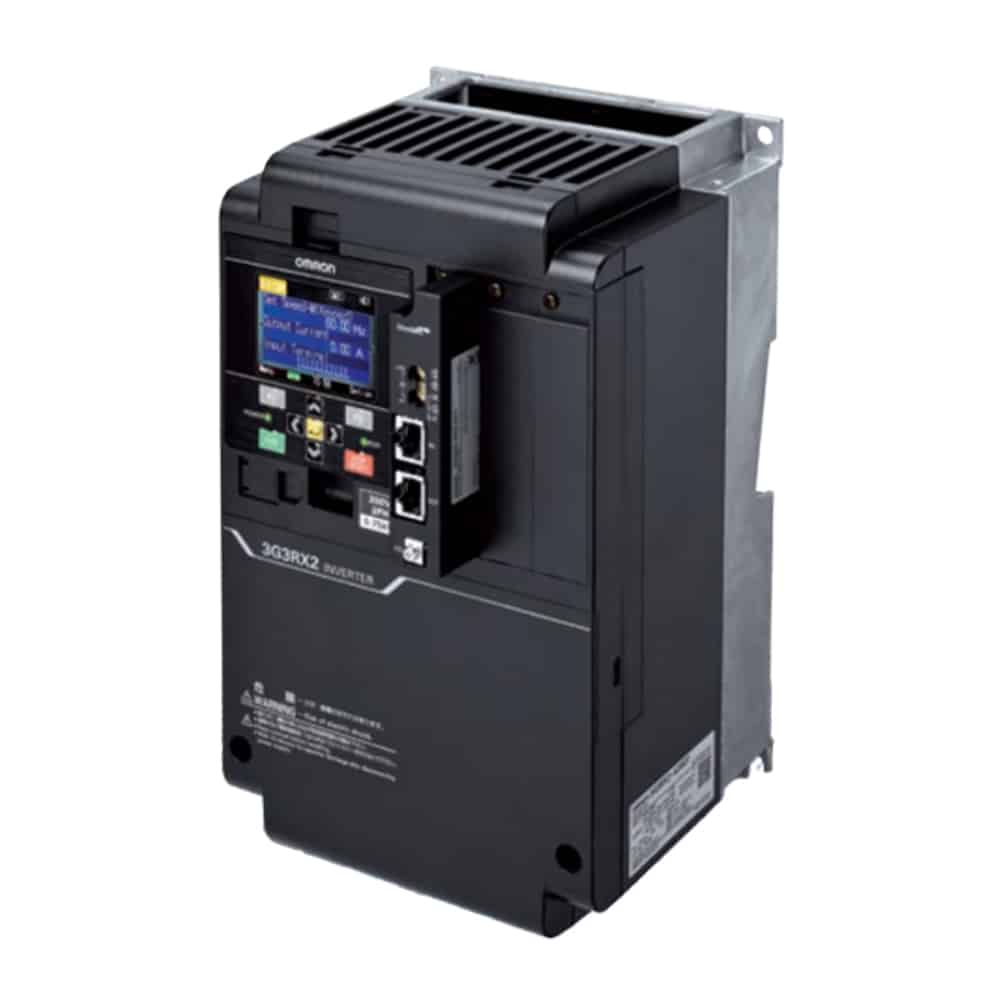

Inverter RX2, 400 V, VLD: 147 A / 75 kW, LD: 135 A / 75 kW, ND: 112 A / 55 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 55 kW |
| Max. motor output at variable torque (ND) | 75 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 550 mm |
| Product Width (unpacked) | 390 mm |
| Product Depth (unpacked) | 250 mm |
| Product Weight (unpacked) | 31000 g |
| Degree of protection (IP) | IP20 |
 |
AX-BCR4035090-TE | Braking unit 400 V, permanent 35 A/26 KVA, peak 90 A/67 KVA, 8.5 ohm min |
|
 |
AX-RAI00191150-DE | AC input reactor, 115 A, 0.19 mH, for 45 to 55 kW sizes, 400 VAC, 3 phase |
|
