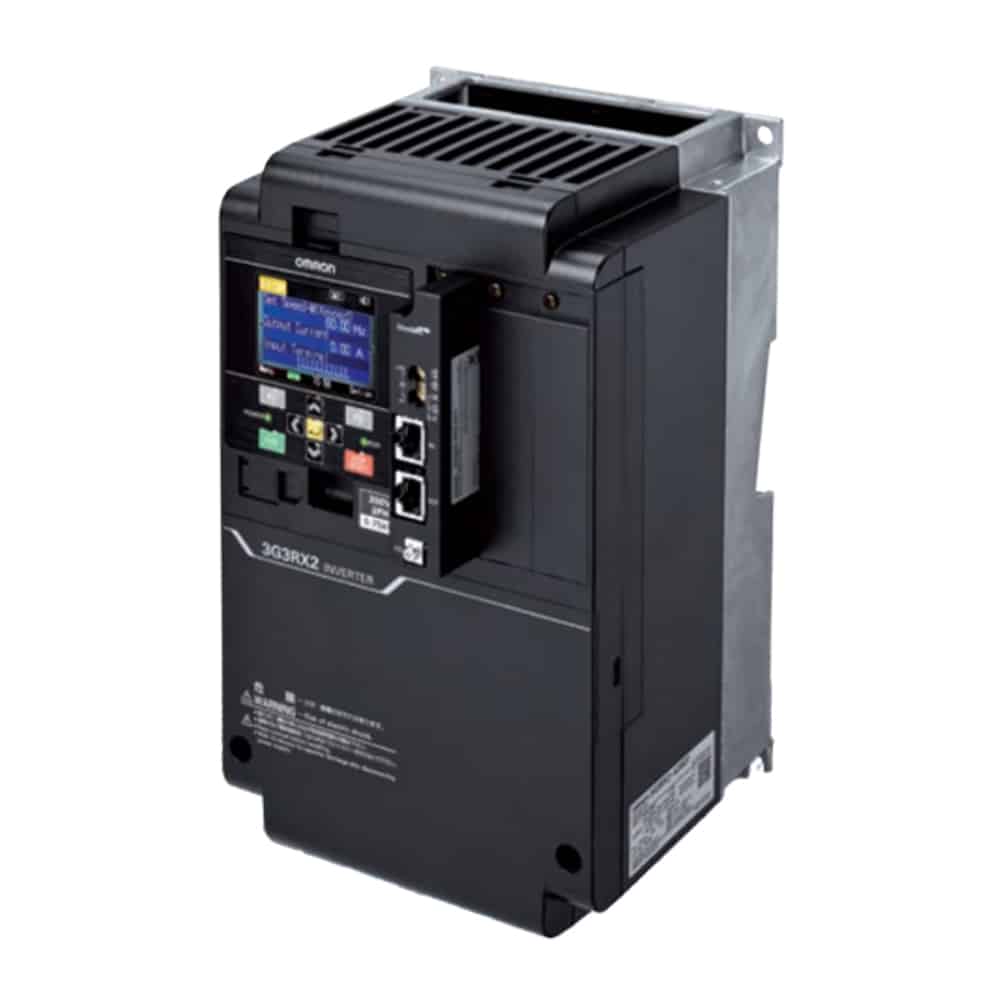

Inverter RX2, 400 V, VLD: 176 A / 90 kW, LD: 160 A / 90 kW, ND: 150 A / 75 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP00.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 75 kW |
| Max. motor output at variable torque (ND) | 90 kW |
| Built in EMC filter | ✔️ |
| Finless type |
❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 700 mm |
| Product Width (unpacked) | 390 mm |
| Product Depth (unpacked) | 270 mm |
| Product Weight (unpacked) | 41000 g |
| Degree of protection (IP) | IP00 |
 |
AX-BCR4035090-TE | Braking unit 400 V, permanent 35 A/26 KVA, peak 90 A/67 KVA, 8.5 ohm min |
|
