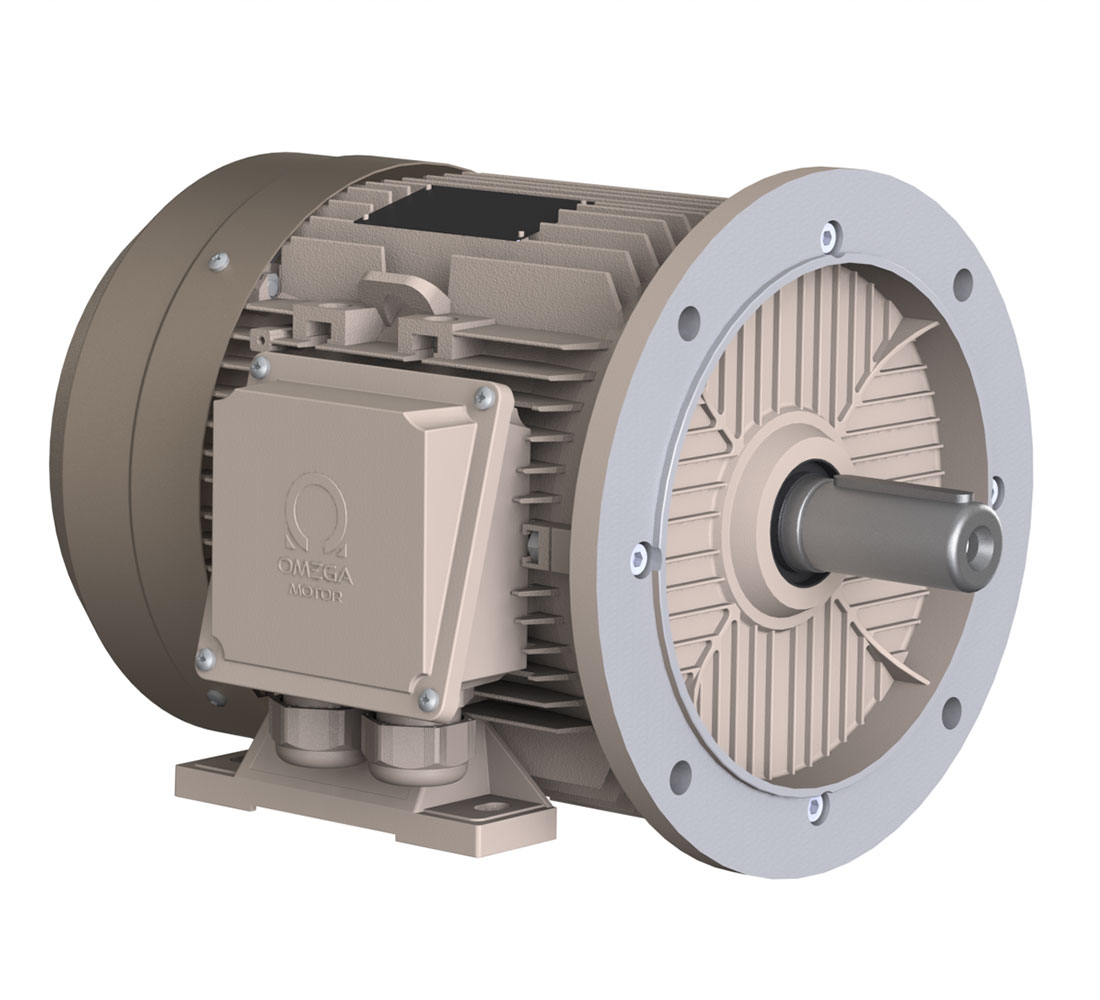

IE4 15kW 1000rpm, Al 180L6, 3Ph 50Hz 400V/690V D/Y, IMB35
| Product Code | 3M0SA4E-18LA60CL0 | ||
|---|---|---|---|
| Motor Type | 3MAS 180L6 | ||
| Mounting Method | IMB35 | ||
| Terminal Box Location | Solda | ||
| Efficiency Class | IE4 | ||
| Output Power | 15,00 kW | ||
| Synchronous Speed | 1000 rpm | ||
| Body Material | Al | ||
| Body Size | 180L6 | ||
| Phase | 3 | ||
| Frequency | 50 | ||
| Voltage | 400 / 690 V (D/Y) | ||
| Number of Poles | 6 | ||
| Current | 30,67 / 17,78 A ( / ) | ||
| Torque | 146,30 Nm | ||
| Moment of Inertia | 0,23 kg.m² | ||
| Load | 4/4 100% Load | 3/4 75% Load | 2/4 50% Load |
| Efficiency | 92,9 % | 93,3 % | 92,7 % |
| Power Factor | 0,76 | 0,69 | 0,57 |
| Starting Current | 7,3 | ||
| Starting Moment | 2,8 | ||
| Breakdown Torque | 3,3 | ||
| Protection Degree | IP 55 | ||
| Insulation Class | F F | ||
| Temperature Increase Class | B B | ||
| Ambient Temperature | -20°C +40°C | ||
| Altitude | 1000 | ||
| Cooling Method | IC 411 | ||
| Noise of Level | 61 dB | ||
| Vibration Class | Derece A | ||
| Duty Type | S1 | ||
| Service Factor | 1,15 | ||
| Motor Rotation Direction | |||
| Approximate Rotor Weight | 60,0 kg | ||
| Approximate Motor Weight | 178,0 kg | ||
| Bearings | Ön (6204 ZZ/CM) | Arka (6204 ZZ/CM) | |
| Relubrication Period | – | – | |
| Grease Volume | – | – | |
| Grease Type | – |

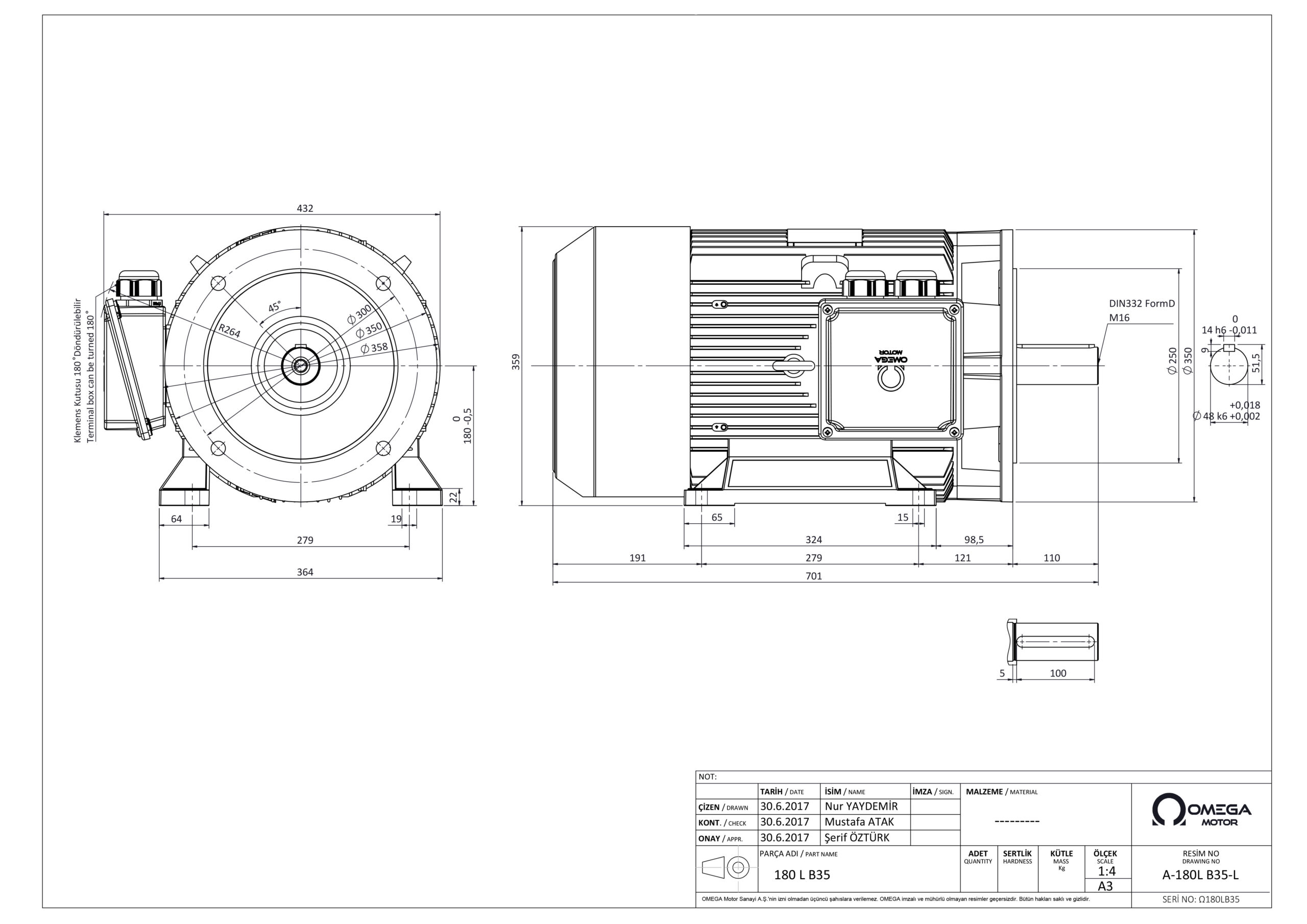

Drawings
EN PDF
Catalog
EN PDF
