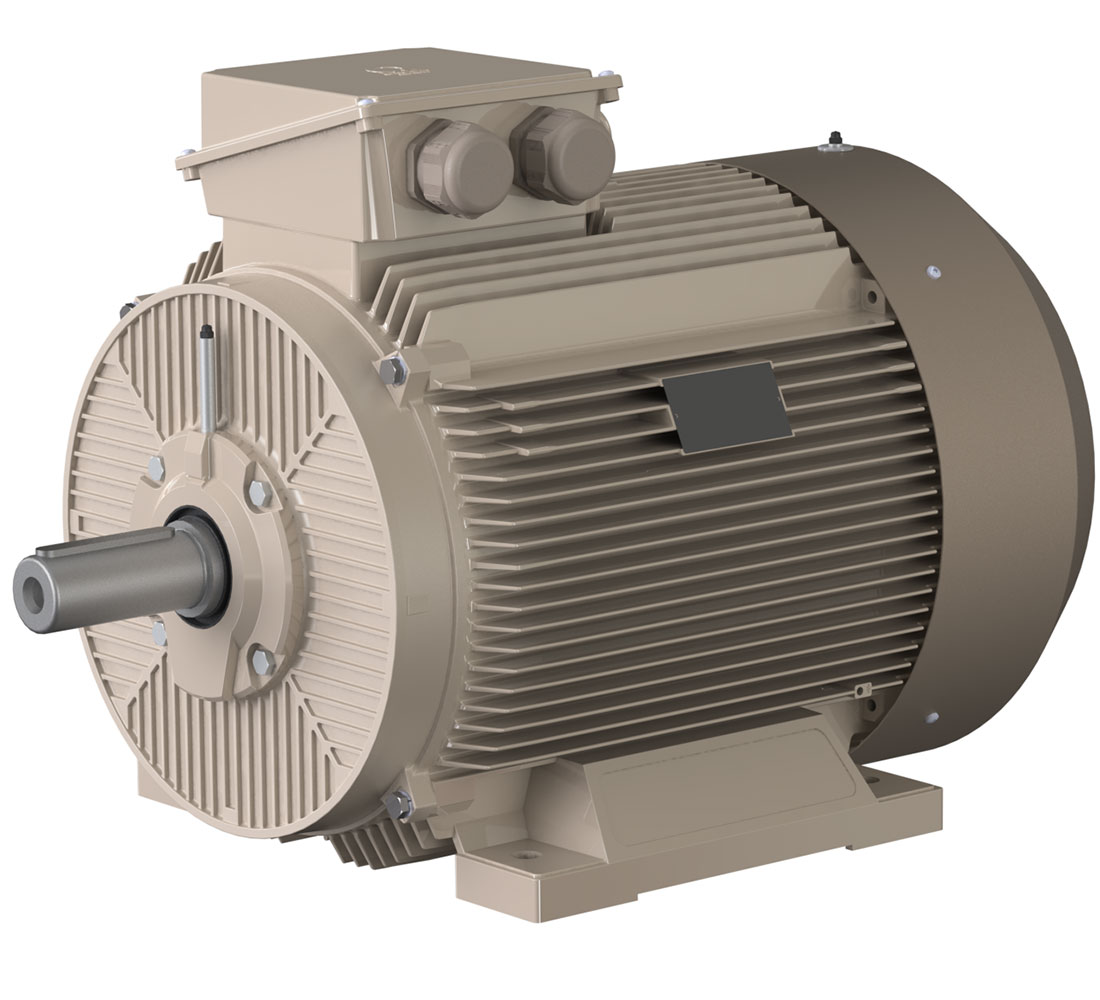

3M0SG3E-28MA60AT0

IE3 55kW 1000rpm, GG20 280M6, 3Ph 50Hz 400V/690V D/Y, IMB3

SKU: 3M0SG3E-28MA60AT0

Description

Product Code 3M0SG3E-28MA60AT0
Motor Type 3MGS 280M6
Mounting Method IMB3
Terminal Box Location Üstte
Efficiency Class IE3
Output Power 55,00 kW
Synchronous Speed 1000 rpm
Body Material GG20
Body Size 280M6
Phase 3
Frequency 50
Voltage 400 / 690 V (D/Y)
Number of Poles 6
Current 102,88 / 59,64 A ( / )
Torque 532,00 Nm
Moment of Inertia 2,18 kg.m²
Load 4/4 100% Load 3/4 75% Load 2/4 50% Load
Efficiency 94,1 % 94,2 % 94,0 %
Power Factor 0,82 0,77 0,65
Starting Current 6,5
Starting Moment 2,3
Breakdown Torque 2,8
Protection Degree IP 55
Insulation Class F F
Temperature Increase Class B B
Ambient Temperature -20°C +40°C
Altitude 1000
Cooling Method IC 411
Noise of Level 70 dB
Vibration Class Derece A
Duty Type S1
Service Factor 1,15
Motor Rotation Direction
Approximate Rotor Weight 195,0 kg
Approximate Motor Weight 574,0 kg
Bearings Ön (6204 ZZ/CM) Arka (6204 ZZ/CM)
Relubrication Period 14500h 33g
Grease Volume Shell Alvania Rt3 33g
Grease Type Shell Alvania Rt3

3M0SG3E-28MA60AT0

Datasheet
EN PDF

3M0SG3E-28MA60AT0

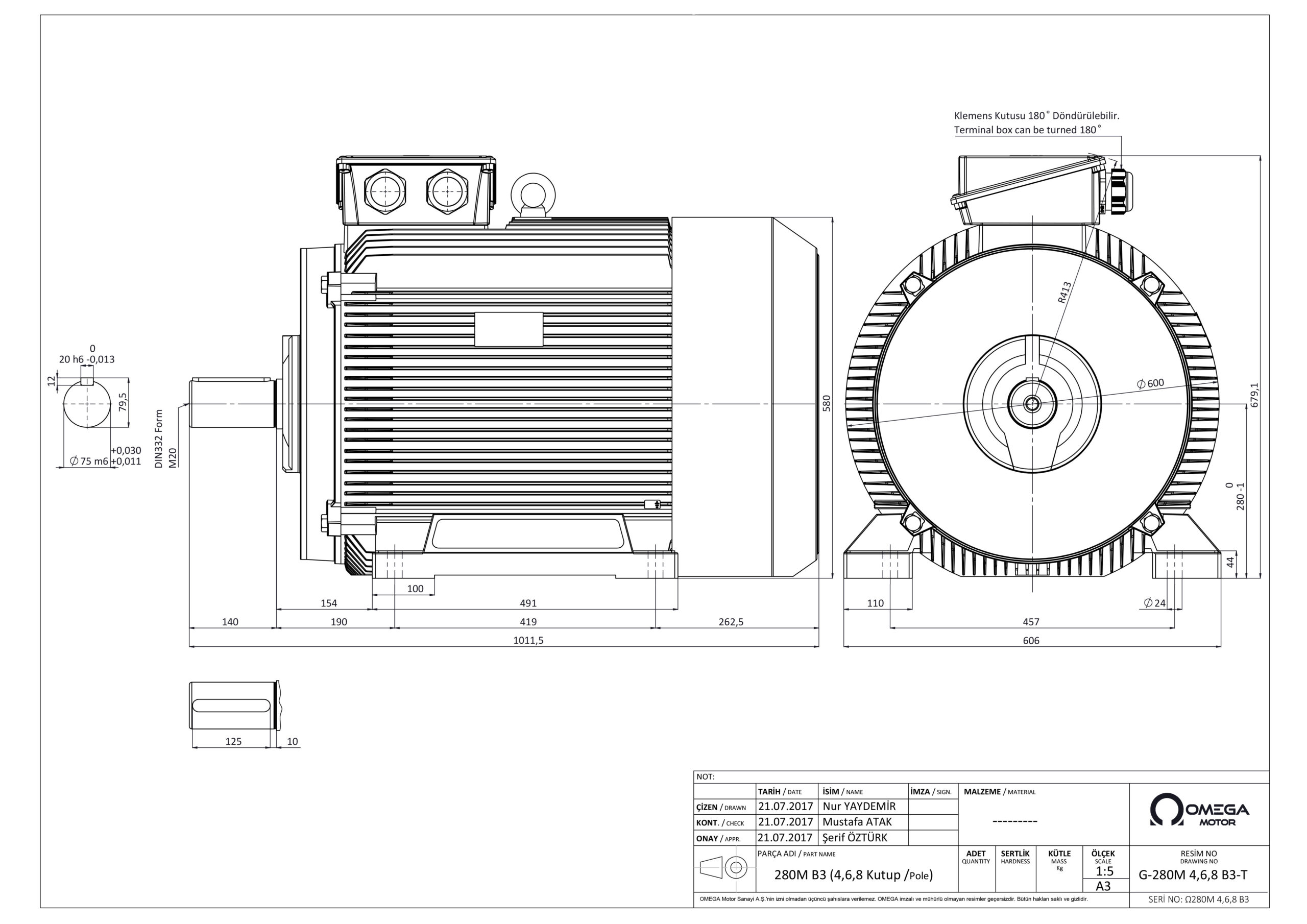

Drawings
EN PDF

Product Catalog

Catalog
EN PDF
