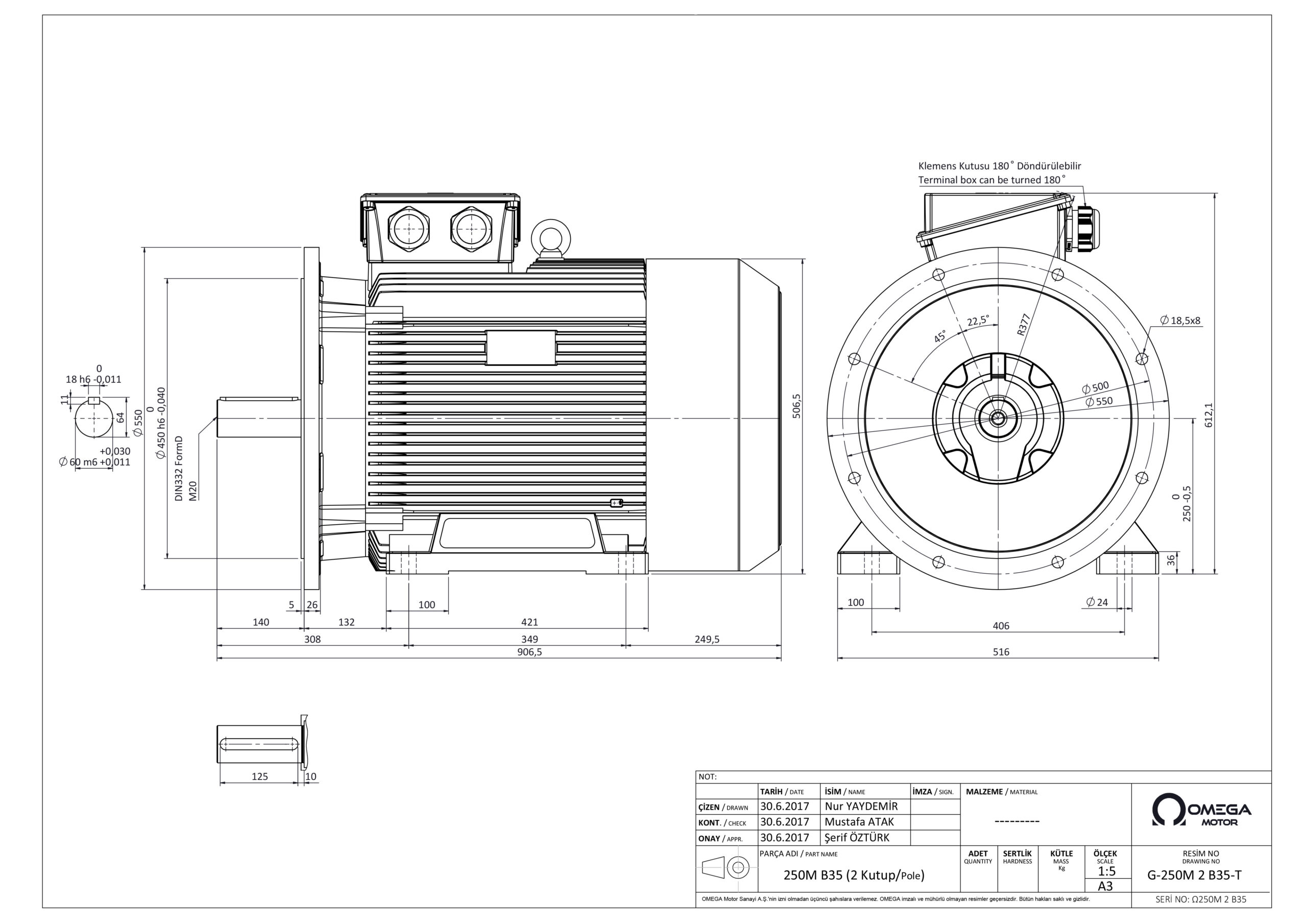

IE4 55kW 3000rpm, GG20 250M2, 3Ph 50Hz 400V/690V D/Y, IMB35
| Product Code | 3M0SG4E-25MA20CT0 | ||
|---|---|---|---|
| Motor Type | 3MGS 250M2 | ||
| Mounting Method | IMB35 | ||
| Terminal Box Location | Üstte | ||
| Efficiency Class | IE4 | ||
| Output Power | 55,00 kW | ||
| Synchronous Speed | 3000 rpm | ||
| Body Material | GG20 | ||
| Body Size | 250M2 | ||
| Phase | 3 | ||
| Frequency | 50 | ||
| Voltage | 400 / 690 V (D/Y) | ||
| Number of Poles | 2 | ||
| Current | 91,54 / 53,07 A ( / ) | ||
| Torque | 176,30 Nm | ||
| Moment of Inertia | 0,519 kg.m² | ||
| Load | 4/4 100% Load | 3/4 75% Load | 2/4 50% Load |
| Efficiency | 95,3 % | 95,3 % | 94,8 % |
| Power Factor | 0,91 | 0,89 | 0,85 |
| Starting Current | 8,1 | ||
| Starting Moment | 2,8 | ||
| Breakdown Torque | 3,5 | ||
| Protection Degree | IP 55 | ||
| Insulation Class | F F | ||
| Temperature Increase Class | B B | ||
| Ambient Temperature | -20°C +40°C | ||
| Altitude | 1000 | ||
| Cooling Method | IC 411 | ||
| Noise of Level | 75 dB | ||
| Vibration Class | Derece A | ||
| Duty Type | S1 | ||
| Service Factor | 1,15 | ||
| Motor Rotation Direction | |||
| Approximate Rotor Weight | 102,0 kg | ||
| Approximate Motor Weight | 482,0 kg | ||
| Bearings | Ön (6204 ZZ/CM) | Arka (6204 ZZ/CM) | |
| Relubrication Period | 4000h | 30g | |
| Grease Volume | Shell Alvania Rt3 | 30g | |
| Grease Type | Shell Alvania Rt3 |
