4122 ANTI-VIBRATION MOUNT

SKU: 4122 ANTI-VIBRATION MOUNT
ID:230169

Description

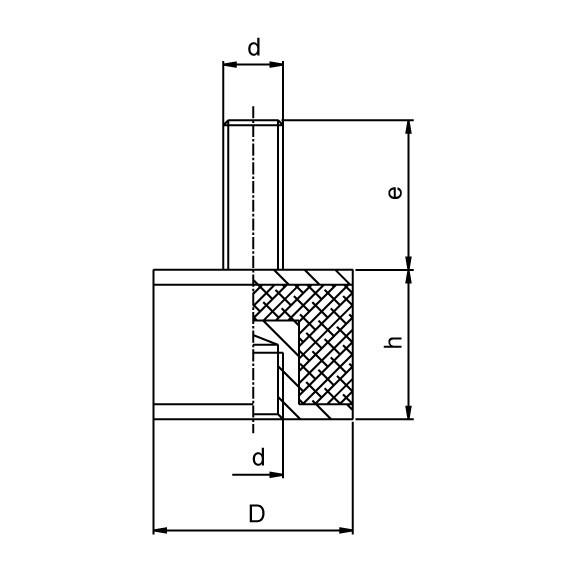

ESQUEMA-4122



Natural rubber 60º±5º shore A.

Zinc plated steel bolt.

Other sizes are made available upon request.

Cp: Max. compressive load (Kg).

Cz: Max. shear load (Kg).

logo Inox eng6





Code No D h d e Cp Cz
412201515 15 15 M4 14 15 3
412202015 20 15 M6 16 34 3
412202020 20 20 M6 16 29 2
412202520 25 20 M6 18 45 5
412202530 25 30 M6 18 35 3
412203020 30 20 M8 23 66 9
412203030 30 30 M8 23 61 7
412203040 30 40 M8 23 54 5
412204030 40 30 M8 23 98 15
412204035 40 35 M8 23 88 13
412205020 50 20 M10 28 169 21
412205030 50 30 M10 28 159 20
412205040 50 40 M10 28 144 18
412205050 50 50 M10 28 134 14
412206550 65 50 M12 37 230 23
412207525 75 25 M12 37 382 89
412207540 75 40 M12 37 378 78
412207550 75 50 M12 37 373 68
412210050 100 50 M16 45 660 98
412210055 100 55 M16 45 636 78
412210060 100 60 M16 45 586 48
