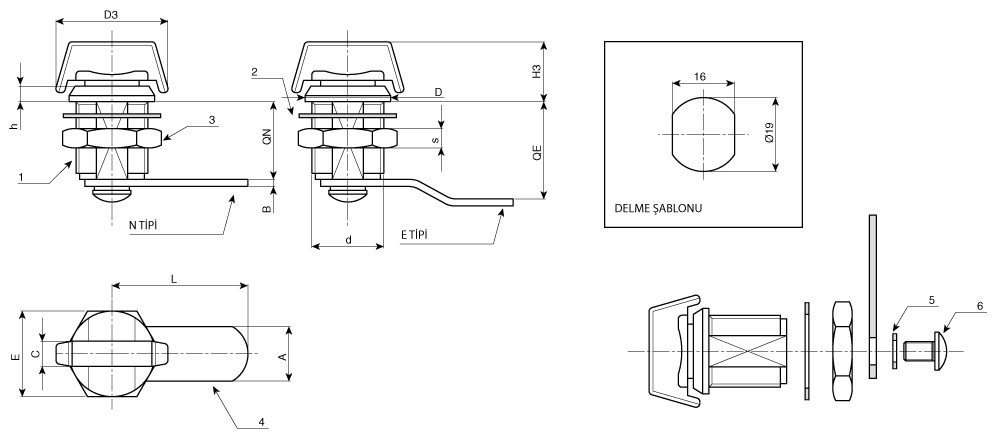

(1) Zamak cast lock body M19 rotor and handle. nickel plated.
(2) Black okside edilmiş, eRubber pul. Diameter 24×1 delik 19,4.
(3) Galvanized steel hexagonal nut M19x1.
(4) Galvanized steel lock handle. (Qn – N type flat – Qe – E type outward)
(5) Conical black oxidised steel elastic washer d.12×1,5.
(6) Galvanized steel Phillips domed bolt M5x8.
Turning diameter: 90°
| Code No | d | L | Qn | Qe | D | D3 | H3 | h | A | B | C | E | S | Şekil |
| 472720002 | M19 | 30 | 20 | – | 22 | 29 | 15 | 4 | 14 | 2.5 | 6.5 | 22 | 5 | N |
| 472725102 | M19 | 30 | – | 25 | 22 | 29 | 15 | 4 | 14 | 2.5 | 6.5 | 22 | 5 | E |
